Step-by-Step Wiring Diagram Sample for Electrical Circuits

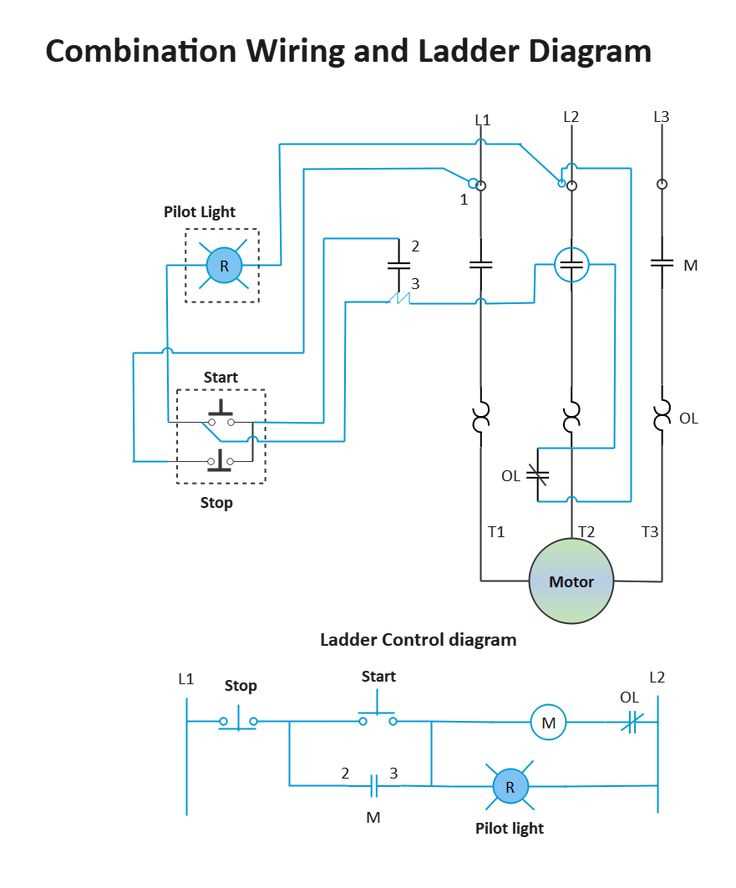

Start by identifying the power source on the illustration–usually a battery or mains connection–marked with + and − symbols. Trace the conductive paths in red, black, or blue lines; these indicate live, neutral, and ground circuits. Each line connects components in a precise sequence: switches interrupt current flow, resistors limit it, and LEDs light up when polarity aligns. Use a multimeter to verify connections before energizing.

Group related elements by color-coding. Solid lines denote direct links; dashed or dotted segments show optional or alternative routes. Terminate all exposed ends–floating wires cause shorts or erratic behavior. Labels like R1 (1kΩ) or C2 (10µF) specify values; cross-reference these against the parts manifest to avoid mismatches.

Position components logically: place high-current devices close to the supply, low-power sensors at branch endpoints. Print or etch the layout onto perfboard, maintaining scale. Drill or mill holes for through-hole parts; surface mounts require precise solder masks. Test continuity after assembly–verify zero ohms between ground and chassis, infinite resistance elsewhere.

For microcontroller circuits, isolate logic voltage from power rails. A 7805 regulator drops 12V to 5V; decouple its input/output with 0.1µF capacitors. Program pins via ICSP header–avoid voltage spikes by adding series resistors. Flash firmware first, then enable peripherals incrementally. Monitor heat sinks on linear drivers; PWM-operated loads need flyback diodes.

Document deviations immediately. Photograph or sketch revisions; store files as SVG or KiCad formats. Annotate junction points with voltage and current expectations–this simplifies troubleshooting. Secure high-gauge wires to terminal blocks; zip-tie looms for strain relief. Confirm functionality with bench tests before integration.

Sample Electrical Schematic for Home Automation Systems

Begin by labeling every connection point on your circuit map with unique identifiers–use alphanumeric codes (e.g., “L1”, “S3-Return”, “VCC-5”) instead of generic terms. This prevents ambiguity when troubleshooting or modifying layouts later. Trace each path back to its power source to verify no loose strands or undefined loops remain.

• Power Rails: Split a 12V DC supply into two isolated rails–one for logic (microcontrollers, relays) and one for high-current devices (motors, LEDs). Insert a 1A fuse on each rail before branching.
• Grounding: Create a single star ground at the negative terminal of the power source. Avoid daisy-chaining grounds to prevent voltage drops that interfere with sensors.
• Signal Paths: Route control lines (e.g., from switches to GPIO pins) with shielded twisted-pair cable. Keep these at least 5cm away from AC wires to reduce noise.

For a three-room setup, use a bus topology for sensor networks: connect temperature (DS18B20), occupancy (HC-SR501), and light (BH1750) modules in parallel to an I2C bus. Terminate both ends of the bus with 4.7kΩ pull-up resistors to 3.3V. Test each segment with an oscilloscope; signals should show clean edges without ringing.

Relay activation sequences demand precise timing. For a 4-channel module (SRD-05VDC-SL-C), wire relay coils directly to GPIO outputs–add flyback diodes (1N4007) across each coil to suppress voltage spikes. Program delays between coil energizing (100ms) and contact closure (200ms) to avoid transient overloads.

1. Draw power distribution first, then signal flow–avoid crossing lines unless using vias.
2. Label wire gauges next to each segment (e.g., “18AWG”, “22AWG”). Thicker wires (lower AWG) carry higher currents.
3. Annotate voltage drops expected over long runs; calculate using V=IR where R is wire resistance per meter (copper ≈ 0.0172 Ω/m).

For wireless nodes (ESP8266), isolate antenna traces from ground planes to maintain RF performance. Keep traces short–maximum ¼ wavelength (≈ 61mm at 2.4GHz)–and route around, not through, noisy areas. Add decoupling capacitors (0.1µF ceramic + 10µF tantalum) at both VCC and EN pins to stabilize power delivery.

Final validation requires a multimeter and continuity tester. Check each path for unintended shorts to ground or adjacent lines. Verify all connections match the original plan before energizing; a single reversed polarity (e.g., 5V to GND) can destroy components.

How to Interpret Electrical Schematics Step-by-Step

Identify the power source first. Look for symbols resembling a battery or labeled terminals marked “+” and “−” at the top or left of the schematic. Trace the path from these terminals through switches, resistors, or other components to the ground reference–usually depicted as a downward line or triangle. This initial scan reveals the primary current flow.

Locate component symbols by referencing a standardized legend. Common elements include:

• Circles for lamps or LEDs
• Zigzag lines for resistors
• Parallel lines for capacitors
• Breaks with an arc for switches
• Coiled lines for inductors

Match each symbol to its labeled function on the plan.

Follow the lines connecting components. Solid lines indicate direct connections, while dashed or dotted lines often represent alternative states (e.g., switched paths or optional links). Where lines cross without a dot, no electrical contact exists; a dot confirms a junction. Use colored pencils to highlight separate circuits if the schematic lacks color coding.

Check for annotations near components. Resistors may show “470Ω,” capacitors “10μF,” and transistors “2N3904.” These values dictate behavior–mismatching them risks circuit failure. Note voltage ratings for sensitive parts like diodes or ICs, ensuring the source doesn’t exceed limits.

Common Pitfalls

Verify ground connections thoroughly. Floating grounds create unpredictable behavior. For integrated circuits (ICs), confirm pin numbering follows the schematic’s orientation–manufacturers often mark Pin 1. Heatsinks or relays may require separate power feeds; trace these back to their sources.

Test continuity with a multimeter before powering up. Touch probes to each terminal pair a symbolic connection implies. Zero resistance confirms a short; infinite suggests an open circuit. Document discrepancies immediately–chasing errors after assembly complicates debugging.

Assemble components in stages, starting with power delivery. Insert the source, then verify voltage at downstream nodes using a multimeter. Add loads last (motors, lamps) to isolate faults. For complex plans, build subsections on a breadboard first, using the schematic as a checklist. Cross off each segment once validated.

Key Symbols and Components in Electrical Schematics

Start by memorizing resistor symbols–they appear in every circuit layout. A fixed resistor is depicted as a zigzag line (IEC standard) or a rectangle (ANSI), while variable resistors include an arrow piercing the symbol. Use color-coded diagrams to cross-reference values: orange bands indicate tolerances, and gold bands reveal precision levels. For pull-up or pull-down configurations, ensure the resistor connects directly to the supply rail or ground, respectively, to prevent floating inputs in microcontroller circuits.

Transistors demand careful attention to pinout orientation. An NPN bipolar junction transistor (BJT) shows an arrow on the emitter pointing outward, while PNP types reverse this direction. MOSFET symbols replace the arrow with a perpendicular line on the source terminal. Always verify the datasheet for pin numbering–swapping collector and emitter on a BJT can destroy the component. For switching applications, calculate base resistor values using R_B = (V_in – V_BE)/I_B, where V_BE typically measures 0.7V.

Power Supply and Ground Conventions

Distinguish between chassis ground, earth ground, and signal ground symbols. Chassis ground–a straight line with three descending diagonal strokes–should never connect to live circuits unless properly isolated. Earth ground, marked by a downward triangle, requires a physical connection to a grounding rod for safety. Signal ground, often a bold line or rail, must maintain low impedance paths to minimize noise. For dual-rail power supplies, label positive and negative rails clearly; a mislabeled connection can reverse polarity and damage sensitive ICs.

Capacitors in schematics use two parallel lines for non-polarized types, while polarized varieties (electrolytic or tantalum) add a curved plate or plus sign. When placing decoupling capacitors, position them millimeters from IC power pins to suppress high-frequency noise–use 0.1µF ceramics for general purposes and 10µF tantalums for bulk storage. For AC coupling, select values calculated via C = 1/(2πfX_C), where X_C is the desired capacitive reactance at a specific frequency.

Switches and relays follow consistent symbol patterns: a break in the line indicates normally open (NO), while a jumper denotes normally closed (NC). Push-button switches add a diagonal slash, and relays combine coil symbols with contact pairs. For momentary switches, ensure debounce circuits–either RC networks or software delays–to prevent false triggering. SPDT relays require flyback diodes across coils to absorb inductive spikes; omit this and risk damaging driving transistors.

Integrated circuits display as rectangles with numbered pins, but pin numbering differs between manufacturers. Always cross-check the datasheet: some ICs count pins counterclockwise from the top-left (e.g., DIP packages), while others start from the bottom-left (e.g., SOP footprints). For op-amps, remember the triangle symbol points toward the output; inverting/non-inverting inputs are marked with minus/plus signs. When designing circuits with microcontrollers, use pull-up resistors on open-drain pins to ensure defined logic levels during startup.

Cables and connectors use standardized symbols: coax cables show concentric circles, while ribbon cables appear as parallel lines with numbered arrows. For DIN or XLR connectors, diagram pin assignments explicitly–miswiring audio signals can introduce phase cancellation. When documenting custom harnesses, include a legend specifying wire gauges, insulation colors, and shield grounding methods. For high-speed signals (HDMI, USB), maintain impedance matching by following transmission line guidelines: 90Ω differential for USB, 100Ω for Ethernet.
