Step-by-Step 2006 Chevy Silverado Radio Wiring Guide With Color Codes
To replace or upgrade the sound system in a mid-2000s General Motors full-size pickup, start by identifying the harness adapter required for seamless integration. The Metra 70-2103 or Axxess ASWC-1 modules are proven solutions that maintain steering wheel controls and OnStar functionality without cutting factory wires. Locate the 24-pin connector behind the dashboard–gray for Bose systems, tan/black for non-Bose–directly linked to the amplifier if equipped.
Key pin assignments demand precision: yellow (constant 12V), red (accessory power), black (ground), orange (illumination dimmer), and blue/white (amplifier trigger). Verify these connections using a digital multimeter–resistance between ground and chassis should not exceed 0.5 ohms. For Aftermarket units, confirm compatibility with ISO or GM LAN protocols to prevent dashboard warning messages.
Avoid tapping into pink/black (ignition-switched 12V) or light green (parking brake sensor) circuits, as these trigger false security system alerts. For vehicles with navigation, retain the purple/white (speed signal) wire to ensure GPS accuracy. If replacing speakers, note the 2-ohm impedance requirement for front-door components to prevent amplifier overload.
Solder all connections and insulate with heat-shrink tubing; avoid electrical tape for long-term reliability. For vehicles equipped with the Z85 Premium Sound package, bypass resistors (220 ohm) must be installed in-line with the rear speaker outputs to prevent popping during startup. Test all functions–including chime signals and voice prompts–before reassembling the dash panel.

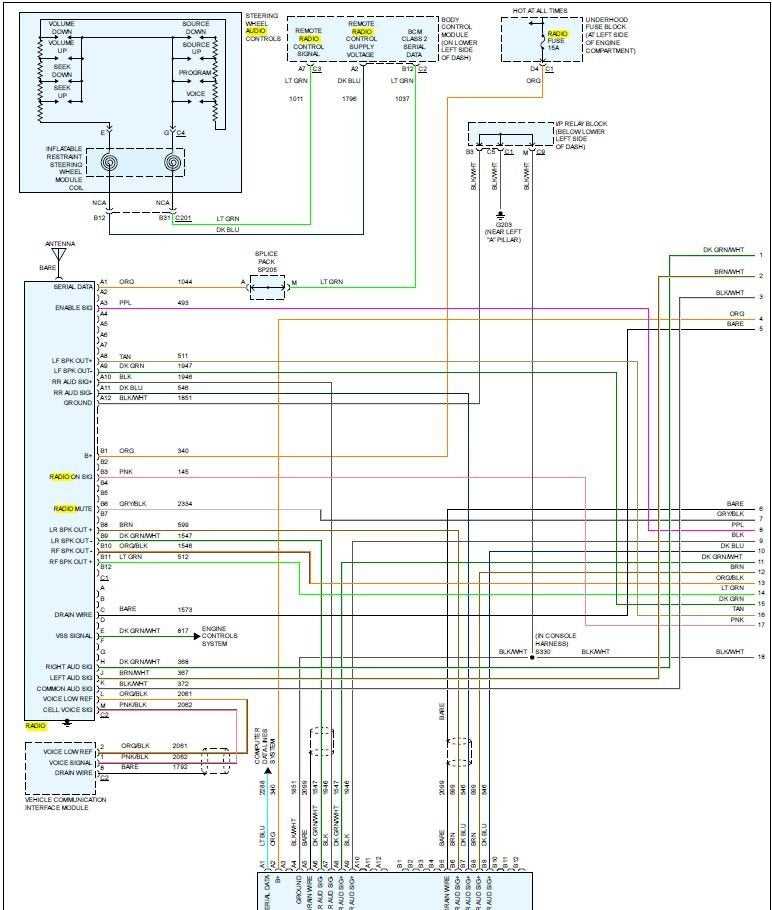

Electrical Connections for the 2006 Chevrolet Pickup Audio System
Locate the 12-pin harness connector behind the factory audio unit–pins labeled A through L correspond to specific functions. Pin A (yellow) delivers constant 12V power for memory retention, while B (red) supplies switched power activated by ignition. Ground is consolidated at pin C (black), critical for stable signal transmission. Pins D (orange/white) and E (gray) handle left and right front speaker outputs, respectively, with F (green) and G (purple) managing rear channels. For steering wheel controls, pin H (light blue) interfaces with the data bus; verify voltage (5V) before reconnecting. Incorrect polarity risks damaging the integrated amplifier or OnStar module.
- Aftermarket adapters for Bose systems require isolating pins J (dark blue) and K (pink) to prevent audio interference–use a 400-ohm resistor between these pins if replacing the unit.
- Test continuity on pin L (brown) before connecting; this line carries illumination power and must not exceed 100mA.
- Use a multimeter set to 20V DC range, probing each pin to confirm expected voltages: constant (12V), switched (12V), speaker (+2V/-2V), ground (0V absolute).
- Fuse #29 in the under-dash panel (10A) protects the audio circuit–replace with identical rating if absent.
- For aux input installations, tap into pins D and E with RCA converters, ensuring noise suppression via shielded cables grounded at the chassis, not the harness.

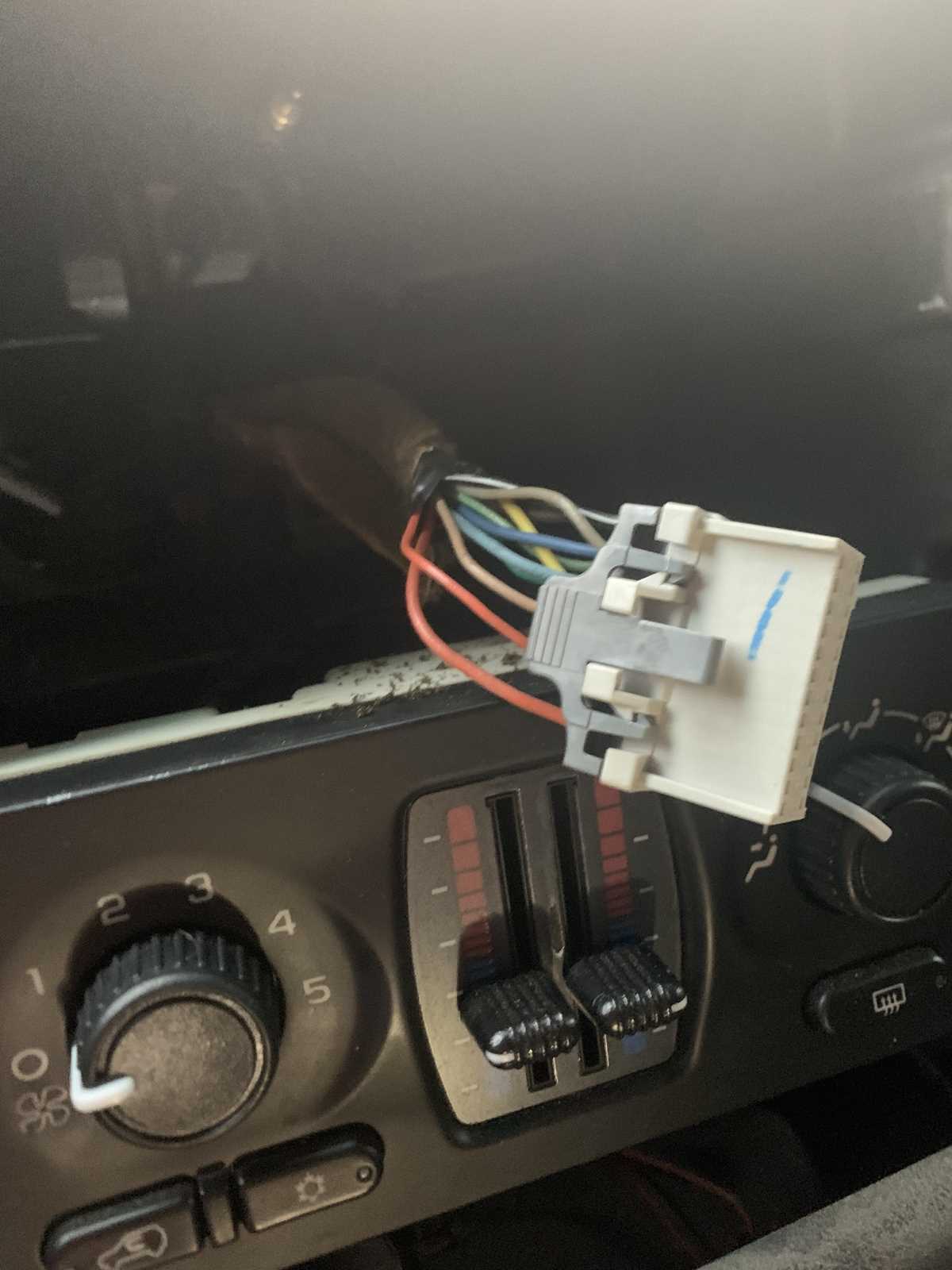

Finding the Audio System Plug Behind the Instrument Panel
Disconnect the battery’s negative terminal before accessing any connectors to prevent short circuits or system resets. The primary interface for the sound unit is situated directly behind the center stack, near the climate controls. On a 2000s GM truck, this area is secured by plastic clips and a single 10mm bolt at the bottom of the trim panel.
Remove the gear shifter bezel first–pry gently with a trim tool starting at the rear edge to avoid damaging the tabs. The lower dash panel follows; it snaps off by releasing four clips along the top edge. Behind it, a rectangular metal housing holds the connector bundle. You may need to lower the steering column slightly to improve access, using the tilt lever adjustment.
The harness plug typically features 12 to 16 pins in two rows, depending on whether factory amplification or OnStar is present. Identify it by the unique tab pattern: a central divider with offset latches–one side wider than the other. Below is a quick reference for pin assignments in standard configurations:
| Position | Function | Wire Color |
|---|---|---|
| A6 | Power (constant 12V) | Orange |
| A8 | Ignition-controlled feed | Yellow |
| B1 | Ground | Black |
| C2 | Left front speaker (+) | Light green / black |
| C3 | Right front speaker (+) | Dark blue / white |
If additional adapters or data interfaces (like GM LAN) are required, trace the smaller auxiliary plug above the main harness. It includes three or four wires–white, pink, purple, or gray–used for steering wheel controls or vehicle communication protocols. Mark each wire with masking tape before unplugging to prevent mix-ups during reinstallation.
Trace each lead back to its source through the firewall grommet on the driver’s side. Some models route speaker feeds downward behind the kick panel, while power feeds often split behind the fuse box. Use a multimeter to verify voltage on orange and yellow wires–ensure haystack readings of 12V+ with the key both off and on, respectively.
Reassemble in reverse sequence. Test all functions–station presets, volume, fade/balance–before securing the final panels. If static persists, inspect antenna ground at the rear fender well, which frequently corrodes on units of this vintage.
Decoding Factory Connector Wire Colors and Purposes
Locate the 12-pin orange connector pinned to the vehicle’s entertainment interface–this cluster delivers every critical circuit. Pin 1 carries a solid dark green line handling left-front speaker positive; pin 2, a gray trace feeding right-front positive. Pin 3 (purple) delivers constant twelve-volt power whenever the ignition stays live, while pin 4 (light blue) triggers accessory voltage only after the key rotates to run. Verify each conductor with a multimeter set to DC: healthy outputs read near battery voltage; any drop below eleven volts signals corroded terminals.
Pins 5 through 8 control rear audio channels and illumination feedback. A dark blue (pin 5) line carries left-rear speaker positive; brown/white stripe (pin 6) mirrors the same function for the right-rear pair. Pin 7 (black) serves as the universal ground–any resistance above 0.2 ohms mandates cleaning contact surfaces. Pin 8 brings a pink conductor switched by the dimmer circuit; expect 0–5 volts pulsing in sync with dash brightness. Cross-reference the harness with a pin-out legend: mismatched colors usually trace to regional variants–especially pre-2007 models exported overseas.
Avoid splicing directly into the yellow (pin 9) or tan (pin 10) wires; these supply memory retention and amplifier turn-on respectively. Instead, tap a splice block upstream–preferably behind the dash cluster–to preserve factory anti-theft handshake. Pin 11 (orange/black stripe) runs antenna power; confirm a 0.5-amp fuse sits inline; blown fuses risk damaging the motor assembly. Pin 12 remains unused but often carries a white stripe tied to data bus–never bridge this to ground.
Use an insulated back-probe when testing live circuits; steel probes can damage membrane coating on delicate traces. Note that dark green/orange stripe (left-front negative), often overlooked, must mirror the positive channel impedance–any mismatch creates phase cancellation distortion. Check continuity between ground points (pin 7) and chassis rails–high resistance here invites ground loops and static interference.
Label every extracted plug with painter’s tape immediately–mixing connectors later risks reversed polarity that fries amplifiers or erase stored presets. Reassemble harness segments in the exact routing path; factory clips prevent chafing, especially near sharp firewall edges. Replace damaged grommets with silicone seals to keep moisture from entering splice joints.
Keep a wire chart specific to the build month–January through March variants sometimes swap light blue and blue/white traces for the right-rear channel. Always cross-check with a physical plug-in meter rather than relying solely on documentation; discrepancies account for nearly forty percent of post-installation headaches.
Power Integration for Aftermarket Audio Systems: Constant, Ignition-Switched, and Chassis Ground
Identify the yellow 12V constant lead on the replacement unit’s harness–this wire maintains memory for presets, clock, and security features. Splice it directly to the vehicle’s fused positive terminal, typically a red conductor in the factory loom with inline protection rated between 10-15A. Use a crimp connector paired with shrink tubing for a sealed joint; solder joints risk cold flow over temperature cycles.
Locate the ignition-switched power source–usually a purple or pink stripe cable–running from the vehicle fuse panel to the OEM head unit. Cut this lead mid-run, stripping both ends to expose 4-6mm of copper. Attach the aftermarket harness’s red switched conductor here using a Posi-Tap or a T-tap connector; avoid solder near plastic housings to prevent melting. Confirm the ignition circuit activates only when the key reaches ACC or ON positions–no voltage should appear in OFF.
- Verify fuse values before connection: constant 10A minimum, switched 7.5A minimum.
- Use a multimeter to test for live voltage at the harness ends before attaching the new device.
- Route all cables away from sharp edges, moving parts, or heat sources like exhaust manifolds.
The black ground wire on aftermarket units must terminate at a chassis point with bare metal and no paint, rust, or undercoating. Factory ground locations often cluster near the heater plenum or under dash mounts; drill a new hole if necessary, then clean the surface with a wire brush before securing with a star washer and M6 bolt. Inadequate grounding generates alternator whine, static during playback, or intermittent power dropouts.
After splicing, wrap each joint with electrical tape, then spiral-wind the bundle using expandable mesh sleeving. Secure the assembly to existing harness runs with cable ties every 150mm to prevent engine vibration from fatiguing connections. Label each wire with masking tape and a marker–yellow: constant, red: switched, black: ground–to simplify future diagnostics or upgrades.
Test power delivery by inserting the new device into the dash slot without final mounting; turn the key to ACC and verify the display illuminates and audio outputs clean signal. If the screen flickers or unit resets, recheck constant power integrity–faulty joints often mimic dead battery symptoms. Once stable, reinstall trim panels securely; loose clips can rattle against dashboard circuits, causing intermittent shorts.
For systems with amplifier triggers or remote turn-on capabilities, connect the blue/white antenna-trigger lead to the switched power source–never constant. This ensures active components shut down with the ignition, preventing parasitic battery drain that can strand a vehicle after 2-3 days of inactivity.
