How to Wire Three Light Switches Step-by-Step Connection Guide

Begin by mapping your installation on paper. Assign each control point–let’s call them A, B, and C–a distinct role in managing separate luminaires or zones. Determine if all three will govern the same fixture or split duties across multiple loads. This clarity prevents crossed connections later. Use 14-gauge cable for standard 15-amp household circuits, or upgrade to 12-gauge if running 20 amps. Label every conductor at both ends before stripping insulation–grounds (bare or green), neutrals (white), and switched hots (black, red, or another color) must match exactly at each junction.

For shared control of a single load, employ a three-way and four-way switch configuration. Place the first three-way (A) at the power source, the second three-way (C) at the far end, and insert the four-way (B) between them. Connect travelers between A and B, then B and C–these pairs (typically red and black) carry the switching logic. Terminate the neutral at the load and splice it through at each box if needed. Verify continuity with a multimeter before energizing, testing all switch positions to confirm the load toggles correctly in every combination.

When assigning separate loads to each control, run dedicated hots from each switch to its respective luminaire. Use a common neutral and ground, but route all switched hots (color-coded if possible) directly to their loads. Avoid combining neutrals from different legs unless protected by a multi-wire branch circuit breaker–this prevents unintended parallel paths. For large installations, consider conduit (EMT or PVC) to simplify future expansions or repairs. Secure all connections with twist-on wire nuts sized for the gauge, then wrap with electrical tape to prevent loosening.

Always de-energize the panel before starting, and test circuits with a non-contact voltage detector at every stage. If adding controls to an existing setup, identify the feed location–whether from the service panel, an outlet upstream, or another switch box–and methodically trace each conductor’s path. For metal boxes, bond the ground to the box itself using a pigtail or self-tapping screw, then run a continuous ground to all switches and loads. Double-check every splice: loose connections cause arcing, overheating, and failures.

Add complexity only after mastering the basics. Three-point control systems demand strict adherence to codes (NEC Article 404.2 for switches, 310.15 for conductor ampacity). Skip shortcuts–installing a three-way without travelers or miswiring a four-way will render the setup inoperable. For clarity, keep neutrals bundled, hots separated by function, and grounds unbroken. Document your layout with photographs or a hand-drawn schematic matching your color codes, and store it near the electrical panel for future reference.

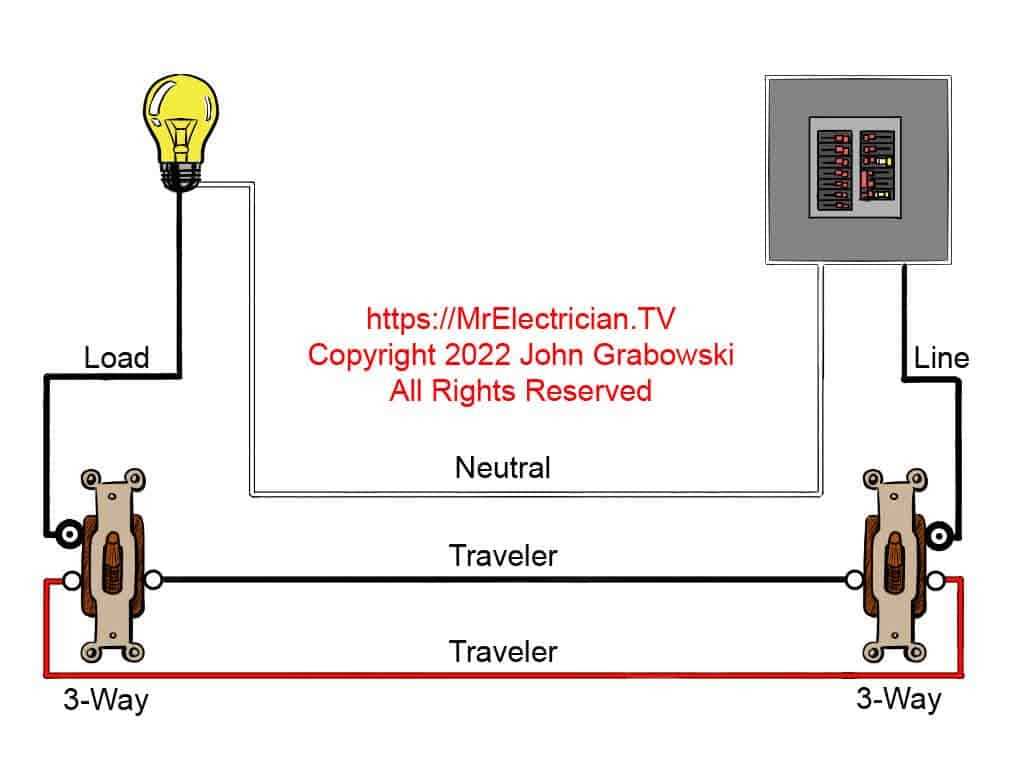

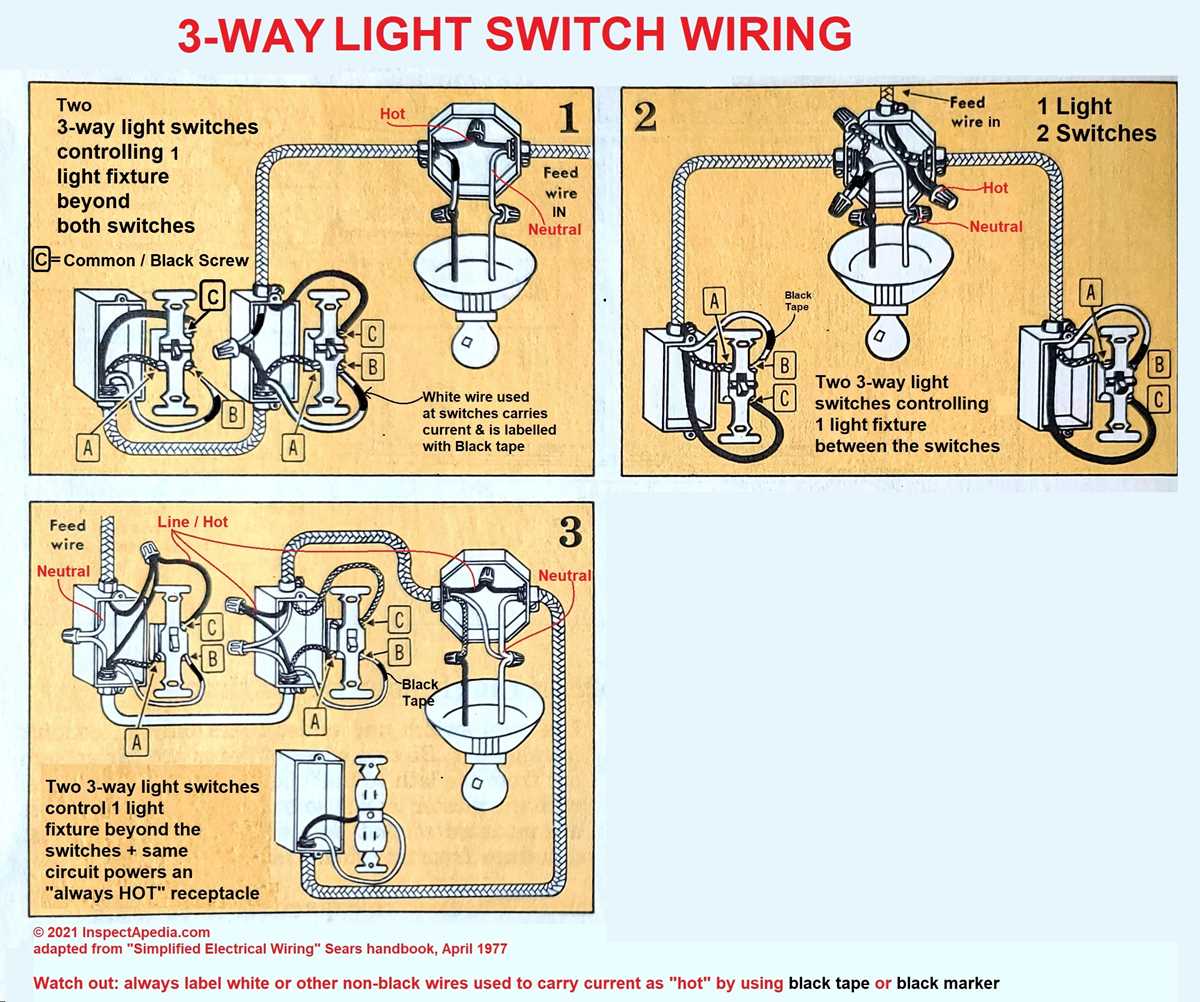

3-Way Toggle Connection Guide: Step-by-Step Circuit Layout

Install power feed directly to the first control point using 14-3 or 12-3 NM cable, matching breaker rating. Black conductor carries line voltage, red and white serve as travelers, and bare copper grounds the metal box. Secure each end with a wire nut after stripping 1/2 inch insulation. Label travelers at both ends to prevent mix-ups during final assembly.

Use these color codes strictly:

• First box: Line (black), Neutral (marked white), Travelers (red/white)
• Second and third boxes: Common (black), Travelers (red/white)
• Fixtures: Single pole connection (black), Neutral (white), Ground (green)

For independent fixture control, run separate 12-2 NM from each common terminal to its lamp. Connect black to brass screw, white to silver screw, and ground to green screw. Tighten terminal screws to 12-18 inch-pounds torque–avoid over-tightening as it fractures conductors. Verify continuity with a multimeter before energizing.

Junction Box Placement Requirements

Space junction boxes minimum 4.5 feet apart horizontally, 18 inches below finished ceiling height. Use steel boxes for metal raceway, plastic for NM cable. Minimum cubic inch capacity:

1. Single gang: 18 cu in
2. Double gang: 22 cu in
3. Per additional conductor: +2 cu in

Seal openings with UL-listed putty pads to meet NEC fire blocking codes. Avoid locating boxes behind insulation unless IC-rated.

Test each circuit path with a non-contact voltage tester before handling conductors. Energize circuit at breaker, verify 120V between line and neutral at first box. At each subsequent box, confirm 120V between common and neutral, zero volts between travelers. Switch each toggle while monitoring fixture response–correct wiring produces consistent on/off action without flicker.

For ceiling fans with integrated lamps, replace standard 15-amp toggles with 20-amp rated models. Use 12 AWG pigtails for all connections, securing with crimp sleeves instead of wire nuts for vibration resistance. Mark all breakers with fixture locations on panel directory–use heat-resistant labels approved for breaker box environments.

Essential Equipment for Configuring Triple Control Points

Start with a voltage tester rated for 120-277V AC to confirm circuits are dead–non-contact models with LED indicators reduce false negatives. Include a multitool with wire-stripping notches calibrated for 12-14 AWG solid copper, avoiding serrated jaws that score conductors. For secure terminals, needle-nose pliers with insulated grips prevent stripping threads on outlet screws, particularly when tightening #6-32 terminals under cover plates. A torque screwdriver set ensures terminal screws meet NEC 110.14(D) requirements: 12 in-lbs for #10 screws, 20 in-lbs for larger fasteners.

Acquire UL-listed three-way and four-way toggle mechanisms from manufacturers who mark common terminals with a darker screw–Leviton’s brass finish or Eaton’s side-wired models resist corrosion in high-humidity zones. Use Romex staples sized for NM-B 14/2 or 12/3 cables, spacing them every 4.5 feet along studs and 12 inches from boxes per NEC 320.30. For conduit installations, flexible LFNC-B tubing simplifies bends around corners without exceeding 360 degrees of total curvature. Equip yourself with a 21-inch fish tape coated in nylon to avoid kinking when pulling through EMT.

Keep a 5-inch depth electrical box extender in inventory–Steel City’s adjustable models fit 4-inch square boxes and compensate for drywall thickness variations. Apply antioxidant compound on aluminum conductors before securing them under terminals to prevent oxidation gaps that create high-resistance connections. For final trims, match faceplate finishes to the environment: brushed nickel in coastal areas, white polycarbonate in basements with radon risks. Store spare 15A breakers to address circuit overloads without improvising jumper wires.

Step-by-Step Connection Process for a Triple-Control Installation

Identify the power source terminal marked LINE on the first control unit–this feeds incoming current. Attach the black conductor from the circuit directly to it, securing with a terminal screw. Leave the brass-colored screw empty for now.

Locate the traveler screws on both switches–these appear as dual brass terminals. Run a length of 14-gauge red and black stranded copper between them, ensuring tight connections. Label each end to prevent confusion during later stages.

At the final control, attach the remaining brass screw to the outgoing black conductor leading to the fixture. Verify the fixture’s neutral (white) and ground (bare/green) wires are spliced into the junction box with wire nuts rated for 20A circuits.

Shut off the breaker before proceeding. Use a non-contact voltage tester on all terminals to confirm no live current remains. Mistakes here carry severe risk of short-circuiting or arcing.

Strip 5/8″ of insulation from each conductor–excess bare wire invites faults. Twist strands tightly before bending into a hook, then fasten under screws clockwise to match the natural tightening direction.

Bundle excess conductor neatly with cable ties, keeping them recessed deep in the junction box. Crowded connections cause heat buildup and potential failures over time. Leave at least 6″ of slack for future adjustments.

Troubleshooting Common Missteps

If the assembly fails to energize both units, recheck traveler connections–reversed terminals disrupt the entire sequence. Swap red and black on one unit if necessary. Always retest with the breaker off first.

Flickering indicates a loose connection. Re-tighten all screws to 12 in-lbs torque using a precision driver. Avoid overtightening, which can strip threads or crack the plastic base. Replace any damaged components immediately.

Critical Errors in Multi-Control Circuit Installations

Mismatching neutral conductors creates instant safety hazards. Each circuit leg must share an identical return path–crossing neutrals between separate branches induces phantom voltages, overheating terminals, and potential fires. Verify continuity with a multimeter before securing connections; confirm all white wires terminate at the same bus bar in the service panel. Ignoring this risks violating NEC 300.13, which mandates dedicated neutrals for each ungrounded conductor.

• Omitting pigtails forces entire current through switch contacts, accelerating wear. Connect feed wires to a short jumper first, then branch to controls–this distributes load evenly and prevents loose connections.
• Overloading terminal screws with multiple wires violates UL standards. Each screw accepts one copper conductor only; stack additional connections using approved wire nuts or push-in connectors.
• Neglecting to label live cables invites future maintenance nightmares. Use color-coded tape: red for switched hot, blue for travelers, and striped white for neutrals if deviating from standard conventions.

Ground interruption breaks fault protection. All metallic components–switch plates, junction boxes, and mounting brackets–must bond to the equipment grounding conductor without interruption. Verify zero ohms between each switch yoke and the panel ground; anything above 0.5 ohms indicates corrosion or loose connections requiring immediate correction.
