Complete Guide to Wiring a 4-Way Switch for Electrical Circuits
Install a traveler terminal configuration first–this is the core of any multi-point circuit setup. Use 12-gauge copper conductors for all connections to handle standard residential loads without overheating. Label each wire at both ends with colored tape: black (common), red and blue (travelers), and white (neutral). Failure to mark them consistently will lead to reversed polarity errors.
Mount the switches in this order: power source → first control → intermediate units → final control → load. Connect the black wire from the source directly to the common terminal of the first switch. Run red and blue travelers between the first and last switches, looping through each intermediate device’s corresponding terminals. Secure all terminal screws with 18 AWG bare copper grounding wire bonded to the metal box.
Test the circuit in stages: verify voltage at the first control before proceeding to the next. Use a non-contact voltage tester to confirm power isolation before touching any connections. If the load fails to respond, check for loose traveler links between switches–common faults occur when conductors aren’t fully inserted into push-in terminals. Apply wire nuts on all splices and cover with electrical tape to prevent short circuits.
For dimmable loads, replace standard controls with smart modules compatible with three-way/quadraplex systems. Ensure the neutral wire (white) is continuous from the panel to the load for stable operation. Avoid mixing 14-gauge wire with 12-gauge–this creates a fire hazard at junction points due to uneven current distribution.
Understanding 4-Terminal Electrical Configurations

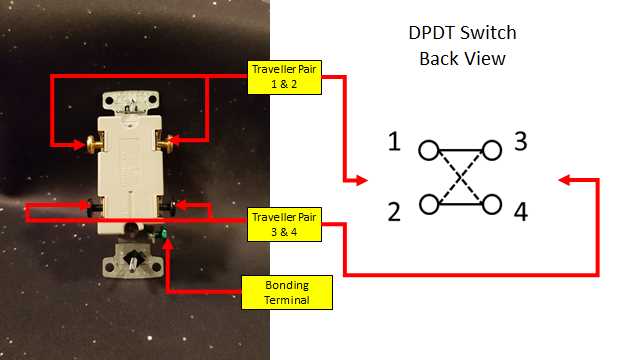

Begin by identifying the traveler terminals–these are the two screws on the brass-colored side of each intermediary device. Label the first pair T1 and T2 at one location, then match them to T3 and T4 on the next. Connect these in sequence: T1–T3 and T2–T4, ensuring no cross-connections. Use 14-gauge solid copper for all traveler links, as stranded wire risks loose connections under screw terminals.
Attach the incoming hot conductor to the dark screw at the first control point, then extend it to the corresponding terminal on the last controller using a single continuous run. Grounds must tie together with a pigtail to every metal yoke, bonding each to the box if metallic. Test continuity with a multimeter before energizing–open circuits at any traveler path prevent proper toggling.
Common Pitfalls in Multi-Point Circuits
Misplaced neutrals cause erratic behavior or dead legs; keep them isolated to their own terminal blocks. Verify screw tightness with a torque screwdriver–loose connections create heat and intermittent failures. Avoid daisy-chaining power; feed each controller directly from the source to maintain consistent voltage.
Critical: Color-code travelers with red and blue striped tape on both ends to track polarity. If reversing direction at any point, swap only one pair (e.g., T1 with T4, never both). Use wire nuts rated for 600V minimum, twisting conductors clockwise before capping to prevent pull-outs.
Essential Equipment and Supplies for Multi-Location Circuit Installation
Begin with a non-contact voltage detector to confirm circuits are de-energized before handling conductors. Models like Klein Tools NCVT-3 or Fluke 1AC-A II provide audible and visual alerts for AC voltages between 50V and 1000V, critical for safety in junction boxes with multiple live terminals.
Use 14-gauge or 12-gauge copper wire, depending on circuit capacity–14 AWG handles 15A loads, while 12 AWG supports 20A. Ensure stranded wire for flexible connections in crowded boxes; solid wire suits straight runs. Purchase an additional 20% length to accommodate bends and unexpected routing challenges.
A multitool with wire-stripping capabilities, such as the Irwin VISE-GRIP, allows precise insulation removal without nicking conductors. Set the strip gauge to 1/2 inch for standard residential terminals. Avoid cheap strippers with loose mechanisms–slippage risks damaging strands, leading to poor conductivity.
Combination pliers with crimping jaws, like Channellock 436, secure terminal connections without relying solely on switch screws. Use insulated crimp connectors for splices in junction boxes where wires exceed box fill limits. Verify torque specs: 12–15 inch-pounds for terminal screws to prevent loosening over time.
Specialized Components for Functional Reliability
Install a UL-listed 4-terminal control device (e.g., Leviton 5643 or Lutron Diva DV-104P) rated for the circuit’s amperage. Match the unit’s color-coded screws to incoming hot conductors (black for common, brass for travelers). Avoid “universal” or unbranded units–poor material quality causes premature failure under frequent toggling.
Grounding pigtails, minimum 6 inches of 12 AWG bare copper, must connect to all control points and metal boxes. Use green wire nuts (ideal size: 18–10 AWG) for grounding splices. Never omit grounding–ungrounded systems risk shock hazards if insulation degrades or screws loosen.
Label each conductor with heat-shrink tubing or pre-printed tags before connecting. Hot (black/red) and traveler (brass/yellow) wires require distinct identifiers to prevent crossed circuits during future maintenance. A fine-tip permanent marker adds temporary labels for testing, but tubing withstands heat and abrasion long-term.
Test screws and grounding points with a digital multimeter after installation. Set to continuity mode to verify traveler paths conduct properly across all control units. Check for voltage drop: readings above 3% indicate loose connections or undersized wire. Re-terminate any suspect joints with new crimps or wire nuts to eliminate intermittent faults.
Step-by-Step Guide to Identifying Conductors in a Multi-Point Control System
Shut off power at the breaker panel and verify absence of current using a non-contact voltage tester on all terminals and cables near the device. Label each conductor with masking tape immediately after confirming de-energization: travelers receive sequential numbers (T1, T2), common terminals get “C,” and ground remains bare or green. If the setup includes intermediate controls between two endpoints, expect four cable bundles–two from the endpoints and two connecting intermediate points–as failure to account for all bundles leads to miswiring.
| Conductor Type | Color Code (NM Cable) | Alternate Markings |
|---|---|---|
| Traveler | Red, Black, or Yellow | Taped white (rare) |
| Common | Black or Red | Taped black (if reused) |
| Neutral | White | Not always present |
| Ground | Green/Bare | None |
Trace conductors back to their origin boxes when labels are missing. At each endpoint box, locate the pair entering from the same cable: one connects to the brass terminal (traveler), the other to the dark terminal (common). Intermediate boxes contain only travelers–identify them by elimination, marking both incoming pairs as they’ll cross-connect to opposite terminals. Use a continuity tester to confirm travelers remain unbroken between boxes; interrupted pairs require replacement of the entire cable segment.
Group conductors by function before attaching to terminals. Common conductors attach to the single unlabeled screw, typically darker than traveler screws. Traveler pairs connect to remaining screws–matching terminals on opposite sides–while grounds bundle under the green grounding screw. If neutral conductors exist, cap them together with a wire nut, ensuring no contact with terminals. Double-check every connection: reversed travelers cause inconsistent operation, swapped common and traveler conductors create dead shorts when toggled.
Restore power incrementally, testing each control point with a lamp or multimeter. The fixture should toggle between on/off states with every actuator, regardless of position sequence. If behavior deviates–lights flicker, partial brightness, or inconsistent switching–recheck terminals for loose screws, crossed conductors, or damaged insulation. Replace any suspect cables immediately; shared neutrals or improperly bundled grounds violate electrical codes and create fire hazards.
Establishing Connections Between Intermediate and Multi-Position Control Points
Identify the common terminal on the three-location control–this is marked by a darker screw or labeled “COM”. Attach the first runner conductor from this terminal to one of the brass-colored posts on the four-location mechanism. Match the second runner conductor to the adjacent identical post; polarity is irrelevant here but consistency prevents misfires. Label both conductors with numbered tape at each end to track their path during final verification.
- Use 14-gauge stranded copper conductors for runner circuits in residential setups rated under 15 amps; upgrade to 12-gauge if wiring spans exceed 50 feet to reduce voltage drop.
- Secure connections with flush-cut wire nuts rated for at least three conductors; twist clockwise, tug each strand, then insulate with electrical tape wound three times in a spiral.
- Test runner continuity at every connection point using a multimeter set to ohms–expected reading: near-zero resistance when the circuit is closed, infinite when open.
- Power off the circuit at the panel; verify absence of current with a non-contact tester twice before handling any exposed copper.
- Attach the remaining free ends of the runner conductors to the second three-location control’s corresponding terminals; confirm both switches now share identical runner pairs.
- Energize the circuit, toggle each control repeatedly–if both extremes function while the intermediate mechanism reverses state with each flick, the connection sequence is correct.
For multi-story installations, route runner conductors through flexible conduit between floors–avoid stapling within 12 inches of any junction box to comply with NEC 300.4(D). If existing boxes lack sufficient capacity, replace with deeper 4″×4″ models (minimum 21 cubic inches) to accommodate expansion and future servicing without crowding. Remember: runner pairs must remain isolated from grounded conductors at all times to prevent unintended neutrals feeding through alternate paths.
