Complete Wiring Guide for Goodman Furnace Models with Step-by-Step Schematics
Begin with the control board’s power input–typically a 120V or 24V supply depending on the model variant. Verify the terminal blocks for L1/L2 (line voltage) and neutral connections; incorrect polarity can trip safety limits or prevent ignition. Locate the high-limit switch near the burner assembly; it must close fully to allow voltage passage to the draft inducer motor. Disconnect power before probing with a multimeter–resistance should read near zero ohms when functional.
Trace the igniter circuit next. Silicon carbide igniters require clean, direct current to avoid premature failure. Ensure the wiring harness clips firmly into the ceramic base; loose contacts cause intermittent sparks or complete ignition failure. Check the flame sensor’s grounding path–corrosion on its single conductor disrupts microamp signals to the control board, leading to repeated lockouts. Sandpaper (#600 grit) removes oxidation without damaging the rod’s sensitive coating.
Follow the blower motor’s run capacitor circuit–its microfarad rating (usually 5-10 μF) must match the motor’s specifications. Swap capacitors if bulging or leaking; a weak capacitor reduces airflow, tripping the high-temperature limit. Examine the auxiliary limit switch near the heat exchanger; it opens at 200°F (±15°F) to cut power to the gas valve. Bypass checks with a jumper wire only for diagnosis–never leave bypassed during operation.
Inspect the pressure switch tubing for kinks or blockages. A blocked port falsely indicates insufficient combustion air, triggering safety shutdowns. Test switch operation by blowing into its hose; the contact should close audibly. Replace switches with identical pressure ratings (typically 0.2–0.8 inches WC). Finally, confirm thermostat wiring–R (24V), W (heat call), and C (common) must connect without shorts. Reverse polarity on R/C prevents proper transformer output.
Electrical Schematic Guide for Goodman HVAC Units
Locate the control board label (typically CB340 or CB180) before inspecting connections. Terminal blocks marked “R,” “W,” “Y,” and “G” correspond to 24V inputs: red (power), white (heat call), yellow (cooling activation), and green (fan relay). For models with dual-stage heating, verify the “W2″ terminal links to the secondary igniter sequence–failure here causes erratic flame sensing cycles. Disconnect blower motor leads (black/blue wires) at the capacitor cap before resistance testing; readings should stabilize between 95-110 ohms across windings. If voltage drops below 110VAC at the draft inducer during startup, replace the pressure switch (HP/LP ports must align with manufacturer-rated -0.5” WC vacuum).
Critical Connection Points
| Component | Wire Color | Test Point | Expected Reading |
|---|---|---|---|
| Ignition control | White/Red stripe | Between terminal IGN and ground | 24VAC pulse, 3-5 sec duration |
| Flame sensor | Grey | Base to burner assembly | 0.5-10 µA (AC microampere) |
| Rollout switch | Black | Closed loop continuity | 0 ohms (tripped >= infinity) |
| Transformer secondary | Red/White solid | Across R-C terminals | 24-28VAC (loaded condition) |

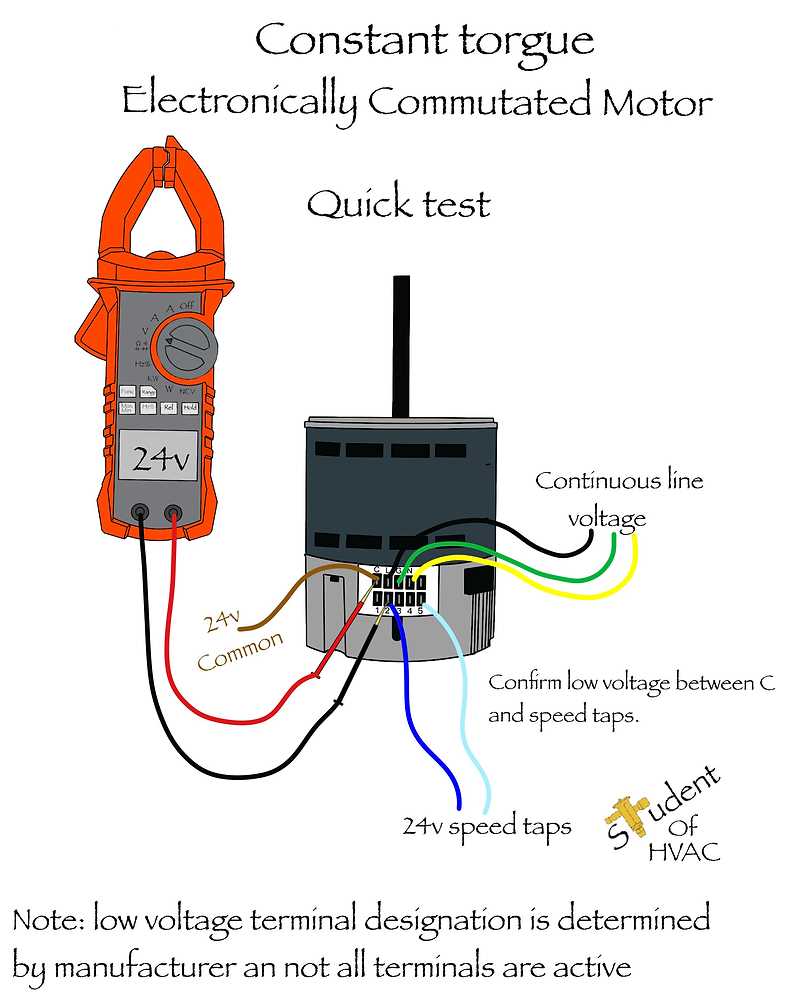

Jumper R to W temporarily to bypass thermostat circuits–if the unit fires, replace the thermostat wiring harness (common failure: corroded 18AWG leads). For ECM blower motors, check the white “PWM” wire at the module bracket; signal should oscillate between 10-15V DC during full-speed operation. High-limit switches trip at 200°F–reset manually once airflow obstruction clears, but replace if cycling persists within 24 hours. Always verify neutral-ground bonds at the service panel; floating neutrals mimic induced voltage spikes that corrupt control board flash memory.
Finding Electrical Schematics on Your Heat Pump Unit
Check the inner door panel first–most manufacturers attach a laminated quick-reference chart here. Look for a label printed with circuit paths, typically secured with adhesive or a single screw near the control board. If absent, slide out the blower assembly tray; smaller units often conceal the wiring layout on the underside of this component.
Units manufactured after 2018 usually include a QR code on the main data plate. Scan it with any phone camera to pull up an interactive schematic. For older installations, locate the label on the combustion chamber housing or between the inducer motor and pressure switch ports–common spots for legacy models.
Key Locations to Inspect
- Rear wall of blower compartment, behind filter rack
- Side panel near high-voltage terminal block
- Inside inducer motor access cover
- Affixed to gas valve or ignition control module
- Bottom edge of removeable flame roll-out door
Models GME, GMH, and GCV series feature a fold-out accordion-style schematic tucked into a plastic sleeve along the left interior wall. Peel back the insulation near the limit switch cluster–some variants hide a miniaturized diagram under the thermal blanket here.
If physical labels are damaged, cross-reference the ten-digit serial number etched on the cabinet tag with the manufacturer’s technical portal. Use the last four digits prefixed by “GD” (e.g., GD4175) to filter search results for the correct schematic PDF. Avoid relying solely on the model number; variance codes appended to the serial yield more precise diagrams.
Avoiding Common Mistakes
- Misreading 1/0 gauge wires as ground–verify with resistance test
- Assuming identical layouts between single-stage and two-stage units
- Overlooking dual-fuel variants with unique auxiliary relay configurations
- Ignoring voltage rating discrepancies between ECM and PSC motors
For aftermarket control boards, match pin assignments listed on the module’s dash-mounted legend rather than the main unit schematic. Thermostat wiring color codes often deviate on these setups–trace each conductor back to the terminal block using a continuity tester first.
Step-by-Step Guide to Decoding HVAC Control Charts
Locate the legend first–it’s often tucked in a corner or along the edge of the schematic. Manufacturer-specific symbols like Goodman’s compressed icon set will appear here, with annotations for switches, motors, and relays. Cross-reference each symbol with the physical components on the unit’s interior panel; look for matching labels like C, R, W, Y, G, and their corresponding color-coded leads to avoid misinterpretation.
Trace the power source pathway before following signal circuits. Start at the line-voltage entry, typically marked L1/L2 or 120V/240V, then follow the thick red or black lines through fuses, breakers, and terminal blocks. Goodman schematics often group transformers and blower motors separately–verify voltage ratings on these segments against the legend to prevent overload risks.
Isolate safety loops next. High-limit switches, rollout sensors, and pressure cutoffs form a distinct low-voltage ring around the main circuit. These appear as dashed or zigzag lines; note their reset conditions (manual vs. automatic) and test continuity with a multimeter if the system fails to ignite. Goodman’s flame rollout sensor often terminates at the control board’s FRS terminal–ensure this path is closed before proceeding.
Map the sequence of operation by identifying relay coils and their contacts. Labels like K1, K2, or MTR correspond to blower, inducer, and ignition relays–use arrows to mark their normally open/closed states. Verify airflow switches by confirming the inducer relay pulls in before ignition; Goodman schematics frequently place this upstream of the gas valve solenoid, so miswiring here causes no heat calls.
Finalize by checking low-voltage control logic. Thermostat connections (R, W1, Y1, G) should route through designated terminal strips–Goodman’s often use a plug-in harness; ensure polarity matches. If integrating smart controls, confirm compatibility with the board’s C terminal for 24V common. Document all findings with photographs of the actual connections for troubleshooting.
Key Electrical Parts in HVAC Heating Systems

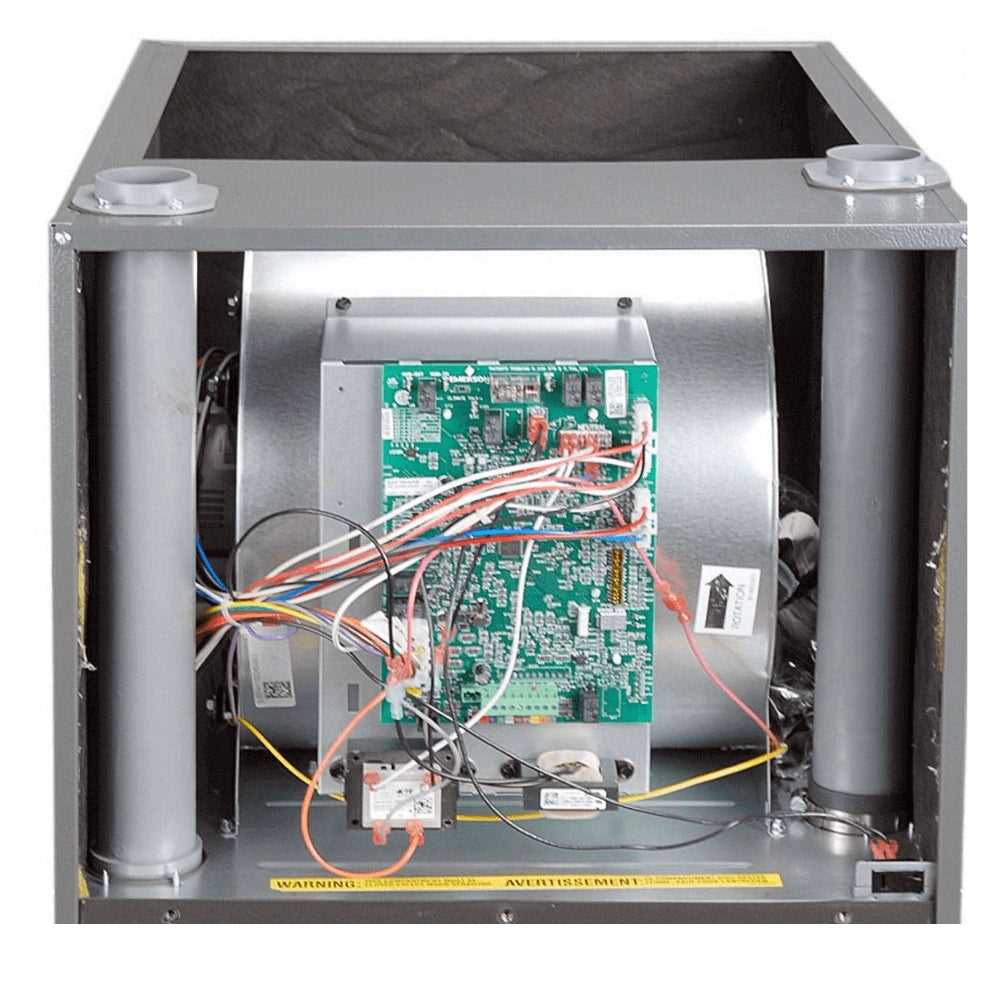

Locate the control board first–it coordinates ignition, blower speed, and safety cutoffs. Check the 24-volt terminals labeled R, C, W, Y, and G; misconnections here disrupt sequencing. Verify the R terminal carries transformer output; reverse polarity trips built-in fuses.
The inducer motor harness connects via a three-pin plug; swap wires only if resistance tests show open circuits. Ignition modules require solid-state relays–loose screws cause intermittent flame failure. Measure capacitor leads (µF rating matches label) before suspecting motor burnout.
Safety switches interlock in series: high-limit, pressure, and rollout sensors. Jumper only for troubleshooting, never bypass permanently–overheating risks carbon monoxide leaks. Replace limit switches if contacts weld shut; standard 160°F cutout should reset automatically.
Examine circulator relay contacts for pitting; arcing spots indicate imminent failure. Low-voltage wiring uses 18 AWG for controls–thicker gauge risks tripping breaker relays. Always tag wires before disconnecting to avoid cross-terminal errors during reassembly.
Gas valve solenoid coils draw 40-120 ohms; infinite resistance means replacement needed. Thermostat cables near heat sources degrade faster–insulate splices with heat-resistant sleeves. Integrated circuit boards fail from voltage spikes; install a varistor across the transformer primary to absorb surges.
Final check: energize system while observing sequence lights. Steady flame signal excludes draft issues; blinking codes point to specific component failures. Document each step–future repairs rely on exact progress notes.
