Complete Guide to Installing and Understanding a Four Way Switch Wiring Setup

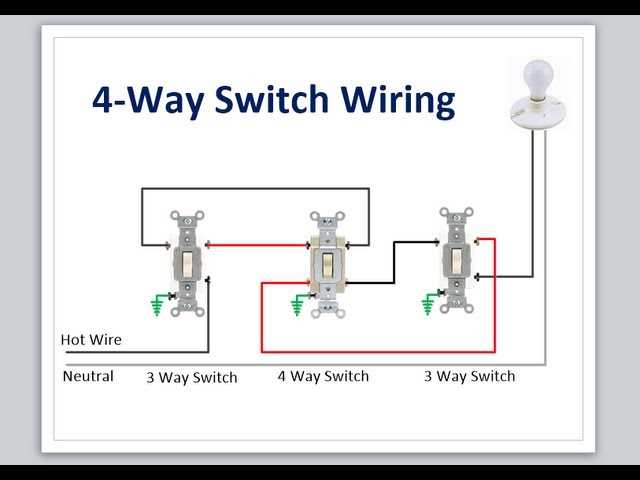

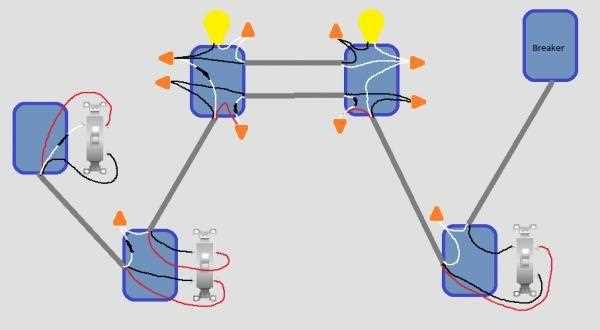

Install a central power hub between the first and second three-terminal controllers to ensure seamless operation across all access points. Use 14-gauge copper conductors for standard 15-amp circuits and 12-gauge if the load exceeds 10 amps. Connect the common terminal of the first device directly to the power source, then run travelers to the intermediate unit’s matching terminals. The final controller’s common should link to the fixture.

Label each traveler pair with red and black markers at both ends to avoid confusion during testing. Before energizing, verify all connections with a non-contact voltage detector–no active power should be present on the neutral or ground wires. If the setup spans multiple junction boxes, secure all cables with plastic staples every 18 inches to prevent slippage.

For dimmable installations, swap standard toggle units with solid-state controllers compatible with LED loads–consult the manufacturer’s current rating charts. When wiring through metal conduit, ground all boxes and device yokes using green grounding screws or jumpers. Test functionality by toggling each access point: the fixture should respond instantly without flicker or delay.

Complex Circuit Layout for Intermediate Electrical Connections

Install two travelers between each pair of transition points in the setup. Label both conductors at every terminal using a consistent color code: one red, one black, and repeat this pattern through all three device locations. Secure connections with anti-oxidant paste on copper strands before tightening terminal screws to 12 inch-pounds torque. Skip the common wire at intermediate points–only the endpoints (typically lighting loads or power sources) should terminate on the dark-colored screw.

• Mark each box with numbered identifiers matching the building’s blueprint.
• Test continuity after each segment is wired using a multimeter set to 200 ohms range.

Cap unused terminals with twist-on connectors rated for 600V.

• Route all conductors a minimum of 6 inches from any HVAC ducts or water pipes.
• Use junction boxes no smaller than 4 × 2 ½ inches deep for each connection point.

Essential Gear and Supplies for Multi-Path Electrical Control Setup

Start with a voltage tester–non-contact models like the Fluke 1AC-II or Klein NCVT-3 detect live currents without physical contact. Prioritize units with audible alerts and built-in flashlights; these features reduce errors in dimly lit junction boxes where visual confirmation is critical. Always verify the tester on a known live source before reliance.

Use 12-gauge Romex cable (or equivalent solid copper conductor) for all new connections. Stranded wire may seem flexible but complicates secure terminal attachments in 3-way and intervening control points. Opt for THHN wire if pulling through conduit–its nylon coating resists abrasion during installation in tight spaces like stud cavities or metal conduit runs.

Installation demands insulated screwdrivers–specifically a #2 Phillips and a 3/8-inch flathead with at least 1000V-rated handles. Klein Tools 11062 and Wera Kraftform models provide ergonomic grips and torque-controlled shafts that prevent slippage when tightening terminal screws under torque specifications (typically 12-15 inch-pounds). Avoid magnetic tips; they attract stray strands, risking shorts.

Wire strippers must precisely remove 0.5 inches of insulation without nicking conductors. Ideal choices like the Ideal Reflex or Greenlee GT-16 handle multiple gauges automatically and include integrated cutters for trimming excess wire. Manual stripping pliers are permissible but require careful calibration–test on scrap wire first to prevent scoring, which weakens the copper and invites future corrosion.

Secure connections with UL-listed wire nuts–red for 3-4 conductors, tan for 2-3. Twist wires clockwise before application, matching the nut’s internal thread direction. For added reliability, apply dielectric grease (Permatex 22058) to the twist to prevent oxidation in humid environments. Position the nut fully flush against the insulation; exposed copper increases failure risks.

Additional Precision Tools

Junction box selection impacts longevity–4-inch square metal boxes with plaster rings accommodate the extra volume of intermediate control points better than plastic variants. For existing installations, use low-profile remodels with built-in clamps if space is constrained. Ensure boxes are grounded separately; piggybacking on device grounds violates NEC 314.4.

Labeling is non-negotiable. Use P-touch labels (Brother PT-D600) or heat-shrink sleeves to identify travelers, commons, and feed wires at each control point. Color-coded electrical tape works temporarily but degrades under heat or UV exposure. Archive labels digitally (e.g., smartphone photos) for future reference–disorganized documentation prolongs troubleshooting by hours.

How to Trace Conductors in a Multi-Position Toggle Configuration

Locate the incoming power feed first. Shut off the breaker, then examine each junction box in the sequence. The feed line–typically a black or red conductor with voltage–enters the first toggle terminal marked LINE or COMMON; this is your fixed input point. Confirm with a multimeter set to AC voltage: probe the suspected conductor against neutral (white) or ground (bare/green) while maintaining zero continuity to any travelers. Record these terminals before proceeding–incorrect identification here disrupts downstream connections.

Distinguish Travelers from Permanent Leads

Travelers–usually paired red and black wires–terminate in brass or gold screws labeled TRAVELER across intermediate toggles. Avoid confusing them with permanent hot or neutral: travelers switch roles based on position, carrying voltage alternately. To isolate, disconnect each candidate from its terminal, then toggle any adjacent control. Live travelers will fluctuate voltage (120V to 0V) on the multimeter; dead ones remain static. Tag each verified travel path with numbered twist ties for rapid reassembly.

Neutrals and grounds rarely share terminal blocks in these setups, but verify absence of voltage between white conductors and any traveler. Connect only matching white wires in the same wire nut cluster, never bonding neutrals across different toggle circuits–this creates parallel paths and violates NEC 200.6(C). Use green grounding caps or dedicated ground screws if present; omit them only in legacy installations lacking protective conductors.

Test continuity post-installation: toggle every position, measuring voltage from incoming feed to final load point. Each traveler pair should display full voltage once while showing zero volts in the opposite state. If voltage readings persist across all positions, recheck terminal assignments–likely a misidentified traveler remains energized. Re-tighten all screws to 12 in-lbs torque to prevent high-resistance failures that mimic wiring faults.

Setting Up the Initial Three-Point Control in a Multi-Toggle Configuration

Identify the common terminal on the first three-point control unit–this is typically marked by a darker screw or a distinct label like “COM” or “common.” Secure one traveler wire from the power source to this terminal, ensuring tight contact to prevent arcing. The remaining two terminals will accommodate the traveler conductors that bridge to the next control point. Use a multimeter to confirm the circuit’s polarity if the terminals lack clear markings.

Route the second traveler conductor from the first unit to the corresponding terminal on the intermediate toggle mechanism, maintaining consistent color-coding (e.g., black for one traveler, red for the other). Avoid twisting the conductors excessively; a single clockwise wrap around each screw post suffices, followed by tool-assisted tightening to 8-10 inch-pounds of torque. Label both ends of each conductor with heat-shrink tubing or masking tape to streamline later connections.

Grounding and Neutral Management

Attach the grounding conductor–usually a bare or green-insulated wire–to the designated grounding screw on the first control box. If the box is non-metallic, daisy-chain this conductor to the next device in the sequence. For systems requiring a neutral lead (common in smart toggles or dimmers), connect it directly to the neutral bus bar in the service panel or splice it into the neutral bundle from the power feed, using a twist-on connector rated for at least 600V.

Verify that the power feed’s line conductor (often hot) is connected exclusively to one of the first unit’s traveler terminals. Misrouting this conductor to the common terminal will bypass the intermediate control, creating a short or rendering the setup inoperative. Double-check the installation with a non-contact voltage tester before energizing the circuit–this step reveals crossed wires or unintended hot conductors.

When mounting the control in the wall box, ensure no conductors are pinched behind the device or compressed against the box edges, as this risks insulation damage over time. Fold excess wiring neatly into the box to allow clearance for the faceplate. If the setup includes LED indicators or digital controls, confirm compatibility with the traveler conductor gauge (typically 14- or 12-AWG); undersized wiring may cause overheating or erratic behavior.

Final Checks Before Activation

Energize the circuit and cycle through all possible toggle positions to confirm full functionality. If an intermediate unit fails to alter the load state consistently, re-examine the traveler connections for loose screws or reversed terminals. For setups with multiple load outlets, test each endpoint with a load (e.g., a lamp) to ensure the toggles control all intended fixtures without unwanted interactions.
