How to Design a Safe and Functional Home Electrical Wiring Plan
Begin by splitting the project into clearly defined sections: main panel layout, circuit routing, and load distribution. A 200-amp service panel suffices for most modern homes under 3,000 sq. ft., while larger spaces demand 400 amps. Label each breaker with its dedicated circuit–lighting, outlets, appliances–and keep a 20% buffer for future expansion. Use #12 AWG copper wire for 20-amp circuits and #14 AWG for 15-amp ones; never mix gauges in the same run. Grounding must connect directly to a ground rod or metal water pipe, with a minimum 6 AWG bare copper conductor.
Route cables at least 12 inches from ceiling fixtures and 6 inches from wall studs to avoid damage from drywall nails. Use metallic or non-metallic conduit for exposed runs in basements, garages, or outdoor areas, ensuring ¼-inch per foot slope for condensation drainage. For kitchens, dedicate two 20-amp small-appliance circuits–one for countertop outlets, another for refrigeration–complying with NEC 210.11(C). Bathrooms require GFCI-protected 20-amp circuits, while laundry rooms need a separate 30-amp circuit for dryers.
Map each circuit’s path from the panel to its endpoints using color-coded wires: black for hot, white for neutral, green/bare for ground. Keep neutrals and grounds isolated except at the main bonding point. For multi-story homes, install subpanels on each level to reduce voltage drop–calculate drop using V = I × R, where resistance (R) depends on wire length and gauge. Use arc-fault circuit interrupters (AFCIs) for bedrooms and living areas; ground-fault circuit interrupters (GFCIs) for wet locations. Verify all connections with a multimeter, testing for 120V between hot and neutral, 0V between neutral and ground.
Label every wire at both ends with its circuit identifier–avoid generic markings like “circuit 1.” Store a digital backup of the schematic in PDF format, including wire lengths, breaker ratings, and conduit sizes. For homes with backup generators, integrate an automatic transfer switch rated for the generator’s wattage, ensuring seamless switchover during outages. Never daisy-chain more than 12 outlets per 15-amp circuit or 10 for 20-amp–overloading risks tripped breakers and fire hazards.
Electrical Circuit Layouts for Residential Buildings

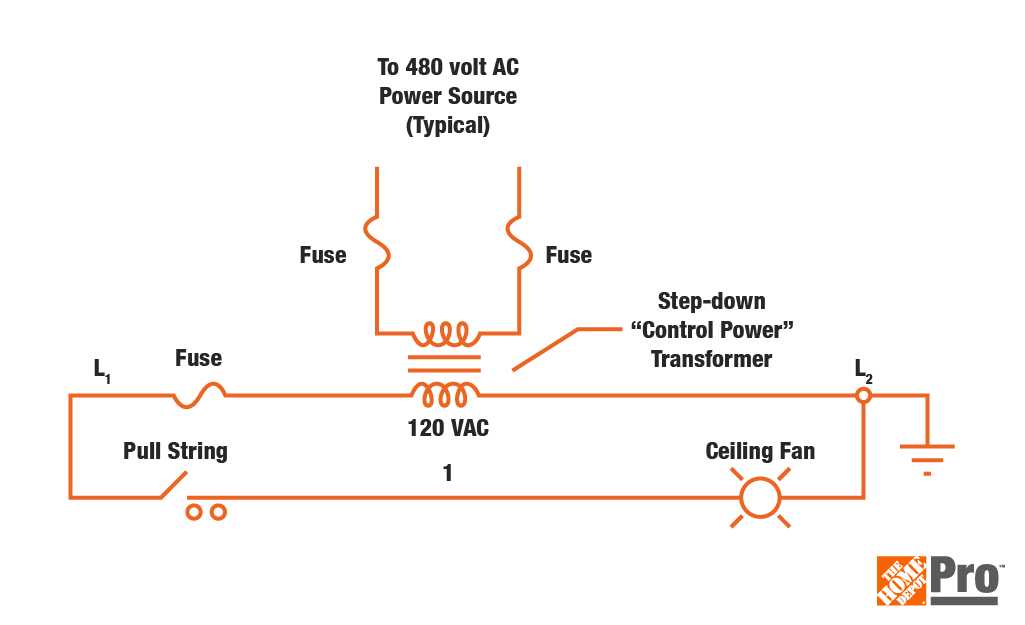

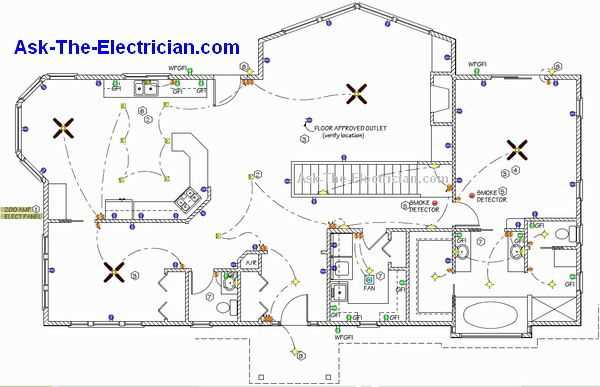

Begin by mapping each circuit on a scaled floor plan using standardized symbols–ANSI Y32.9 or IEC 60617–ensuring clarity for inspectors and electricians. Dedicate separate circuits for high-load appliances: 20A for refrigerators, 30A for dryers, and 50A for ranges. Label every wire before pulling: black for hot, white for neutral, green or bare for ground. Never mix 12-gauge and 14-gauge conductors within the same run–code violations and fire hazards escalate quickly.
Install arc-fault circuit interrupters (AFCIs) on all 15A and 20A bedroom, living room, and hallway branches. Combine ground-fault circuit interrupters (GFCIs) within 6 feet of sinks, garages, and exterior outlets to meet NEC 210.8(A) requirements. Route cables through bored holes drilled at least 1-1/4 inches from framing edges–avoid notching studs to preserve structural integrity and reduce punctured insulation risks.
Position subpanels no further than 150 feet from the main service panel to minimize voltage drop. Calculate wire size based on distance: for 20A circuits, use 12 AWG copper at 50 feet, switch to 10 AWG at 100 feet. Mark subpanel schedules directly on the panel door listing breaker size, circuit function, and connected loads. Isolate lighting circuits from receptacle circuits–separate 15A lighting from 20A appliance circuits to prevent nuisance tripping during simultaneous use.
For 240V circuits, employ double-pole breakers sized to match appliance wattage: 30A for 5.5 kW water heaters, 50A for 9 kW ranges. Use 6 AWG THHN copper for 50A runs shorter than 75 feet; upgrade to 4 AWG for lengths exceeding 100 feet. Secure cables every 4-1/2 feet within walls and every 12 inches in exposed runs using insulated staples–never drive staples too tightly as damaged sheathing violates NEC 300.4.
Color-code junction boxes: red for smoke detectors, blue for bathroom circuits, yellow for kitchen small-appliance branches. Document each circuit’s amperage and connected devices on a laminated chart mounted inside the main panel door. Include shut-off instructions for emergencies–legal requirements in most jurisdictions following NEC 408.4.
Test every outlet with a polarity checker before closing walls. Verify ground continuity using a multimeter–readings below 1 ohm indicate proper bonding. Confirm torque settings on all terminals with an inch-pound torque screwdriver to prevent loose connections–a leading cause of electrical fires. Store digital backups of the final layout in PDF and DWG formats for future renovations or inspections.
Critical Elements of a Home Electrical Schematic
Start by labeling every circuit breaker panel with its corresponding voltage rating–120V for standard outlets and 240V for large appliances like dryers or ranges. Specify amperage limits directly on the chart; 15-20 amps for general-use circuits, 30-50 amps for dedicated high-load paths. Include a legend near the bottom right corner with symbols: squares for outlets, circles for switches, triangles for junction boxes, and dashed lines for hidden connections.
Mark all GFCI and AFCI protection zones with bold outlines. Position GFCI outlets within six feet of sinks and exterior access points. Note AFCI protection for bedroom circuits, even if the breaker itself combines both functionalities. Use red ink for warning annotations like “Do not connect to neutral bus” where shared neutrals could overload.
Trace cable runs with precise measurements–record conduit diameters, cable gauge, and insulation type (NM-B, THHN, UF). Indicate wire colors next to each conductor: black for hot, white for neutral, green or bare for ground, red for secondary hot legs. Add a small text box near switches listing the connected devices to prevent future confusion.
Document every fixture location down to inch-level accuracy. For ceiling fans, specify fan-rated boxes with 1/8″ steel braces. Label dimmer switches with maximum wattage ratings and LED compatibility notes. Include toggle switch types–SPDT for three-way, DPDT for four-way–to avoid miswiring during upgrades.
Integrate local code requirements directly into the schematic: dedicated circuits for refrigerators, minimum box fill calculations, and conduit fill percentages. Add a scaled grid overlay for reference, with tick marks every 12 inches. Highlight emergency disconnects–main shutoff, subpanel feeds–with 1/2″ yellow halos.
Create a separate detail sheet for low-voltage systems. Map network drops, doorbell transformers (16V), and thermostat wiring (24V) using distinct dashed patterns. Note PoE voltage for smart switches and optimal router placement for Wi-Fi coverage. Attach a revision log in the upper-left corner, tracking changes by date and electrician initials.
Ensure all neutral and ground conductors terminate at their designated buses without mixing. Verify torque specifications for set-screw terminals (usually 12–15 lb-in for #14 wire). Add a quick-reference table listing wire ampacity derating factors for bundled conductors. Conclude with a QR code linking to manufacturer specs for any listed components.
Step-by-Step Guide to Designing an Electrical Layout for Your Residence

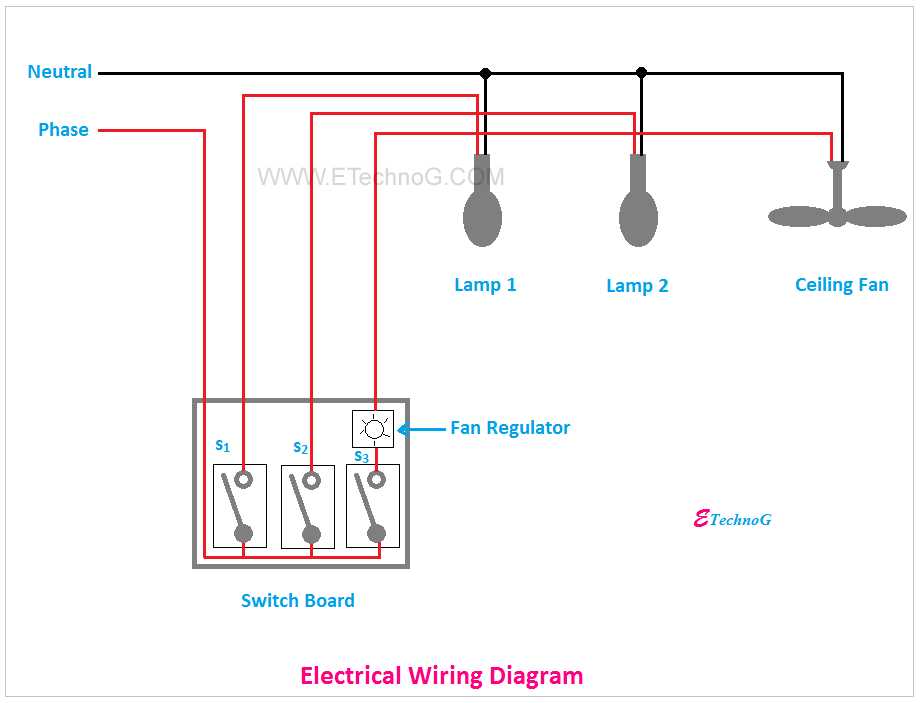

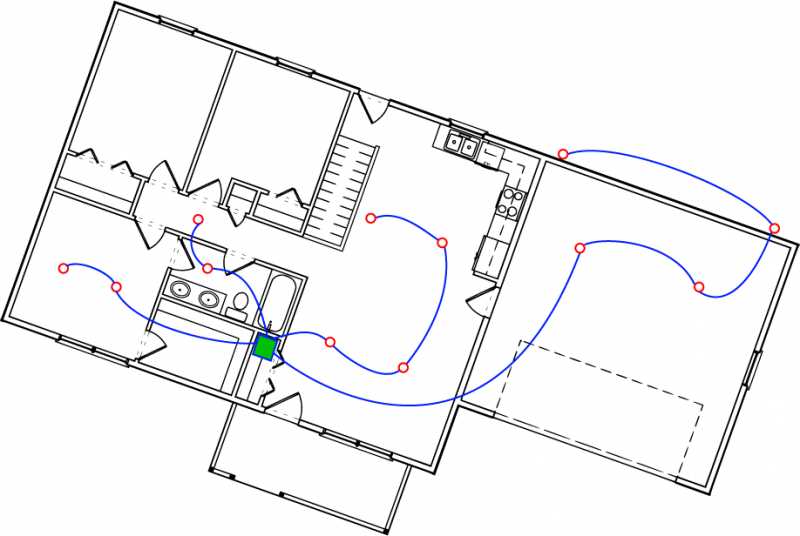

Begin by sketching the floor plan of each level on graph paper, using a scale of 1:50 (1 cm = 0.5 m) for clarity. Mark structural elements–walls, doors, windows–with precision, as these dictate circuit routes. Allocate dedicated zones for high-load appliances (refrigerator, water heater, HVAC) first, positioning them near the main service panel to minimize cable length. Label each room with intended outlets: 3-4 per wall in living areas, 2 above countertops in kitchens, and 1 per 1.2 m in hallways. Use these symbols:
| Symbol | Component | Wire Gauge (mm²) |
|---|---|---|
| ○ | Standard outlet (120V) | 2.5 |
| □ | Dedicated outlet (240V) | 4.0 |
| ☆ | Light fixture | 1.5 |
| ─ | Switch | 1.5 |
Group circuits logically: separate lighting, general-purpose receptacles, and heavy-duty lines to avoid overloads. For a 100 m² home, plan 6-8 circuits–consult local codes for exact requirements. Draw conduit paths in straight lines, avoiding sharp angles; use 90° bends only when necessary, as they complicate wire pulling. Calculate voltage drop for runs exceeding 20 m: for 120V circuits, limit to 3% (3.6V); for 240V, 5% (12V). Install junction boxes at intersections, sized 1.5x the cable diameter’s cross-sectional area.
Map switch locations 1.2-1.4 m above finished floor, with single-pole switches near door swings (within 15 cm of the frame). For three-way setups, trace the cable run backward to ensure continuous neutral. Label each circuit breaker on the panel schedule with: room, load type, and amperage (e.g., “Kitchen Outlets – 20A”). Include a 20% buffer for future expansions. Verify all fixtures against this checklist before finalizing:
- Outlets spaced ≤3.6 m apart along walls.
- GFCI protection within 1.8 m of water sources.
- Arc-fault circuit interrupters (AFCIs) for bedrooms.
- Dedicated circuits for microwaves (15A) and washers (20A).
Transfer the sketch to CAD software or engineering paper, scaling precisely. Use colored pencils or layers to distinguish phases (red/black), neutrals (white), and grounds (green). Add a legend with revision dates; update it whenever rerouting. Have the draft reviewed by a licensed electrician to confirm compliance with NEC/CEC standards–focus on conductor sizing and box fill calculations.
