Step-by-Step Guide to Creating Accurate Motor Wiring Schematics

Begin by identifying the power source voltage and motor specifications–single-phase or three-phase configurations dictate the connection approach. For 230V single-phase setups, ensure the start capacitor matches the motor’s microfarads rating; mismatches lead to overheating or failure. Use 14 AWG copper conductors for currents up to 15A, scaling to 10 AWG for 30A loads to prevent voltage drops under full torque.

Label each conductor at both ends to avoid misconnections: L1, L2, L3 for three-phase, Line, Neutral, Ground for single-phase. Ground the motor frame directly to the supply panel’s ground busbar using a dedicated 6 AWG bare copper wire–skip the chassis ground if the motor lacks metallic housing. Verify phase rotation with a handheld tester before full engagement; reverse any two conductors to correct direction if necessary.

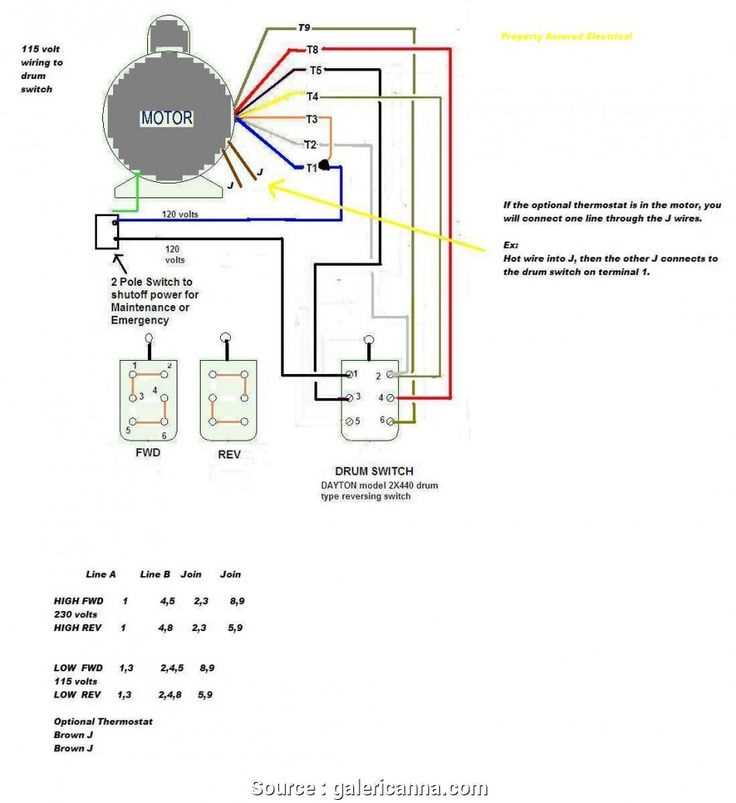

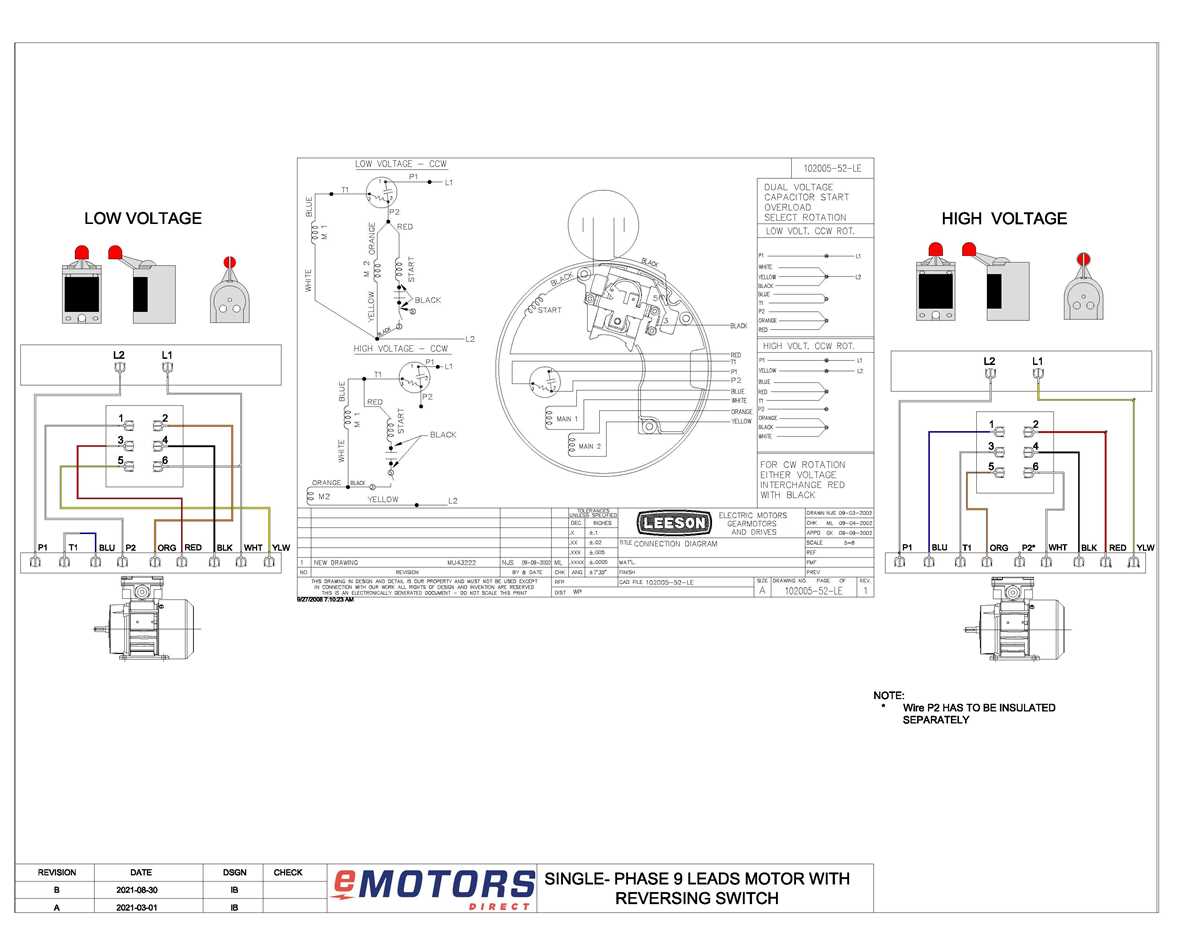

For dual-voltage motors (e.g., 230V/460V), connect windings in parallel for lower voltage or series for higher voltage–check the nameplate for jumper terminal locations. Use thermal overload relays sized at 115% of the motor’s full-load current to protect against sustained overcurrent. Bypass capacitors with a 50% higher voltage rating than the supply to handle transients during startup and braking cycles.

When integrating soft starters or VFDs, isolate control and power circuits with separate conduits. Terminate shielded cables at the drive end only, leaving the motor end floating to reduce electromagnetic interference. Test insulation resistance with a 500V megohmmeter; readings below 1MΩ indicate compromised windings or contamination requiring immediate disassembly and cleaning.

Electrical Connection Schematics for Drives

Start by identifying the power source voltage and phase configuration–single-phase (120V/230V) or three-phase (208V/480V)–as this dictates the terminal arrangement and protection devices required. For single-phase setups, use a run capacitor between the main and auxiliary windings to ensure proper torque during startup; values typically range from 50–300 μF depending on horsepower. Three-phase units, however, rarely need capacitors but demand correct sequencing of L1, L2, and L3 to avoid reverse rotation–verify phase order with a rotary field indicator before energizing.

Route conductors through thermal overload relays calibrated to the drive’s full-load amperage (FLA); refer to the nameplate for exact figures. For fractional-horsepower units, a 125% FLA margin is standard, while larger machines may require dual-element fuses or circuit breakers rated at 150–250% of FLA. Connect the ground wire directly to the motor frame–never splice it–and use green or bare copper with a cross-section at least equal to the phase conductors.

Avoid paralleling conductors for high-current applications unless absolutely necessary; instead, select a single cable with sufficient gauge (e.g., 10 AWG for 30A, 6 AWG for 50A). For variable-frequency drives (VFDs), shielded twisted-pair cables between the controller and motor terminals reduce electromagnetic interference–ground both ends of the shield at the drive chassis, not the motor housing. Keep control wires (start/stop contacts) physically separated from power lines to prevent false triggering.

Label every conductor at both ends with heat-shrink tubing or adhesive markers showing terminal numbers (e.g., U1, V1, W1 for three-phase). Use color-coding per local standards: typically red/black/blue for phases, white/neutral (if applicable), and green/yellow-striped for safety earth. For dual-voltage motors, confirm the winding configuration–series (high-voltage) or parallel (low-voltage)–and reconnect jumpers accordingly before applying power.

Test continuity across all winding pairs (e.g., T1-T2, T2-T3, T3-T1) with a multimeter; readings should match within ±5%–discrepancies indicate shorted or open coils. After assembly, perform a megger test at 500V DC to confirm insulation resistance exceeds 1 MΩ between windings and ground. Energize in 1-second bursts while monitoring line current with a clamp meter; steady-state amperage should stabilize within nameplate limits (e.g., 15A ±10% for a 5 HP unit).

Mount surge suppressors within 5 meters of the drive terminals if operating in noisy environments; MOVs or RC snubbers protect against voltage spikes exceeding 120% of nominal. For outdoor installations, seal conduit entries with waterproof cable glands and apply dielectric grease to terminals to prevent corrosion. Document the entire layout with a simple sketch noting conductor sizes, breaker ratings, and control logic for future troubleshooting.

Selecting the Optimal Circuit Schematic by Machine Class and Power Requirements

For single-phase 120V AC units rated below 1 HP, use a capacitive-start configuration paired with a run capacitor. This arrangement boosts torque during startup while maintaining steady-state efficiency. Verify the auxiliary winding resistance matches the main winding within 5% to avoid phase imbalance. Include an overload protector sized at 125% of the full-load current to prevent thermal damage during prolonged duty cycles.

Three-phase 480V induction machines demand a star-delta or direct-on-line arrangement based on starting torque needs. Star-delta reduces inrush current by 66% but lowers initial torque; optimal for high-inertia loads like fans or pumps. Ensure all phase conductors share identical gauge–14 AWG minimum for 15A circuits, 12 AWG for 20A–with color-coded insulation (black, red, blue) to eliminate miswiring risks. Ground connections must terminate at a dedicated lug on the motor frame, not the housing base.

Permanent magnet DC motors under 48V rely on a brush-commutator layout with separate excitation for variable speed control. Position the field coil upstream of the armature in series configurations to maximize torque at low RPMs, but add a flyback diode rated for the peak reverse voltage (2x nominal) to protect against inductive spikes. For regenerative braking, integrate an H-bridge circuit using MOSFETs with RDS(on) below 0.1Ω to minimize heat dissipation.

Sync motors exceeding 10 HP and 600V require a separate excitation supply for the rotor windings. Excitation voltage typically ranges between 50-200V DC; match the current rating to 115% of the rotor’s continuous rating. Couple the stator to the grid via a soft starter or VFD with harmonic filtering (THD

High-voltage synchronous reluctance machines (SRMs) demand a segmented rotor layout with precision laminations. Cable sizing must factor skin effect–use Litz wire for frequencies above 400Hz to reduce AC resistance. Implement a six-step inverter drive with PWM switching at 2-5 kHz to minimize acoustic noise, ensuring dead time between phase transitions exceeds 2μs to prevent shoot-through. Grounding plates beneath the rotor assembly must withstand 2x the excitation voltage to prevent arcing.

Guide to Assembling Single-Phase Induction Coil Connections

Start by identifying the main and auxiliary coil terminals on the device’s nameplate or casing. Labels typically include U1/U2 for the primary coil and Z1/Z2 for the secondary. Verify these markings–some models may use T1/T2 or V1/V2 instead. Misidentification risks damaging the windings during energization.

Connect the supply leads to the primary coil first. Attach the live conductor to U1 and the neutral to U2 for standard 230V AC configurations. For 115V setups, link U1 and U2 in parallel with split supply taps–consult the schematic if present. Ensure crimp connectors or terminal screws are tightened to 1.5 Nm torque to prevent overheating.

Integrating the Auxiliary Coil for Start-Up

Wire the auxiliary coil in series with a capacitor or centrifugal switch, depending on the motor type. For capacitor-start designs, connect Z1 to one capacitor terminal and route the other to U1. Permanent-split capacitor (PSC) models require continuous capacitor connection between Z1 and U1–values typically range from 5–50 µF. Verify polarity only if using electrolytic capacitors; film types are non-polarized.

Test rotation direction before finalizing connections. Temporarily power the setup–if the shaft spins backward, reverse either the primary (U1/U2) or auxiliary (Z1/Z2) leads, but never both. Reversing both cancels the effect. Secure all terminals with insulating sleeves; exposed conductors invite shorts under vibration.

Final Checks and Safety Lockout

Engage the centrifugal switch (if present) by manually spinning the shaft–listen for a distinct click as the mechanism disengages the auxiliary coil. Measure coil resistances: primary should read 3–20 Ω, auxiliary 10–50 Ω. An open circuit indicates a broken winding; values below 2 Ω suggest a short. Lock out the power source and affix warning tags before closing the housing–removable covers often conceal live terminals.

Connecting a Three-Phase Electrical Machine in Star and Delta Setups

Begin by identifying the six terminal leads of the electrical machine–typically labeled U1, U2, V1, V2, W1, and W2. For a star (Y) connection, link U2, V2, and W2 together to form a neutral point, then route the incoming power lines to U1, V1, and W1. This reduces the voltage across each winding by a factor of √3 (approximately 58%), making it ideal for starting high-power units under load to minimize inrush current. Verify phase sequence (L1→U1, L2→V1, L3→W1) before energizing to prevent reverse rotation, which can damage pumps or compressors.

To configure a delta (Δ) arrangement, connect each phase terminal to the next in series: U1 to W2, V1 to U2, and W1 to V2. This method applies full line voltage across each winding, delivering 100% of the machine’s rated torque and power output. Delta is the default for continuous operation at full load, but always consult the nameplate–some machines specify a maximum delta runtime to avoid overheating. Use a multimeter to confirm windings are isolated (infinite resistance between phases) before closing the circuit.

Critical Voltage and Current Considerations

Configuration	Line Voltage (VL)	Phase Voltage (VPh)	Line Current (IL)	Phase Current (IPh)
Star (Y)	400V	230V	IPh	IL/√3
Delta (Δ)	400V	400V	IPh×√3	IL

Star-delta switching requires a dedicated starter to transition the machine gradually. Wire a contactor to first engage the star connection (reducing starting current to ~33% of direct-on-line), then shift to delta after 5–10 seconds–timing depends on the machine’s inertia. Over-travel relays or thermal overloads must be set to trip at 1.15× the delta-rated current to protect windings during the switch. Avoid frequent star-delta cycling, as each transition stresses insulation and shortens lifespan.

Ground the neutral point in star setups if the machine operates unbalanced loads (e.g., single-phase auxiliaries). Use a 16 mm² copper conductor for grounding in 400V systems, sized per IEC 60364-5-54. For delta, ground only if specified by the manufacturer–ungrounded delta systems can float at higher potentials during faults, posing safety risks. Always test insulation resistance with a 500V megohmmeter after installation; minimum 1 MΩ per phase is mandatory for operational safety.

Troubleshooting Common Faults

If the machine hums but fails to start in star mode, check for open circuits in the neutral jumper or reversed phase polarity (swap any two leads to correct rotation). In delta, if only two phases draw current, an open winding is likely–disconnect immediately to prevent single-phasing damage. Monitor terminal box temperature during operation; exceeding 80°C indicates loose connections (torque terminals to 10 Nm) or undersized conductors. Replace damaged cables with tinned copper of the same gauge–aluminum causes resistive heating at junctions.
