How to Wire a Pressure Switch Correctly Step by Step Guide
Begin by identifying the power source’s voltage–most industrial and residential setups operate on 24V DC, 120V AC, or 230V AC. Confirm compatibility with the device’s specifications before proceeding. A mismatch risks damaging components or triggering false activations. For low-voltage systems (24V DC), use a transformer rated for at least 10% above the expected load to prevent voltage drop under sustained operation.
Locate the common (C), normally open (NO), and normally closed (NC) terminals on the control unit. The NO contact closes when the threshold is exceeded, while the NC contact opens–adjust connections based on whether the system should activate or deactivate under pressure. For fail-safe designs, route critical circuits through the NC terminal to ensure power interruption if the unit fails.
Wire the input side to the power supply with 18-14 AWG copper conductors, securing connections with crimp terminals or solder (avoid twist-on connectors for high-vibration environments). For AC circuits, add a snubber circuit (0.1µF capacitor + 100Ω resistor in series) across the terminals to suppress arcing and extend contact life. DC systems may require a flyback diode (1N4007) parallel to inductive loads (e.g., relays) to protect against voltage spikes.
Test the assembly with a multimeter in continuity mode: apply gradual pressure while monitoring the NO/NC terminals. The transition should occur within ±2% of the rated setpoint. If erratic behavior is observed, verify the absence of moisture, check for proper grounding (ground loops can cause interference), and ensure no stray resistances exceed 0.5Ω in the signal path.
For hazardous environments (e.g., explosive atmospheres), use intrinsically safe models with Zener barriers or optoisolators to prevent energy accumulation. Seal conduits with IP67-rated glands to block ingress, and apply dielectric grease to terminals to inhibit corrosion. Document the setup with a labeled schematic–include wire colors, terminal designations, and setpoints–for future troubleshooting.
Electrical Connection Guide for Fluid Control Sensors
Ensure the power source matches the actuator’s voltage rating–typically 24VAC for HVAC systems or 120/230VAC for industrial pumps. Connect the live wire to the common (COM) terminal and the load wire to the normally open (NO) or normally closed (NC) terminal based on desired operation. For fail-safe configurations, use NC contacts to trigger alarms or shutoffs during low-fluid scenarios. Verify polarity if integrating with DC-powered relays; reversed connections may damage microprocessors in smart control units.
Use 14 AWG copper conductors for currents below 15A; upgrade to 12 AWG for higher loads to prevent voltage drop over extended runs. Secure terminals with a torque screwdriver (0.5–0.7 Nm for standard screw types) to avoid intermittent faults from loose contacts. For outdoor installations, apply dielectric grease to terminals and enclose connections in a weatherproof junction box rated IP66 or higher. Include a dedicated ground wire bonded to the system’s chassis to mitigate surge risks from inductive loads.
Test functionality with a multimeter before commissioning: measure continuity across contacts at set pressure thresholds (e.g., 30–50 psi for well pumps) and confirm voltage absence when de-energized. For dual-stage sensors, wire secondary contacts in parallel for redundancy. Replace factory default calibration settings if adjusting cut-in/cut-out points–consult the manufacturer’s tolerance charts (e.g., ±2 psi for mechanical gauges) to avoid nuisance tripping.
How to Pinpoint the Right Connections on a Control Device for Fluid Monitoring
Begin by locating the label plate or engraved markings on the unit’s enclosure–these typically indicate terminal functions. Common designations include C (Common), NO (Normally Open), NC (Normally Closed), and L (Line). If markings are faded or absent, use a multimeter in continuity mode to trace internal contacts when the device is in its resting state.

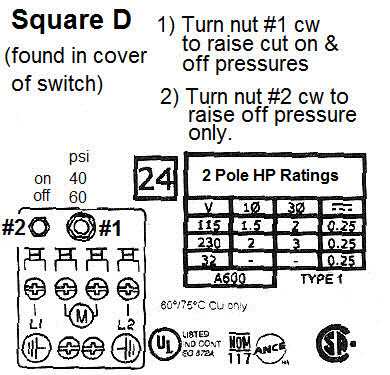

Check the manufacturer’s documentation–it often specifies terminal arrangements unique to that model. For instance, square-D industrial variants frequently use terminals numbered 1-2-3, where 1 is Common, 2 is NO, and 3 is NC. Schneider Electric models may reverse this order, so cross-verification is critical.
- For single-phase systems, the common terminal usually connects to the incoming power source lead.
- The normally open contact links to the load circuit when triggered (e.g., compressor, pump, or alarm).
- The normally closed contact serves as a secondary or safety loop, breaking the circuit upon activation.
Specialized Terminal Configurations
Some devices integrate additional terminals for voltage sensing or dual-setpoint operation. Examples include:
- Honeywell L404: Terminals A1/A2 for power input, 1/2 for load output.
- Danfoss KP Series: 9/4 for power, 1/2/3 for load paths (NC/NO/Common).
- Johnson Controls P70: Dual spdt layout with R/C/N/O (Run/Common/NC/NO).
Inspect the physical build of contacts–silver-coated or copper-alloy terminals are standard for power circuits, while thinner brass contacts often indicate secondary or signal paths. Avoid high-current loads on fragile terminals, as this risks premature failure or arcing.
If uncertainty persists, energize the device under test conditions and measure voltage across terminals using a non-contact tester or voltmeter. NO contacts should read near-zero voltage when idle and match input voltage when activated. NC contacts behave inversely, showing input voltage at rest and dropping to near-zero when engaged.
Lastly, tag identified terminals with colored markers: red for power, blue for load, green for common, and yellow for safety loops. This eliminates guesswork during installation or troubleshooting.
Connecting Single-Phase Pump Control Assemblies: Practical Installation Guide
Shut off the main power supply before handling any electrical connections. Verify zero voltage at the breaker using a non-contact tester. Strip 9 mm of insulation from the ends of 12 AWG copper conductors–this gauge handles currents up to 20 A safely without overheating. Twist exposed strands tightly to prevent fraying when inserting into terminal blocks.
Attach the input conductor to the line-side terminal marked L1 on the control relay. Secure the output lead to the load-side terminal labeled T1–ensure the screw clamps tighten with 1.2 Nm torque to prevent loosening under vibration. For grounded systems, connect the bare ground wire to the dedicated chassis lug using a crimp ring terminal rated for 600 V. Confirm polarity if the relay includes built-in overload protection by matching the arrow on the housing with the flow direction of the current path.
| Component | Terminal | Wire Color | Gauge |
|---|---|---|---|
| Line input | L1 | Black | 12 AWG |
| Load output | T1 | Red | 12 AWG |
| Ground | Chassis | Green/yellow | 12 AWG |
Position the cutoff mechanism within 1 m of the pump motor to minimize voltage drop–longer distances require heavier 10 AWG cables. Test the setup by restoring power and adjusting the setpoint dial to the desired activation threshold. Listen for the relay click when system conditions reach the programmed cutoff point. If misfires occur, recalibrate the differential gap according to the manufacturer’s datasheet–most adjustable gaps range between 10–30 psi.

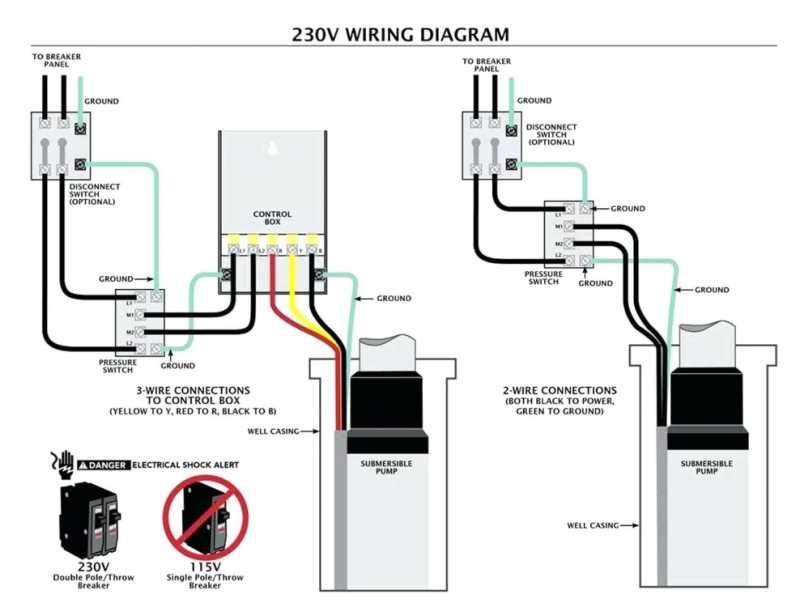

Hooking Up a Control Relay to Your Submersible Pump Motor
Begin by identifying the motor’s power rating and voltage requirements–most residential well pumps operate at 230V, but verify this on the nameplate before proceeding. Use a 20-amp double-pole circuit breaker in your main panel and run 12-gauge copper wire (or 10-gauge for longer runs) through conduit to the pump’s location. Ensure the conduit is waterproof and rated for underground use if buried.
Key Connections for Safe Operation
- Motor terminals: Connect the two hot wires (black/red or as marked) to the pump’s T1 and T2 terminals–polarity doesn’t matter, but tighten terminals to 12–15 in-lbs of torque to prevent arcing.
- Ground wire: Attach the bare or green grounding wire to the motor’s grounding lug and the well casing if metallic. This prevents stray voltage hazards.
- Relay connections: Wire the control relay’s coil to the pressure sensor’s output terminals. The relay’s contacts should interrupt one of the hot legs to the pump, not the neutral, to avoid damaging the motor.
Before energizing, test the sensor’s cut-in/cut-out points with a multimeter. Typical settings are 30 PSI (cut-in) and 50 PSI (cut-out), but adjust based on your tank’s specifications. If the sensor fails to trigger the relay, check for loose connections or a blown fuse in the control circuit. Always use a 1-amp fuse inline with the sensor to protect its contacts from current surges.
Seal all exposed connections with waterproof heat-shrink tubing or silicone-filled wire nuts. For pumps deeper than 100 feet, upgrade the relay to a solid-state model to handle higher inrush currents. Label all wires at both ends–mismatched connections are a leading cause of pump failures. If the motor hums but doesn’t start, immediately shut off power; this indicates a faulty start capacitor or seized bearings.
- Verify voltage at the pump’s terminals matches the nameplate rating (±10%).
- Cycle the system manually while monitoring pressure readings–ensure the relay clicks sharply at the correct thresholds.
- Inspect the well seal for leaks after installation; moisture ingress corrodes terminals over time.
