Step-by-Step Guide to Wiring Your Automatic Bilge Pump Correctly

Install the float switch upstream of the motor’s power feed–this ensures immediate cutoff when water levels drop below the activation point. Use 14-gauge marine-grade tinned copper wire for connections between the switch and power source; thinner gauges risk voltage drop under load, while untinned wire corrodes within months in humid conditions.

Place the inline fuse holder no more than 150mm from the battery terminal. A 5-amp fuse protects both the circuit and the 18-watt impeller from overheating during stalled starts. Secure all terminals with adhesive-lined heat-shrink tubing instead of electrical tape; the latter degrades under UV exposure and boat motion.

Avoid linking additional loads like navigation lights to the same circuit. Shared current can trigger false activations, especially when the motor draws its 3-amp nominal surge. Dedicate a separate 12V bus bar for critical systems–this simplifies troubleshooting and prevents cascading failures.

Mount the manual override switch on the console using a sealed rocker cover; even a single drop of splash can arc a low-voltage contact, locking the system in constant run mode. Test the entire setup with a multimeter before submersion–measure 12.4V at the pump terminals under load to confirm stable power delivery.

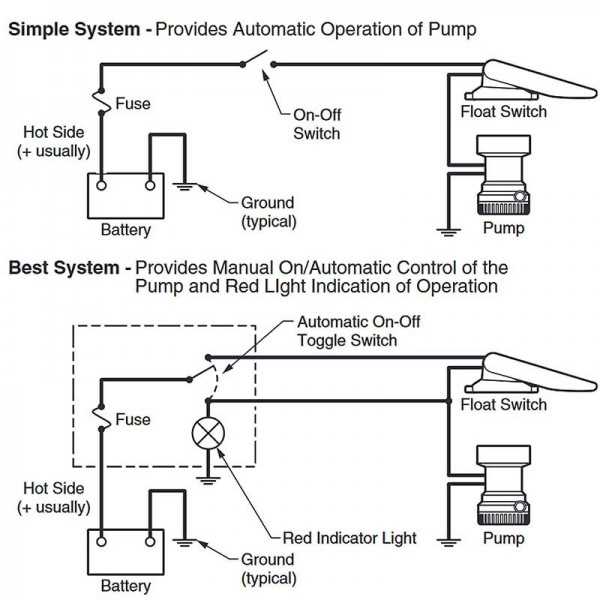

Electrical Scheme for Self-Activating Submersible Drainage System

Connect the float switch’s brown wire to the positive terminal of a 12V marine battery using 12-gauge tinned copper wire, ensuring terminals are crimped and heat-shrunk for corrosion resistance. Route the black wire from the switch to the motor’s input terminal, then link the motor’s remaining terminal directly to the battery’s negative post. Include a 15-amp fuse within 7 inches of the battery’s positive connection to prevent overload–replace blown fuses immediately and verify current draw does not exceed the fuse rating.

Install a manual override switch rated for 20A in-line between the float switch and pump motor if remote activation is required. Position the switch in a dry, accessible location above the waterline, using a waterproof toggle enclosure with a backlit indicator for visibility in low light. Secure all connections with solder and adhesive-lined heat shrink tubing to eliminate moisture ingress risks.

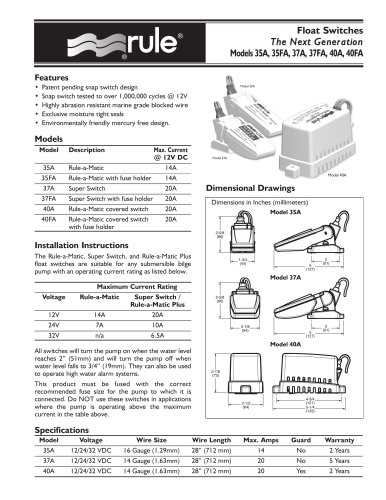

Component Specifications

Part	Type/Size	Material	Max Load
Float switch	Normally open	316 stainless steel	40A @ 12VDC
Conductors	12 AWG	Tinned copper	30A continuous
Fuse holder	Mini blade	Nylon	25A @ 14V
Pump motor	Centrifugal	Epoxy-sealed	1200 GPH

Ground all metallic components to a common bus bar connected to the vessel’s bonding system–never rely solely on the negative battery post. Test the circuit by triggering the float switch manually; the motor should start within 0.2 seconds. If delayed activation occurs, inspect the switch for fouling or wire resistance exceeding 0.5 ohms per foot. Replace any damaged insulation immediately–exposed conductors accelerate galvanic corrosion in saltwater environments.

For dual-pump redundancy, parallel a second identical setup sharing the same power source, but isolate each float switch’s circuit with a 5A diode to prevent backfeed. Label every wire with its function and polarity using engraved heat-shrink tubing, avoiding adhesive tags that degrade under UV exposure. Log activation cycles weekly to monitor switch wear–replace switches every 3,000 cycles or two years, whichever comes first.

Selecting Optimal Conductor Size for Marine Sump Motor Circuits

For a 12V electrical setup handling 5A peak current, use 16 AWG copper stranded wire if the run does not exceed 6 feet. At 10 feet, drop to 14 AWG to maintain voltage under 3% loss. Beyond 15 feet, transition to 12 AWG to prevent performance degradation during startup surges. Always prioritize tinned conductors rated for UL 1426 or equivalent marine-grade standards.

Voltage drop calculations dictate size choices. A 3% drop in a 12V system equals 0.36V; measurements must account for ambient temperatures up to 50°C, which reduce current capacity by ~15%. Use the following baseline sizes for reference:

• 3A load: 18 AWG under 5 ft, 16 AWG to 12 ft
• 7A load: 14 AWG under 8 ft, 12 AWG to 18 ft
• 10A load: 12 AWG under 10 ft, 10 AWG beyond

Stranded wire flexibility prevents fatigue failure at connection points. Multi-strand configurations with 19+ strands outperform solid core in marine environments; corrosion resistance improves with individual tin coating on each strand. Verify insulation material: PVC degrades above 70°C, while cross-linked polyethylene (XLPE) maintains integrity up to 90°C.

Critical Connection Protocols

Solder-free terminals prevent connector failure; crimped joints using sealed butt connectors rated for marine applications ensure longevity. Apply dielectric grease to terminal ends to inhibit moisture ingress. Route cables away from sharp edges and moving components, securing every 18 inches with non-abrasive clamps. Use heat-shrink tubing over crimped connections for added protection.

For fused protection, install an in-line fuse within 7 inches of the power source. A 10A fuse suits a 7A continuous load with short-term spikes up to 12A. Avoid circuit breakers unless manual reset capability is required, as thermal breakers can trip prematurely under sustained high ambient temperatures.

Installation Guide: Connecting Electrical Leads for Loom-Style Float Switch Models

Locate the brown and blue leads on the motor assembly. These correspond to the positive and negative terminals respectively. Confirm polarity with a multimeter before proceeding–incorrect pairing will disable protection circuits.

Strip 5–7 mm of insulation from each wire. Twist strands tightly to prevent fraying, then crimp spade connectors rated for 20A minimum. Secure connections with heat-shrink tubing to shield against marine moisture.

• Attach the brown lead to the battery’s positive post.
• Route the blue lead through the float switch’s COM and NC contacts.
• Ground the motor’s secondary lead to the vessel’s hull using a 16-gauge tinned copper cable.

Test actuation by manually lifting the float switch. The motor should energize within 1–2 seconds. If delayed, inspect for loose terminals or corroded contacts. Replace any suspect components immediately.

Route cables away from sharp edges and moving parts. Use UV-resistant conduit if exposed to sunlight. Avoid tight bends–minimum radius should exceed 5x the cable diameter to prevent wire fatigue.

Troubleshooting Failed Activation

1. Verify float switch continuity with an ohmmeter. Replace if resistance exceeds 0.5Ω.
2. Check for voltage drop across connections. Acceptable loss: <0.2V under load.
3. Inspect the fuse–15A for 12V systems, 7.5A for 24V.

Apply dielectric grease to all connectors after final adjustment. Re-test under simulated flooding conditions to confirm reliable operation across the full float range.

Mounting Float Trigger Mechanisms in Fluid Ejection Circuits

Position the float trigger at least 2–3 cm above the keel’s lowest point to prevent inadvertent activation from residual moisture or condensation, especially in fiberglass hulls where capillary effects trap water. Silicone-treated electrical components resist corrosion in saline environments 12x longer than untreated copper contacts–apply a conformal coating before installation. Verify switch orientation: upward actuation triggers at 1.5 cm fluid rise (standard) while downward models require 2.3 cm clearance to avoid false positives from engine vibration.

Routing Cables Without Interference

Secure sensor leads with UV-resistant nylon tie-wraps spaced every 15 cm along bulkheads, leaving 10% slack to accommodate hull flex during planing. Route wires above fuel lines and exhaust manifolds, maintaining minimum 5 cm separation to prevent heat degradation of PVC insulation. For aluminum hulls, use rubber-grommeted cable glands where wires penetrate structural members–steel hulls require dual-layer shrink tubing over wire entry points to seal against electrolysis.

Avoid running float trigger cables parallel to VHF antenna feeds; cross perpendicular at 90-degree angles if unavoidable, separating by 30 cm to eliminate RF interference that causes erratic cycling. Test switch reliability by submerging in fresh water at 12 VDC for 24 hours–current draw should remain below 0.1 A; deviations indicate internal leakage requiring replacement.

Calibrating Activation Levels

Mark the hull’s internal waterline with removable colored tape during installation to visually confirm the trigger’s activation level matches published specifications. Recheck alignment after sea trials: rocking the vessel ±15 degrees from static should not cause premature switching. Simulate 5 L/min inflow rates–float triggers must engage within 3 seconds consistently; slower response signals improper mounting angle or mechanical binding in the pivot assembly.

Inspect pivot joints annually for fouling: barnacles or engine-room debris increase switch actuation force by up to 40%, causing delayed response. Replace units showing >0.5 mm play in pivot bearings–waterlogged sensors exhibit this wear within 300 operating cycles. Use only marine-grade switches rated IP68; industrial alternatives fail after 6 months in high-humidity conditions despite identical ingress protection classifications.

Proper Earth Connection and Overcurrent Protection for Float-Switch Driven Drainage Systems

Connect the negative terminal directly to the vessel’s bonding system using 10 AWG marine-grade cable, ensuring a path resistance below 0.1 ohms. Attach the conductor to a dedicated corrosion-resistant stud within 12 inches of the motor housing, avoiding multiple wires stacked on a single fastener.

Position the fuse holder no more than 7 inches from the battery positive terminal, using a fuse rating matching the device’s maximum continuous current plus 25% for surge tolerance. For a 1,100-gph model, install a 15A fuse; a 2,000-gph unit requires 20A.

Route both conductors along separate, non-parallel paths from the power source to prevent inductive coupling. Secure cables every 18 inches with UV-stabilized clips, maintaining a minimum bend radius of 5 times the cable diameter.

Test earth continuity with a 500V megohmmeter immediately after installation and quarterly thereafter. Readings above 1 megohm indicate compromised connections requiring immediate cleaning or re-termination.

Use tin-plated copper lugs crimped with a ratcheting tool, followed by heat-shrink seals containing adhesive. Avoid soldered joints below the waterline due to potential fatigue under vibration.

Inspect fuse holders annually, replacing any showing discoloration or corrosion. Carry spares of each fuse rating onboard, stored in a dry, labeled container accessible within 30 seconds.

Label all termination points with engraved plastic tags resistant to solvents and temperatures up to 80°C. Include the circuit identifier, wire gauge, and date of installation.

Verify proper operation by simulating a flooded compartment with a bucket of water while monitoring current draw with a clamp meter. Tripped circuit breakers or blown fuses mandate immediate re-evaluation of earth connections and overcurrent protection settings.
