Step-by-Step Guide to Wiring a Single Pole Light Switch Safely
Begin by ensuring the circuit breaker is off to eliminate power flow to the installation point. Use a non-contact voltage tester to confirm no current remains–this step prevents accidental shocks and equipment damage.
Required Tools: strippers (14–16 AWG), screwdriver (flathead or Phillips, depending on terminal type), and a wire nut or lever connector for secure joints. Verify wire gauge matches the switch rating–most residential setups use 14-gauge copper for 15-amp circuits.

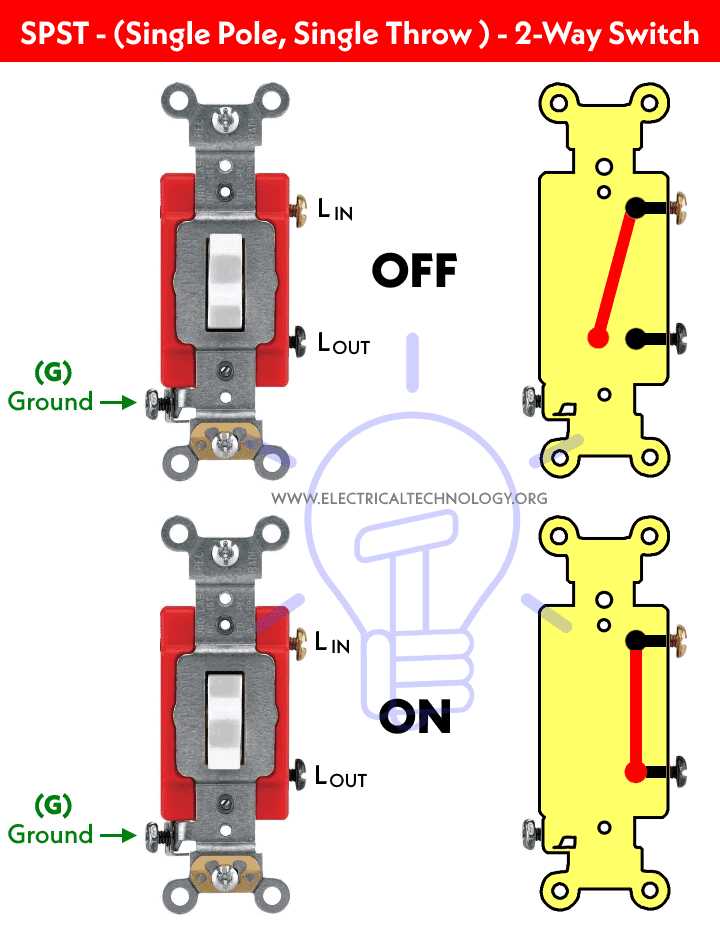

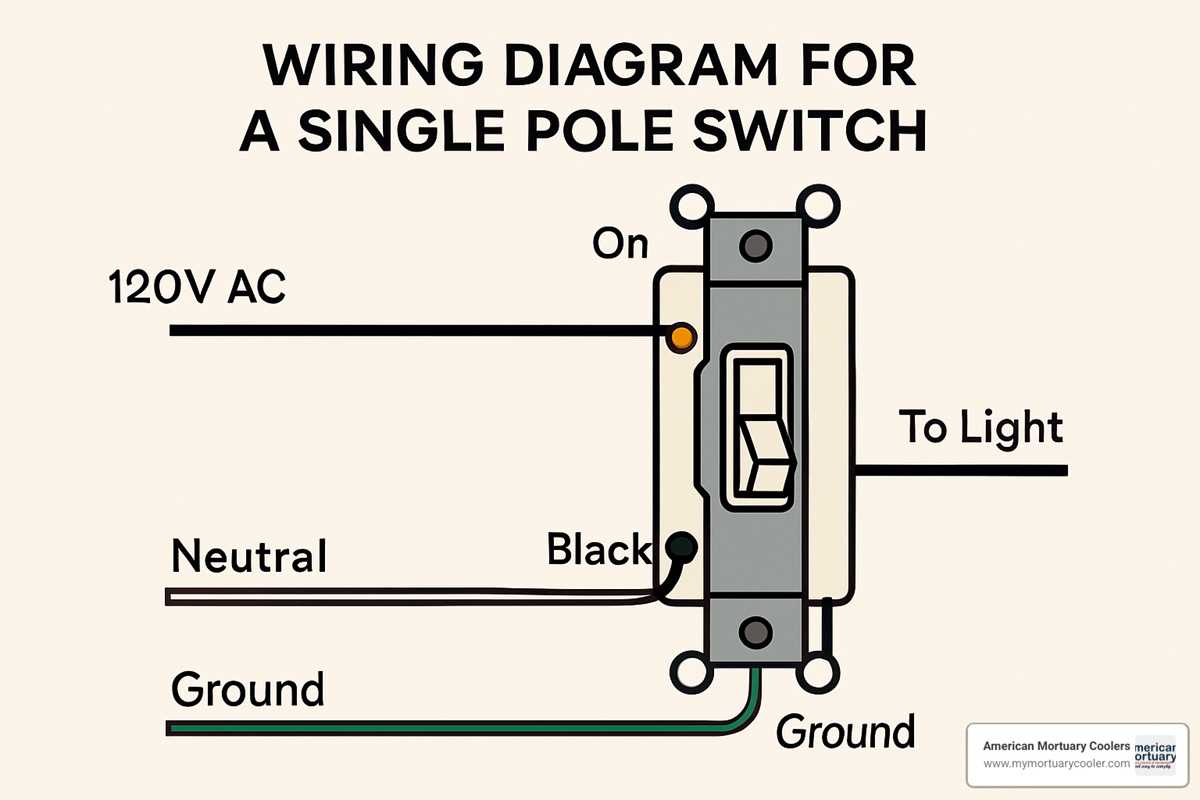

Identify the live conductor (black or red, often marked with tape) and connect it to the switch’s brass terminal. The neutral wire (typically white, though rarely involved in this setup) should be capped off unless using a smart or illuminated controller requiring neutral. Ground (bare or green) attaches to the green screw or designated slot on newer models.
For push-in connections, strip wires to 1/2 inch; for screw terminals, bend a hook, loop clockwise around the post, and tighten securely. Avoid loose strands–any exposed copper after tightening increases short-circuit risk. Tuck wires neatly into the electrical box to prevent pinching when mounting the device.
Test functionality after restoring power: toggle the lever to ensure consistent on/off operation. If flickering occurs, recheck connections–poor contact often causes intermittent performance. Replace aged devices showing scorch marks or heat discoloration immediately.
For compatibility with dimmers or timers, confirm the switch’s wattage rating exceeds the load (minimum 600W for incandescent, 150W for LED). Misapplication leads to overheating or premature failure.

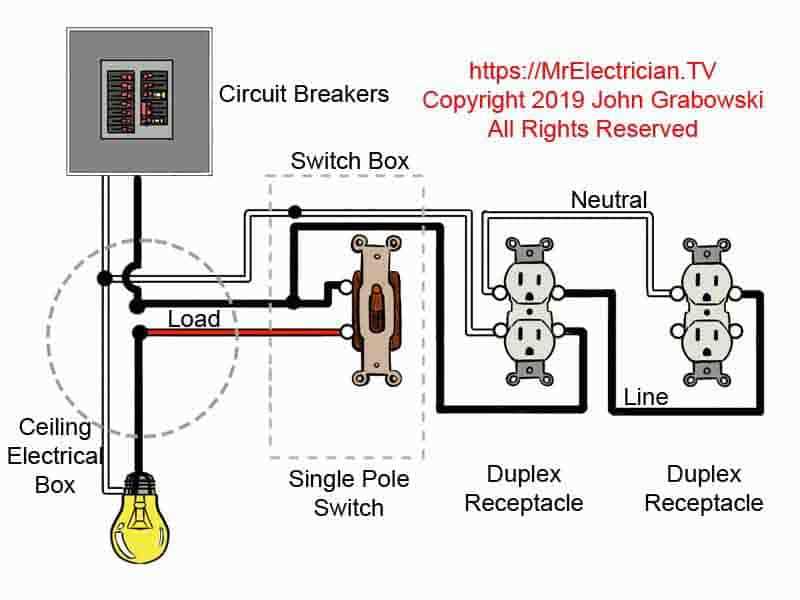

How to Connect a Basic On/Off Control in Your Home Circuit
Always turn off the power at the breaker panel before handling any electrical work. Confirm the circuit is dead with a non-contact voltage tester–this step prevents accidental shocks that can occur even with switches in the “off” position. For standard installations, use 14-gauge copper wire (rated for 15-amp circuits) or 12-gauge for 20-amp circuits to ensure proper load handling.
Remove the switch cover and unscrew the existing device to expose the wires. You’ll typically see two brass terminal screws and a green grounding screw. The hot (live) wire–usually black or red–must connect to one brass terminal, while the neutral (return) wire–white or marked with tape–attaches to the other. The bare or green ground wire secures to the grounding screw. Avoid twisting wires together without a wire nut, as loose connections can arc and overheat.
Step-by-Step Terminal Connections
| Wire Color | Terminal Type | Connection Method |
|---|---|---|
| Black/Red (Hot) | Brass screw (top or bottom) | Strip ½ inch of insulation, loop clockwise around screw, tighten securely |
| White (Neutral) | Brass screw (remaining) | Follow same stripping/looping method; use black tape to mark as hot if part of a switch leg |
| Bare/Green (Ground) | Green grounding screw | Bend into a hook around screw; tighten fully to metal box if no ground wire exists |
For installations in metal electrical boxes, fold excess wire neatly into the box before mounting the device–this prevents pinching and ensures compliance with box-fill limits (max 4 wires for 14-gauge in a standard 4-inch square box). Push the connected switch back into the box carefully; misaligned wires can short against the box’s edges. Secure the device with the provided screws, ensuring it sits flush against the wall–protruding boxes can strain connections over time.
Restore power at the breaker and test the control by flipping it on and off multiple times. If the fixture fails to respond, recheck connections for loose screws or improperly stripped wires. For dimmable LED bulbs, ensure the switch is rated for dimming; standard controls paired with incompatible bulbs can cause flickering or premature failure. Replace the cover plate only after confirming reliable operation–this prevents accidental contact with live terminals during future maintenance.
In older homes with outdated wiring (e.g., knob-and-tube), consult an electrician before proceeding. Modern controls require a dedicated neutral wire, which may not exist in pre-1960s installations. For three-way setups–where a fixture is controlled from two locations–use specialized traveler wires between multiple switches instead of the standard two-terminal configuration.

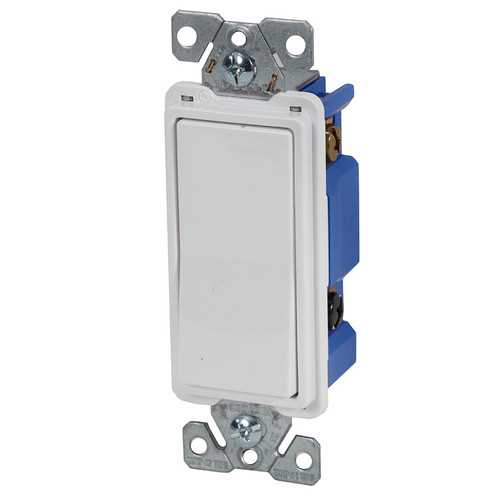

Essential Equipment and Supplies for Installing a Basic Toggle Mechanism
Start with a non-contact voltage detector (pen style, 5-1000V AC) to confirm circuits are dead before handling conductors. Choose a model with both visual and audible alerts–units like the Fluke 1AC-II or Klein NCVT-3 offer reliability for under $30. Avoid cheaper variants lacking auto-calibration; they often yield false negatives near low-current lines.
Precision Cutting and Stripping Gear
Use 12-gauge solid copper wire for standard 15-amp circuits–measure existing runs and add 6 extra inches per connection point for slack. A dual-range wire stripper (e.g., Irwin Vise-Grip 2078300) with grooves for 12-14 AWG prevents nicks that weaken conductors. For sheathed cables, a fishtape cutter (Gardner Bender GS-38) slices through Romex cleanly without damaging insulation.
Secure connections with UL-listed lever nuts (Wago 221 series) or traditional wire nuts rated for two #12 wires. The lever-style terminals eliminate twisting and accommodate stranded wires if retrofitting older fixtures. For grounding, pre-cut green 12 AWG pigtails (min. 4 inches) simplify attachment to metal boxes–avoid splicing ground wires without a pigtail inside plastic enclosures.
Mounting and Safety Components
Select a shallow single-gang switch box (Carlon B117R) for new installations–ensure depth matches wall thickness (1/2″ for drywall, 3/4″ for plaster). Use #6-32 thread grounding screws when tying ground wires to metal boxes; avoid drywall screws with coarse threads. For existing boxes, adjustable depth brackets (Arlington FB600) prevent flush-mount failures in uneven walls.
A multifunction outlet tester (Sperry STK001) verifies correct polarity and grounding post-installation–red lights indicate reversed hot/neutral or open grounds. Keep fiberglass fish tape (Klein Tools 56002, 25 feet) on hand for pulling wires through conduits or finished walls; lubricants like Armor All cable lube reduce friction in tight runs. Replace toggle plates with captive screws to prevent loss during future service–a $2 upgrade that saves time.
Installing a One-Way Control Mechanism: Practical Steps
Turn off the circuit breaker feeding the circuit you’ll modify. Use a non-contact voltage tester to confirm the power is deactivated–hold the probe near the terminals; no beep or light indicates safe conditions. Remove the existing faceplate by unscrewing the two mounting screws, then gently pull the mechanism out of the electrical box to expose the wires.
Connecting the Conductors
Identify the live conductor (typically black or red) and the neutral (white)–if present. Strip 1/2 inch of insulation from the live wire using wire strippers, then form a hook at the end. Loop this hook clockwise around the top brass screw of the new control device, ensuring the wire sits flush against the terminal base. Tighten the screw firmly with a screwdriver until the wire cannot be rotated by hand; tug gently to verify a secure bond. Repeat for the second live conductor or jumper wire connected to the bottom brass screw. If the neutral is bundled with a wire nut, leave it undisturbed.
Fold the connected conductors neatly into the box, pushing excess slack to the back without kinking. Align the control device’s mounting tabs with the box’s screw holes, then secure it with the provided screws–tighten just enough to hold it flush, avoiding over-torquing. Attach the faceplate, restore power, and test the toggle immediately. If the fixture fails to respond, recheck the terminal connections and ensure the circuit breaker is fully engaged.
How to Distinguish Live, Return, and Earth Conductors in Electrical Setup
Start by verifying power is off at the breaker before handling any conductors. Use a non-contact voltage detector to confirm the absence of current. The live conductor carries the electrical charge from the panel and is typically insulated in black or red, though regional codes may vary–check local standards. If colors differ, rely on conductor markings: the live wire may have a smooth texture or ridged insulation compared to others.
Locate the return conductor, usually white or gray, linked to the neutral bar in the service panel. Unlike the live, it returns unused current to the source but isn’t safe to assume it’s de-energized–test with a multimeter set to AC voltage. Between live and return, you should measure approximately 120V in North American systems or 230V in many other regions. Avoid mistaking it for ground–return carries current under normal operation, while earth does not.
The earth conductor, bare, green, or green with a yellow stripe, serves as a safety path for fault current. It connects to the grounding bus in the panel and metal junction boxes. Use a continuity tester to verify its connection to the main ground rod or water pipe. If the setup lacks a ground, retrofitting may be required, especially in older installations where plastic components interrupt the earth path.
In split-phase systems, the live conductor may split into two legs at 180 degrees out of phase, creating 240V across them. Here, the return remains the same, but the live conductor might appear as two distinct black, red, or brown wires. Label them immediately to avoid confusion during later work. European installations often use brown for live, blue for return, and green/yellow for earth–adapt testing procedures accordingly.
When working with cloth-insulated wiring (common in pre-1960s installations), proceed with caution. The outer fabric degrades over time, exposing brittle rubber beneath. Strip back the insulation carefully to avoid damaging the core. If the conductor appears tarnished or corroded, replace the entire segment–improvising with electrical tape risks poor connections and fire hazards. Always match the gauge of new wiring to the existing load requirements.

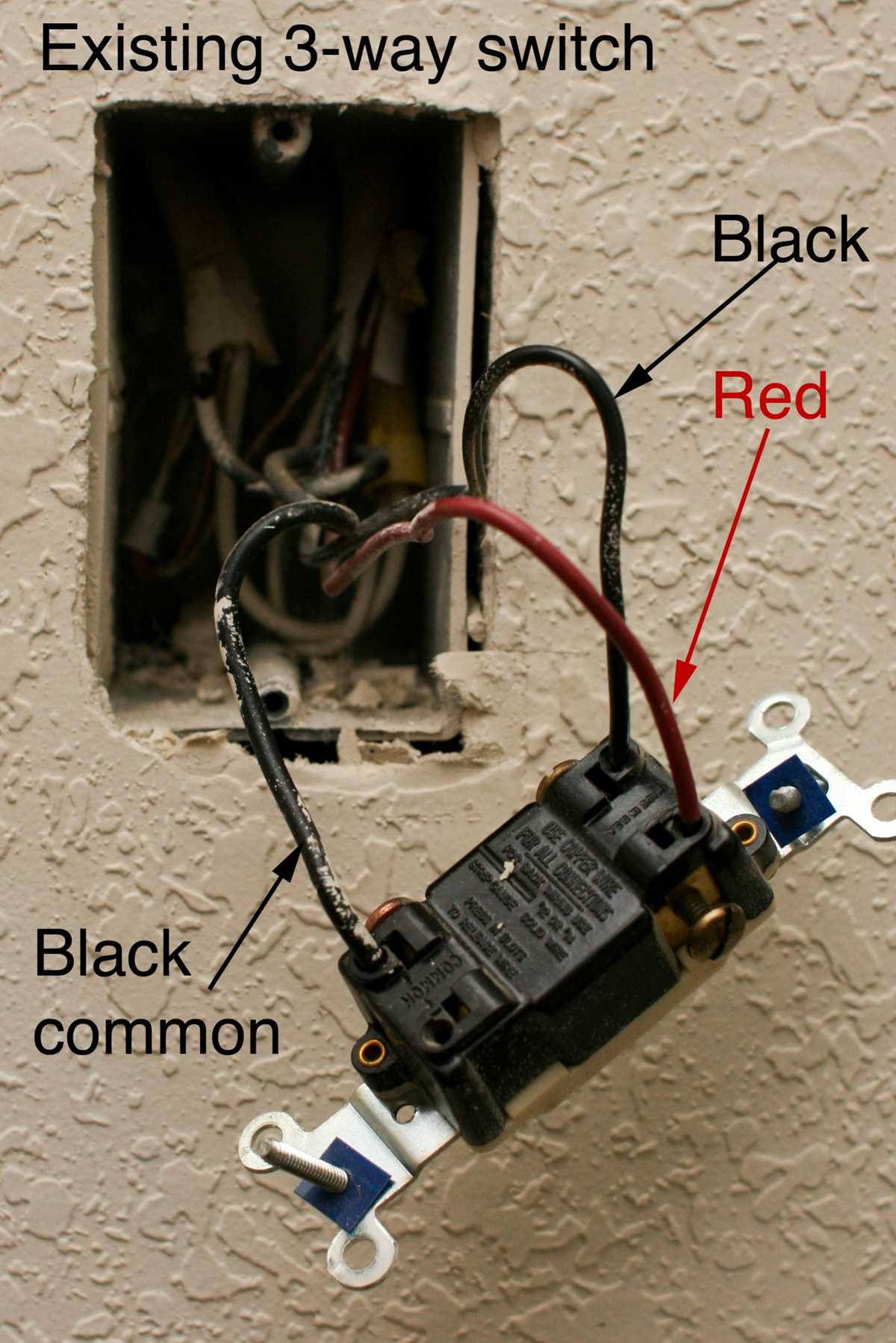

For three-way or multi-location switching circuits, the return conductor may temporarily carry live current depending on switch positions. Identify such conductors by tracing the path back to the panel or using a tone generator to follow the route through walls. Mark traveler wires distinctly–they alternate between live and return roles, unlike dedicated conductors in simpler setups.
After identification, secure connections with wire nuts or terminal blocks rated for the amperage. Twist conductors clockwise before capping to ensure a tight bond. Tug lightly on each to confirm they won’t pull free. Never connect a live conductor directly to earth or return–this bypasses safety mechanisms and creates a shock or fire risk. Re-energize the circuit only after verifying all connections with a meter or load test.
