Complete Yamaha Outboard Motor Wiring Schematic and Troubleshooting Guide

To correctly interpret the internal circuit connections of a 4-stroke F150 or similar powerhead models, locate the color-coded reference chart provided in the official service manual–black (B), white (W), red (R), and purple (P) wires form the core ignition harness. Misrouting these during reassembly risks ECU malfunction, typically indicated by fault code 12 (crankshaft sensor deviation). Always cross-check against the specific engine serial number; revisions post-2018 introduced shielded cables near the starter solenoid for EMI suppression.

Verify voltage drop across terminals before finalizing connections. A fully charged 12V system should measure 13.8–14.4V at the battery terminals under load; readings below 12.6V suggest parasitic drain or corroded ground points on the transom bracket. For models equipped with digital gauges (e.g., 6Y8), ensure the grey (GN) wire from the instrument cluster links directly to the ECM without splices–interruptions cause erratic RPM readings.

When servicing harnesses on 200-series lower units, isolate the blue (BL) and yellow (Y) wires feeding the trim/tilt motor; reversing polarity destroys the internal gearbox potentiometer. Use a multimeter set to 200Ω to confirm continuity between the ECM plug and the engine block ground–resistance above 0.5Ω indicates compromised grounding, leading to intermittent power losses. For models with integrated trolling modes, the brown (BR) wire must connect to the relay switch independent of the main ignition circuit to prevent voltage spikes.

Replace any frayed conductors immediately. The green (G) and pink (PK) wires on V6 configurations carry critical sensor data; damage here triggers limp-mode activation. After reassembly, apply dielectric grease to terminal connections exposed to saltwater environments to prevent oxidation–particularly on the black (BK) and orange (O) battery leads. For engines paired with Helm Master EX systems, the white/red (W/R) wire carries CAN bus data; route it separately from high-current cables to avoid signal noise.

Electrical Schematic Guide for Marine Propulsion Systems

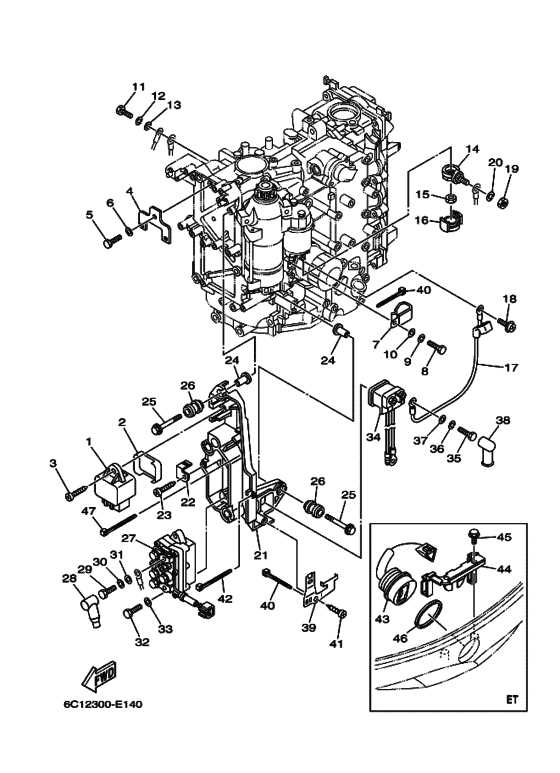

Locate the ignition control module near the powerhead housing–it’s typically secured with a single 10mm bolt and two snap-lock electrical connectors. Disconnect the battery first to prevent accidental shorts; use a 12V tester to verify zero voltage before proceeding. The primary feed from the starter solenoid should be a 10-gauge red cable with crimped ring terminals; replace any wire showing corrosion, even if minor.

Trace the neutral safety switch wiring to its mounting point beneath the shift lever assembly. The circuit uses twin 16-gauge violet and gray wires terminating in a three-pin Molex connector. If testing reveals intermittent shifting issues, probe each pin with a multimeter set to 20V DC range–readings below 11.8V indicate a faulty microswitch requiring immediate replacement.

Examine the trim sender unit positioned adjacent to the hydraulic pump. The sender communicates via a four-wire harness comprising white (common ground), yellow (trim up signal), blue (trim down signal), and black stripe (ignition reference). Use dielectric grease on each spade terminal during reassembly to prevent moisture ingress. Verify functionality by energizing the system and observing gauge response within 2 seconds.

Inspect the charging system output at the rectifier-regulator connections. A properly functioning alternator should deliver 13.8-14.5V under load at 1500 RPM. If readings drop below 13.2V, test individual stator coils for continuity–each should measure between 0.2-0.5 ohms. Replace the entire stator assembly if any coil reads open circuit.

The tilt and trim solenoid valves operate on 12V pulses controlled by the ECU. Each solenoid draws approximately 8 amps at peak activation; ensure the 30-amp inline fuse is intact before troubleshooting. A buzzing noise during operation signals internal coil degradation–swap solenoids in pairs to maintain balanced current draw.

Check the kill switch circuit by isolating the lanyard interlock. The system uses a normally closed momentary switch wired in series with the CDI box. Bypass testing requires jumpering the switch leads temporarily–if the engine starts, replace the faulty switch immediately. Never leave the bypass in place during operation due to safety risks.

Verify the fuel pump relay activation sequence at pin #87 of the main harness plug. The relay should click audibly within 3 seconds of key-on; if silent, test coil resistance (60-80 ohms typical) and contacts for pitting. Clean oxidized contacts with fine-grit emery paper, not chemical cleaners, to avoid residue interfering with conductivity.

Test the temperature sender circuit calibration by immersing the sensor in water and monitoring resistance changes. At 77°F (25°C) reading should be 2.2-2.8 kΩ; drop to 200-300Ω at 212°F (100°C). Replace sensors drifting outside ±5% tolerance to maintain accurate ECU fuel mixture adjustments.

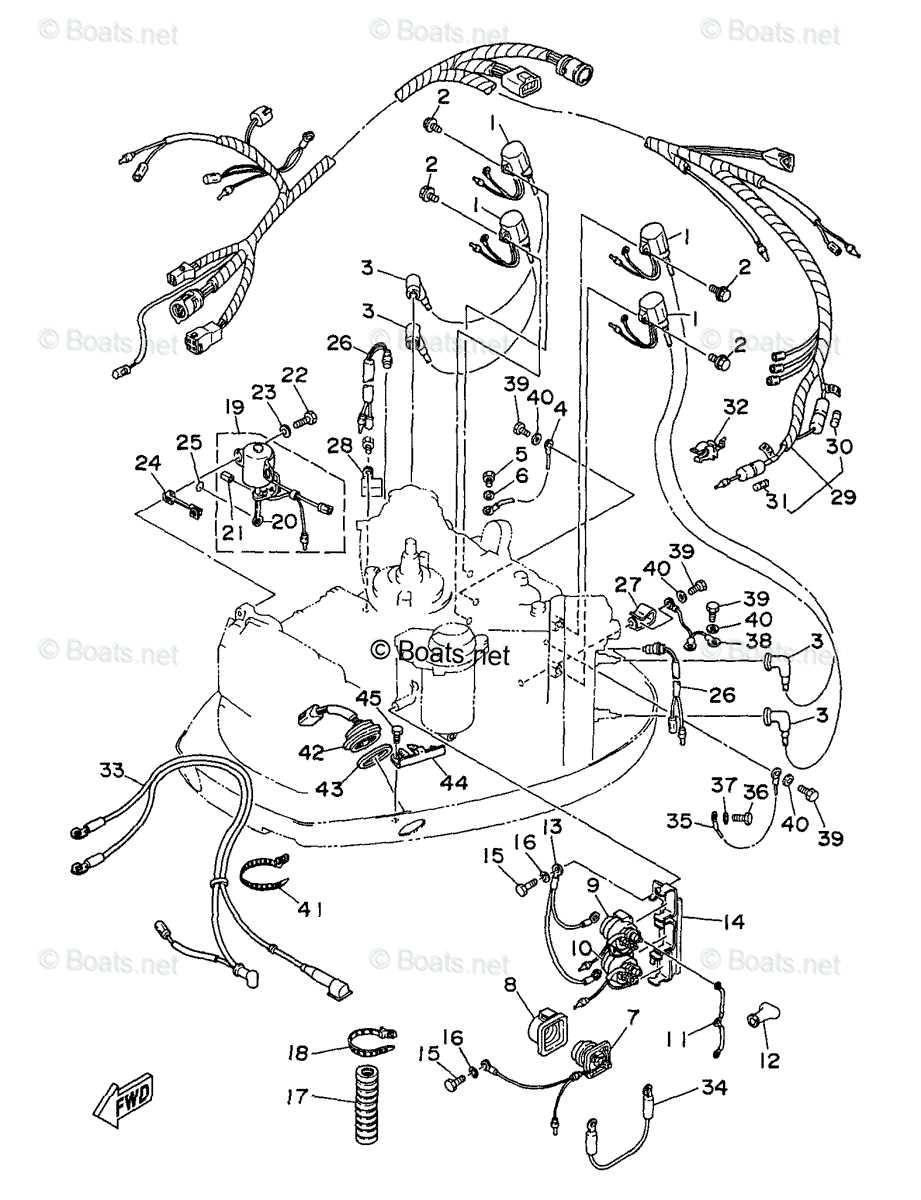

Matching Electrical Schematics to Your Marine Engine Variant

Locate the model identification plate on the engine cover–powerheads manufactured between 1984 and 2005 feature a six-character code (e.g., 6L5-12345), while newer units display a distinct alphanumeric string (e.g., F250XCA). Cross-reference this exact designation with Yamaha’s official service literature: revision A for pre-2006 models (schematic section 6-1), revision B for 2006–2015 (section 7-2), and revision C for post-2016 units (section 8-3). Variations like “E” (electronic control), “Z” (high-thrust), or suffix letters (A, B, C) denote critical circuit differences–ignore these distinctions and risk voltage mismatches in ignition coils or overheating of the stator.

Key Connection Points to Verify

Inspect the color-coded leads first: solid blue (charging), red/white stripe (battery +), black/yellow (ground), and green/white (neutral safety). Discrepancies in wire gauge or terminal type–spade vs. bullet–indicate incorrect schematic adoption. For 4-stroke engines, confirm ECU pin assignments (fuel injector pins 17–24); 2-stroke models instead rely on capacitor discharge modules (pins 3–8). Online aftermarket diagrams often omit the hour-meter circuit found exclusively in commercial-grade variants (suffix “U”)–failure to account for this leads to false voltage drops during diagnostic checks.

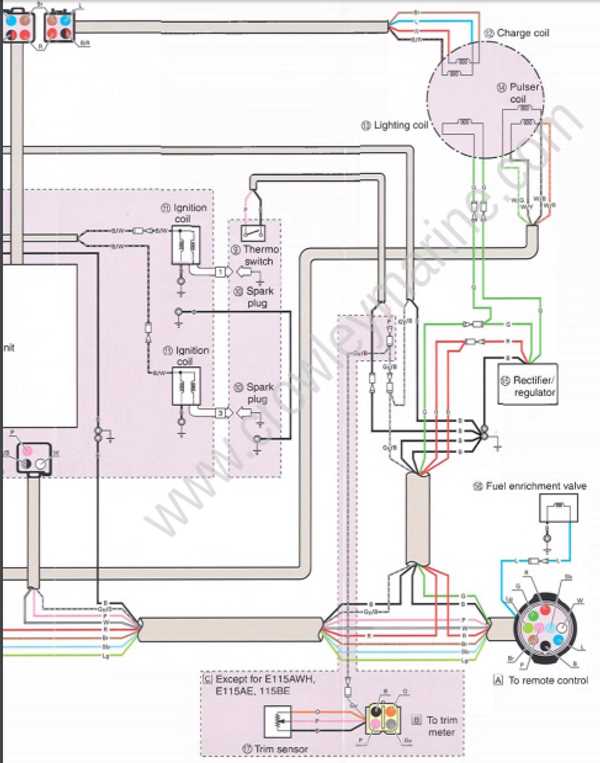

How to Decode Electrical Charts for Marine Propulsion Systems

Locate the color-coded conductors first. Yamaha’s schematics designate each strand with two-letter abbreviations: BK for black, BL for blue, BR for brown, GN for green, GY for gray, OG for orange, PK for pink, RD for red, TN for tan, VT for violet, WH for white, YL for yellow. Match these labels to the corresponding terminals on the ignition module, alternator, and starter relay–mismatches here cause ignition failure.

Trace the power distribution path from the battery’s positive terminal. The chart will split current into two branches: one leads through a 10A fuse to the ignition switch, the other bypasses the switch via a thick YL cable to the emergency stop relay. Verify that the switch outputs 12V to the RD conductor when turned to “ON”; absence at this point indicates a faulty switch or corroded contact.

• Check ground connections at the engine block. Schematics show three separate earth points: one for the battery’s negative post, one for sensors via the GN cable, and one for the control box via the BK strand. Use a multimeter–readings above 0.2V between any ground and the block denote resistance buildup; clean surfaces with a wire brush.
• Inspect the 30A main fuse linking the battery to the starter solenoid. Blown elements often stem from voltage spikes during engagement–replace with an identical rating, never higher.
• Confirm the VT and OG wires feeding navigation lights terminate in waterproof connectors. Exposure leads to short circuits; seal terminals with dielectric grease.

Follow sensor loops last. Oil pressure and temperature transducers share a single plug; diagrams mark these with dashed lines. Use a pinout probe to ensure 5V reference from the ECU–drops below 4.8V trigger false alarms. Swap suspect sensors with known-good units before condemning the control unit.

Standard Conductor Hues and Roles in Marine Powerplants

Black conductors with red stripes (B-R) typically handle ignition circuits–connect these to the coil’s positive terminal or kill-switch relay input. Solid yellow (Y) serves as the main power feed from the battery’s positive pole; verify 10 AWG minimum gauge for models above 100 HP to prevent voltage drop. Green with white stripes (G-W) grounds engine components, including sensors and trim solenoids; corroded connections here often trigger erratic RPM readings or false alarms.

Auxiliary Circuit Identifiers

White with black stripes (W-B) carries tachometer signals; splice this directly to the instrument cluster without intermediate junctions to avoid signal degradation. Blue (B) powers tilt/trim systems–ensure compatibility with 20-amp fuses for motors equipped with hydraulic pumps. Brown (Br) links warning systems: connect to oil pressure and temperature senders using soldered joints, not crimp connectors, to withstand vibration.

How to Trace and Test Electrical Pathways with a Multimeter

Set the multimeter to continuity mode before touching probes to terminals. A solid beep confirms an unbroken circuit; absence indicates an open path. Begin at the power source–battery terminals–and work toward the load, checking each connection point. Label wires with masking tape if colors are faded or duplicated.

Switch to DC voltage mode (20V range) to verify power delivery. Connect the red probe to the positive terminal, black to ground. A reading near battery voltage (12.6V nominal) means the circuit is live. Deviations below 11.8V suggest resistance, corrosion, or a loose joint. Repeat at every splice, fuse holder, and switch.

Measure resistance (Ω range) to isolate faults. Disconnect the circuit from power first. A healthy conductor reads 0.1–0.5Ω; values above 1Ω indicate oxidation, poor crimp, or broken strands. Probe both ends of a wire with the multimeter: infinite resistance confirms a break inside the insulation. Use a thin sewing needle to pierce insulation temporarily if wires are bundled.

Test switches in both positions. Open switch should show infinite resistance; closed should read near zero. If resistance exceeds 5Ω, the contacts are pitted. Relay coils should register 50–120Ω; values outside this range mean internal damage. Check diodes by reversing leads–forward bias shows ~0.6V, reverse bias infinite.

Component	Expected Ω Range	Fault Indicator
Cable between connectors	0.1–0.5Ω	>1Ω
Fuse (blown)	Infinite
Solenoid coil	2–5Ω	>10Ω or 0Ω
Ground strap		>0.5Ω

Inspect connectors for corroded pins. Spray contact cleaner, then insert and remove the plug three times to scrape off oxidation. Retest voltage drop across the connection: it should be under 0.1V while the circuit draws current. Higher drops require replacing the terminal or re-crimping.

Use the multimeter’s current mode (10A range) sparingly–never exceed the meter’s rating. Clip the red probe to the load side, black to ground. A healthy circuit should match the fuse rating ±10%. Readings near zero confirm an open, while excessive current points to a short or compromised insulation.

Record every measurement in a notebook alongside the reference designations silk-screened on the equipment’s panels. Cross-reference anomalies with the schematic’s color codes. Hot wires (usually red or yellow) carry 12V, ground wires (black or brown) should show zero resistance back to the battery negative.

Recheck all repaired joints with the multimeter before reassembly. Ensure strain reliefs secure cables away from sharp edges or rotating parts. Snap connectors back into plastic retainers; route harnesses along factory clips to prevent chafing. A final continuity sweep confirms no accidental shorts between adjacent circuits.
