How to Connect RCA Outputs from Car Stereo to Amplifier Properly

Start by identifying the low-voltage connections on your vehicle’s audio control module–typically labeled as preamp channels or auxiliary outputs. These ports deliver 2V RMS at line level, the standard for interfacing with amplifiers, external processors, or aftermarket signal processors. Confirm the pinout matches the manual; most systems use white for front left, red for front right, gray for rear left, and purple for rear right, though color coding varies by manufacturer.

Use shielded twisted-pair cables for runs exceeding 1.5 meters to prevent interference from ignition systems, alternators, or power lines. Ground loops–audible hum or buzz–can be eliminated by connecting the shield at one end only, preferably at the source. Avoid daisy-chaining grounds, which introduces noise into the signal path.

For passive component integration (equalizers, crossovers), insert a Line Output Converter (LOC) if the control module lacks direct preamp outputs. Configure the LOC to step down high-level speaker outputs to line level, adhering to the device’s input impedance (usually 10kΩ–50kΩ). Match impedance levels to prevent signal degradation–mismatches cause weak bass response or clipped treble.

Test connections with a multimeter before finalizing–the AC voltage across any channel should measure 0.5V–2V with the system at moderate volume. If voltage exceeds this range, attenuate the signal using a resistor-based voltage divider or an inline attenuator pad to protect downstream equipment. Verify phase alignment by playing a low-frequency test tone; cancelation indicates reversed polarity on one channel.

Secure cables away from high-current wiring (ignition coils, power amplifiers) to avoid induced noise. Route harnesses through grommeted pathways and use duct tape or spiral wrap for bundling, never standard electrical tape, which degrades under heat. Label each connector near the termination point for future diagnostics.

Connecting Audio Interfaces: Line-Level Signal Routing

Start by identifying the color-coded connections on your stereo harness–white and red pairs typically represent front channels, while gray and purple handle rears. Verify voltage amplitudes when bridging these ports to amplifiers; most modern decks output 2.0–4.0 volts RMS, but older units may dip below 1.5V, requiring preamp adjustments or impedance-matching adapters. Use shielded twisted-pair cables (22–24 AWG) for runs exceeding 15 feet to minimize RF interference, particularly near vehicle ignition systems or high-current wiring.

Common Pitfalls & Signal Integrity Checks

Issue	Symptom	Troubleshooting Step
Ground loop hum	60Hz buzz through speakers	Isolate signal ground at the source–connect a 10Ω resistor between stereo chassis and amplifier ground; test with a multimeter for continuity.
Clipping distortion	High-frequency crackling under bass	Lower input sensitivity on the amplifier; ensure RCA connectors are fully seated and free of oxidation.
Channel imbalance	Uneven volume or phase cancellation	Swap cables between channels–if the issue persists, inspect the internal preamp stage for faulty coupling capacitors (typically 47µF–470µF electrolytics).

For systems with active crossovers, route dedicated low-level signals through a distribution block featuring gold-plated splitters, avoiding daisy-chaining multiple devices off a single port. Measure AC voltage across outputs with no signal present–values above 0.5V may indicate alternator whine, necessitating an isolated ground loop filter or a dedicated power supply for the amplifier stage. When integrating subwoofers, confirm the stereo’s sub-out port operates in low-pass mode (typically 80–120Hz) and bypass any built-in crossovers if using external DSP.

Identifying Line-Level Connectors on Your Vehicle Audio System

Locate the auxiliary ports on the rear panel of your stereo. These are typically grouped in pairs–red for right channels, white or black for left channels–each marked with labels like “AUX Out,” “Sub Out,” or “Front/Rear.” Older models may use silver-plated connectors, while newer ones often feature gold-plated jacks for better signal clarity. Check the owner’s manual if labels are unclear; some systems combine preamp jacks with amplified speaker outputs, which require different handling.

To confirm their function, use a multimeter set to AC voltage (200mV–2V range). With the stereo powered on but no audio playing, probe the tip of each jack–active line-level ports should read between 0.5V and 2V when music is playing at moderate volume. If readings exceed 5V, you’re likely measuring amplified speaker outputs, not low-level signals. False positives can occur if testing near power wires, so isolate the connector from surrounding harnesses.

Common locations for these jacks include:

• Directly on the back of the stereo chassis, often alongside power and antenna connections.

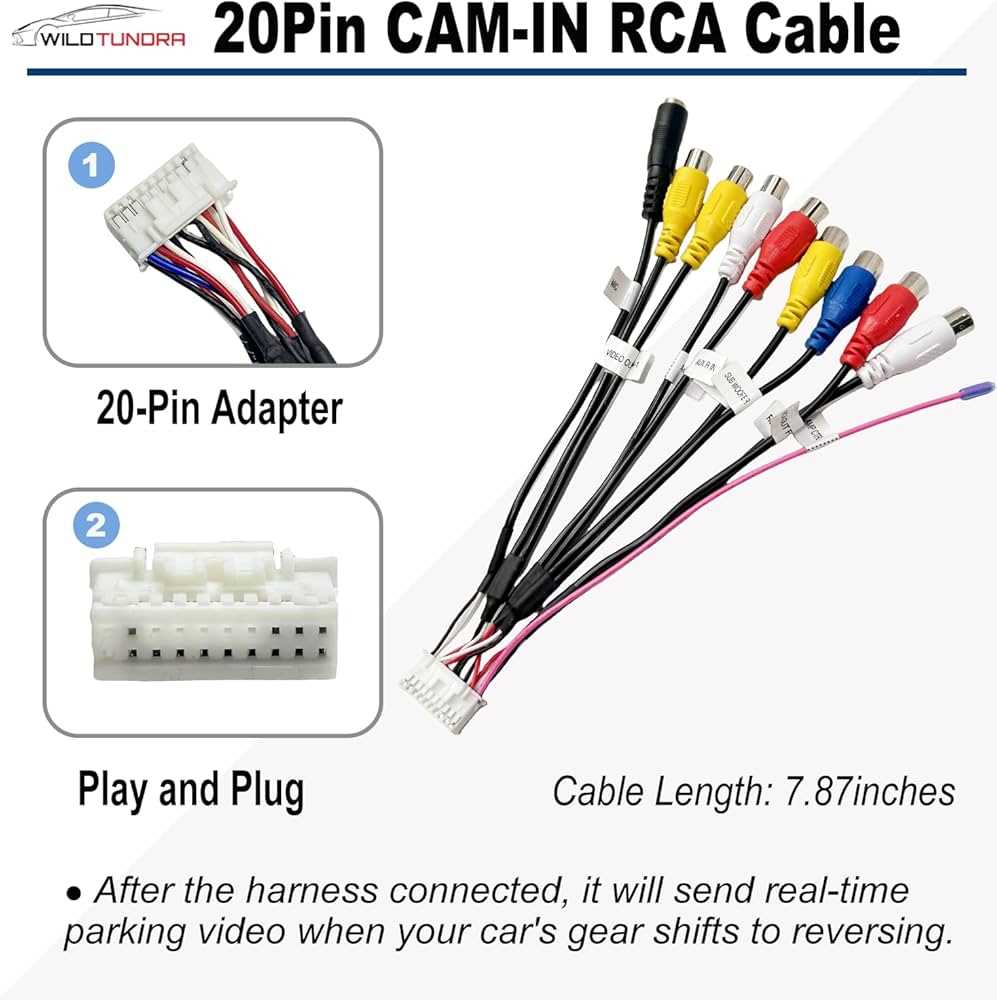

• On a separate breakout harness bundled with aftermarket systems.
• Behind a removable panel in luxury vehicles, where OEM upgrades hide them.
• Near optical or HDMI ports in high-end systems–these usually share space with analog outputs.

Troubleshooting Misidentified Ports

If jacks behave erratically (hum, no signal, or distorted sound), verify ground connections first. Line-level signals are prone to interference if the chassis ground isn’t shared properly. Use shielded cable for all extensions, and ensure no power wires run parallel within 12 inches. For persistent noise, add a ground loop isolator; budget models suffice unless you’re using high-power amplifiers. Label each cable immediately after identification to avoid confusion during future installations.

Step-by-Step Auxiliary Audio Line Connection Guide

Locate the preamp signal ports on your car’s multimedia interface–typically marked as “Front/Rear” or “Sub Out” with color-coded red and white sockets. Ensure the vehicle’s ignition is off before handling any connections to prevent short circuits or signal interference. Match the male connectors of the shielded cable to the corresponding female jacks, pressing firmly until a secure click confirms proper seating. Avoid twisting or forcing the plugs, as this can damage the internal pins or degrade audio fidelity over time.

Verifying Signal Path Integrity

Activate the stereo system and play a low-frequency test tone through the source (e.g., 100Hz sine wave) to confirm signal continuity. Adjust the amplifier’s gain settings to roughly 75% of the maximum recommended input sensitivity to prevent clipping. If using a dedicated subwoofer channel, test phase alignment by inverting the polarity on the processor; the bass response should audibly weaken when out of phase. For passive crossovers, ensure the cutoff frequency (e.g., 80Hz) matches the speaker’s capabilities to avoid muddiness in the midrange.

Route the interconnects away from power wires, oxygen sensors, or ignition coils to minimize electromagnetic interference–maintain a minimum 12-inch separation where possible. Secure excess cable length with nylon zip ties or spiral wrap to prevent rattling against moving components (e.g., pedals, dashboard vents). If persistently weak output occurs, inspect for corroded connectors, oxidized contacts, or mismatched impedance; a 50-ohm terminator on unused channels can stabilize the circuit in some setups.

Aligning Aftermarket Signal Sources with Amplifier Channels

Begin by verifying the voltage sensitivity of your downstream power stage–most aftermarket modules default to 2V peak-to-peak on preamp feeds, yet high-level processors can push 4V. If your gain structure exceeds 1.5V, introduce a fixed attenuator or recalibrate internal thresholds to prevent clipping before the first active stage.

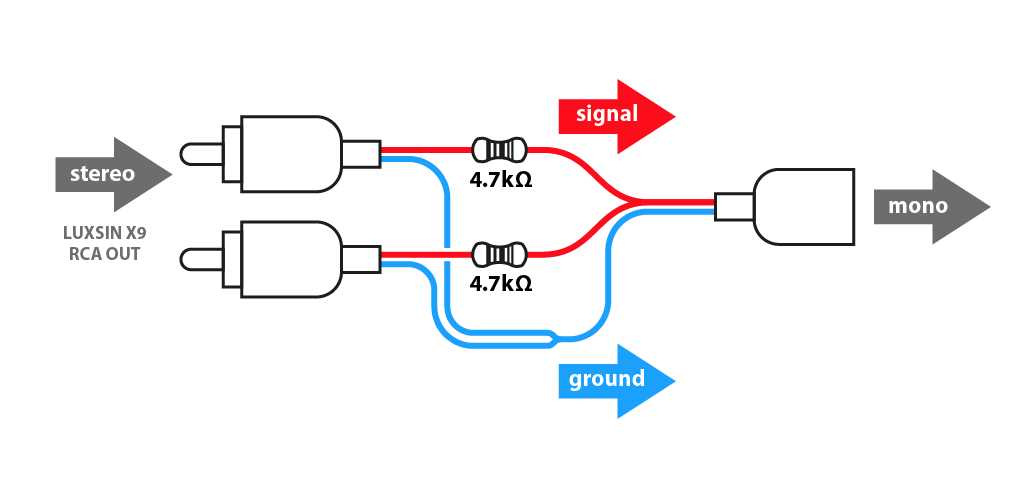

Map front, rear, and subwoofer feeds to dedicated channels only if the signal phase remains identical across all paths; phase discrepancies as small as 20° degrade stereo imaging by 12-15dB. Use a dual-trace oscilloscope to confirm synchronization–or route midrange and bass through summed channels if phase alignment isn’t critical for the installation.

Assign low-pass outputs strictly to sub-channel inputs that tolerate 10–100Hz roll-off without distortion; amplifiers with steep crossover slopes (≥24dB/octave) clip transients if the subsignal peaks above 8V. Test transients with a 50Hz sine burst at 90% rated power–any compression indicates improper pairing.

Dedicated high-pass feeds should bypass built-in crossovers unless the downstream power stage lacks variable filters; stacking multiple high-pass stages accumulates phase shifts >45°, smearing harmonics above 3kHz. Disable the internal filter if external processing exists.

Balance preamp impedance with amplifier inputs–most consumer-grade preamp stages present 1–2kΩ, while professional-grade amplifiers expect ≤500Ω. Insert a unity-gain buffer or impedance-matching transformer if signal loss exceeds 3dB between devices, especially over cable runs exceeding 8m.

Color-code channels consistently: red (right), white (left), blue (sub), and purple (rear) to eliminate misrouting. Label both ends of cables with heat-shrink tubing matching amplifier silkscreen legends–prevents future polarity errors during maintenance or system upgrades.

Solving Low or Missing Audio Signal Problems from Your Audio Interface

Check the connection cables first. Inspect every plug and jack for bent pins, corrosion, or debris. Use a multimeter to verify continuity; a reading above 0.5 ohms suggests resistance that weakens signals. Replace cables with high-quality shielded pairs–copper-core conductors with braided shielding reduce interference better than foil.

Verify the signal path settings. Navigate to the audio processor menu and ensure the preamp gain is set between 60-80%–values outside this range often introduce noise or mute signals. Disable any unnecessary digital effects or dynamic compression that might attenuate the line-level strength.

Test each channel individually. Connect one channel at a time directly to an amplifier using short, known-good patch cords. If sound appears, the issue lies upstream: revisit previous connections. If silence persists, swap the failed channel’s patch cord with a functional one–intermittent sound indicates a faulty connector.

Inspect grounding. Poor grounding causes hum, hiss, or complete signal loss. Locate the chassis ground point–often a screw securing the metal casing–and tighten it. Measure voltage between ground and a clean reference point (like a battery negative); readings above 0.1V suggest ground loops. Resolve by installing a ground loop isolator rated for your system’s impedance.

Evaluate the preamp stage. If your audio processor includes a built-in preamp, bypass it temporarily by connecting the source directly to the amplifier. If signal strength improves, the preamp is suspect–check for blown fuses, swollen capacitors, or loose solder joints on the circuit board. Replace defective components with matches rated for the same voltage and capacitance.

Interference Sources and Mitigation

• Keep cables away from power wires–crossing at 90° reduces noise coupling.
• Shield patch cords with conductive tape if exposed wiring is unavoidable.
• Install ferrite chokes near both ends of cables prone to RF interference.
• Switch to balanced XLR connections if unbalanced lines prove problematic–balanced signals reject noise more effectively.

Assess the source device. Many devices use variable voltage outputs; confirm the settings match the amplifier’s expectations. A CD player set to fixed-level output may overwhelm an amplifier expecting variable input. Consult the manual for voltage specs–typical line-level signals hover around 1-2V RMS.

Amplifier Diagnostics

1. Power down and disconnect all inputs. Check fuse integrity; replace if blown.
2. Remove the amplifier cover and inspect for overheated components–discoloration or burnt smells indicate failure.
3. Test speaker outputs without any input. Popping or crackling suggests internal short circuits.
4. Reconnect inputs one at a time while monitoring temperature–excessive heat signals overloaded stages.

If all else fails, measure signal strength at every stage. Use an oscilloscope to trace the path from the source to the amplifier. At each junction, verify signal amplitude remains within 1-2V peak-to-peak. Voltage drops beyond 30% from one point to the next pinpoint faulty connections or internal failures.
