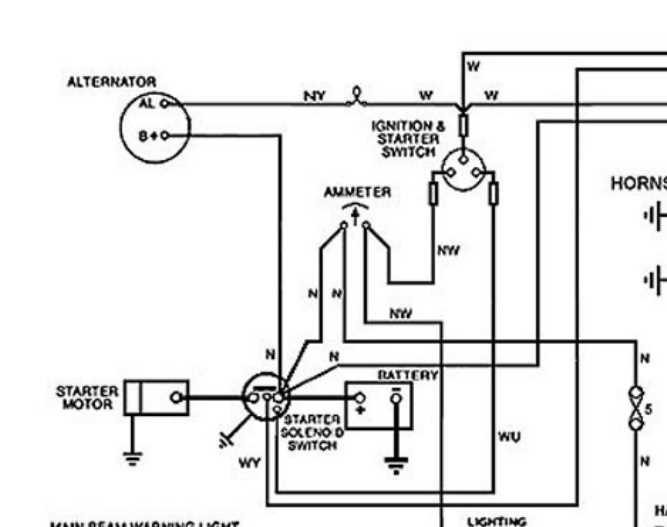

How to Read and Interpret a Starter Motor Wiring Diagram Step by Step

Always begin troubleshooting by verifying the integrity of the main power cable between the battery and the solenoid. A voltage drop exceeding 0.2V over this connection indicates corrosion or loose terminals that require immediate cleaning or tightening. Replace terminals if pitting is visible–even minor surface oxidation increases resistance, reducing cranking power.

Inspect the excitation circuit next. The ignition switch must supply at least 11.5V to the solenoid coil when engaged; lower readings suggest a faulty switch or broken wire. Use a multimeter in continuity mode to trace the path from the ignition terminal to the solenoid–interruptions often stem from chafed insulation behind the dashboard.

Examine the ground path separately. Attach a jumper cable from the engine block to the battery negative terminal to bypass existing connections. If cranking improves, disassemble the original ground strap and sand both contact surfaces until bare metal shows. Apply dielectric grease during reassembly to prevent future oxidation.

Check solenoid contacts last. Remove the cover and inspect the copper contacts for pitting–rough surfaces create excessive resistance. Replace the solenoid if contact resistance exceeds 0.05Ω. Ensure the return spring has adequate tension; weak springs cause premature disengagement, leaving the pinion gear spinning without meshing.

Never overlook the protective relay. Test its function by jumping the relay socket terminals 30 and 87–if the system cranks normally, replace the relay. Use a relay with a 30A rating minimum; undersized relays overheat, melting the internal contacts within hours of operation.

Electrical Connection Guide for Engine Cranking Systems

Begin by locating the ignition feed terminal on the solenoid – typically marked “30” or “B+” – and secure a 4-6 AWG cable directly from the battery positive post. Ensure the cable is stranded copper, rated for at least 200A continuous, with heat-resistant insulation (XLPE or PVC). Avoid splices within 18 inches of the battery to prevent voltage drop.

Route the solenoid control circuit through a fused link no thicker than 16 AWG, connecting to the ignition switch’s “start” position. Install a 15A fuse in-line within 7 inches of the switch to protect against short circuits. On vehicles with automatic transmissions, incorporate a neutral safety relay between the switch and solenoid to prevent engagement in gear.

For diesel applications, verify the presence of a dedicated glow plug circuit before energizing the cranking sequence. The solenoid’s “S” terminal must receive a clean 12V signal with less than 0.2V drop during cranking. Test this by probing the terminal with a multimeter while an assistant activates the ignition; readings below 9.5V indicate corroded connections or undersized cables.

Grounding is critical: attach the engine block to the chassis using a braided strap at least 1/2-inch wide, positioned away from exhaust manifolds and moving parts. Apply dielectric grease to all ring terminals before installation to prevent oxidation. For marine or off-road environments, double the ground strap gauge and use tinned copper to resist corrosion.

Common Failure Points and Troubleshooting

• Intermittent engagement: Check for loose terminal connections at the solenoid or relay; torque to 8-10 Nm. Vibration-induced failures often stem from improperly secured cables.
• Clicking with no rotation: Measure battery voltage under load (minimum 10.5V). If acceptable, the pinion gear may be jammed; inspect for worn teeth on the flywheel ring gear.
• Slow cranking: Test the battery’s cold-cranking amps (CCA) – replace if below 70% of rated value. Alternatively, clean the starter’s armature commutator with 600-grit sandpaper if inspection reveals pitting.
• Solenoid pull-in but no hold-in: Inspect the return spring inside the solenoid housing; a weakened spring requires component replacement. Also verify the hold-in coil resistance (typically 0.5-1.5 ohms).

For high-compression engines (10:1 ratio or higher), upgrade to a heavy-duty cranking mechanism with a larger field coil and reinforced brushes. Aftermarket units often include oversized copper contacts in the solenoid to handle the increased current draw (300A+). Always match the replacement’s pinion tooth count to the original to avoid gear misalignment.

When installing in tight engine bays, consider a remote-mounted solenoid to reduce cable length and voltage loss. Position the relay within 12 inches of the cranking device and use adhesive-lined heat-shrink tubing on all connections exposed to moisture. For turbocharged applications, route cables away from exhaust headers to prevent insulation melt – maintain a minimum 3-inch clearance.

Wiring Modifications for Performance Applications

1. Replace factory ignition switches with a push-button start module, wired through a sealed relay to handle increased current. Include a 30A circuit breaker instead of a fuse for easier reset after overloading.
2. On forced-induction builds, install a dedicated 100A relay to isolate the cranking system from auxiliary loads (fuel pumps, ECUs). This prevents voltage sag during startup.
3. For vintage vehicles, retrofit an electronic cutoff device (e.g., thermal solenoid protector) to disable cranking if engine temperature exceeds 250°F, preventing overheating of the armature.
4. On race cars, add a momentary override switch bypassing the ignition switch for emergency starts – mount it discreetly but within reach of the driver’s seat.

After assembly, perform a full-load test: disable fuel/injection and crank the engine for 15-second intervals, monitoring voltage at the solenoid and battery terminals. Temps should not exceed 140°F on the cable insulation or 180°F on the solenoid case. Document all measurements for baseline comparisons during future diagnostics.

Pinpointing Critical Parts in an Auto Cranking System Schematic

Locate the solenoid assembly first–it sits atop the main drive housing and typically features two large terminal posts. One post connects directly to the battery positive, while the other bridges to the armature via a thick copper strap. Trace the thin trigger lead, often color-coded purple or yellow, which links to the ignition switch or relay. Voltage drop across these terminals should not exceed 0.2V during engagement; higher readings indicate corrosion or undersized cables.

Examine the field coils encircling the armature core–these heavy-gauge windings generate the magnetic flux essential for rotation. Resistance checks should yield values between 0.1Ω and 0.5Ω per pair; deviations suggest shorted turns or open circuits. The commutator bars, segmented copper strips at the armature end, must show uniform wear; pitting deeper than 0.03mm necessitates resurfacing or replacement to prevent arcing.

Identify the Bendix drive mechanism on the output shaft–its helical splines mesh with the flywheel ring gear during startup. The override clutch should spin freely in one direction while locking in the opposite; failure here causes grinding noises and potential gear damage. Inspect the return spring behind the pinion; a weakened spring prolongs disengagement, risking over-revving and catastrophic failure.

Follow the ground path critically–most cranking issues stem from poor chassis connections. The casing should bond directly to the engine block via a braided strap; resistance above 0.1Ω here creates voltage drops that mimic solenoid failures. Verify the engine-to-chassis ground with a multimeter under load; readings above 0.3V mandate cleaning both contact surfaces and replacing corroded fasteners.

Check the thermal protection device if present–usually a bimetallic switch or resistor network that limits current during prolonged cranking. These components often fail silently, allowing 300A+ surges to damage the armature windings. Look for discolored solder joints or bulging capacitors on the control board as visual indicators of impending failure.

Map the relay or electronic control module inputs if equipped–modern systems use PWM signals to modulate pinion engagement speed. Probe the signal wire (commonly brown/white stripe) with an oscilloscope during key-turn events; a clean 12V square wave with 50% duty cycle confirms proper operation, while erratic waveforms point to ECU or sensor faults upstream.

How to Interpret an Electrical Circuit Blueprint for Vehicle Ignition Systems

Locate the power source symbol–typically a thick line or rectangle labeled “B+” or “Battery.” Trace this line to identify where voltage enters the circuit. Note any fusible links or relays directly attached, as these regulate current before reaching major components.

Identify the solenoid activation path by following a thinner line branching from the ignition switch. This path often includes a momentary contact symbol (a dashed line with an arrow) leading to a smaller coil-shaped icon, indicating the electromagnetic trigger mechanism.

Examine the ground return path–a thick line terminating at a chassis symbol (⏚) or labeled “GND.” Verify continuity here; corrosion or loose connections at this point commonly cause failure. Measure resistance with a multimeter: readings above 0.5 ohms suggest issues.

Check for auxiliary circuits like safety interlocks (neutral switches, clutch sensors) represented by small switches in series. These prevent operation unless specific conditions are met. Bypass testing–jumper cables applied directly–can confirm if these are causing faults.

Observe the main drive assembly connection, usually a heavy-duty line leading to a pinion gear symbol (a gear icon with a segmented shaft). This represents the mechanical engagement point where electrical energy converts to rotational force.

Compare colors on the schematic to physical cables: red (constant power), yellow (switch-controlled), purple (sensor inputs), and black (ground). Cross-reference with the vehicle’s service manual to confirm manufacturer-specific variations.

Test voltages at key points while cranking: battery terminals (12.6V+), solenoid input (12V+), and motor input (9–11V). Voltage drops exceeding 0.5V between any two points indicate excessive resistance or faulty internal contacts.

Inspect relay symbols–small rectangles with numbered terminals. Replace relays exhibiting burned contacts or erratic behavior during activation tests. Swap with a known-good unit from an unrelated circuit (e.g., horn relay) to isolate failures.
