Step-by-Step Guide to Electrical Switch Wiring Diagrams for Home Installations

Begin by identifying the power source and confirming it’s disconnected before handling any connections. Use a multimeter to verify there’s no current–even residual voltage can pose serious risks. Standard household circuits in North America operate at 120V AC, while European systems typically use 230V. Label each conductor with masking tape: hot (black or red), neutral (white or blue), ground (green or bare copper). Mislabeling can lead to short circuits or equipment damage.

For single-pole setups, connect the incoming live wire to the brass terminal and the outgoing load wire to the silver terminal. Ground wires must always be secured to the green screw–skipping this step violates safety codes and increases fire hazard risks. In three-way configurations, travelers (usually red and black) link switches for multi-location control. Use twist-on connectors or lever nuts rated for 600V with a minimum of 20% more capacity than the wire gauge requires.

Diagrams often overlook wire gauge requirements. For 15A circuits, use 14 AWG copper; for 20A, 12 AWG is mandatory. Aluminum wiring should never be used with modern devices–corrosion between copper-aluminum junctions can create resistance hotspots. When replacing outdated components, check for brittle insulation (common in pre-1980 installations) and upgrade to THHN/THWN for long-term reliability.

Test each connection with a voltage tester before restoring power. For double-pole applications, ensure both breakers are off–live circuits here carry 240V, which can arc through tools if mishandled. Always secure switch plates tightly to prevent moisture ingress, especially in damp areas like basements. Keep a copy of the schematic updated with any modifications for future reference or troubleshooting.

Connecting Control Mechanisms: Visual Guides for Safe Installation

Start by identifying the power source and load terminals on the device. Single-pole setups require connecting the live feed to the common terminal, then routing the output to the fixture via the remaining screw. Always use a multimeter to confirm the circuit is dead before handling any terminals. Mark wires with colored tape to avoid confusion during final connections, especially in multi-way configurations with travelers.

For three-way systems, the sequence follows:

• Attach the incoming hot conductor to the dark-colored screw (common) on the first unit.
• Link the two brass screws (travelers) between both units using 14-gauge or thicker cables.
• Connect the load (light or appliance) to the common terminal on the second unit.
• Ground all metal parts with a bare copper wire tied to the green screw.

Test each position with a continuity tester to verify correct operation before covering the junction box.

Special Cases: Dimmer and Smart Modules

Dimmers replace standard devices but require compatible bulbs–LED fixtures often need designated low-voltage dimmers. When installing smart modules:

1. Disable power at the breaker panel.
2. Remove the existing mechanism, noting wire positions.
3. Connect the module according to the manufacturer’s color-coding (typically red for load, black for line, white for neutral, if required).
4. Secure the module with mounting screws, ensuring no wires are pinched.
5. Restore power and configure via the associated app or hub.

Neutral connections are mandatory for most smart modules; older homes may require rewiring to include a neutral wire at the box.

Document each configuration with a photo before disconnecting old units. Store diagrams in a labeled folder or digital note system for future reference. For complex layouts, use a wiring simulator tool to validate connections before physical installation. Always follow local electrical codes–some jurisdictions mandate AFCI or GFCI protection for certain circuits.

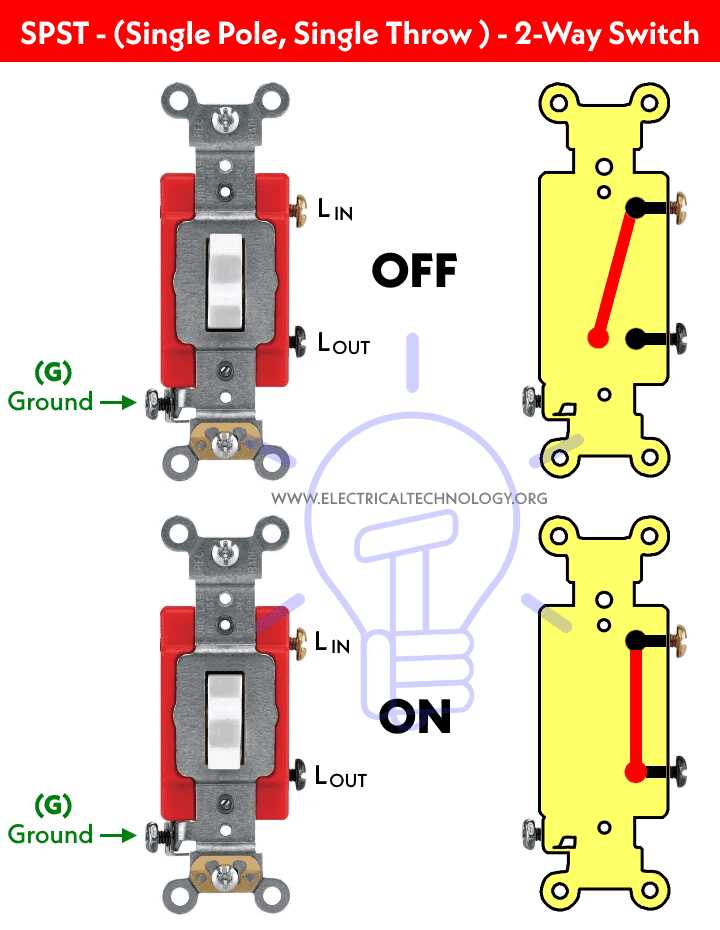

Single-Pole Connection Schematics and Standard Wire Markings

Identify the live conductor by its black or red insulation–this carries the power from the circuit breaker to the control device. Attach it to the brass-colored screw terminal on the toggle unit, ensuring the screw clamps down securely on the exposed copper.

Connect the neutral return path (usually white) to the corresponding screw, but only if the setup includes a bundled return through the outlet box. In most residential setups, this wire bypasses the toggle entirely, continuing to the fixture or receptacle downstream.

Ground protection must terminate at the green or bare copper screw, bonded directly to the metal enclosure if present. If the enclosure is non-metallic, loop the ground between the toggle and the light fixture’s ground terminal to maintain a continuous safety path.

For single-location setups, strip 5/16 inch of sheathing from each conductor–excess length risks short circuits against adjacent screws. Curve the stripped end clockwise around the screw shaft before tightening to prevent loosening under vibration.

Verify polarity before energizing: the live feed should enter the toggle on the brass terminal, exiting to the load via the adjacent screw. Swapping these reverses the fixture’s behavior, turning it on when the control is off.

In three-way configurations, the traveler wires (often red and black) replace the standard feed; mark them distinctly with tape if the insulation colors match the primary circuit. Secure each traveler to its dedicated terminal, avoiding cross-connections that disrupt multi-point operation.

Test continuity with a multimeter after installation: probe between the live screw and ground–120V confirms correct power delivery, while 0V signals an open circuit requiring re-examination of connections.

Step-by-Step Guide to Connecting a Dual-Control Setup for Hallway and Staircase Lights

Turn off the power at the circuit breaker before handling any conductors. Use a non-contact voltage tester to confirm the circuit is dead–probing all terminals is mandatory to avoid accidental shocks. Label the live feed wire (typically black or red) by wrapping it with colored tape at both ends; this ensures clarity when routing between junction boxes.

Identify the traveler conductors–these carry current between the two control points. In most installations, they are red and black wires secured with yellow or orange wire nuts. Attach one traveler to the brass screw terminal on the first control and the matching traveler to the corresponding terminal on the second unit. Avoid mixing these with the neutral or ground connections to prevent short circuits.

Locate the common terminal on each control–usually marked with a darker screw or labeled “COM.” Connect the live feed (from the breaker) to the common terminal of the first unit. At the second unit, attach the conductor leading to the light fixture to its common terminal. This configuration ensures the light responds to toggles from either location.

Secure the neutral (white) wire directly to the light fixture, bypassing both controls entirely. If the system includes a grounding wire (bare or green), attach it to the green screw on both controls and the fixture. Twist strands tightly before capping with wire nuts, then wrap connections with electrical tape for added security.

Mount the units into their boxes, ensuring no loose conductors touch the enclosure or each other. Restore power and test each position–flipping either control should turn the light on or off independently. If the fixture remains unlit, recheck the common terminals and traveler pairings; reversed connections are the most frequent issue.

For longer hallways or multi-floor staircases, daisy-chain additional units by extending the traveler wires to a third control. Each new junction box requires matching traveler colors and consistent terminal screw alignment. Always use 14-gauge wire for 15-amp circuits or 12-gauge for 20-amp setups to comply with safety codes.

Seal unused knockouts in junction boxes with blank covers–exposed openings violate building regulations. For outdoor installations, swap standard boxes for weatherproof models and use silicone-filled wire nuts to prevent moisture ingress. Double-check all fasteners before enclosing walls; loose screws can create arcing hazards over time.

Connecting a Dual-Circuit Regulator for 240V Power Sources

Shut off the main power supply at the breaker panel before beginning. Verify the circuit is dead using a non-contact voltage tester–hold it near the cables and regulator terminals to confirm no current remains.

Use 10-gauge copper conductors for most 240V setups handling up to 30 amps. For 50-amp circuits, upgrade to 6-gauge cables. Check the appliance’s rating plate for exact requirements–some industrial tools demand thicker 4-gauge wiring.

Strip exactly 5/8 inch of insulation from each conductor end. Insert the bare ends into the regulator’s terminals, matching the brass screws for hot wires and green for ground. Tighten screws to 15 inch-pounds using a torque screwdriver–loose connections create resistance and heat risks.

Connect both hot wires to the brass terminals–one to the top, one to the bottom. The neutral wire (if used) attaches to the silver terminal, though many 240V devices omit it entirely. Secure the ground wire last, ensuring it contacts the metal chassis without fraying.

Install the regulator into a reinforced junction box rated for 240V loads. Use an appropriate cover that meets NEC requirements–exposed terminals violate safety codes in most regions. Label the breaker clearly with the connected device’s name and voltage.

Restore power and test the regulator by toggling it while monitoring the circuit with a multimeter. Voltage across both hot terminals should read 240V; any deviation signals incorrect connections or a faulty breaker. Check for warm spots on the regulator casing after 10 minutes of use–excessive heat indicates undersized cables.

For three-phase systems, adapt the setup by adding a second dual-circuit regulator. Wire the third hot conductor to an identical regulator, connecting its output to the remaining phase. Use phase labels (L1, L2, L3) on all cables to prevent cross-phase errors, which can damage motors and heating elements.

Inspect all connections annually, especially in high-vibration environments like workshops. Corrosion-resistant terminals (e.g., tin-plated) extend lifespan in damp conditions. Replace regulators showing cracked housings or discoloration immediately–these symptoms often precede failure under load.
