Detailed X Ray Diffractometer Structure and Key Components Explained
To construct a functional wavelength dispersion system, begin with a high-stability X-source generator–copper (Cu Kα, 1.54 Å) or molybdenum (Mo Kα, 0.71 Å) tubes dominate due to their balance of penetration and resolution. Position the tube at a fixed angle (typically 6–15°) relative to the sample plane to optimize signal intensity while minimizing scatter. Ensure the generator operates at 40–60 kV and 20–40 mA; exceeding these parameters risks filament burnout or detector saturation.
The goniometer must maintain ±0.0001° precision to resolve lattice spacings down to 0.1 Å. A theta-2theta configuration (Bragg-Brentano geometry) is standard for powder samples, where the detector and sample rotate synchronously at a 2:1 ratio. For single-crystal studies, a four-circle setup adds phi and chi axes, though this increases complexity and cost by ~30%.
Select a detector based on application: proportional counters suffice for routine phase identification but suffer from paralysis above 10⁴ cps. Scintillation or silicon drift detectors handle higher fluxes (up to 10⁶ cps) with minimal dead time, critical for nanoscale or time-resolved measurements. Position the detector 15–25 cm from the sample to reduce air scatter, using a Soller slit (0.5–2° divergence) to collimate the beam and improve peak resolution.
Sample preparation dictates data quality: flat, finely ground powders (≤10 µm particle size) pressed into a holder minimize preferred orientation effects. For films or irregular solids, use a zero-background silicon plate to suppress substrate signals. Calibrate the instrument weekly using NIST SRM 1976a (corundum) to verify angular accuracy (±0.02°) and intensity reproducibility (±1%).
Cooling systems demand attention–closed-loop chillers (5–10°C below ambient) prevent thermal drift in the tube and detector, while beryllium windows (typically 0.5 mm thick) protect components without excessive absorption. For low-temperature work, integrate a cryostat with liquid nitrogen or helium; ensure thermal shields reduce ice buildup, which distorts diffraction patterns after ~30 minutes.
Post-acquisition analysis hinges on software: Rietveld refinement (e.g., GSAS-II, TOPAS) extracts lattice parameters with ±0.001 Å accuracy, but requires correct space group and occupancy assumptions. For unknown phases, combine PDF (Pair Distribution Function) analysis with high-energy sources (Ag or synchrotron) to resolve local atomic arrangements below 5 Å.

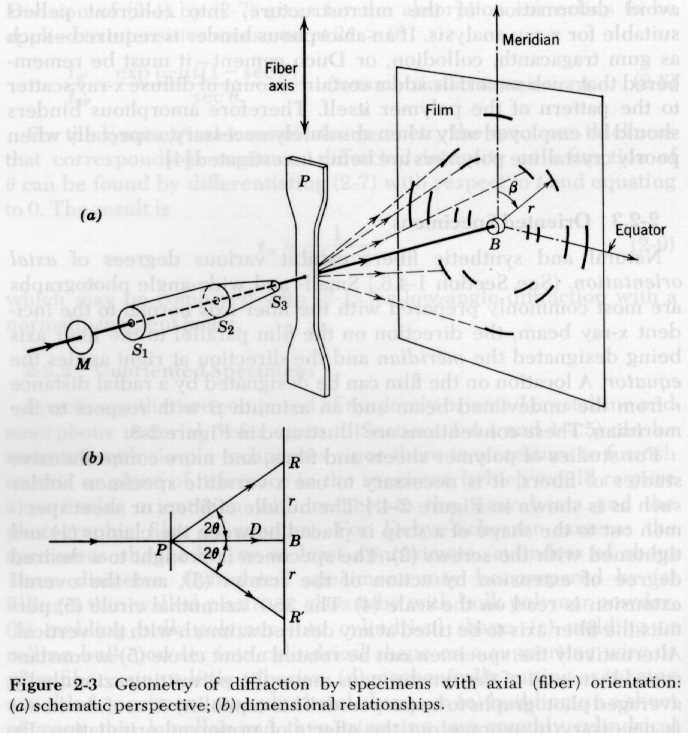

Key Components of an X-Ray Scattering Instrument Layout
Start with a high-stability generator producing monochromatic beams at 40 kV/40 mA for consistent intensity. Position a copper (CuKα) or molybdenum (MoKα) anode as the source, with copper preferred for most crystalline samples due to its 1.54 Å wavelength balance between penetration and resolution. Ensure the tube housing includes beryllium windows to minimize beam attenuation–windows thinner than 0.25 mm reduce absorption by up to 15% while maintaining structural integrity.
The goniometer must support 2θ angles from -10° to 165° with a minimum step size of 0.002° for high-resolution pattern collection. Use a zerodur or invar-based design to eliminate thermal expansion errors; zerodur’s near-zero coefficient (0 ± 1×10⁻⁷/°C) outperforms steel by 2 orders of magnitude. Align the sample holder perpendicular to the incident beam within ±0.05° using a laser-guided calibration routine–misalignment beyond this threshold distorts peak positions by 0.1° or more.
Detector selection depends on application: scintillation counters excel for powders (0.5–2 cps sensitivity), while silicon drift detectors (SDDs) handle thin films and strain mapping with 10–100x faster data rates. For high-flux applications, consider a linear or area detector covering 10–20° simultaneously, though expect trade-offs in angular resolution (Δ2θ > 0.05°). Position the detector at a fixed radius of 200–300 mm from the sample to balance intensity and dispersion–longer radii sharpen peaks but reduce signal strength proportionally to r⁻².
Implement a nickel filter for copper sources to suppress Kβ lines (intensity reduced to
- Cooling: Maintain anode at
- Sample prep: Ensure particle size
- Shielding: Lead-lined enclosures (≥1.5 mm Pb) must cover all beam paths; use interlocks to halt operation if doors open.
- Software: Configure acquisition software to normalize counts per 10^4 photons for direct comparison across instruments–raw counts vary by detector type.
For low-angle scattering (1–10° 2θ), reduce slit sizes to 0.05–0.1 mm to minimize beam divergence–divergence angles >0.1° broaden peaks beyond FWHM. Conversely, widen slits to 0.5 mm for 50–100° measurements where intensity is prioritized over resolution. Validate alignment monthly with a corundum (Al₂O₃) standard (NIST SRM 676a); shifts in the (113) peak (43.36° 2θ for CuKα) beyond ±0.02° indicate mechanical drift requiring recalibration.
Key Components of an X-Ray Analytical System Optical Path
Configure the incident beam generator with a sealed-tube or rotating-anode source, ensuring focal spot dimensions between 0.1×0.1 mm and 1×10 mm depending on intensity requirements. Select a Cu anode for organic compounds (λ = 1.54 Å) or Mo for heavier elements (λ = 0.71 Å), balancing resolution against penetration depth. Install a Göbel mirror upstream to parallelize the divergent beam, reducing angular spread to
Monochromatization and Beam Conditioning
Integrate a channel-cut crystal monochromator (typically Ge(220) or Si(111)) after the mirror to suppress Kβ radiation, achieving a spectral purity > 99.9%. Position it at a 45° take-off angle for maximum efficiency; misalignment by ±0.1° causes a 50% drop in flux. For high-resolution applications, add a double-crystal monochromator in (+,−) geometry to suppress higher-order reflections, though this reduces intensity by 60–80%. Replace absorbers with Zr filters for Cu or Nb for Mo if monochromators prove cost-prohibitive, accepting a 20% reduction in peak-to-background ratio.
Opt for a Soller slit assembly with 2–5° divergence to control axial beam spread, mating it with a 0.05–0.5 mm receiving slit to optimize peak resolution (Δ2θ ≈ 0.02°) at the cost of scan speed–widening from 0.1 mm to 0.3 mm increases counts 9-fold but broadens peaks by 300%. Calibrate the goniometer circle to 0.01 mm introduce systematic shifts in lattice parameter calculations. For grazing incidence setups, employ a programmable beam attenuator (e.g., Ni foil stack) to prevent detector saturation at incident angles below 1°–failure risks irreversible damage to position-sensitive detectors within 10 seconds.
Step-by-Step Assembly of a Bragg-Brentano Geometry Setup
Position the primary slit assembly 120 mm from the focal spot of the X-source, ensuring a divergence angle of 0.5°–1.0° for Cu Kα radiation. Use a fixed-width slit (0.05–0.2 mm) or adjustable Soller slits to minimize axial beam divergence. Verify alignment by measuring intensity at the sample stage with a calibrated detector; deviations above 5% require re-centering the slit holder via micrometer screws.
Mount the goniometer’s Θ–2Θ axis on a vibration-damped granite plate, specifying a runout tolerance of ≤5 μm over 360°. Secure the sample holder plate with M6 × 1.0 stainless flasks; torque to 8–10 Nm to prevent slippage during high-speed scans (up to 2°/min). Pre-load the stepper motor’s worm drive with a 0.3 Nm pre-tension to eliminate backlash in incremental steps as fine as 0.002°.
Optical Path Calibration
| Component | Material/Coating | Distance from Source (mm) | Surface Roughness (Ra) |
|---|---|---|---|
| Primary Be window | 99.95% pure Be | 50 ± 2 | <0.1 μm |
| Ni filter (Cu radiation) | 25 μm foil | 90–110 | N/A |
| Graphite monochromator | Pyrolytic graphite (002 reflection) | 180 ± 5 | <0.2 μm |
Insert the Ni filter downstream of the Be window to suppress Kβ emissions; calculate foil thickness using the formula t = 1/μ(ln(I₀/I)), where μ = 45.7 cm⁻¹ for Cu Kα. For broadened peaks, replace the graphite monochromator with a Ge(111) crystal oriented at 13.6° to achieve ΔE/E ≈ 1 × 10⁻⁴ resolution.
Align the receiving slit 200 mm from the sample, pairing it with an anti-scatter slit (0.5 mm width) to cut Cu fluorescence background by 60–70%. Use a scintillation counter with a NaI(Tl) detector biased at +800 V; pulse-height discrimination settings of 1.0 V (lower) and 4.5 V (upper) isolate Kα while rejecting Compton scatter. Verify detector linearity via a ⁵⁵Fe standard source; non-linearity above 3% necessitates PMT replacement.
Sample Preparation and Mounting
Affix powdered specimens to a zero-background quartz plate (25 × 25 × 1 mm) using vacuum grease; layer thickness must not exceed 50 μm to avoid transparency effects. For textured samples, rotate the holder at 15 rpm during acquisition to eliminate preferred orientation artifacts in pole figures.
Program the goniometer’s control software to execute a 3°–160° 2Θ scan in continuous mode, specifying a step size of 0.02° and integration time of 2 s/step. For high-temperature stages (up to 1200°C), install a Pt/Rh thermocouple at the sample back and purge the chamber with 5 N₂ L/min to prevent oxidation. Validate the setup by indexing a corundum (α-Al₂O₃) standard; peak positions must match PDF-00-046-1212 within ±0.03° 2Θ.
Common Misalignments in X-Ray Source and Sensor Positioning
Ensure the filament axis aligns within ±0.1° of the goniometer’s zero plane. Even slight deviations here shift the focal spot by 0.05 mm per 0.1° tilt, degrading resolution and introducing systematic peak broadening. Use a precision spirit level and laser alignment tool; verify against a reference silicon standard before each session.
Check detector slits height mismatch if intensity losses exceed 5%. A 0.2 mm vertical offset can attenuate counts by 10-15% at high angles, distorting pole figures in texture analysis. Measure slit edges with digital calipers; adjust via micrometer screws on the detector mount until variance falls below ±0.05 mm.
Bragg angle miscalibration frequently stems from encoder drift. After prolonged use, thermal expansion can shift reference zeros by 0.03°–enough to blur high-order reflections. Recalibrate encoder offsets at 2θ = 0° and 90° using a certified quartz single crystal; log deviations exceeding 0.01° for recalibration.
Misalignment between beam path and sample holder induces eccentricity. A 0.1 mm radial offset alters peak positions by 0.02° at 50° 2θ, critical for Rietveld refinements. Secure sample holder with dowel pins; verify runout with a dial indicator below 0.03 mm total indicated reading.
Window film wear distorts intensity profiles. Replace beryllium foils showing pinholes larger than 20 μm or thickness reductions exceeding 10%. Contaminated films scatter photons, raising background by 2-3 counts per second; clean with acetone-soaked lint-free swabs every 50 hours of operation.
