Function Generator Circuit Design Using XR2206 IC Schematic with Example

For reliable frequency synthesis in analog designs, start with a monolithic function generator IC as the core component. The chip’s datasheet provides a reference layout, but optimizing performance requires adjustments. Prioritize low-impedance power rails–use 10µF electrolytic capacitors at the supply pins to stabilize voltage under varying loads. Bypass with 0.1µF ceramics mounted as close as possible to the IC to suppress high-frequency noise.

Frequency tuning relies on two critical elements: a timing capacitor and a variable resistor. Select the capacitor based on the target range–0.01µF polyester yields ~1kHz, while 10nF adjusts up to ~100kHz. For the resistor, use a high-quality linear potentiometer (10kΩ–100kΩ) with low-temperature coefficient to minimize drift. Avoid carbon composition types; metal film or cermet ensure

Output stage design determines signal purity. Insert a buffer amplifier (e.g., TL072) after the core chip to isolate the load and prevent distortion. Add a 10kΩ trimpot in series with the output to calibrate amplitude–this compensates for variations in supply voltage (±5V to ±15V) without recalibrating the main tuning elements. For harmonic suppression, include a LC low-pass filter (e.g., 47µH inductor + 100nF capacitor) if operating below 1MHz.

Grounding strategy separates analog and digital return paths. Use a star topology with the central point at the power supply’s ground. Connect the chip’s ground pin directly to this point via a short, thick trace (minimum 2mm width) to reduce parasitic inductance. Avoid sharing ground paths with relays or other inductive loads–spikes from switching can couple noise back into the signal path.

Thermal stability demands attention. Mount the timing capacitor on a heat-sink pad if the board operates in high ambient temperatures (>50°C). For extended frequency stability, replace the timing resistor with a precision resistor network (e.g., Vishay Z201) and thermally couple it to the capacitor. Test the completed assembly with a frequency counter and an oscilloscope–verify

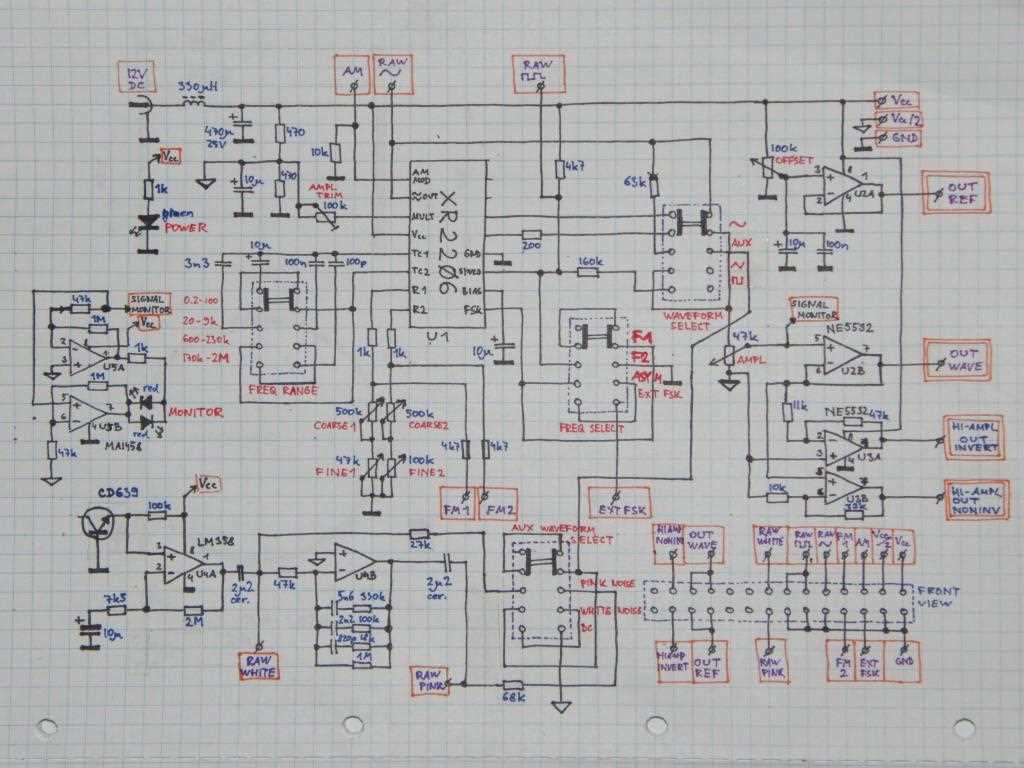

Function Generator Schematic: Step-by-Step Assembly Tips

Begin by pairing the IC with a stable 9–12V DC supply, ensuring ripple under 10mV to prevent waveform distortion. A 78xx voltage regulator simplifies this; select based on your chosen input voltage. Bypass capacitors (0.1µF ceramic) at both input and output pins of the regulator filter noise effectively. Ground loops introduce interference–use a single star ground point for all analog components.

Frequency control relies on a timing capacitor between pins 5–6 and a precision resistor (or potentiometer) from pin 7 to ground. The datasheet’s formula f = 1/(RC) holds for values between 1kΩ–1MΩ and 100pF–100µF, but empirical adjustment is often needed–start with 10kΩ and a 10nF film capacitor for a 1kHz sine wave. For square waves, connect a 10kΩ resistor from pin 11 to the positive rail; duty cycle adjusts via a trimpot (50kΩ) between pins 9–10.

Waveform purity degrades at higher frequencies (above 100kHz). Add a 1nF silvered mica capacitor across the timing components to suppress parasitic oscillations. Output amplitude is set via a 10kΩ potentiometer wired as a voltage divider on the output pin–buffer this with a unity-gain op-amp like TL072 if driving low-impedance loads (below 1kΩ). Avoid exceeding ±10V output swing to prevent clipping; the internal limiter activates at ~13V.

Thermal drift affects frequency stability–mount the IC on a small heatsink if operating above 50°C ambient. For precise calibration, replace fixed resistors with multiturn trimpots (e.g., 20kΩ for frequency, 500kΩ for amplitude). Logarithmic taper potentiometers suit human hearing-range adjustments (20Hz–20kHz). Test with an oscilloscope; a clean 1Vpp sine wave should show

Shield sensitive traces with copper pours tied to ground, especially if the board shares space with SMPS or digital switching circuits. Keep the timing capacitor away from power traces to minimize stray coupling. For modular designs, break out frequency, amplitude, and waveform-select controls to front-panel jacks using shielded cable. A PC-based spectrum analyzer helps identify harmonics–adjust trimpots while monitoring the FFT view to achieve optimal purity.

Pin Configuration and Functional Breakdown of the Monolithic Function Generator

Begin by referencing pin #7 (SYNC) as a synchronization input for precise waveform alignment–connect this to an external TTL-compatible clock when phase-locked operation is required. Without this, jitter in multi-chip configurations exceeds 0.5% at frequencies above 100 kHz. Ensure the signal swing remains within 0–5 V to avoid latch-up.

Pin #5 (AM) acts as the amplitude modulation control node. Injecting a DC voltage here scales the output peak-to-peak amplitude linearly from 0 to ±6 V relative to V_CC/2 when V_AM spans 0–3 V. For consistent modulation, buffer this input with an op-amp having ≤10 pA input bias current to prevent drift.

Thermal stability hinges on heatsinking the package during prolonged operation above 50 kHz–junction temperature exceeding 125°C degrades frequency accuracy by 0.3% per degree Celsius. Mount the chip on a 2 oz copper pad with vias to a ground plane, especially if ambient exceeds 50°C.

Dual-Supply vs. Single-Supply Trade-offs

Single-supply operation (V_CC = +12 V, V_EE = 0 V) simplifies layout but reduces output swing to 6 V_PP–adequate for most applications below 50 kHz. Dual-supply (±6 V) extends swing to 12 V_PP and eliminates DC offset at pin #2 (OUT), but requires split rails and a mid-voltage generator for pin #6 (V_REF). Use a rail-splitter IC (e.g., TLE2426) for V_REF when dual supplies are impractical.

Pin #1 (BIAS) demands a low-noise decoupling capacitor–place a 10 µF tantalum in parallel with a 0.1 µF ceramic within 2 mm of the pin. Failure here introduces 50 Hz–1 kHz noise spikes, visible as sidebands in spectral analysis up to 5 dB above the carrier.

Pin	Designation	Voltage Range (V)	Impedance (Ω)	Critical Load
2 (OUT)	Waveform Output	0–VCC	50	≤2 kΩ
3 (FREQ ADJ)	Frequency Control	0–3	1 M	≤10 pF
4 (GND)	Common Return	0	–	Star-ground
8 (VCC)	Positive Rail	+4.5–+13	–	≤500 mA

High-Impedance Nodes: Handling and Pitfalls

Pin #3 (FREQ ADJ) exhibits 1 MΩ input impedance–guard this node with a copper pour on both adjacent PCB layers to minimize stray capacitance. A 1 pF parasitic here shifts frequency by 1% at 1 MHz. For variable-frequency setups, pair this pin with a precision 10-turn pot (Bourns 3590S) and bypass the wiper to ground with 1 nF to suppress wiper noise.

When pin #9 (SQUARE) is unused, tie it to V_REF (pin #6) through a 1 kΩ resistor to prevent floating-node oscillations. Omitting this risks unpredictable mode-switching, especially if ambient RF exceeds –40 dBm. For square-wave output, AC-couple pin #2 via 1 µF to isolate DC offsets that otherwise degrade symmetry below 1 kHz.

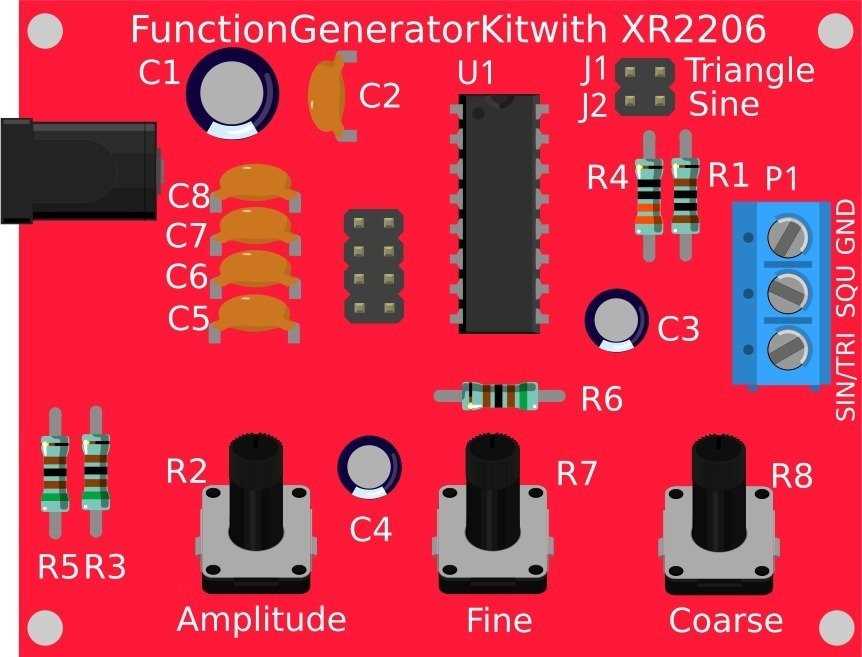

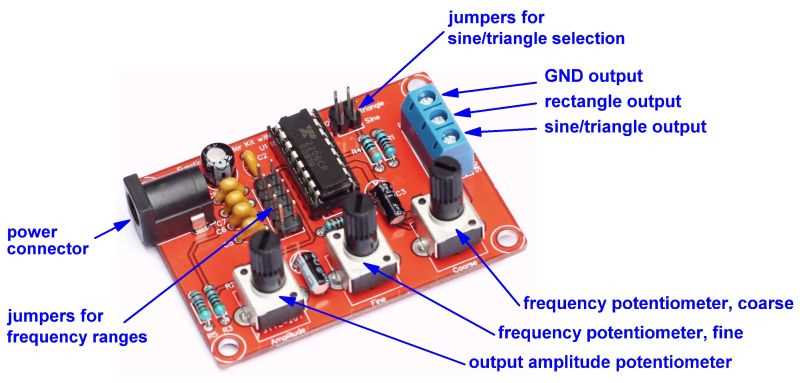

Step-by-Step Assembly of a Basic Function Generator Board

Begin by securing a clean protoboard measuring at least 80x100mm to prevent short circuits. Position the IC socket for the waveform IC in the upper center, ensuring pin 1 aligns with the silkscreen notch. Solder all 16 pins before proceeding to avoid thermal stress on the chip.

Connect a 12V DC power input jack to a 100µF electrolytic capacitor, observing polarity. Route the positive lead to a 1N4007 diode for reverse polarity protection, then split the line to the IC’s V+ pin and a 7812 voltage regulator. Ground the regulator’s tab with a 0.1µF ceramic capacitor to minimize high-frequency noise.

Attach the timing capacitor between pins 5 and 6, using a 10nF polyester film type for stability. For frequency adjustment, wire a 100kΩ linear potentiometer in series with a 1kΩ resistor between pin 7 and ground. This configuration yields a 10Hz–1MHz sweep range.

Waveform and Output Configuration

Link pin 2 (sine/square output) to a 10kΩ potentiometer for amplitude control, then couple the wiper to a BNC connector via a 1µF non-polarized capacitor. Add a 1kΩ resistor in series to the BNC center pin to limit current during accidental shorts.

For triangle waveform access, connect pin 11 directly to a second BNC output, bypassing the amplitude control to retain a fixed 0–10Vpp signal. Place a 1N4148 diode in parallel with the timing capacitor, cathode to ground, to clamp overshoot during fast transitions.

Install a SPDT switch between the IC’s pin 3 and a 47kΩ resistor to ground, enabling/disabling the internal voltage comparator. This switch toggles between sine and square output modes without affecting the triangle waveform. Verify all connections with a continuity tester before powering the board.

Enclose the assembly in a grounded aluminum case with ventilation slots. Label all controls clearly: “Frequency,” “Amplitude,” “Wave Select,” and “Power.” Store calibrated adjustment tools (non-magnetic screwdriver, oscilloscope probes) separately to avoid magnetic interference with the generator’s accuracy.

Calculating Resistor and Capacitor Values for Desired Output Frequency

To achieve a target frequency between 1 Hz and 1 MHz, use the formula f = 1 / (RC), where R is in ohms and C in farads. For example, pairing a 10 kΩ resistor with a 10 nF capacitor yields f ≈ 10 kHz. For sub-100 Hz ranges, increase C to 1 µF or higher–verify calculations with a multimeter, as component tolerances (±5–10%) introduce variance. Opt for low-leakage film capacitors (polyester, polypropylene) to minimize drift; ceramic types may cause instability at low frequencies.

Key adjustments:

• For f < 10 Hz: Use R > 100 kΩ and C ≥ 1 µF.
• For f > 100 kHz: Reduce C to 100 pF or less, ensuring R ≥ 1 kΩ to maintain oscillation stability.
• Substitute components incrementally–e.g., swap R or C in 30% steps–to isolate errors if the measured frequency deviates by >15% from calculated values.

Measure DC bias at the timing pin; voltages outside 2.5–3.5V may require recalibration of the timing network. For critical applications, verify with an oscilloscope–waveform symmetry and amplitude should match datasheet specs (±1% THD).
