Build a 0-30V Adjustable Power Supply Step-by-Step Schematic Guide

For a stable 0–28V adjustable output, use an LM317 linear regulator as the core component. Connect the input terminal to a smoothed DC source (35V minimum after rectification) through a 1A fuse and 2200µF electrolytic capacitor to eliminate ripple. The adjustment pin requires a 240Ω resistor to ground and a 5kΩ potentiometer wired as a voltage divider–this combination delivers precise control without instability.

Ensure thermal safeguards: mount the LM317 on a 10°C/W heatsink if currents exceed 500mA, or add a TO-220 thermal pad with silicone grease. Include a 1N4007 freewheeling diode across the output to protect against inductive loads, and a 0.1µF ceramic capacitor on the input to suppress high-frequency noise.

For load regulation under 1%, keep the output wiring thick (minimum 18AWG) and short–voltage drop across leads can degrade performance. Test the setup with a 10Ω/10W dummy load before connecting sensitive devices. Calibrate the output using a multimeter set to DC mode; adjust the potentiometer until the reading matches the desired level.

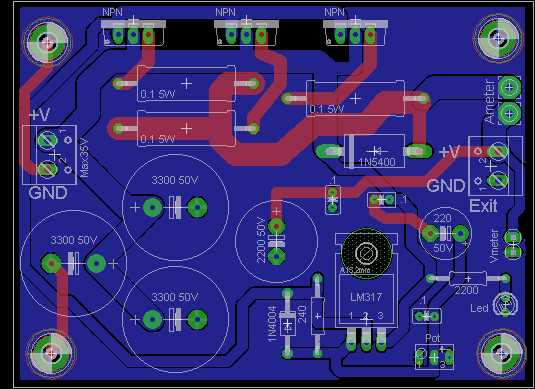

To extend current capacity beyond 1.5A, parallel multiple LM317 units with 0.1Ω current-sharing resistors on each output. For efficiency with higher loads, replace the LM317 with a buck converter (e.g., LM2596) configured for 0–28V at 3A, though linear designs offer superior noise characteristics for analog applications.

Adjustable Voltage Regulator Schematic: 0-30V Design Guide

Start construction with a LM317 integrated regulator–its TO-220 package handles currents up to 1.5A. Connect a 5kΩ potentiometer between the adjustment pin and ground, with a 240Ω resistor linking the output to the adjustment pin. This setup clamps output between 1.25V and 32V while maintaining thermal stability, but derate current at voltages exceeding 25V to prevent junction overheating. For input, use a 24VAC-0-24VAC center-tapped transformer with 3A minimum rating, feeding a bridge rectifier (KBPC3510) followed by 4700µF bulk capacitors–this reduces ripple to under 50mVpp at full load. Add a 1N4007 across the regulator’s input-output to safeguard against inductive kickback.

Scale current capacity by paralleling LM317 units with 0.1Ω current-sharing resistors or substituting the LT1083 for 7.5A continuous output–match heat sinks to junction-to-ambient thermal resistance (θ_JA ≤ 4°C/W). Ensure PCB traces from transformer secondary to rectifier carry at least 3mm width per ampere; for output, use 2oz copper to halve voltage drop under load. Include a 100nF ceramic capacitor at the regulator’s input and a 10µF tantalum at the output to suppress high-frequency oscillations.

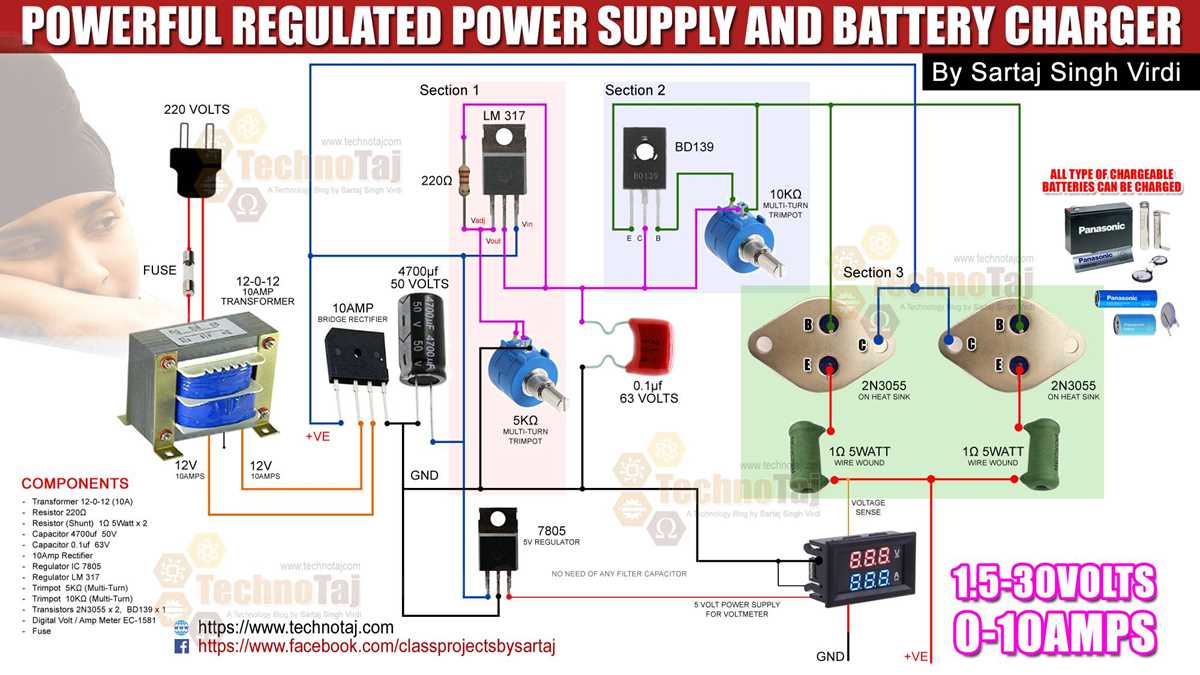

Key Components for an Adjustable 0-30V Regulated Output

Select a transformer with a secondary winding rated at 24V AC–this ensures sufficient headroom after rectification and smoothing for the upper voltage limit. A toroidal core minimizes electromagnetic interference, while a dual-secondary configuration simplifies center-tapping for full-wave rectification. Verify current handling; for a 2A load, opt for a transformer rated at least 2.5A to account for transient spikes.

The rectifier stage demands a bridge module with a minimum reverse voltage of 100V and current capacity exceeding the load by 30%. Schottky diodes reduce voltage drop to ~0.2V per diode, improving efficiency compared to standard silicon diodes (0.7V drop). For higher-frequency noise rejection, add low-ESR (Equivalent Series Resistance) capacitors–parallel 10,000μF electrolytic with 0.1μF ceramic capacitors across the rectifier output. This combination mitigates ripple at both low and high frequencies.

Use a linear regulator IC with an adjustable output, such as the LM317 or LT1083. The LM317 tolerates 1.5A with a dropout of 2V, while the LT1083 handles 7.5A at 1V dropout. Implement heatsinks with thermal resistance below 2°C/W for the regulator; anodized aluminum extrusions with fins offer superior dissipation compared to flat plates. Calculate dissipation: at 2A and 5V headroom, expect 10W–require 6-8 cm² of heatsink area per watt for natural convection.

Feedback and adjustment rely on precision resistors. For a 1.25V reference voltage (LM317), the resistor ratio determines the output range. Use a 240Ω fixed resistor (R1) and a 5kΩ multi-turn potentiometer (R2) for fine control. Metallized film resistors (1% tolerance) reduce drift over temperature compared to carbon types. For stability across the entire span, add a 10μF tantalum capacitor between the adjustment pin and ground to suppress oscillations–critical when R2 is set near minimum resistance.

Additional safeguards include:

• A 5A slow-blow fuse on the primary side, sized at 120% of the transformer’s VA rating.
• A reverse-voltage protection diode across the regulator output (1N4007) to prevent damage if the input collapses.
• A 1N5822 diode in series with the output for backflow protection in case of external voltage sources.
• Voltage readout via a digital panel meter (0.5% accuracy) powered by an auxiliary 5V winding or a separate buck converter–isolate meter ground from the main output to avoid ground loops.

Ensure enclosure ventilation: a single 80mm fan (20 CFM) maintains temperatures below 50°C at full load when ambient temperatures reach 30°C.

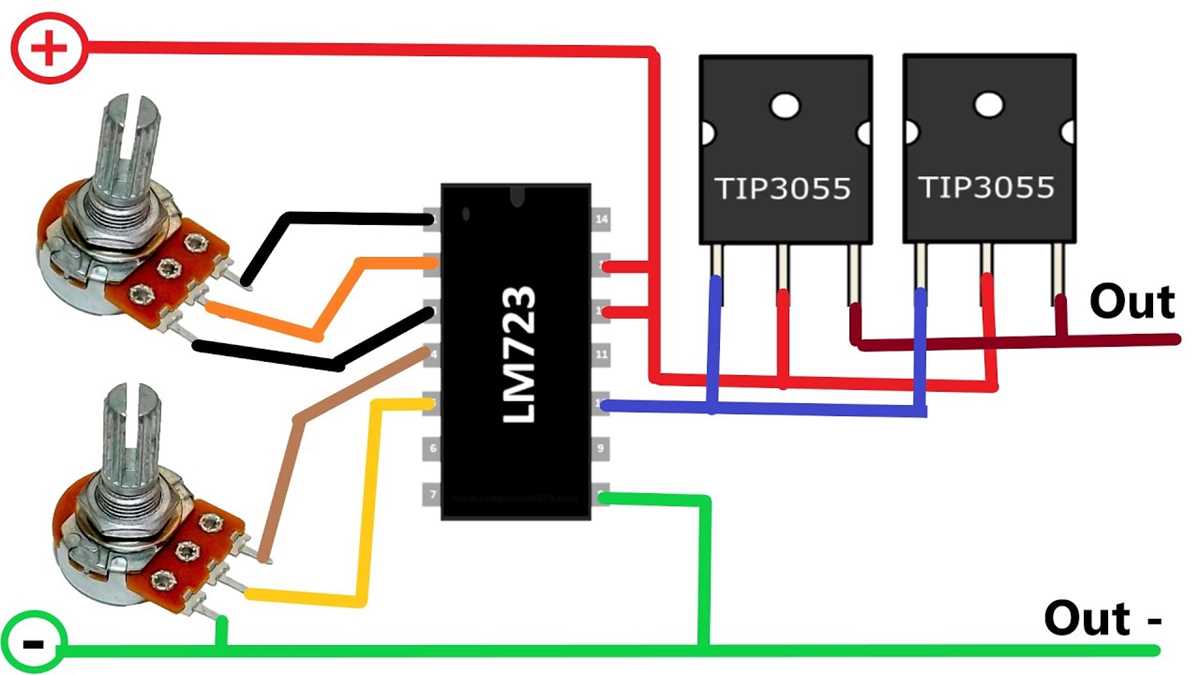

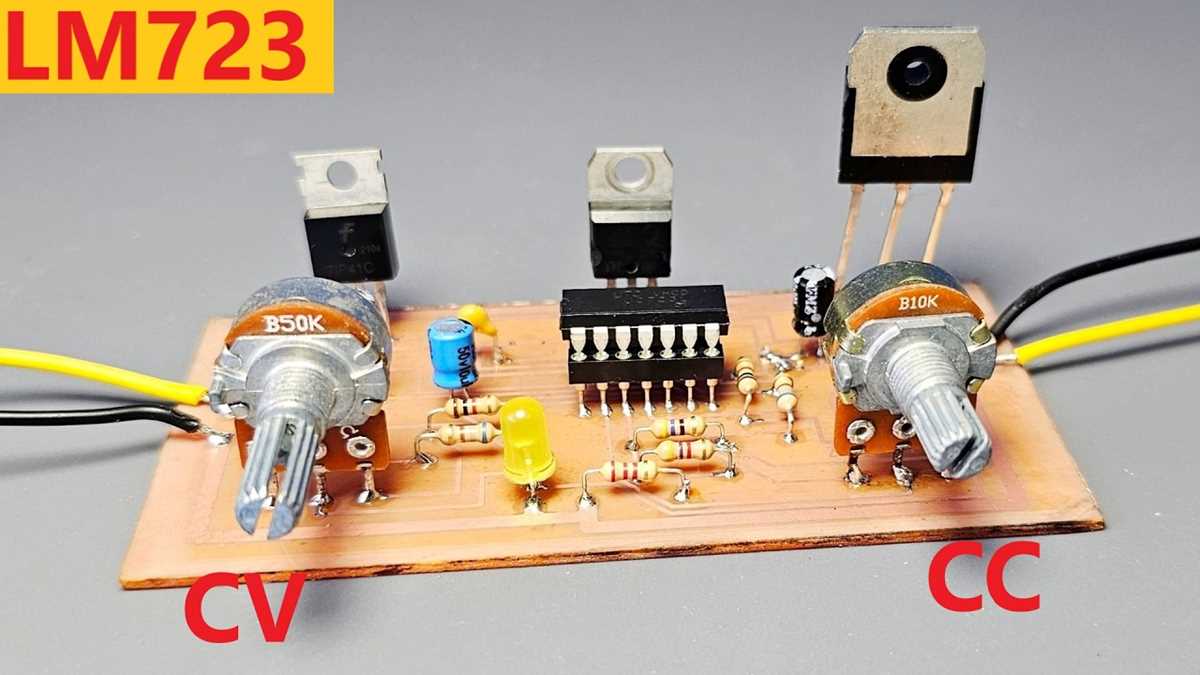

Step-by-Step Wiring of the Adjustable Output Stabilizer

Begin by identifying the output terminals on your linear regulator IC, marked V_out and GND. Connect the V_out pin directly to the positive terminal of your smoothing capacitor, rated at least 1000µF/50V; this prevents voltage sag under load. The ground leg of the capacitor must link to the regulator’s GND pin and the system’s common ground plane–ensure zero resistance in this path to minimize noise.

Attach a potentiometer with a 5kΩ resistance between the regulator’s ADJ pin and ground. The wiper of the potentiometer connects to the ADJ pin, forming a voltage divider that sets the output range. For stability, solder a 10µF tantalum capacitor from the ADJ pin to ground; this filters transient spikes that could destabilize regulation.

• Mount the regulator on a heatsink if the input exceeds 25V or the load draws >0.5A. Use thermal paste and secure the IC with a spring clip or screw for optimal heat dissipation.
• Add a 1N4007 diode in reverse across the input and output terminals; this protects against backflow if the input is suddenly disconnected while the output capacitor remains charged.
• For loads >1A, upgrade the bridge rectifier to a KBPC3510 or similar, ensuring it can handle the peak current without saturation.

Wire the input side with a 2.2µF/63V ceramic capacitor placed as close as possible to the regulator’s V_in and GND pins. This high-frequency bypass capacitor must have short leads (under 5mm) to suppress switching noise from the rectifier. Route the input trace on the PCB at least 2.5mm wide for every 1A of expected current to prevent voltage drop.

1. Test the setup with a dummy load (10Ω/10W resistor) before connecting sensitive electronics. Monitor the output with an oscilloscope; ripple should stay pp at full load.
2. If the output drifts, replace the potentiometer with a multi-turn trimpot (e.g., 3296W) for finer adjustment resolution.
3. For dual-polarity applications, mirror the wiring on a second regulator but reverse the diode orientation on the negative rail.

Finalize the build by enclosing the assembly in a metal chassis, grounding the enclosure to the system’s common ground. Use silicone-insulated wire for connections under 24V and PTFE for any exposed traces carrying higher voltages. Label the potentiometer knob with fine increments (0.5V) using a laser-etched acrylic dial for precise tuning.

Selecting an Optimal Transformer for Adjustable 0-30V Regulated Output

For a regulated source delivering 0–28V at 3A, a center-tapped transformer rated at 24VAC per coil (total 48VAC) with a minimum 4A capacity is ideal. Toroidal models reduce hum; EI-core transformers suffocate stray fields but add bulk. Verify the secondary voltage under load–an open-circuit reading of 26–28VAC per coil typically drops to 24–25VAC at full current, providing adequate headroom for the rectifier and linear regulator.

Choose winding configurations that directly feed your bridge–dual secondaries let you parallel them at 24VAC or series them at 48VAC for dual-rail designs. Single-secondary units simplify cabling but limit flexibility. Common ferrite-core transformers saturate above 50 Hz; toroidals handle 50–400 Hz without derating. Match the core to ambient temperatures: class B insulation (≥130 °C) prevents premature failure in enclosures.

Desired DC Output	AC Secondary (Center-tapped)	Current Rating (Minimum)	Peak Inverse Voltage Requirement
0–28 V @ 1 A	18 VCT	1.5 A	≥60 V
0–28 V @ 3 A	24 VCT	4 A	≥80 V
0–28 V @ 5 A	30 VCT	6 A	≥100 V

Size conductors to limit voltage drop–1.5 mm² copper per 1 A avoids excessive heating and keeps regulation tight. Shielded cables between transformer and bridge rectifier cut stray capacitance to below 0.1 nF, crucial for ripple below 1 mVpp. Mount the transformer away from sensitive analog sections; toroidals can be placed within 5 cm of PCB edges if separated by a grounded steel barrier.

Fuse the primary with a slow-blow rated at 125 % of maximum input current: for a 4 A transformer at 230 VAC, a 2 A fuse suffices; at 115 VAC, a 4 A fuse prevents nuisance trips. EMI filters on the primary attenuate common-mode noise by 40 dB at 100 kHz but add 30 g–consider this when space is constrained. Always test secondary voltage with the intended load connected; open-circuit readings can mislead by 5–10 %.

Cost and efficiency trade-offs lean toward toroidals: a 100 VA unit costs ≈ €25, weighs 0.8 kg, and dissipates 1.2 W idle; an equivalent EI-core weighs 1.6 kg, costs €18, and idles at 2.1 W. Toroidals fit more compact housings, freeing space for heat sinks and capacitors. If mechanical vibration is a factor, EI-core laminations must be tightly clamped to prevent buzz.

For applications requiring transient response 5 %) cause overshoot under dynamic loads; select units advertised for switch-mode applications. Finally, verify compliance: IEC 61558-2-6 for isolation, UL 5085-1 for reinforced insulation, and RoHS for lead-free solder connections.
