Complete Wiring Diagram Guide for 2003 Chevy Silverado Electrical Schematics

Start by locating the main fuse box under the dashboard on the driver’s side–this is where most power distribution issues originate. The driver door jamb switch circuit (labeled S313) often fails due to corrosion at connector C1. Clean terminals with 600-grit aluminum oxide sandpaper and apply dielectric grease to restore conductivity. For interior lights not responding, check fuses I/P Fuse Block #15 (15A) and #16 (10A); both control the courtesy lamp relay. If the relay clicks but lights stay off, test for 12V at the relay socket pin 86 with a multimeter.

Tracing the trailer harness requires accessing the rear junction block (X300). Pin 1 (brown/white) delivers constant power to the running lights, while pin 4 (dark green/yellow) handles left turn signals. If turn signals blink erratically, inspect the hazard flasher relay (RPO K18) mounted near the steering column–swap it with a known-good relay for a quick diagnosis. For dead tail lights, verify the BTSI (Brake Transmission Shift Interlock) solenoid isn’t drawing excess current from the same circuit (C2); this solenoid operates on a shared 10A fuse.

When diagnosing no-start conditions, focus on the PCM (Powertrain Control Module) connectors C1 and C2. Pin 24 on C1 (pink/black wire) supplies ignition power–measure for 12V with the key in the RUN position. If voltage is absent, trace back to the ignition switch terminal 30B. For intermittent stalling, probe the crankshaft position sensor (grey/black wire at connector T4)–a resistance reading outside 200-1500 ohms indicates internal failure. Replace the sensor with part number 10357050 for OEM reliability.

Fuel pump issues often stem from the inertia switch (located behind the right rear wheel well liner). Press the reset button if tripped, then test for 12V at the pump connector (grey wire) with the key cycled to ON. If voltage is present but the pump doesn’t prime, check the ground at the frame rail near the fuel tank–corrosion here disrupts the circuit. For ABS-related faults, retrieve codes via the Tech 2 scan tool; code C0040 points to the right front wheel speed sensor, accessible by removing the brake caliper and rotor. Replace the sensor if the tone ring shows physical damage.

2003 GMC Pickup Electrical Schematics: Hands-On Reference

Begin by locating fuse block C1 under the driver-side dashboard–pin 30 delivers constant 12V to the ignition system, while pin 5 feeds the accessory circuit. Verify continuity between the battery’s positive terminal and these pins using a multimeter; readings below 11.8V indicate corrosion at the junction block near the firewall. Clean terminals with a wire brush and apply dielectric grease to prevent future oxidation.

Trace the orange wire from the alternator’s B+ terminal to the starter solenoid–interruptions here cause slow cranking. Test voltage drop across this path: exceeding 0.5V suggests resistance at connectors or the fusible link near the radiator support. Replace damaged sections with 10-gauge wire matching the original color-coding.

Common Failure Points in the Lighting Circuit

The brown wire (tail lamp supply) often frays where it passes through the rear frame rail. Inspect this section first when rear lights flicker; splice repairs typically fail within 18 months–opt for complete wire replacement with heat-shrink tubing. For the brake light switch, confirm proper adjustment: pedal must depress fully against the plunger–misalignment disrupts the entire stop lamp circuit.

Headlight failures frequently stem from the multifunction switch’s 12-pin connector. Check pin 7 (low-beam output) with the switch in “on” position; no voltage signals switch failure. Rebuild the connector using new terminals if contacts show pitting–aftermarket replacements lack durability compared to GM OEM parts (#25935253).

Advanced Diagnostics for Intermittent Issues

Use a non-contact infrared thermometer to scan harness bundles behind the instrument cluster–hotspots identify shorted wires. The gray/black wire (fuel pump relay trigger) commonly overheats at the ECM connector. For ABS faults, focus on wheel speed sensor grounds at the frame–resistance above 5Ω confirms poor connection; re-secure with star washers.

Dashboard warning lights may illuminate erratically due to voltage spikes from the charging system. Install a transient voltage suppressor (#12013948) between alternator B+ and ground if onboard diagnostics log codes P0562 or P0563. Avoid “quick fixes” like diode installations–they reduce system efficiency by 12-15%.

Locating the Engine Bay Electrical Link Junctions

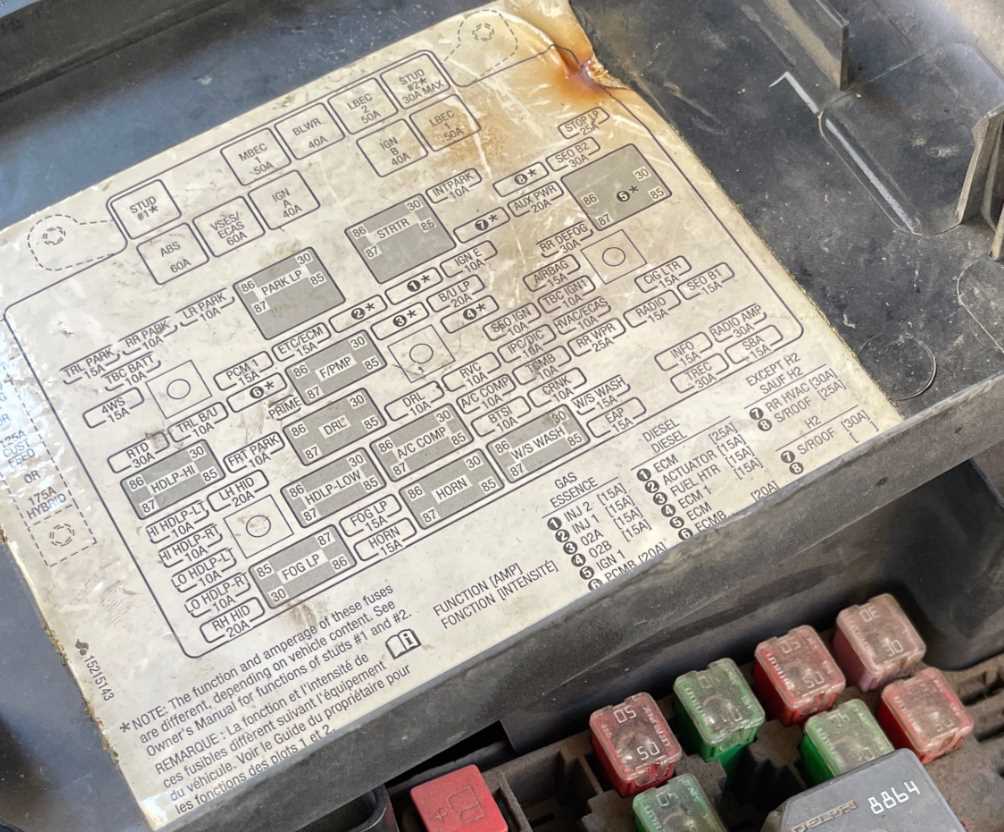

Begin by identifying the primary power distribution box, positioned near the battery on the driver’s side fender. This rectangular enclosure houses critical fused connections, including the main relay and ignition feeds. Remove the cover to expose numbered slots–refer to the factory service manual for precise fuse assignments, as unauthorized alterations risk unintended shorts or module failure.

Key Sensor and Actuator Plug Locations

The coil-on-plug assembly harness attaches to the valve cover with eight individual connectors, each secured by a locking tab. Disengage by squeezing the tab before pulling straight back to avoid damaging the pins. The mass airflow sensor (MAF) connector, a three-wire plug with a weatherproof seal, is mounted adjacent to the intake tube; ensure the O-ring remains intact during reconnection to prevent contamination.

Trace the oxygen sensor leads from the exhaust manifold toward the firewall. Upstream sensors (pre-catalytic converter) utilize four-wire harnesses, while downstream sensors employ single-wire or two-wire setups–verify signal types with a multimeter before probing. The throttle position sensor (TPS) and idle air control (IAC) valve share a common harness branch; misrouting these links will trigger persistent engine fault codes P0122 or P0507.

Beneath the intake manifold, locate the knock sensor and coolant temperature sensor harnesses routed along the engine block. The knock sensor uses a single-pin connector, while the coolant sensor employs a two-pin plug–swap these accidentally, and the ECM logs incorrect temperature readings, leading to hard-start conditions. Secure all connections with dielectric grease to prevent corrosion, but avoid excessive application near oxygen sensor ports to prevent signal interference.

Mapping the Instrument Cluster Power Distribution Board

Locate the central junction under the driver-side dash near the left kick panel–strip LH6, marked by a white 20-position connector. Pin assignments follow this sequence: terminals 1-4 (constant 12V, ignition-switched, battery feed, ground), 5-8 (dimmer control, warning lamps, low fuel, oil pressure), 9-12 (brake switch, turn signals, ABS module, backup lamp), 13-16 (check engine, PRNDL sensor, transmission temp, tachometer), 17-20 (reserved, open, horn relay, park lamps). Verify each terminal with a multimeter set to DC voltage; black probe on chassis ground, red probe on terminal–readings should match 12.6V (constant), 0V (ignition off), or fluctuate with lamp activation. Disconnect the battery negative terminal before probing to prevent short circuits.

• Label each connector crimp before detachment–use heat-shrink tubing color-coded to match the factory harness: red (power), black (ground), yellow (switched), blue (signal), green (data).
• Trace circuits backward from the fuse box: use a tone generator on fuse slots F3 (10A), F7 (15A), F12 (20A)–audible signal confirms continuity.
• Replace corroded contacts with Molex 0.093″ terminals–crimp with DE-95212 tool, solder optional.
• Inspect the harness routing along the firewall grommet: chafing against the steering column bracket indicates a common failure point.
• Update failed bulbs with LED equivalents: #194 for indicator lamps, #74 for backlighting–reverse polarity protection required.

Decoding Rear Light Circuit Conductor Roles and Hues

Trace the brown wire from the main harness to its splice point–this is the taillight feed. Confirm continuity with a multimeter set to ohms; resistances above 5Ω suggest corrosion or a broken strand. Use heat-shrink terminals when reattaching, as crimp connectors here often fail after exposure to moisture.

Orange with a black stripe carries brake signal voltage. Probe the socket side of the bulb holder while pressing the pedal; readings should jump from near 0V to 12.6V. If the voltage sags below 12V, inspect the ground at G401, a chassis point beneath the rear bumper, then follow the orange conductor through the corrugated conduit to the junction box where it mates with the body control module’s B3 port.

Running lamps are routed through light green conductors paired with dark green returns. Pull back the trim panel near the bed corners to expose the harness grommet; split loom here traps water, so reseal with dielectric grease after verifying each circuit. The left-side harness loops under the spare-tire carrier; check here for chafing against the frame rail.

Reverse lights use a purple conductor terminated at the R3 connector behind the rear fascia. Back-probe the terminal while shifting into reverse–expected voltage is 12.8V; if absent, move upstream to the transmission range sensor, testing between pins A and C before disassembling the switch. Replace the 15A fuse labeled “RR PRK LP” if continuity checks clear but voltage remains low.

Ground loops at G400 cluster beneath the driver-side tail assembly. Clean the ring terminal and re-secure with a star washer; oxidation here mimics bulb failure, causing erratic brake-light flicker. Strip ¼ inch of insulation from any repaired splices and solder before wrapping with high-temp vinyl tape–electrical tape degrades within 18 months under UV exposure.
