How to Design an Inductive Proximity Sensor Circuit Step-by-Step Guide
Start with an LC oscillatory tank–typically a coil (200–500 µH) and a capacitor (100–1000 pF)–to generate high-frequency oscillations around 100 kHz–1 MHz. Ensure the coil has a ferrite core to maximize magnetic field concentration within a 1–10 mm sensing range. Use a Colpitts or Hartley topology for stability; a Colpitts setup with split capacitors (e.g., 220 pF and 100 pF) provides better temperature compensation than single-capacitor designs.
Feed the oscillator output into a demodulator stage. A simple envelope detector using a diode (1N4148) and a low-pass RC filter (e.g., 10 kΩ, 10 nF) extracts the amplitude shift when a metal target enters the field. For sharper response, add a Schmitt trigger (CD4093) after the filter to eliminate noise and produce clean digital switching. Calibrate the trigger threshold by adjusting the resistor values (start with 10 kΩ, tune empirically).
Amplify weak signals before demodulation if detection range exceeds 5 mm. A single-transistor common-emitter stage (e.g., BC547) with a gain of ~50–100 boosts the tank signal without introducing excessive phase shift. Power the circuit from a regulated 5–12 V supply; ripple above 10 mVpp will degrade performance. Ground the sensing face of the coil to a dedicated star point near the power input to minimize EMI pickup.
Test the assembly with different metal targets. Non-ferrous materials (aluminum, copper) reduce oscillation amplitude by ~30–50%, while ferrous targets (steel) can cut amplitude by up to 80% and shift frequency by 5–10 kHz due to eddy-current losses. Use a spectrum analyzer or oscilloscope to monitor frequency drift; a 1% shift typically indicates target presence. For industrial applications, encapsulate the coil in epoxy filled with ferrite powder to withstand vibrations and moisture.
Key Circuit Layout for Detecting Metallic Objects at Close Range
Begin with an LC oscillator core, using a 100 µH coil paired with a 10–100 nF capacitor. Position the coil facing outward to form the detection face–its diameter dictates the sensing distance, typically 0.8× coil diameter for mild steel. Place a 10 kΩ resistor between the oscillator output and a Schmitt-trigger inverter to generate a stable square wave, eliminating false triggers from noise.
Feed the inverter output into a peak detector built from a 1N4148 diode, a 2.2 µF capacitor, and a 47 kΩ discharge resistor. The capacitor voltage rises when metal enters the coil’s field; this voltage shift is the primary signal. Use a voltage divider (10 kΩ and 20 kΩ) to set a 3.3 V threshold, ensuring compatibility with 5 V logic systems without additional level shifting.
Signal Conditioning and Output Stage
Route the peak detector output to a comparator (e.g., LM393) with a 1.2 V reference generated by a TL431. The comparator’s open-collector output sinks current when metal is detected, allowing direct drive of an optocoupler (PC817) for galvanic isolation. For PNP or NPN outputs, add a 2N2222 transistor and a 1 kΩ pull-up resistor to VCC.
For adjustable sensitivity, add a 50 kΩ potentiometer between the comparator’s non-inverting input and the reference voltage. Clockwise rotation increases sensitivity, but values below 10 kΩ may cause oscillation; counterclockwise rotation reduces false positives in electrically noisy environments. Ground the coil’s opposite end through a 1 µF capacitor to suppress RF interference.
Power the circuit from 12–24 V DC using a 78L05 regulator or a buck converter (e.g., MP2307) for efficiency. Bypass the regulator input and output with 10 µF and 0.1 µF capacitors, respectively, placed within 2 mm of the pins. For transient protection, include a 15 V bidirectional TVS diode (P6KE15CA) across the power rails.
Terminate output wires with a four-pin M12 connector: pin 1 (+V), pin 2 (output), pin 3 (common), and pin 4 (shield). Use 0.5 mm² tinned copper wire for the coil; wind 50–150 turns around a ferrite core to maximize Q-factor. Keep leads under 300 mm to prevent inductance loss, and encapsulate the assembly in epoxy-filled nylon or PBT housing for IP67 compliance.

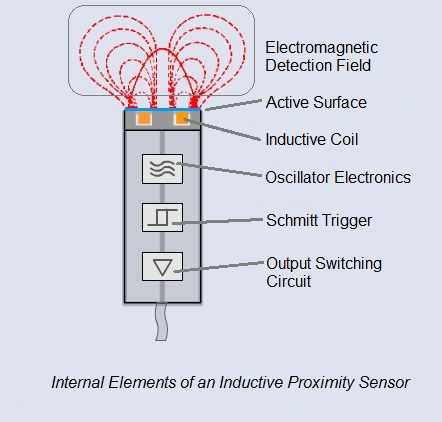

Core Elements of a Non-Contact Detection Device Circuit
Begin by selecting an LC oscillator tank with a resonant frequency between 100 kHz and 1 MHz, depending on target material conductivity. Ferrous metals require lower frequencies (200–500 kHz), while non-ferrous alloys need 800 kHz–1 MHz for optimal eddy current generation. Use a parallel arrangement of a 100–470 pF polystyrene capacitor and a 5–20 mH coil with 50–100 turns of 0.2 mm copper wire on a ferrite core to achieve stability. Avoid ceramic capacitors in high-noise environments due to their temperature drift–opt for polypropylene instead.
The signal conditioning stage demands a precision rectifier followed by a comparator with hysteresis set at 5–10% of the supply voltage. A typical setup includes an operational amplifier (e.g., LM358) with a feedback loop incorporating 10 kΩ and 100 kΩ resistors to prevent false triggering. Configure the comparator threshold at 1.2–1.5 V for 12 V systems; adjust proportional to supply voltage for 5–24 V applications. Include a 10 nF decoupling capacitor at the comparator’s power input to suppress transients.
| Component | Recommended Value | Tolerance | Temperature Coefficient |
|---|---|---|---|
| Oscillator Capacitor | 330 pF | ±5% | 30 ppm/°C (polypropylene) |
| Coil Inductance | 15 mH | ±10% | N/A (ferrite core stability) |
| Hysteresis Resistor | 10 kΩ (upper), 100 kΩ (lower) | ±1% | 50 ppm/°C (metal film) |
| Decoupling Capacitor | 10 nF | ±20% | 100 ppm/°C (X7R ceramic) |
Output stage design varies by load requirements. For TTL compatibility, use an NPN transistor (e.g., 2N3904) with a 4.7 kΩ base resistor and a 1 kΩ pull-up on the collector. For sinking outputs, invert the logic with a PNP transistor (e.g., 2N3906) and a 470 Ω emitter resistor. Ensure the transistor’s saturation voltage stays below 0.3 V to meet low-level output specifications. Add a flyback diode (1N4007) across inductive loads to protect against voltage spikes.
Shield the coil from EMI by wrapping it in a grounded copper foil or using a dedicated shielded cable for connections. Position the foil at least 3 mm from the coil windings to avoid capacitive coupling. For high-precision applications, employ a differential amplifier (e.g., INA125) to cancel out common-mode noise. Place a 10–100 Ω resistor in series with the coil to dampen ringing; values above 100 Ω degrade sensitivity.
Power supply stability directly impacts detection range. Use a linear regulator (e.g., 78L05) for 5 V systems or a buck converter (e.g., LM2596) for 12–24 V setups, combined with a 22 µF tantalum input capacitor. Avoid switching supplies unless they operate above 500 kHz–lower frequencies interfere with the oscillator. Calculate worst-case current draw: 15–25 mA for analog circuits, up to 100 mA for transistor-driven outputs.
Calibrate detection distance by adjusting the coil-core gap–wider gaps extend range but reduce precision. A 0.5 mm gap yields 2–4 mm range for steel, while 1.5 mm gaps reach 8–12 mm but introduce ±1 mm error. Compensate for temperature drift by selecting components with matched coefficients: pair a 330 ppm/°C capacitor with a coil wound on a -50 ppm/°C ferrite core. Verify performance across -20°C to 85°C using a climate chamber before deployment.
Debugging begins with an oscilloscope: probe the oscillator output to confirm a sinusoidal waveform at the designed frequency. A distorted waveform indicates core saturation or insufficient capacitor tolerance. Check the comparator output for clean transitions–slow edges suggest insufficient hysteresis or excessive load capacitance. Test with a target 90% the size of the coil face; smaller objects demand lower thresholds or higher sensitivity settings.
Step-by-Step Assembly of a Near-Field Detection Board
Begin by arranging components in ascending order of height: capacitors first (0402 or 0603 packages), followed by resistors, then ICs, and finally coils. Use a stencil for solder paste application to ensure precision–excess paste on pads smaller than 0.5mm risks shorts. Position the ferrite core inductor (e.g., 10μH TDK MPL2520) last; its size demands manual alignment, verified with a microscope at 10x magnification.
Critical Soldering Validation
- Set the reflow oven profile to preheat: 150°C (60s), soak: 180°C (90s), reflow: 245°C (20–30s). Lead-free solder (SAC305) requires tighter thermal control; deviations beyond ±5°C cause cold joints on QFN packages.
- Inspect the LC tank circuit: the capacitor (e.g., 330pF NP0) and inductor must form a resonant frequency at 100–500 kHz. Use an LCR meter to measure; tolerances outside ±10% indicate misalignment or damaged components.
- Test the oscillator output with an oscilloscope: attach probes to the IC’s feedback pin (e.g., TLE5206‘s pin 6). Signal amplitude should stabilize at 2.5V–3.3V peak-to-peak; lower values suggest inadequate shielding or incorrect coil orientation.
For the comparator stage, match the hysteresis resistor pair (e.g., 100kΩ and 20kΩ) to the sensor’s target range. A 5mm detection distance requires a 22kΩ feedback resistor; reduce to 15kΩ for 8mm. Apply conformal coating (acrylic-based) to exposed traces–moisture ingress alters the LC tank’s Q-factor, degrading response time by up to 40%. Verify final functionality with a ferrous target at specified distance; output should toggle within 1–3ms.
