Complete 2005 Chevrolet Silverado Radio Wiring Diagram Guide
Locate the C200 cluster on the harness behind the dashboard center stack. Pin 1 delivers switched 12V from fuse F12R (10A), while pins 3 and 5 provide ground–verify continuity with a multimeter before making connections. The retained accessory power (RAP) line runs through pin 11, controlled by the BCM; bypassing it directly will cause draw issues.
Factory speakers connect via the 20-pin connector: pins 2/6 (front left), 4/8 (front right), 10/14 (rear left), and 12/16 (rear right). Use 2-4 ohm impedance for aftermarket units to prevent amplifier overheating. For premium systems, the tweeter wires (pins 18/20) require inline capacitors to filter low frequencies.
Steering wheel controls use a dedicated CAN bus at pins 7 (high) and 9 (low). Resistors must match OEM values (2.2kΩ for volume up, 3.3kΩ for seek) to avoid error codes. If replacing the head unit, splice the data lines into the new harness–cutting them will disable OnStar and vehicle tracking.
For navigation retrofits, the GPS antenna (roof-mounted) connects to the telematics module via a coaxial cable; ensure the outer shielding maintains continuity or signal degradation will occur. The parking brake wire (pin 19) must be grounded to enable video playback–omit this step to comply with safety regulations.
The dimmer circuit (pin 17) adjusts illumination with the instrument cluster; connect it through a 10kΩ potentiometer to preserve brightness synchronization. If static persists, check the inline noise filters on the power wires–replace with 1,000µF capacitors if defective.
Aftermarket Audio System Wiring Guide for 2005 GM Full-Size Trucks
Disconnect the negative battery terminal before handling any electrical connections to prevent short circuits or damage to the vehicle’s computer systems. Locate the factory harness behind the dashboard, which includes a 24-pin plug for the original stereo. Use a wiring adapter (Metra 70-2003 or similar) to bridge the factory harness with aftermarket components without cutting wires.
The color-coded factory leads follow GM’s standard schema:
- Light Green: Left front speaker (+)
- Dark Green: Left front speaker (-)
- Light Blue/White: Right front speaker (+)
- Dark Blue/White: Right front speaker (-)
- Orange/White: Illumination (dimmer)
- Gray: Constant 12V (fused)
- Yellow: Battery power (fused)
- Pink: Ignition-switched 12V
- Purple: Right rear speaker (+)
- Dark Blue: Right rear speaker (-)
- Brown: Left rear speaker (+)
- Yellow/Black: Left rear speaker (-)
For amplifier integration, tap the orange / dark green pair (factory amp turn-on lead) to trigger aftermarket power amplifiers. Avoid splicing into the gray or yellow wires directly–use a relay or fuse tap rated for 30A to protect the vehicle’s electrical system. If installing a navigation unit, route the GPS antenna cable beneath the dashboard trim along the driver’s side A-pillar to maintain signal integrity.
Ground connections must terminate to bare metal surfaces free of paint, rust, or corrosion. The optimal grounding point is the chassis bolt behind the driver’s side kick panel. Use a 10-gauge wire and star washer for secure contact. Test resistance with a multimeter–values above 0.2 ohms indicate a poor connection requiring rework.
When routing speaker wires, separate them from power cables by at least 12 inches to minimize interference. Use split loom tubing or electrical tape to bundle wires where they pass through firewall grommets. For vehicles equipped with OnStar, retain the teal / red pair (microphone input) if upgrading to a hands-free system.
Verify all connections with a test light or multimeter before reassembling trim panels. Reconnect the battery, start the engine, and cycle through all stereo functions (volume, balance, fader) to confirm proper operation. If static or distortion occurs, recheck ground connections and speaker polarity.
Finding the Original Audio System Connector in a 2005 GMT800 Pickup
Start by removing the center console trim panel–it snaps off with minimal force when pulled upward from the bottom edge. Beneath it, two Phillips screws secure the climate control bezel; remove them to lift the entire assembly away from the dash.

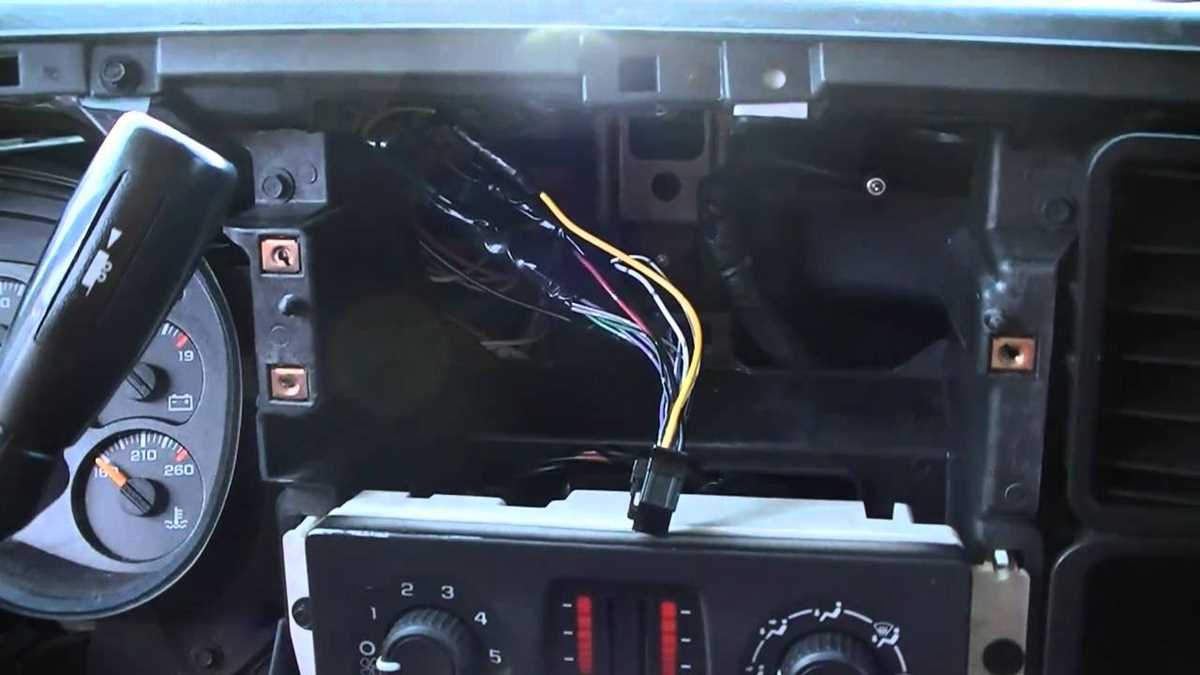

The factory harness sits directly behind the audio head unit cavity, visible once the climate module is freed. Look for a rectangular 12+ pin plug with color-coded leads; it’s clipped into a white plastic mounting bracket attached to the metal dash frame.
Use a flashlight to confirm the connector’s location before disconnecting anything. The upper row typically includes solid yellow (constant 12V), red (switched power), black (ground), and orange (illumination). Lower-row pins handle speaker outputs–front left (gray/light blue), front right (gray/dark blue), rear left (green/light blue), and rear right (green/dark blue).
If the connector isn’t immediately visible, check for aftermarket splices or tape residue; some vehicles have modified harnesses. In stock form, the plug should have intact factory seals and no cut wires. Tug gently on each wire to ensure all terminals sit firmly in the housing.
Common Connector Pin Identification
| Pin Position | Lead Color | Function |
|---|---|---|
| 1 (Top Left) | Yellow | Constant power |
| 2 | Red | Ignition-switched power |
| 3 | Black | Chassis ground |
| 4 | Orange | Backlight dimmer input |
| 5 | Gray/Light Blue | LF+ speaker |
| 6 | Gray/Dark Blue | RF+ speaker |
| 9 (Bottom Left) | Green/Light Blue | LR+ speaker |
| 10 | Green/Dark Blue | RR+ speaker |
Aftermarket adapters may reverse polarity on speaker wires–verify with a multimeter before connecting new equipment. Factory wires use 20-gauge copper strands; anything thinner suggests post-production splicing.
Reinstall the climate bezel first, securing it with both screws before reattaching the console trim. Test all functions (power, illumination, fade/balance) before finalizing dash reassembly to avoid repeat disassembly.
If corrosion appears on the harness pins, clean contacts with electrical contact cleaner and a soft-bristle brush. Avoid abrasives that can damage gold-plated terminal surfaces.
Decoding Wire Colors and Purpose in 2005 Chevy Pickup Audio System

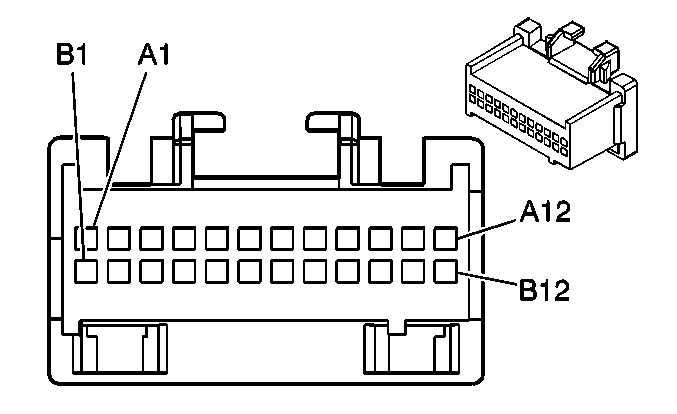

Yellow (B+) delivers constant 12V power directly from the battery, ensuring memory retention for preset stations and clock settings. Locate this wire at the 12-pin harness connector, pin A7, and verify voltage with a multimeter–readings below 11.5V indicate a weak battery or corroded connection requiring immediate cleaning with electrical contact cleaner.
Orange (ILLUM) adjusts display brightness in sync with the headlight switch. Trace this to pin A4 on the main plug; improper illumination often stems from a faulty dimmer module rather than the wire itself. Test continuity between the instrument cluster and audio unit–a break here confirms a severed circuit needing solder repair or replacement of the harness segment.
Pink (ACC) supplies switched power from the ignition, activating the unit when the key is turned to “Accessory” or “Run.” Attach to pin A8; if the system powers off with the engine running, inspect the ignition switch or fuse 29. For vehicles with remote start, blue/white (REM) at pin A10 triggers the antenna motor–failure here typically means a bad relay or grounded wire.
Gray (FR+) and gray/black (FR-) drive the front right speaker, while lime (FL+) and lime/black (FL-) handle the front left. Use a 9-volt battery to test each pair–audible clicks confirm working speakers, while silence points to blown coils or shorted wires. For rear channels, purple (RR+) and purple/black (RR-) serve the right side, with dark green (RL+) and dark green/black (RL-) covering the left.
Brown (MUTE) at pin A3 silences audio when a call is active or during navigation prompts–if static persists, check the OnStar module outputs. Light blue (DATA BUS) carries serial communication; incompatible aftermarket units may scramble this signal, causing erratic behavior. Reflash the factory ECU if downgrading to avoid protocol mismatches.
Black (GND) terminates at pin A1 and must connect to the vehicle’s chassis via a dedicated bolt–resistance above 0.5 ohms indicates poor grounding. For amp-equipped models, dark blue/white (AMP REM) at pin B6 enables the external amplifier; absence of signal here suggests a busted fuse (fuse 26) or severed link in the harness behind the glovebox.
Step-by-Step Guide to Extracting the Factory Audio Unit in a 2005 Chevy Pickup
Disconnect the negative terminal of the battery to prevent electrical shorts or accidental airbag deployment. Use a 10mm wrench to loosen the clamp and remove the cable. Allow at least 10 minutes for the vehicle’s backup power systems to discharge fully.
Pry off the trim panel surrounding the audio unit using a plastic trim removal tool. Insert the tool into the seam near the climate controls and carefully pop the clips free. Work methodically around the edges to avoid cracking the plastic. The panel is secured by six clips–two on each side and one at the top and bottom.
Remove the four 7mm bolts holding the audio unit in place. These bolts are located at each corner of the faceplate. Use a magnetic screwdriver to prevent dropping them into the dash cavity. Set the bolts aside in a labeled container.
- Disconnect the antenna cable at the rear of the unit by pressing the release tab and pulling it straight out.
- Unplug the main wiring harness by squeezing the release lever and pulling the connector free.
- Detach the climate control harness if your model includes an integrated HVAC interface. This connector is typically smaller and color-coded differently.
Slide the audio unit forward until it clears the mounting brackets. Tilt the top edge outward slightly to access the rear connections. If resistance is felt, check for hidden screws or unsecured wiring. Avoid yanking the unit, as this can damage the connectors or dash structure.
Reassemble in reverse order if installing a replacement. Ensure all wires are fully seated and clips are engaged before securing the unit. Reconnect the battery last and test all functions–including turn signals, hazards, and onboard diagnostics–before buttoning up the dash.
