Understanding the 1076d n Type Wiring Diagram for Installation and Troubleshooting

Begin by identifying terminal *87a* on the schematic–this is your fail-safe point for auxiliary circuits. Trace the primary feed from *30* directly to the load, ensuring it bypasses the relay coil to prevent unintended activation. For most variants, the coil excitation path runs from *85* through a 150-ohm resistor to *86*, but verify the exact resistance: deviations beyond ±10% indicate potential corrosion or manufacturer-specific modifications.

Pin *87* must handle the continuous current load–consult the datasheet for ampacity limits. Typical setups use 20-gauge wire for control signals (*85*/*86*) and 14-gauge for power (*30*/*87*), but up-rate to 12-gauge if the load exceeds 15A. Ground the relay chassis at a single point near the battery negative terminal to avoid ground loops; daisy-chaining introduces voltage drop artifacts.

Test the switching behavior with a multimeter before integration. Apply 12V to *85* and observe continuity between *30* and *87*–an open circuit here confirms coil failure or misaligned contacts. For LED or inductive loads, insert a flyback diode across *85*/*86* (anode to *86*) to suppress voltage spikes that degrade relay lifespan. If PWM control is present, ensure the relay’s coil voltage rating aligns with the duty cycle; most automotive-grade units tolerate 20% PWM at 1kHz, but industrial variants may require 5%.

Label each connection with heat-shrink tubing or wire markers corresponding to the schematic’s legend. Color-coding follows convention (*red* for switched power, *black* for ground), but cross-reference with the device-specific documentation–some manufacturers invert these defaults. For DIN-rail installations, use a barrier strip between high-current and signal circuits to minimize electromagnetic interference.

Electrical Layout Reference for Model N1076D

Connect the control module to terminal block B-7 using 18 AWG stranded copper wire, pre-stripped to 8mm. Secure with crimp connectors sized for 4.8mm studs; avoid solder-only joints due to vibration risks in marine applications. Label each conductor with heat-shrink tubing marked according to ISO 1219-1 symbols–pressure lines (P), return lines (T), and sensor feedback (X)–to expedite troubleshooting.

• Locate fuse panel F-3 beneath the instrument cluster; insert 10A ATO fuses for pump circuits and 5A mini fuses for signal paths.
• Route sensor cables (ECU to throttle position and oil pressure) through 12mm corrugated conduit, leaving 15cm slack at both ends for maintenance access.
• Ground all components at chassis point G-1 using M6 stainless steel bolts with star washers; verify

Test continuity between each harness pin and its destination using a calibrated multimeter (Fluke 87V recommended). Record resistance values in a repair log–target: 0.2–0.5Ω for power cables, 0.8–1.2kΩ for sensor circuits. Isolate and bypass any segment exceeding 3Ω before energizing the system.

Key Connector Pinouts for Vehicle Integration Harness

Verify the primary power input by locating Pin A1 on the 32-position central connector–this carries the +12V ignition-switched supply. Pair it with Pin B2 for the corresponding ground reference; resistance between these points should not exceed 0.5 ohms. Failure to secure this pairing risks voltage drop under load, causing intermittent system resets.

CAN bus communication relies on Pins C3 (CAN-H) and C4 (CAN-L), wired to a twisted pair with impedance controlled to 120 ohms ±10%. Shield termination must connect to Pin D5 at the chassis ground point, not the signal ground. Use a dual-channel oscilloscope to confirm differential signal integrity; voltages should range between 2.5V (recessive) and 3.5V (dominant).

Pin E6 serves as the analog sensor input for fuel level monitoring–ensure a stable 5V reference from Pin F7, with a 10kΩ pull-down resistor to prevent signal drift. The output voltage shifts linearly from 0.5V (empty) to 4.5V (full). Calibrate thresholds in the ECU to match the sender’s resistance curve; typical values are 240Ω (empty) to 30Ω (full).

For rear camera activation, Pin G8 provides a switched 6V feed, triggered when the vehicle is placed in reverse. Route this signal through a relay coil to avoid overloading the harness–maximum current draw should not exceed 300mA. Combine with Pin H9 (video ground) in a shielded coaxial cable, grounding the shield at both ends to minimize EMI interference.

Step-by-Step Electrical Cable Color Standards and Roles

Begin by identifying the primary power conductors: brown (live) carries the active voltage supply, while blue (neutral) completes the circuit. Verify these connections at both the source and terminal ends before energizing the system to prevent short circuits or reversed polarity. For single-phase installations, use a multimeter to confirm 230V AC between brown and blue; deviations may indicate incorrect routing or damaged insulation.

Yellow-green striped cables are strictly reserved for protective earth (PE) and must never carry current under normal conditions. Ensure this conductor connects to metal enclosures, grounding rods, or busbars with resistance below 0.1 ohms. In older installations, black may substitute for earth–test rigorously to avoid hazardous misapplications. Double-check terminations with a continuity tester, especially when combining new and legacy components.

Secondary and Auxiliary Conductor Assignments

Black cables typically denote switched live or secondary circuits, often linked to lighting controls or isolated power branches. In three-phase systems, follow the L1/L2/L3 sequence: black (L1), gray (L2), and white (L3) for balanced load distribution. Cross-referencing with local regulations is critical–North American standards may vary (e.g., red for 240V circuits). Use color-coded sleeves or heat-shrink tubing if repurposing wires to maintain consistency.

For low-voltage signaling (e.g., 12V-48V), violet (often +V) and pink (common return) are standard in industrial automation. Avoid mixing these with high-voltage lines to prevent interference or component damage. Shielded twisted pairs (gray/orange) should be grounded at one end only to eliminate ground loops. Always label both ends of each cable with its function (e.g., “Motor Start,” “Sensor Ground”) for future troubleshooting.

When dealing with multi-conductor assemblies, refer to the manufacturer’s pinout: red may indicate 5V DC, orange for 3.3V, and yellow for 12V in power distribution blocks. Store spares in humidity-controlled conditions to preserve insulation integrity. For mixed AC/DC systems, separate wiring harnesses physically–using conduit or cable trays–to avoid induced currents. A thermal camera can reveal overheating at junction points, signaling poor connections even if colors appear correct.

Common Mistakes in Connecting Modular Control Units

Reversing power and signal lines ranks as the most frequent assembly error, often leading to immediate component failure. The +24V DC input must align with the marked terminal on the main board–swapping it with the COM (ground) pin triggers a short circuit, disabling the PLC within milliseconds. Verify polarity with a multimeter before securing connections, especially when working with pre-assembled harnesses where wire coloring deviates from IEC standards. A simple continuity test between the power supply and module terminals prevents irreversible damage to onboard regulators.

Omitting proper grounding induces noise interference, corrupting analog signals and causing erratic relay behavior. Connect the protective earth (PE) terminal directly to the system’s grounding bus with a wire gauge matching the current rating–never daisy-chain it through multiple devices. Use copper conductors exclusively; aluminum introduces oxidation risks over time, increasing resistance. Measure ground impedance post-installation–values exceeding 0.1Ω indicate poor contact, requiring immediate re-termination. For sensitive I/O expansions, pair grounding with shielded cables, bonding the drain wire at a single point near the controller.

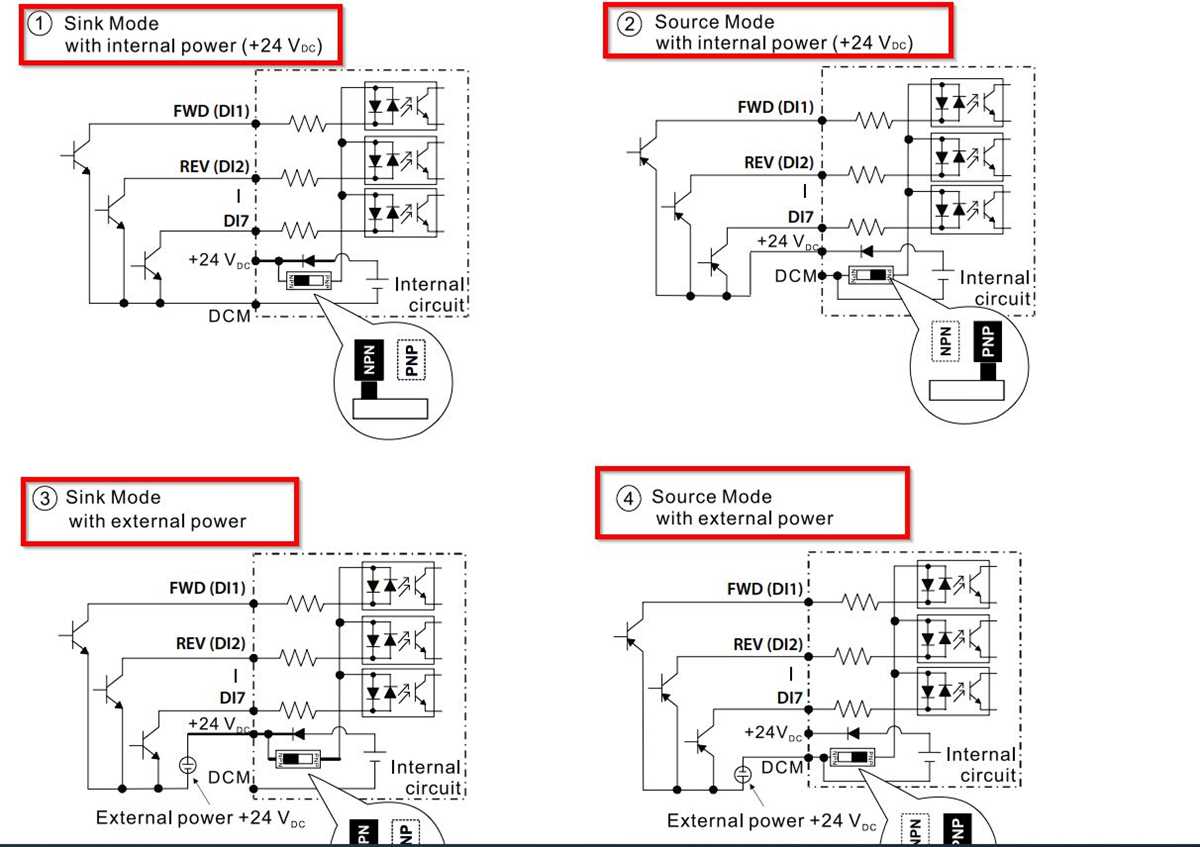

Confusing sink and source configurations for digital inputs generates false triggers or silent failures. Consult the terminal layout sticker: sourcing inputs require a PNP sensor with +24V supply, while sinking inputs pair with NPN sensors tied to ground. Cross-referencing the sensor type with the module’s datasheet avoids misalignment–a 3-wire PNP proximity switch connected to a sinking input remains inert. Use a logic probe to confirm signal states during commissioning; floating inputs often register as “high” erroneously, masking critical malfunctions.

Error	Symptom	Verification Method	Preventive Measure
Incorrect sensor polarity	Input fails to register	Logic probe on input terminal	Match sensor output to module type (PNP/NPN)
Loose terminal screws	Intermittent signal loss	Torque wrench (0.8 Nm)	Use crimp ferrules for stranded wires
Missing termination resistor	Communication errors (RS-485)	Oscilloscope waveform check	Install 120Ω resistor at bus ends

Overlooking bus termination resistors in communication networks destabilizes data transmission, particularly in RS-485 setups. Install 120Ω resistors at both ends of the bus–omitting them causes reflections, corrupting packets. For CAN networks, follow the same rule, adjusting resistor values per the manufacturer’s specifications (typically 100–130Ω). Test signal integrity with an oscilloscope: properly terminated lines exhibit clean square waves, while unterminated segments display overshoot and ringing artifacts. Replace resistors annually, as corrosion degrades their effectiveness over time.

Ignoring wire gauge specifications for high-current outputs risks overheating and voltage drop. For relay outputs rated at 2A, use 1.5 mm² copper wire; inductive loads (e.g., motors) demand 2.5 mm² to handle inrush currents. Verify temperature rise at terminals during prolonged operation–values above 60°C indicate undersized wiring, necessitating immediate upsizing. Secure all connections with anti-vibration crimps; soldered joints weaken under mechanical stress, leading to hairline fractures. Label each wire at both ends to prevent misrouting during maintenance, reducing troubleshooting time by 40%.
