Complete Wiring Diagram Guide for 1997 GMC Sierra Electrical System

For precise troubleshooting of fused circuits, refer to connector C105 on the engine compartment fuse block–pin 12 supplies constant 12V to the instrument panel dimmer control. This connection often causes intermittent dash illumination failures when corroded or improperly crimped. Replace the terminal eyelet with part #12162236 if resistance exceeds 0.2 ohms.

Locate the under-dash harness split near the steering column–orange wires branching to the ignition switch must maintain 10-12 gauge thickness to prevent voltage drop during cranking. Any splice thinner than 12 gauge risks intermittent start failures, particularly in cold conditions where parasitic draw compounds resistance issues.

Battery voltage sensing on the alternator’s P terminal should read 14.2-14.6V at 2,000 RPM with headlights on; deviations below 13.8V indicate a defective internal regulator or loose ground at G101, a ground strap positioned behind the driver-side headlight housing. Remove the bolt securing G101, clean both surfaces with 120-grit sandpaper, and torque to 18 lb-ft.

Airbag module plug W5 retains five wires–yellow, light blue, pink, black, and brown–with the brown wire designated as a redundant ground. If continuity tests show infinite resistance, splice in a fresh 16-gauge braided ground lead terminating at the nearest unpainted chassis point, avoiding the incidental ground through the steering shaft.

Verify the trailer wiring harness by probing socket A (brown/white stripe) with a load lamp while activating the left turn signal. If the lamp flickers instead of steady illumination, replace the turn signal relay (R3, mounted adjacent to the glove box kick panel) with an updated Chrysler-derived unit, Part #15832981, to resolve thermal fatigue in the original phenolic-resin contacts.

Electrical Schematic Manual for 97′ Full-Size Pickup

Locate the fuse panel under the driver-side dashboard by removing the lower trim cover–three 10mm bolts secure it. Reference terminals labeled “IGN” (ignition), “BAT” (battery), and “ACC” (accessory) before disconnecting any connectors. Voltage testing requires a multimeter set to 20VDC; probe between the terminal and chassis ground to verify current.

Trace the main harness from the engine bay to the firewall grommet at the passenger side near the brake master cylinder. The bundle splits into three sub-harnesses: body (yellow), engine (red), and dash (green/white stripe). Damaged sheathing on the engine sub-harness often indicates chafing against the exhaust manifold; use heat-resistant loom for repairs.

The alternator wiring consists of a thick red cable (B+) and a smaller black/green (exciter) wire. For bench testing, connect the exciter wire to a 12V source while spinning the pulley at 2,000 RPM–output should read 13.8–14.4V. Corroded terminals at the battery junction post are the primary failure point; clean with a wire brush and apply dielectric grease.

Power windows use a series circuit with a two-wire setup: blue/white (motor up) and blue/black (motor down). If the driver’s master switch fails, bypass it temporarily by splicing the passenger door switch directly to the motor leads–this will confirm whether the issue lies in the switch or the motor. Window motor resistance should measure 2.5–4.5 ohms.

ABS module connections include four wheel sensors (gray connectors) and a power feed (orange/black). Sensor air gaps must be 0.3–1.0mm; excessive gap triggers false error codes. The module grounds through the transmission case–ensure the mounting surface is bare metal and free of undercoating.

Dash lights rely on variable resistor (rheostat) control via a pink wire. If lights flicker, replace the rheostat first; if the problem persists, check the brown/white instrument cluster ground near the steering column. Dimmer switch failures typically present as fully bright or off–test continuity across the switch terminals during operation.

Finding Key Electrical Bundle Hookups in the 1996-1998 C/K Series Pickup

Start beneath the driver-side dashboard where the primary harness splits into three critical conduits: the instrument panel bundle, the engine bay section, and the rear chassis feed. Trace the thickest conduit–usually encased in black corrugated tubing–straight back from the firewall bulkhead. This main trunk houses the ignition feed, lighting circuits, and accessory power lines. Label each branch with a piece of masking tape before disconnecting, noting color codes and connector shapes for reassembly.

The engine compartment junction sits directly behind the brake master cylinder on the firewall. Look for a rectangular firewall grommet with six to eight bundled cables leading to the fuse box and alternator. Key connections include:

• A 4-gauge red cable (constant battery feed);
• A lighter 10-gauge purple stripe (ignition switch output);
• Two green-yellow grounds.

Detach the plastic retainer clips first, then pull the rubber grommet outward for easier access.

Under the rear seat, a smaller intermediate harness bridges cab and bed circuits. Locate the oval-shaped connector hidden beneath a carpet flap; it carries taillight, brake switch, and trailer feed lines in distinct grey, brown, and dark green sleeves. Verify continuity between cab and bed sockets before splicing any aftermarket additions.

For the transfer case control (if equipped), follow the blue-orange stripe from the shift lever down the transmission tunnel to a white 6-pin plug beneath the driver’s seat riser. Tag each wire using the factory manual code numbers–X1 through X6–to avoid miswiring during drivetrain repairs.

Step-by-Step Engine Bay Electrical Schematic Analysis

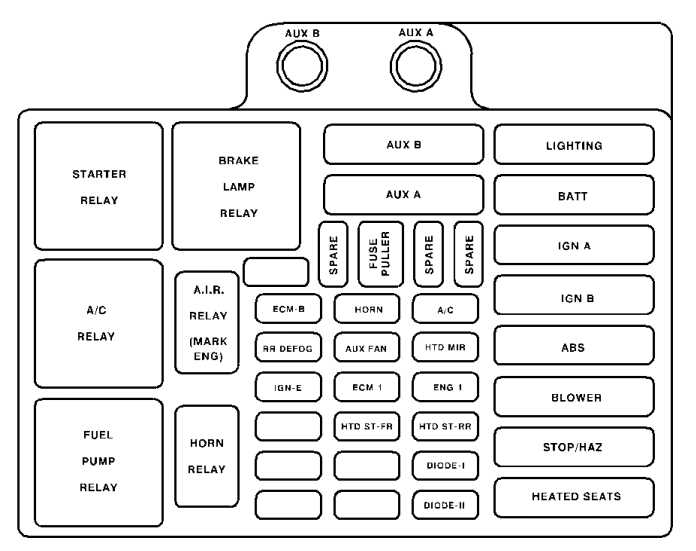

Locate the fuse block under the hood first–it’s positioned near the driver-side strut tower, secured by a single 10mm bolt. Remove the cover to expose relays and fuses labeled for critical systems: ignition, fuel pump, and cooling fan. Note the amperage ratings stamped on each fuse; a 30A fuse for the fuel pump circuit is common, while a 20A handles the ignition coil. Cross-reference these values with the manual to confirm compatibility before proceeding.

Trace the main power feed (thick red cable) from the positive battery terminal to the starter solenoid. This line splits into two branches: one to the alternator’s B+ terminal and another to the junction block near the firewall. Use a multimeter to verify voltage–expect 12.6V at the battery and 12.2V at the junction with the engine off. If readings drop below 11.8V, inspect the cable for corrosion or loose connections at the terminals.

Key Sensor and Actuator Circuits

Identify the crankshaft position sensor harness (two small-gauge wires, typically grey and black) snaking behind the harmonic balancer. Probe the grey wire with the ignition on; it should show 5V reference voltage. The black wire serves as ground–ensure continuity to the engine block. Failure here triggers a no-start condition. For the throttle position sensor, follow the green, blue, and purple wires from the sensor to the PCM connector–measure 0.5V at idle and 4.5V at wide-open throttle.

Examine the cooling fan relay setup next. The relay coil receives a 12V signal from the temperature switch when coolant reaches 210°F. Back-probe the yellow wire at the switch with the engine warm; if voltage is absent, replace the switch. The relay’s output (heavy green wire) feeds the fan motor–check for 10-12V when the relay clicks. A blown 30A fuse or faulty relay will disable cooling, risking overheating.

For the fuel injector circuits, follow the orange wires from the injectors to the fuel injector driver module. Each injector should pulse with 12V when the engine cranks–use a noid light to confirm signal presence. If no pulse is detected, inspect the pink wire from the ignition control module to the driver for continuity. Corrosion at the injector connectors is a frequent failure point, causing misfires.

Finally, test the ground circuits. The primary ground strap (thick black cable) bolts to the engine block near the transmission bellhousing. Scrape the paint off the mounting surface to ensure a clean contact. Secondary grounds for sensors and the PCM terminate at the chassis near the firewall–verify zero resistance between these points and the negative battery terminal. Poor grounding causes erratic sensor readings and intermittent electrical faults.

Diagnosing Electrical Faults with Schematics

Start by isolating the circuit segment exhibiting the issue. Trace the current path from the power source–usually the fuse block or relay panel–to the component. Use a multimeter to verify voltage at key junctions. If voltage drops below 11.5V at any point, inspect connectors for oxidation, bent pins, or loose terminals. Corrosion often hides under insulation; scrape contacts with a wire brush and apply dielectric grease to prevent recurrence.

Check ground connections next. Weak grounds cause erratic behavior. Locate the ground stud (typically bolted to the chassis near the battery or engine block) and measure resistance between the ground wire and chassis–values above 0.2 ohms indicate a poor connection. Clean the contact surface thoroughly, removing paint or rust, and secure the wire tightly. For reference, compare your readings with the standard grounding chart below:

Ground Point	Expected Resistance (ohms)	Common Failure Symptoms
Battery Negative Terminal	<0.1	Slow cranking, dim lights
Engine Block Stud	<0.2	Intermittent fuel pump, gauge fluctuations
Rear Lighting Harness	<0.3	Brake/turn signals flashing rapidly

Testing Relays and Switches

Relays frequently fail without visible damage. Swap the suspect relay with a known-good one of the same amperage rating (e.g., horn relay for A/C relay) to confirm malfunction. If the issue persists, use the schematic to identify the relay’s control circuit. Probe the control wire at the relay socket while activating the switch–voltage should spike to 12V. Absence of voltage suggests a faulty switch, wiring break, or blown fuse. For switches, bypass the component by jumping the connector terminals momentarily; if the circuit activates, replace the switch.

Fuse integrity is often overlooked. Replace blown fuses with the exact amperage–never exceed the specified rating. Use a test light to verify both sides of the fuse holder have voltage under load. If only one side illuminates, the fuse is good; no light indicates a break in the circuit upstream. Pay attention to maxi-fuses (typically 30A or 40A) protecting high-draw systems; these require a direct meter check as test lights may not register voltage drops.
