Complete Guide to Wiring a 110V Outlet Plug Step-by-Step Diagram

To ensure safety, start by verifying the circuit breaker is off before handling any connections. Use a voltage tester on the terminal screws to confirm no current flows through the junction. The standard residential setup involves three conductors: hot (black or red), neutral (white), and ground (bare copper or green).

Attach the hot wire to the brass screw, the neutral to the silver screw, and ground to the green screw. Secure each connection with a firm twist of the terminal screw–loose contacts cause overheating. For duplex sockets, the split-tab on the hot side can be removed to control each half independently. Avoid stripping excess insulation–3/4 inch of exposed wire is sufficient.

Check for compliance with NEC Article 406–grounding is mandatory for all modern installations. If retrofitting an older setup, replace ungrounded outlets with GFCI units or add a ground wire. Never connect ground to neutral downstream of the service panel. After securing wires, push the outlet gently into the box, ensuring no bare conductors touch the sides.

Test the installation with a multimeter or plug-in tester. Hot-to-neutral should read 115–125V AC, hot-to-ground the same, and neutral-to-ground near zero. If readings deviate, recheck connections before restoring power. Aluminum wiring requires specialized connectors–do not use copper-only terminals.

How to Wire a Standard Electrical Socket: Clear Instructions

Before handling any electrical connections, shut off power at the circuit breaker for the target line. Use a non-contact voltage tester to confirm the wires are de-energized. Remove the socket cover plate by unscrewing the mounting screw, then pull the unit gently from the wall box to expose the terminals. Identify the brass screws (hot), silver screws (neutral), and green screw (ground) on the device–match these to the corresponding colored conductors: black (or red) for hot, white for neutral, and bare or green for ground.

Connecting the Conductors

• Strip 3/8 inch of insulation from each conductor using wire strippers.
• Form a clockwise hook on each wire end to wrap securely around the screw terminals.

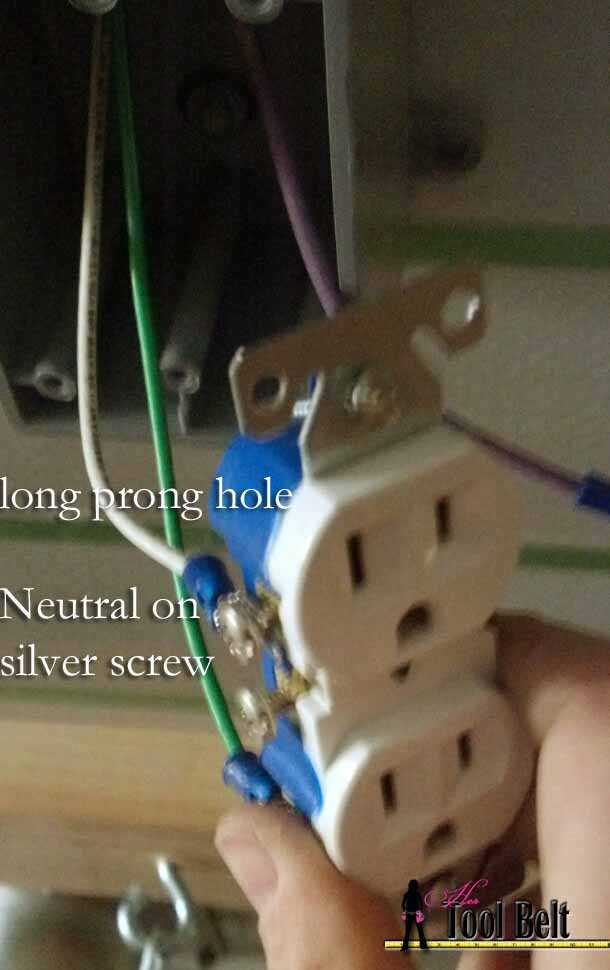

• Attach the hot wire to the brass screw, neutral to the silver screw, and ground to the green screw.
• Tighten each screw firmly with a screwdriver–ensure no bare wire extends beyond the screw head to prevent shorts.
• Fold wires neatly into the wall box and secure the device with mounting screws.
• Reattach the cover plate, restore power, and verify operation with a plug-in tester or multimeter reading 120V between hot and neutral, 120V hot to ground, and 0V neutral to ground.

For tamper-resistant receptacles, press the test button after installation–it should click when released. If using back-wire holes instead of screws, insert stripped conductors fully until they lock in place (check for an audible click). Never combine multiple wires under a single terminal; use pigtail splices with a wire nut if needed.

Identifying the Right Conductors for a Standard Voltage Socket

Check the insulation color first. In North American residential circuits, the live conductor is wrapped in black or red insulation, while the neutral is white or light gray. The grounding wire is always green, green with a yellow stripe, or bare copper. Confirm these standards before proceeding–deviations signal non-compliant or mislabeled installations that require correction.

Test with a non-contact voltage detector to verify which conductor carries current. Hold the detector near each wire while the circuit is energized; it will emit an audible alert only near the live conductor. This step rules out any miswiring from previous modifications. Avoid touching the wires directly–even brief contact can cause severe shock.

Use a multimeter set to AC voltage mode for precise confirmation. Connect the black probe to the grounding conductor, then touch the red probe to each insulated wire. A reading of approximately 120 volts indicates the live conductor. Neutral should show zero volts, though minor fluctuations (below 3 volts) may occur due to induced currents.

Examine the wire gauge to ensure compatibility with the circuit’s amperage. For 15-amp circuits, use 14 AWG copper conductors, while 20-amp circuits require 12 AWG. Undersized wires overheat under load, risking fire hazards. Check the breaker label in the panel to confirm the circuit’s rating before selecting wire size.

Inspect the wire termination points for signs of corrosion, fraying, or oxidation. Even minor defects degrade conductivity and create resistance hotspots. Sandpaper (#220 grit) or a wire brush cleans contaminated ends, but replace damaged conductors entirely if corrosion extends beyond the termination zone.

Handling Unconventional Wiring Configurations

Aluminum conductors, common in mid-20th-century homes, require special treatment. Apply an anti-oxidant compound to each termination before fastening, as aluminum oxidizes rapidly, increasing resistance. Use terminals labeled “CO/ALR” or pigtail copper wires with approved connectors to transition to modern fixtures.

In split-phase circuits (e.g., 240V with neutral), the red and black wires both carry live current. Confirm their purpose with a multimeter: measure between the red and black–240V indicates a split-phase setup. Neutrals in these circuits must never carry current unless balanced evenly across both phases.

Older cloth-insulated wires (pre-1960s) often lack a dedicated ground. Retrofit with a GFCI receptacle to meet modern safety codes. Connect the ground terminal to the electrical box (if metal) or route a separate grounding conductor to the panel. Never substitute the neutral for ground–this violates safety standards and creates shock hazards.

Final Verification Before Energizing

Tug-test each conductor after securing them under terminal screws. Properly tightened connections resist pulling (minimum 12 inch-pounds torque). Loose wires arc under load, melting insulation and creating short circuits. Recheck torque specs with a calibrated screwdriver if working on high-amperage circuits.

Wrap the bare grounding conductor around its terminal screw in a clockwise direction before tightening. This prevents the wire from loosening under vibration. For receptacles with back-wire holes (push-in connections), use these only for 14 AWG solid copper–stranded or larger wires require screw terminals for reliable contact.

Essential Gear for Installing a Standard Household Current Receptor

Use a non-contact voltage tester rated for 120-volt circuits–Fluke 1AC or Klein NCVT-3 detect live wires without direct contact, eliminating false negatives from insulation faults. Verify its battery before each use; a dead tester can miss energized conductors and cause severe injury. For multimeter work, the Klein MM700 offers true RMS accuracy (±1.2%) and a low-impedance mode to identify ghost voltages, a common issue in retrofit jobs.

Core Installation Kit

• Wire strippers: Irwin Vise-Grip 2078300 (12-20 AWG) handles solid and stranded copper without nicking; the built-in shear cuts 10-gauge NM cable.
• Linesman pliers: Knipex 09 12 240 removes knockouts and twists 6-inch pigtails; insulated handles meet IEC 60900 for 1,000 V protection.
• Screwdrivers: Wera 05051003001 (3/16″ and 1/4″ tips) fits tamper-resistant clamp screws; magnetic shaft prevents dropped fasteners in wall cavities.
• Cable ripper: Ideal 45-120 scores outer sheathing of Romex without damaging conductors; plunge cut depth adjusted via thumb wheel.

Select UL-listed 14-gauge copper conductors (NM-B or THHN) for 15-amp branch circuits; derate ampacity by 20% for bundled runs exceeding three cables in 1.5-inch conduit. Pre-cut wires to 8-inch exposed length at the device box–longer leads complicate folding and create fire hazards if insulation abrades against sharp metal edges. Always cap unused neutrals with Wago 221-412 compact splices instead of tape; they accept stranded wire and withstand 120°C without degradation.

Step-by-Step Color-Coding for Live, Return, and Earth Conductors

Verify the local electrical codes before handling any installation–standards vary by region. In North America, the live (hot) conductor must be black, red, or blue for single-phase circuits, with red typically used for secondary live lines in multi-wire setups. Always connect this to the brass-colored terminal screw on the device. If replacing an existing fixture, label the wire with masking tape before disconnecting to prevent confusion. Use a non-contact voltage tester to confirm power is off before touching any conductors.

For the return (neutral) conductor, the mandated color in compliant installations is white or gray. This connects to the silver-colored terminal screw, ensuring the circuit completes safely. Never use a white conductor as a live line–this violates safety regulations and creates hazards. If the wiring predates modern standards (e.g., cloth-insulated cables), the return may be unmarked; inspect carefully and test with a multimeter to confirm its role. In two-wire systems without a ground, retrofitting a ground wire is strongly advised.

Ground Conductor Requirements

Wire Type	Standard Color	Terminal Connection	Critical Notes
Dedicated Earth	Green or bare copper	Green hex-head screw	Never splice with live/return wires. Must terminate at the device’s grounding terminal.
Armored Cable (BX)	Metal sheath (no color)	Grounding clip or pigtail	Verify continuity with sheath; replace clamp if corroded.
Conduit Systems	Bare or green-insulated	Grounding bushing	Check conduit bonds with a megohmmeter for low resistance.

Strip wire insulation to expose ¾ inch of copper for secure terminal contact–excessive length risks shorts. Twist stranded conductors clockwise before tightening screws to prevent fraying. For aluminum wiring (common in pre-1970s builds), apply anti-oxidant compound to connections and use CO/ALR-rated devices to prevent corrosion. After securing all conductors, wrap the terminal block with electrical tape to cover exposed metal, then re-test polarity with a receptacle tester before energizing. Store spare wire segments by color in labeled bags; cross-contamination causes faults.
