Step-by-Step Guide to Wiring a 12V Battery Bank for Reliable Power

Connect identical cells in series to maintain nominal output while increasing capacity. For example, pairing two 100Ah AGM units yields 12.8V at 100Ah–ideal for off-grid solar setups requiring sustained draw. Calculate cable cross-section using the formula A = (0.0175 × L × I) / V, where A is area in mm², L is length in meters, I is load current in amperes, and V is allowable drop (typically 0.2). Exceeding this threshold increases resistance-induced losses by up to 15%.

Arrange parallel branches with equal resistance to prevent uneven charging. A common error involves mixing 6AWG and 8AWG cables between branches, causing one to absorb 60% of the load during peak demand. Use busbars rated for continuous 1.25× the intended current–150A for a 120A system–to eliminate thermal hotspots. Tin-plated copper reduces oxidation by 70% compared to bare copper, extending service life in marine or humid environments.

Fuse each series string individually at 1.1× its C/20 rating. For a 200Ah lithium ferro phosphate setup, install a 150A Class T fuse within 15cm of the positive terminal. Skip this step and risk thermal runaway in lithium chemistries, where a 1A imbalance can cascade into a 300°C event within 45 seconds. Mount fuses vertically to prevent heat buildup at the contact points.

Ground the negative terminus directly to the chassis using 4/0 AWG welding cable, avoiding daisy-chained connections. Aluminum-to-copper junctions require dielectric grease and torque to 20Nm–over-tightening deforms terminals, increasing resistance by 0.5mΩ per connection. Test continuity with a 0.1Ω resolution meter before energizing; anything above 0.2Ω indicates corrosion or loose contact.

Connecting Multiple Energy Cells in a 12-Source Configuration

Use 2/0 AWG copper cables for parallel setups between storage units to minimize resistance losses–expect under 1% drop across six units when spaced under 3 meters. For series links, 4 AWG suffices for up to four stacked 100Ah cells, but upgrade to 1/0 if ambient temperatures exceed 35°C to prevent voltage sag during sustained 20A draws. Always crimp terminals with a hydraulic press rather than soldering; compression joints maintain conductivity longer under vibration.

Calculating Total Capacity for Dual Setups

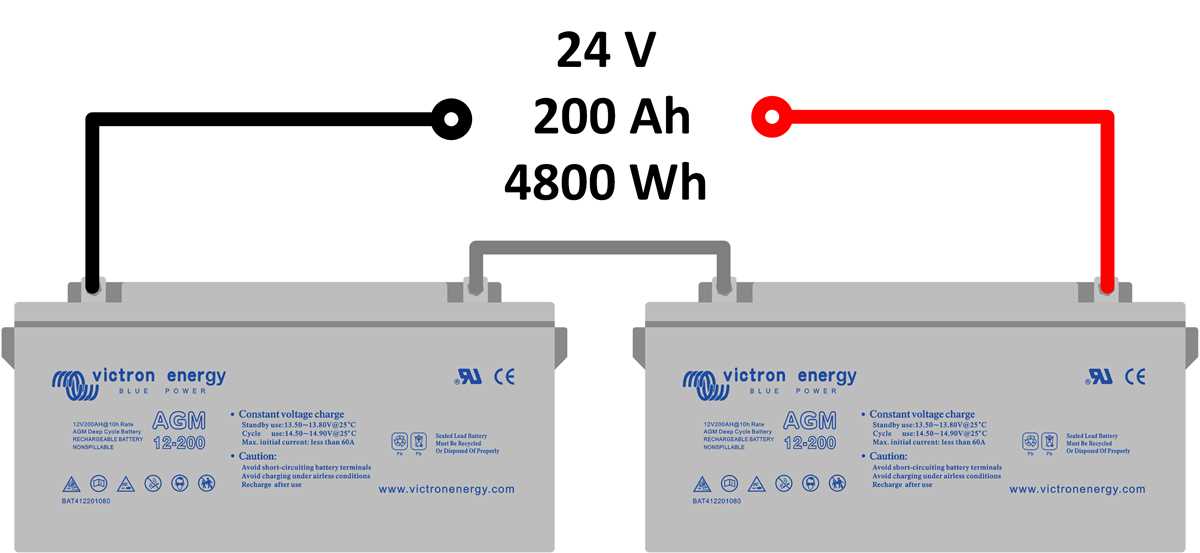

Parallel arrangements preserve the nominal 12.6 rating while doubling amp-hour output–for example, two 200Ah reservoirs yield 400Ah at identical potential. Series stacking doubles voltage to 25.2 but leaves amp-hour rating unchanged; this suits 24-system inverters without additional regulators. Mixing both methods (e.g., two series strings in parallel) delivers 24V at combined capacity–verify compatibility with charge controllers rated for the higher potential to avoid overheating.

Ground the negative terminal of the first unit directly to the chassis or busbar using a dedicated 6 AWG lead; avoid daisy-chaining grounds to prevent uneven load distribution. Mount fuse holders within 15cm of each positive post, selecting Class T fuses sized 125% of the maximum continuous draw–e.g., 150A for a 120A load. For lithium-based chemistries, also include a 10-kilojoule pyrofuse as a secondary disconnect.

Space storage units at least 10cm apart in environments exceeding 30°C to allow passive cooling. Use vibration-dampening pads beneath each cell in mobile setups; polyurethane pads outperform rubber by 30% in reducing micro-cracking over 10,000 cycles. Label all connections with heat-shrink tubing engraved with permanent marker–color-code red for positive, black for negative, and yellow for series links to simplify troubleshooting.

Test inter-cell connections with a milliohm meter before finalizing–readings above 0.5mΩ indicate corroded terminals or loose crimps, which can halve system efficiency at high loads. For flooded lead-acid types, install fill caps on the same side as the charging source to equalize electrolyte levels during maintenance. Replace interconnect cables every 50,000Ah throughput or sooner if insulation shows cracking; silicone-jacketed wires outlast PVC by 40% in UV exposure tests.

How to Select the Optimal Conductor Size for Your Low-Voltage Power Storage

Start by calculating the maximum current your setup will draw. Use the formula:

• Current (A) = Power (W) ÷ 12

For example, a 600-watt load requires 50 amperes. Always round up to account for transient spikes–underestimating risks overheating and voltage drop.

Consult an ampacity table for copper conductors. Key reference values for common gauges (105°C insulation, single conductor in free air):

• 10 AWG: 55 A
• 8 AWG: 70 A
• 6 AWG: 95 A
• 4 AWG: 125 A
• 2 AWG: 170 A

Aluminum requires one size larger for equivalent performance. Factor in ambient temperature: derate by 25% at 50°C, 50% at 60°C.

Measure the one-way conductor length from power source to the furthest load. Apply the 3% voltage drop rule for critical systems, 5% for non-critical:

• At 50 A: 10 AWG max 3.3 m (3%), 5.5 m (5%)
• At 50 A: 8 AWG max 5.3 m (3%), 8.8 m (5%)
• At 100 A: 4 AWG max 5.3 m (3%), 8.8 m (5%)

Use an online voltage drop calculator for precise sizing when lengths exceed 10 meters.

Choose stranded over solid conductors for flexibility and vibration resistance. Tinned variants resist corrosion in marine or high-humidity environments. For underground installations, select direct burial-rated cable with a protective jacket.

Termination quality matches conductor size. Crimp lugs must handle 125% of expected current. Use:

• 8 AWG: 6-8 AWG lugs (minimum)
• 2 AWG: 1/0-2 AWG lugs
• For aluminum: dual-rated lugs compatible with copper

Torque all connections to manufacturer specifications–typically 15-20 ft-lbs for common sizes.

Fuse protection must be 150% of conductor ampacity and 125% of maximum expected current. Place fuses within 18 cm of the power source for circuits under 10 A, 7 cm for larger currents. Use Class T fuses for high short-circuit scenarios.

For parallel setups, ensure identical conductor length and gauge between each power source and common bus. Small discrepancies cause current imbalance–measure resistances within 5% tolerance. In series configurations, maintain consistent gauge across all links to prevent weak points.

Step-by-Step Guide: Connecting Energy Storage Cells in Parallel vs. Series for Low-Voltage Setups

Start by matching cell capacities when linking identical power sources. For parallel connections, attach positive terminals to positives and negatives to negatives–this preserves the system’s 12-unit potential while summing available current. Use at least 6 AWG copper conductors for currents above 50 amps to prevent voltage drop. Measure individual cell output before joining; discrepancies beyond 0.1 units indicate imbalance requiring equalization or cell replacement.

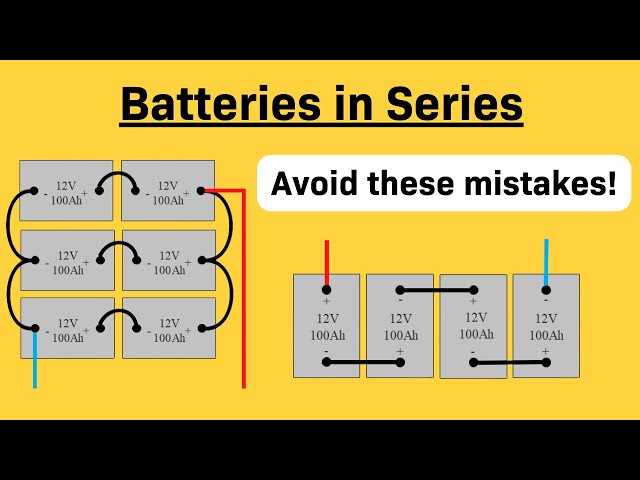

Series linking demands strict cell pairing by capacity and state of charge. Connect the positive of one power source to the negative of the next, boosting aggregate potential while maintaining identical discharge rates. A four-cell series lineup yields 48 units–ideal for inverters needing higher input thresholds. Never mix aged and new cells; even minor capacity differences accelerate degradation. Use a battery management system (BMS) to monitor each cell’s charge level in series arrangements, reducing risk of overcharge or deep discharge.

Critical Conductance Guidelines

Parallel setups tolerate minor capacity mismatches but require uniform interconnect resistance. Use tinned copper busbars instead of wires for currents exceeding 100 amps; they reduce heat buildup by 30% compared to stranded cables. Tighten connections to 10 Nm torque to prevent oxidation-induced voltage sag. For series strings, employ 4 AWG or thicker cables–thicker than parallel–to handle the same current at elevated potentials. Verify total circuit continuity with a multimeter after assembly; resistance exceeding 2 milliohms per joint necessitates rework.

Thermal management dictates conductor sizing more than nominal ratings. In parallel, aggregate current flows through each link, increasing heat proportionally. Position power sources at least 20 mm apart in enclosed spaces to allow airflow, or install a 120 mm fan for forced cooling above 20°C ambient. Series connections produce less heat at joints but concentrate thermal load on terminations; fuse each segment separately to isolate faults without collapsing the entire string. Apply dielectric grease to terminals in high-humidity environments to prevent corrosion.

Electrical isolation separates parallel and series topologies fundamentally. Parallel circuits share a common ground reference; a short in one cell pulls down the entire group’s potential. Install class T fuses rated 10% above maximum expected current at every positive terminal to contain faults. Series circuits, however, isolate cell grounds internally–each unit’s failure drops aggregate voltage without affecting current capacity. Use only cells with internal protection circuits (PCM) in series to prevent reverse polarity damage during prolonged discharges.

Real-World Validation Checks

Charge parallel groups with a single regulator set to the lowest individual cell’s absorption threshold; series strings require multi-stage chargers to balance across the stack. After installation, load-test the configuration by drawing 50% of rated capacity for 30 minutes. Measure voltage recovery within 1 second of load removal–parallel setups should rebound within 0.05 units, series strings within 0.2 units per cell. Record ambient temperature; deviations beyond ±3°C during testing mandate thermal shielding adjustments.

Document inter-cell voltages weekly in series configurations; divergence exceeding 0.02 units signals imminent imbalance requiring reconditioning. Parallel groups need only monthly verification if individual regulators maintain synchronization. Replace any cell exhibiting sulfation (visible white deposits on terminals) immediately–it reduces capacity by 15% within 50 cycles. Store spares in a climate-controlled environment at 50% state of charge to preserve electrode integrity.
