Understanding Capacitor Symbols and Their Role in Electrical Schematics
Place a fixed-value component symbol horizontally between power rails for immediate charge retention. Use the IEC 60617 standard (parallel lines) for polarized variants and ANSI Y32.2 (curved plates) for non-polarized types to avoid ambiguity. In high-frequency applications, position the symbol closer to the load–no more than 5 mm in scaled schematics–to minimize parasitic inductance. For transient suppression, pair with a snubber resistor (10–100 Ω) directly in series.
Label values in microfarads (µF) for low-frequency smoothing and picofarads (pF) for RF tuning, omitting units if space constraints apply (use standard engineering notation). In switching regulators, ensure the schematic annotates voltage ratings–overspecify by 20% above operating limits. For decoupling near ICs, use 100 nF ceramic discs with short trace lengths (cutoff frequencies (fc = 1/2πRC) adjacent to the symbol for clear cross-reference.
For multilayer boards, denote via placement near the symbol to connect to ground planes. Avoid placing storage elements near noisy components (e.g., inductors, switches) to prevent coupling. In power supplies, differentiate bulk storage (e.g., 220 µF electrolytic) from high-speed decoupling (e.g., 10 nF X7R) using distinct symbols or color coding (red for bulk, blue for decoupling). In SPICE simulations, add .MODEL parameters for ESR and ESL if accuracy demands it–ignore only for rough estimates.
Understanding Passive Storage Elements in Schematic Representations
Place the symbol with its leads aligned to the signal flow–vertical for power rails, horizontal for data lines. For polarized components, ensure the curved plate faces the lower voltage node; misalignment causes reverse bias failure in electrolytic types. Label values directly above or beside the symbol using microfarads (µF) for energy storage or picofarads (pF) for high-frequency coupling, omitting unit redundancy if stated elsewhere on the board layout.
- Ceramic types: mark “NP0” for temperature-stable variants needed in RF matching networks.
- Film units: specify “MKT” or “MKP” for pulse-discharge resilience in snubber assemblies.
- Tantalum devices: add “A” suffix for low ESR grades critical in switching regulators.
Differentiate series from parallel connections by spacing: stack symbols vertically for series chains (voltage division), or branch horizontally from a single node for parallel banks (current sharing). For decoupling near IC power pins, use a 0.1 µF ceramic directly between VCC and GND, supplemented by a 10 µF electrolytic 2-3 cm away to cover mid-frequency transients.

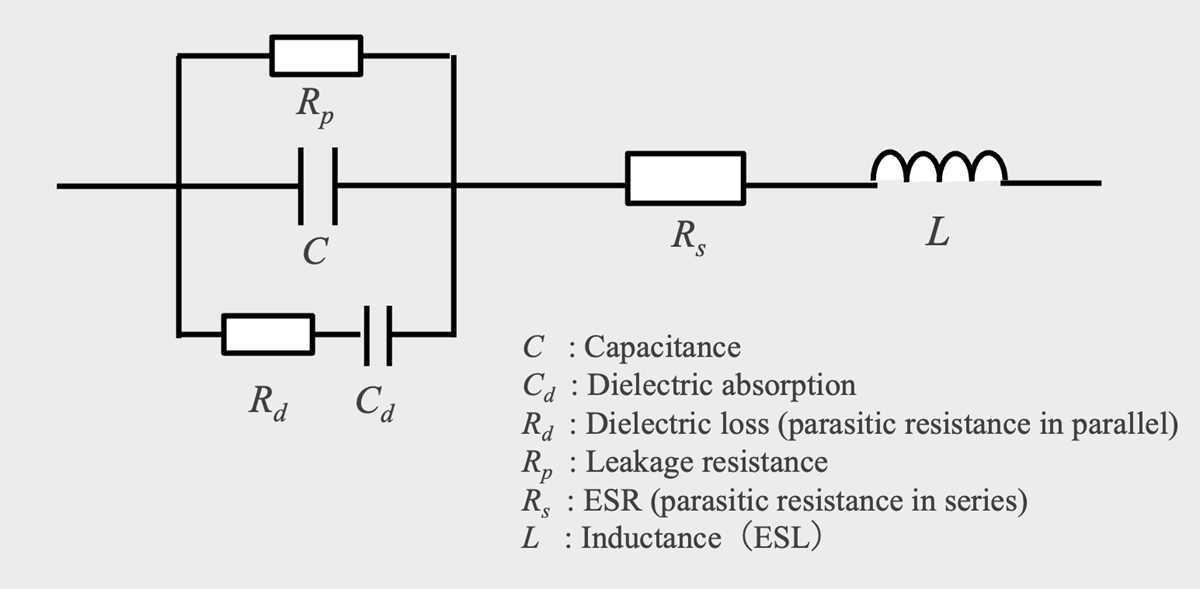

Annotate parasitic effects if exceeding 10 MHz: add a dashed resistor (ESR) and inductance (ESL) symbol atop the main element for accurate SPICE modeling. In power converters, flag safety margins–X7R ceramics derate 20% beyond 50°C, while aluminum electrolytics lose 50% capacitance at -40°C.
Recognizing Passive Energy Storage Components in Schematics

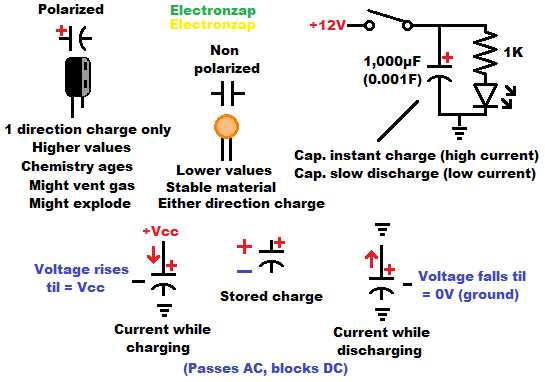

Locate two parallel lines–either straight or curved–spaced apart without intersections. Non-polarized variants display identical lines, while polarized types show one thicker or marked with a “+” sign. European standards (IEC 60617) use a hollow rectangle for the second line, contrasting with ANSI/IEEE’s consistent lines; note these distinctions to avoid misreading voltage ratings.
Check for additional annotations: a lowercase “n” or “u” adjacent to values (e.g., 100n) indicates nanofarads or microfarads, crucial for interpreting filtering versus timing roles in the layout. High-voltage symbols often include a diagonal slash or chevron across the lines, signaling dielectric strength beyond 50V–verify datasheets if this marking appears to prevent reverse polarity failures in power stages.
Observe variations in paired arcs, which denote adjustable or trimmer types. These feature an arrow bisecting the lines or a third diagonal marker, differentiating them from fixed units. In multi-layer PCBs, such trimmers frequently appear near oscillator sections; cross-reference with component labels to confirm tuning ranges, typically 2–50 pF for RF calibration.
Step-by-Step Guide to Positioning a Storage Component in Schematic Designs
Select a symbol matching the electrical element’s specifications–ceramic, electrolytic, or film–from the schematic editor’s library. Ensure the chosen glyph aligns with the component’s voltage rating, capacitance value, and package type (0805, 1206, or through-hole). For power decoupling adjacent to an IC, place the symbol within 5 mm of the power pin on the PCB layout, minimizing trace inductance. Rotate the glyph to match pin orientation: positive terminal toward the power rail, negative toward ground.
| Component Type | Recommended Placement | Trace Width (mm) |
|---|---|---|
| Decoupling near MCU | Directly across power/ground pins | 0.5 |
| Filtering input stage | Before voltage regulator, | 1.0 |
| Bypass (analog) | Parallel to load, | 0.3 |
Verify footprint alignment in gerber files before fabrication–polarized elements demand strict adherence to pin 1 marking. Use net labels (VCC, GND) to clarify connections, avoiding ambiguity in multi-layer designs.
Common Mistakes in Symbol Representation and Precision Techniques
Align passive components with grid snap disabled–offset symbols disrupt schematic clarity by 0.5mm or more, causing misalignment during PCB trace routing. Use EDA tools with 0.1mm grid resolution; check snap settings before placing elements. Cross-reference the ANSI/IEEE 315-1975 standard for terminal polarity markings: a missing “+” on electrolytic variants leads to reverse voltage application, reducing lifespan by 80% in high-ripple applications. Verify footprint-library consistency–mismatched pad spacing (e.g., 5mm vs. 2.5mm radial) forces manual rework post-production.
Layer-Specific Annotation Errors
Omit text labels on silkscreen layers for polarized units–place designation markings (“C1”, “C2”) adjacent to the outline, not overlapping. Ensure thermal relief connections match the component’s current rating: pads without spokes for 100nF MLCCs risk tombstoning during reflow. Use via stitching for high-frequency decoupling (0402 size or larger) with ≤0.3mm annular ring clearance to prevent EMI coupling.
Determining Component Values for Targeted Electrical Behavior
For precise timing in RC networks, apply the formula T = R × C, where T is the time constant in seconds, R the resistance in ohms, and the storage element’s value in farads. Example: a 1 kΩ resistor paired with a 47 µF part yields a 47 ms delay–ideal for debouncing keys or smoothing sensor spikes. Multiply T by five to approximate full charge/discharge cycles; adjust R inversely if size constraints favor larger storage elements.
In AC filtering, derive the cutoff frequency (fc = 1 / (2πRC)), ensuring the chosen component’s reactance (X = 1 / (2πfC)) falls below 10% of the adjacent resistive load at the target fc. A 1 µF storage element with a 10 kΩ path sets fc at ~16 Hz–adequate for audio bass separation–while a 100 nF part shifts fc to ~1.6 kHz, suiting EMI suppression in power rails. Verify calculated values against E6/E12 series preferences (e.g., 47 µF instead of 50 µF) to avoid procurement delays.
