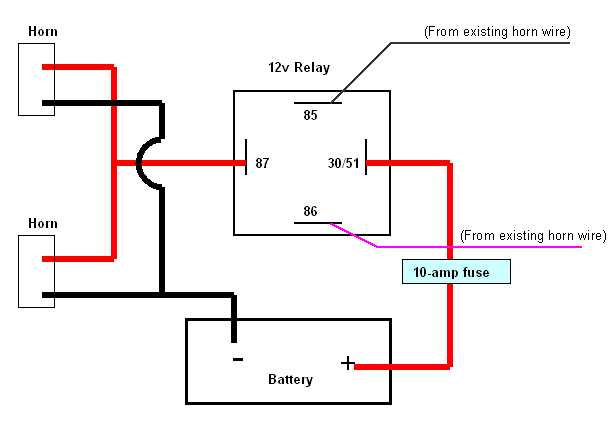

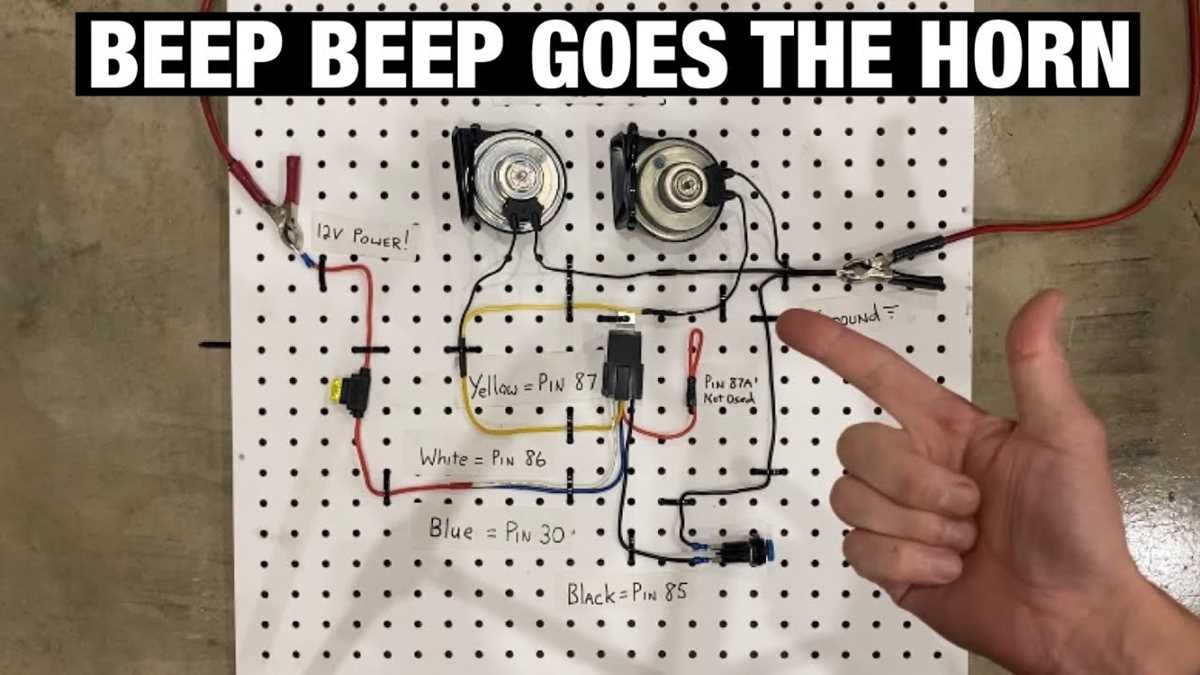

How to Wire a 12 Volt Horn Relay Step-by-Step Guide with Diagram

Begin by identifying the power source–typically a battery with a constant 12-unit charge. Connect the positive terminal directly to the input terminal of your switching unit, ensuring a secure, corrosion-resistant connection. Use a fuse rated between 10 and 20 amps immediately after the power source to prevent short circuits or overheating. This step eliminates risk before the current reaches the module or signal device.

Locate the trigger wire–usually a thin gauge conductor–to activate the switching mechanism. Attach it to a manual pushbutton or an existing control circuit in the vehicle’s electrical network. Avoid splices if possible; instead, use crimp connectors with heat shrink tubing for a reliable, moisture-proof seal. If integrating with an OEM system, verify compatibility: older models may require a resistor or diode to handle voltage spikes when the circuit opens or closes.

Ground the switching module to a clean metal point on the chassis or engine block. Scrape away paint or rust at the attachment site for a solid connection; poor grounding causes erratic operation. Use a minimum 12-gauge wire for the output circuit, linking the module’s load terminal to your signal device. Test with a multimeter before finalizing: the output should match the input voltage when the trigger is engaged. If the device fails to activate, check for reversed polarity, loose connections, or voltage drop across the circuit.

Isolate sensitive components with a 20-amp SPST switch if the setup incorporates additional load, such as high-power LED strobes or dual-tone units. Parallel wiring allows independent operation; series connections can reduce performance under heavy current draw. Document each connection with labeled tape or a schematic to simplify troubleshooting later. Avoid routing wires near sharp edges, moving parts, or heat sources–vibration and abrasion are common causes of failure in mobile setups.

How to Wire an Automotive Signal Switching Module

Connect the battery’s positive terminal directly to the 85-pin on the control unit using 14 AWG copper wire. This establishes the trigger circuit that energizes the coil. Ensure the wire is fused within 7 inches of the battery with a 10 A blade fuse to prevent shorts.

Attach the ground side of the control coil (pin 86) to the vehicle’s chassis near the mounting location–avoid long runs to reduce voltage drop. Clean the attachment point with a wire brush to remove paint or corrosion, then secure it with a star washer and M6 bolt for reliable conductivity.

The high-current switch (pins 30 and 87) carries the main load path to the electrical actuator. Use at least 12 AWG wire for currents up to 20 A, upgrading to 10 AWG if the load exceeds this. Route these wires away from moving parts and sharp edges, securing them with zip ties every 6 inches.

Install a flyback diode across the control coil (between pins 85 and 86) with the cathode toward the positive side. This protects sensitive electronics from inductive voltage spikes when the coil de-energizes. A 1N4007 diode is sufficient for most automotive applications.

Test the setup with a multimeter before finalizing connections. Check continuity between pins 30 and 87 when the trigger circuit is active, and confirm pin 30 is isolated from 87 when idle. A voltage drop exceeding 0.2 V under load indicates a faulty connection or undersized wiring.

For dual-actuator systems, use a four-pin module with a common 30 connection. Split the load output (pin 87) into two paths with individual fuses–15 A for each–if the actuators draw uneven currents. This prevents one circuit from overloading the other.

Label all wires at both ends with heat-shrink tubing markers to simplify future troubleshooting. Use contrasting colors for input (red), output (blue), trigger (yellow), and ground (black) to avoid confusion during maintenance or upgrades.

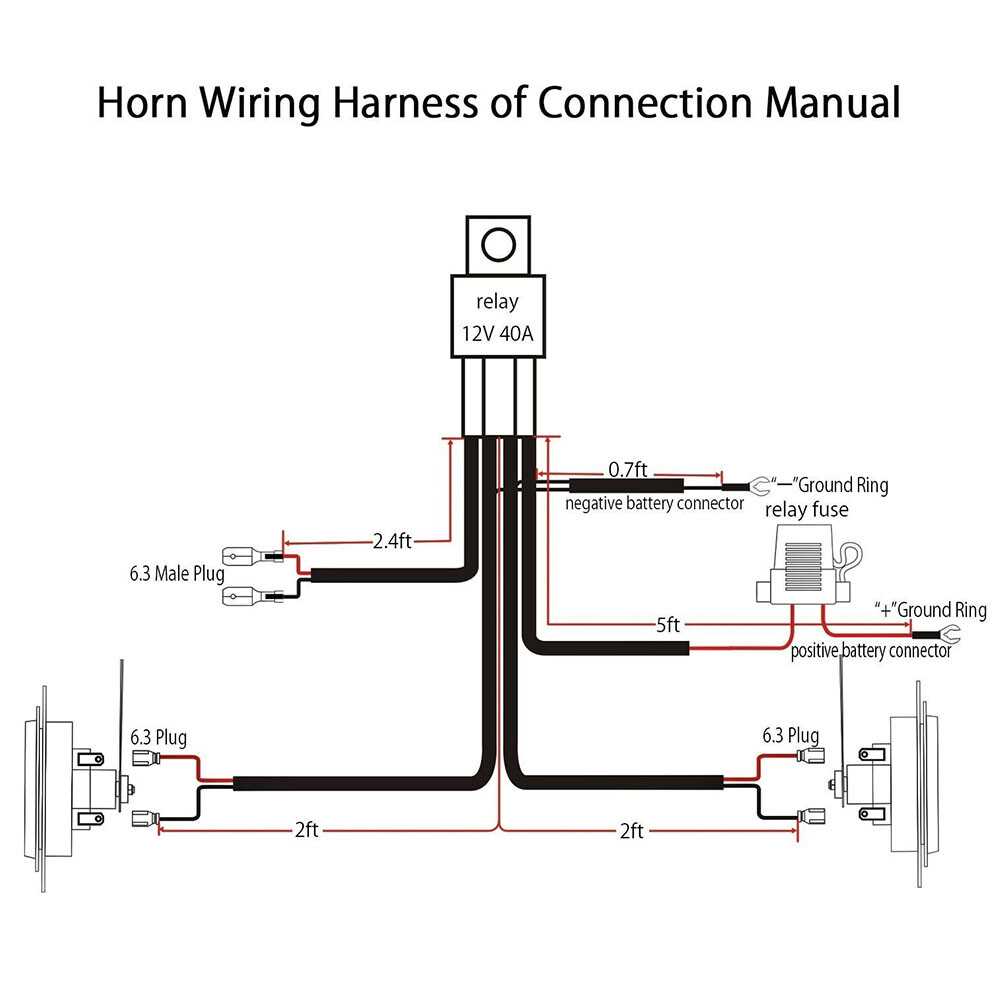

How to Pinpoint the Right Terminals for Your Sound Signal Connector

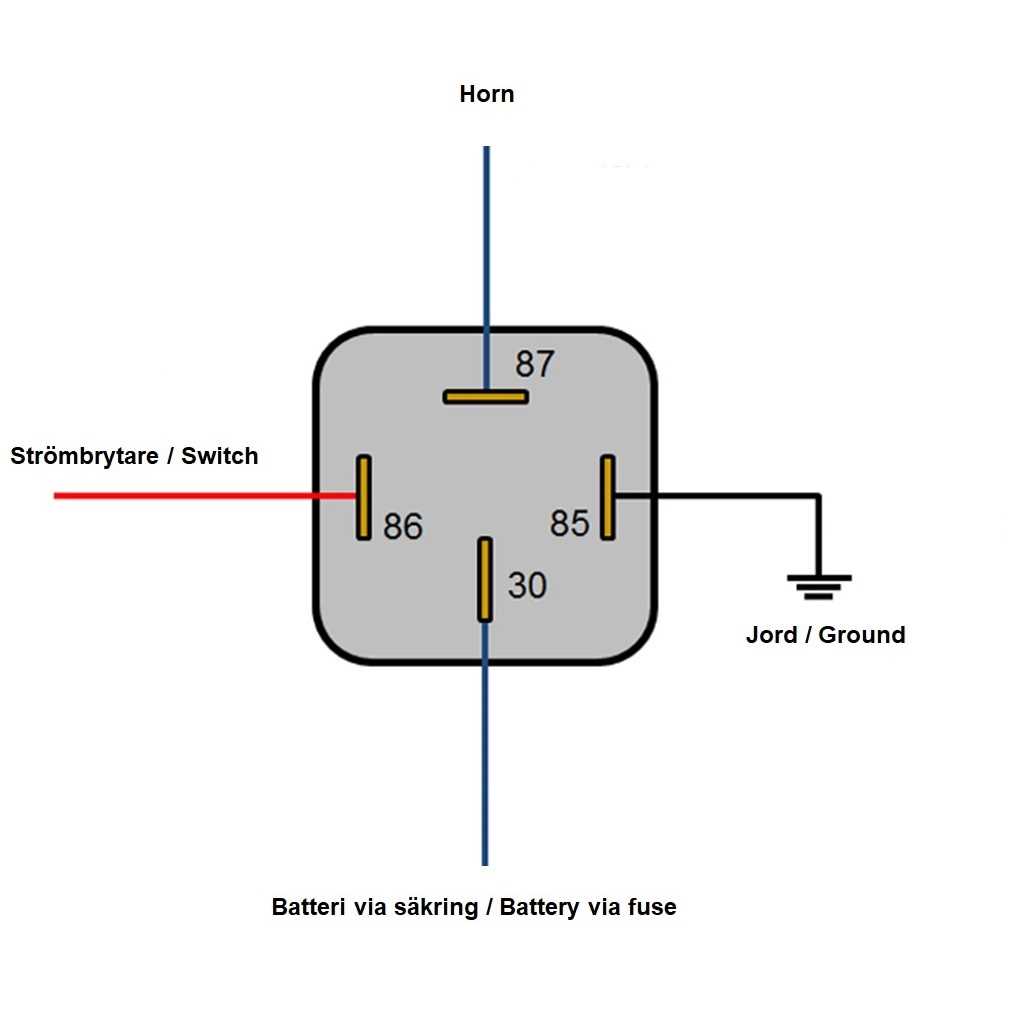

Check the component’s casing for printed labels–most manufacturers mark terminals with standardized numbers or letters. “85” and “86” typically handle the trigger circuit, while “30” supplies power from the source, and “87” delivers output to the load. Verify these designations with a multimeter set to continuity mode: probe between “85” and “86” to confirm the coil’s resistance (usually 50–100 ohms).

Locate the thicker contact–this is almost always “30,” designed to carry the primary current. If the connector uses blade-style pins, “87” is often positioned directly opposite “30.” Smaller terminals (“85” and “86”) may be grouped together or spread apart, but they’ll share a consistent gauge, thinner than the main contact.

Cross-Referencing with Vehicle Documentation

Compare the markings on the unit with the manufacturer’s schematics. Ford and GM often use “B” for battery input and “S” for switch input, while Japanese models favor numerical sequences. If documentation is missing, trace the leads: the wire from the switch will always link to the coil contacts (“85” or “86”), and the heavy-gauge cable from the battery feeds “30.”

Avoid assuming symmetry–mirrored layouts can mislead. Use a test light to identify live terminals: clip the ground lead to chassis, probe “30” first–it should illuminate without activation. Probe “85” or “86” while engaging the switch; the light should flicker as the coil energizes. No reaction means incorrect terminal identification.

Handling Non-Standard Configurations

Aftermarket units might swap terminal assignments–especially older Bosch-style models where “87” and “87a” toggle between normally closed and normally open states. A normally closed “87a” maintains a circuit until triggered, while “87” breaks contact unless energized. Test continuity between “30” and “87a” with the switch off; if connected, “87a” is your baseline.

For components lacking labels, draw a diagram while disassembling. Note wire colors: red usually denotes power, black is common ground, and smaller-gauge wires (yellow, blue, or green) often serve as triggers. Mark terminals with tape or a marker before reconnecting to prevent errors.

If resistance readings deviate significantly (e.g., infinite ohms between coil contacts), the unit may be faulty or require a bypass. Replace rather than modify–altering terminals risks damaging the circuit or creating hazardous shorts.

Always recheck connections after installation. A misrouted cable can back-feed the coil, causing premature failure or erratic operation. Confirm proper routing by activating the device repeatedly; consistent performance verifies correct terminal selection.

Installation Guide for a 12-Signal Circuit Breaker with Safety Cutoff

Begin by locating the power source–use the vehicle’s battery or an auxiliary fuse box rated for 15 amps or higher. Strip ¼ inch of insulation from the red input cable and secure it to the battery’s positive terminal with a ring connector. Route the wire through the engine bay, avoiding sharp edges or moving parts, and connect it to the fuse holder’s input side. Insert a 10-amp fuse into the holder to prevent overloads before linking the output to the control module’s “+” terminal.

Connecting the Trigger and Load

• Attach the green trigger wire from the control module to the signal button or existing dashboard switch. Ensure the wire is long enough to reach without tension, as loose connections cause intermittent failures.
• For the load output (blue wire), route it directly to the sound emitter’s positive terminal. Use crimp connectors and heat shrink tubing for durability–exposed strands corrode within weeks, leading to silent alarms.
• Ground the emitter and module by attaching their black wires to a clean chassis point. Sand off paint or rust for a solid connection; poor grounding results in weak output or no response.

Test the setup by activating the trigger. The emitter should sound immediately with consistent volume. If silent, check fuse continuity, trigger voltage (should read 12 when pressed), and ground integrity. For dual-tone emitters, wire a second identical module in parallel, but double the fuse rating to 20 amps to avoid nuisance trips. Secure all wires with zip ties every 6 inches to prevent vibration damage–loose harnesses chafe against metal, risking short circuits.

Optimal Ground Connection Placement for Audible Signal Actuator Circuits

Secure the ground lead to a clean, unpainted metal surface within 30 cm of the actuator solenoid to minimize voltage drop–factory chassis bolts near the front bumper reinforcement or fender support plates offer ideal attachment points. Use a serrated M6 washer and zinc-coated bolt to penetrate any surface oxidation; avoid self-tapping screws, which can loosen under vibration and introduce intermittent resistance.

The chosen ground path should run in a straight, uninterrupted line back to the battery negative terminal, keeping it separate from high-current inductive loads like headlamp or cooling fan circuits to prevent stray electromagnetic interference. A 10 AWG stranded copper wire with heat-shrink insulation is recommended–any smaller gauge risks overheating under sustained 15 A draws typical of compressed-air actuators. Always verify continuity with a multimeter before final fastening; a 0.2 Ω or lower reading between the ground point and battery post ensures proper operation.

Where factory ground studs are unavailable, drill a 7 mm pilot hole and tap it for M6 threads, applying dielectric grease to prevent corrosion–avoid welding or sheet-metal screws, as both compromise structural integrity and long-term conductivity.
