Complete Guide to Wiring a 12 Volt Relay with Step-by-Step Diagram

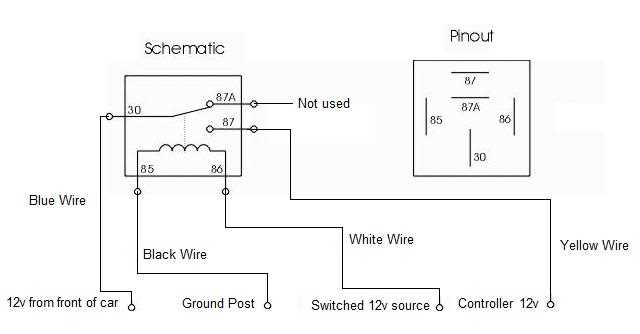

Start by identifying the control circuit and load circuit terminals. Most four-pin switches have two contacts for the triggering circuit–one for positive input (typically 85) and one for ground (usually 86). The remaining pair handles the higher-current output: pin 30 connects to your power source, while 87 routes to the device being controlled. Always verify pin assignments using the product datasheet or embossed markers on the casing–incorrect connections can short the circuit or damage components.
Attach the input feed to a fused power line. A 10-amp fuse placed within 150 mm of the battery or distribution block prevents overheating in case of a fault. For temporary setups, crimp spade connectors provide secure, corrosion-resistant joints; soldered joints are preferable for permanent installations. Route cables along existing harnesses, securing them every 200 mm with nylon zip ties to prevent abrasion against sharp edges or moving parts.
Ground the triggering terminal directly to the chassis or battery negative terminal. Avoid relying on painted or coated surfaces–clean the mounting point down to bare metal for a reliable ground. If using a five-pin switch, pin 87a serves as a normally closed contact, allowing for fail-safe configurations when the coil is de-energized. Double-check continuity with a multimeter before applying power: resistance between 85 and 86 should read less than 100 ohms, confirming proper coil function.
Engage the circuit using a low-current signal–typically less than 200 milliamperes–from a toggle, pushbutton, or electronic module. Ensure the triggering voltage closely matches the nominal 12-unit rating; deviations above 13.8 units can shorten coil lifespan, while voltages below 11 units may cause inconsistent activation. For inductive loads like motors or solenoids, wire a flyback diode (1N4007) across the coil terminals, oriented with the cathode toward the positive side, to absorb voltage spikes and protect sensitive control electronics.
How to Connect a 12V Switching Device: Step-by-Step Guide
Use an 85-ohm coil for low-current triggering in standard automotive applications. Connect pin 85 to the control signal, ensuring the circuit delivers at least 0.15 amps to activate the mechanism reliably. Pin 86 should tie to the ground or a negative return path–avoid shared grounds with high-current loads to prevent voltage drops.
For the load side, wire pin 30 directly to the power source, matching the fuse rating to the device’s peak current draw–typically a 20-amp fuse for most 12V solenoids. Pin 87 connects to the load, but verify compatibility with inductive loads; a flyback diode across motor or lamp terminals prevents arcing at the contacts.
Bypass the switch if the control source lacks sufficient current–use a transistor (e.g., 2N2222) or mosfet (IRF520) as an intermediary. Base resistors between 1k and 10k ohms protect the control line while ensuring clean switching. Avoid daisy-chaining multiple devices through a single trigger; split the circuit with individual mechanisms.
Test continuity before applying power: a multimeter should show open contacts between 30 and 87 in the off state. Apply 9V to the trigger circuit; if the coil clicks but fails to latch, check for corroded contacts or misaligned pins. Replace units if resistance exceeds 200 mOhms across closed contacts.
Solder joints only for permanent setups–crimp connectors suffice for temporary or high-vibration environments. Tin-plated copper wire (16-18 AWG) handles up to 15 amps; use 12 AWG for currents above 20 amps. Heat shrink tubing over connections prevents short circuits in confined spaces.
For LED lighting, wire pin 87a to a separate low-current circuit if the unit has a normally closed contact. For brushed motors, add a 0.1µF capacitor across the terminals to suppress noise. Document your layout with labels–mark each cable’s function and gauge on a schematic for future troubleshooting.
How to Pinpoint Connections on a 12V Switch for Accurate Circuit Setup
Check for markings on the plastic housing or metal base–most manufacturers stamp terminals with 85, 86, 30, and 87. If absent, use a multimeter in continuity mode: probe pairs until the coil pair (typically 85 and 86) beeps, confirming the circuit’s trigger side.
Standard automotive modules position contacts with 85 and 86 adjacent on one side–the coil’s input–while 30 sits alone opposite, serving as the common power feed. The remaining terminal (87 or 87a) connects to the load path; 87a closes internally when the device is idle, 87 opens until energized.
High-current units often include a fifth pin (87b), splitting the output path for dual-load control. Locate it by tracing traces on the PCB–it mirrors 87 but activates independently. Confusion risks short circuits, so label each pin before proceeding.
Quick Identification Without Tools
Shake the switch gently–if a click sounds, the coil side (85/86) faces you; the heavier metallic click confirms the load terminals (30/87). Some brands mold arrows or color bands near the coil pins; follow them toward the base to find 86, then the rest align sequentially.
For sealed variants, compare dimensions: the common power terminal (30) is wider or thicker, designed to handle amperage spikes. If reversed, the device may overheat–verify by testing with a 9V battery: apply power to 85/86, then check continuity between 30 and 87/87a.
Handling Non-Standard Layouts
Micro or PCB-mounted units often deviate–consult datasheets for pinouts. If legs bend, use a reference diagram to avoid mixing load and trigger sides. Miswiring causes backfeeding; use a diode across 85/86 to protect the control circuit from inductive spikes.
Step-by-Step Guide to Connecting a 12A Switching Module for Vehicle Systems
Begin by identifying the power source–use the vehicle’s battery terminal marked “+12” for the input connection. Cut a 14-gauge red wire to 8 inches, strip ¼ inch from both ends, and crimp a ring terminal onto one side. Attach this to the battery’s positive post using a 10mm bolt, ensuring clean metal-to-metal contact. For the trigger circuit, locate an accessory wire (e.g., ignition-switched line) with a multimeter to confirm it carries current only when the key is turned. Solder or crimp a 18-gauge yellow wire to this point, leaving the other end free for later steps.
Examine the module’s pin layout: typical configurations include a control coil (pins 85 and 86) and load contacts (pins 30, 87, and 87a). Use a continuity tester to verify pin functions–apply 12A to the coil terminals and check that pin 30 bridges to 87 (not 87a) when energized. For most automotive setups, connect pin 30 directly to the battery via a fuse–install a 20A inline fuse within 7 inches of the battery. For inductive loads (e.g., motors), add a flyback diode across pins 85/86, cathode to the positive side, to suppress voltage spikes.
Component Selection and Installation
| Component | Specification | Purpose |
|---|---|---|
| Primary cable | 14-gauge, PVC-insulated | Handles up to 15A continuous |
| Coil trigger wire | 18-gauge, stranded | Reduces voltage drop over 6+ feet |
| Load contacts | 30A SPDT (Single Pole Double Throw) | Supports resistive/inductive loads |
| Ground connection | Ring terminal, 12-gauge | Prevents corrosion at chassis points |
Mount the module within 18 inches of the load device using a plastic enclosure or dielectric grease to prevent moisture ingress. Route wires away from moving parts or heat sources–secure them every 12 inches with adhesive-backed clips. For high-current applications (e.g., fog lamps), use a 40A module and upgrade to 12-gauge wiring throughout. Test the setup before finalizing: toggle the trigger circuit and verify the load activates within 50 milliseconds; delays indicate undersized wires or poor connections.
Final checks include a voltage drop test–measure across the load terminals while active; values above 0.5A suggest resistance issues. For dual-trigger setups, use a diode to isolate two control circuits (e.g., brake pedal plus manual switch). Document the configuration with labels on each wire, noting color codes and pin assignments for future troubleshooting.
Frequent Errors in Low-Power Switching Setups and Solutions
Incorrect coil polarity is a primary oversight. While many 12-ampere electromechanical devices tolerate reversed connections, some solid-state or polarized variants may fail silently or suffer reduced lifespan. Verify terminal markings with a multimeter: the coil’s positive side typically shows continuity with the normally open contact when energized. For bidirectional modules, consult manufacturer specifications–reversing leads on sensitive models can trigger false triggers or damage internal circuitry.
Overloading Control Circuits
Directly powering high-draw loads (e.g., halogen lamps, motors exceeding 5 amperes) from a single-pole switch risks overheating contacts, even if the module’s rating suggests compatibility. Calculate inrush currents: incandescent bulbs draw 10–15x their steady-state amperage at startup. Use a heavier-duty module (20A minimum) or cascade two units, separating control and load circuits with a fuse rated at 120% of expected current. For inductive loads, add a flyback diode (1N4007) across the coil terminals to quench voltage spikes.
Ground loops create erratic behavior, especially in automotive or audio installations. Connect the module’s ground directly to the battery’s negative terminal, not chassis, if working in noisy environments. For multi-module setups, star-connect grounds to a single point–daisy-chaining introduces resistance and unequal potential, causing false activations or chatter. Use twisted-pair wiring for signal paths longer than 1 meter to reduce electromagnetic interference.
Neglecting contact protection leads to premature failure. Apply 0.01µF ceramic capacitors across switch contacts if controlling electro-mechanical devices (e.g., solenoids, relays) to suppress arcing. For DC motors, combine RC snubbers (0.1µF + 100Ω resistor) with a varistor (MOV) rated at 2x the supply voltage. Always mount snubbers as close as possible to the load terminals–long leads defeat their purpose by introducing inductance.
