Step-by-Step Process Mapping for Dairy Production Facilities

Begin by segmenting raw milk handling into discrete stages: reception, clarification, standardization, and pasteurization. Each phase must include real-time monitoring of fat content (target: ±0.1% deviation), somatic cell counts (≤200,000 cells/mL), and microbial load (≤30,000 CFU/mL pre-treatment). Cross-contamination risks drop 40% when dedicated pipelines link storage silos directly to separators, bypassing intermediate tanks.

Clarification demands centrifugal separators operating at 4,500–6,000 RPM for ±0.05% precision–batch records must log every adjustment to track trending shifts in final product consistency.

Pasteurization HTST parameters (72°C for 15 seconds) cannot rely solely on temperature probes; deploy pressure transmitters (range: -1 to 5 bar) to detect heat exchanger fouling early. Post-treatment cooling must achieve

Aseptic filling requires Class 100 cleanroom protocols for packaging lines. UV-C sterilization (dose: 40 mJ/cm²) paired with hydrogen peroxide vapor (35% solution, 60-second dwell) reduces spore counts by 99.9%. Mechanical transfer systems should limit line stops to

Wastewater treatment integrates dissolved air flotation (DAF) units with chemical dosing (polyaluminum chloride at 20–30 mg/L). Sludge dewatering centrifuges must operate at 2,500 RPM to achieve

Visual Representation of Milk Processing Stages

Begin with a hierarchical layout separating raw material intake, processing, and packaging into distinct vertical lanes. Assign color codes: blue for liquid streams (milk, cream), yellow for solids (cheese curds, butter), and green for by-products (whey, skimmed milk). Include real-time sensors at critical points–pasteurization (72°C for 15 seconds), homogenization (15 MPa), and fermentation (40°C for 4–6 hours)–to track temperature, pressure, and pH deviations. Label storage tanks with capacity (e.g., 50,000 L silos for raw milk) and retention times (max 24 hours before processing).

Key Operational Nodes

Prioritize the following checkpoints: refrigerated reception tanks (4°C), centrifugal separators (removing 99% of somatic cells), and UHT treatment zones (135°C for 2–5 seconds). Specify pipe diameters (e.g., DN50 for cream lines) and material grades (316L stainless steel for high-corrosion resistance). Integrate bypass routes for CIP (Clean-in-Place) cycles–caustic soda (1–2% NaOH at 70°C) and acid (0.5–1% HNO₃)–to ensure 30-minute turnaround between batches. Add fail-safes: rupture discs for overpressure (set at 3 bar) and diversion valves for non-compliant batches.

For distribution stages, split into three branches: fresh products (shelf life

Key Stages in Raw Milk Processing Before Heat Treatment

Clarify milk immediately after reception using centrifugal separators with a minimum force of 6,000×g to remove somatic cells, dirt, and bacteria–this reduces sedimentation by up to 98% and prevents fouling of heat exchangers. Install inline filters with 50–100 micron mesh upstream to catch coarse particles that bypass separators, replacing them every 4 hours or when pressure drop exceeds 0.2 bar. Maintain raw milk storage at 4°C or below; exceeding 7°C for over 2 hours triggers lipolysis and protein denaturation, degrading flavor and yield before pasteurization begins.

Standardization and Fat Adjustment

Precisely adjust fat content through continuous standardization using online sensors–target ±0.05% accuracy to meet product specs. For skimmed variants, reduce fat to ≤0.1% via centrifugal separators at 55–60°C, then cool the cream stream below 10°C within 30 minutes to prevent oxidation. Blend streams at a controlled ratio, avoiding homogenization before heat treatment, as this accelerates enzyme activity that later degrades product stability during storage.

Monitor free fatty acid (FFA) levels via titration before heat treatment; values above 0.7 mmol/100g indicate excessive lipolysis, requiring immediate reprocessing or blending with fresher batches. Use cooled storage silos equipped with agitators running at 15–20 RPM to prevent cream separation and microbial stratification–higher speeds cause air incorporation, accelerating oxidative rancidity.

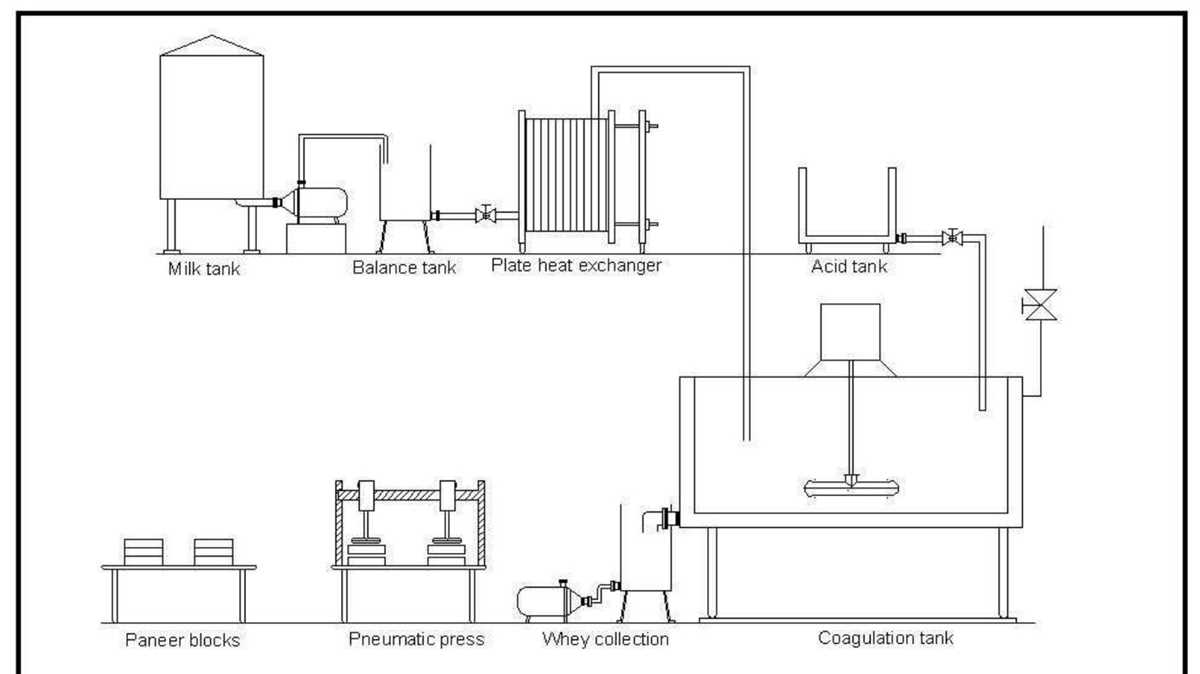

Key Machinery in Cheese Manufacturing and Process Sequence

Start with a dual-O vat pasteurizer (e.g., Alfa Laval THSD) sized for 10,000–20,000 L batches, maintaining 72°C for 15 seconds to eliminate pathogens while preserving casein structure for optimal coagulum formation. Position temperature probes at three points–input, center, and outlet–to validate uniformity and prevent cold spots, which cause inconsistent curd development. Clean-in-place (CIP) cycles must include a 3% caustic solution at 85°C for 20 minutes followed by acid wash to remove mineral deposits from hard water; neglecting this step reduces heat transfer efficiency by 12–18% over six months.

Deploy a horizontal cheese vat with twin-auger curd-cutting knives (e.g., Tetra Pak OST CHV) for precise 3–5 mm curd particle size, critical for moisture control in semi-hard varieties like Gouda. Adjust cutting speed dynamically: 12 RPM for initial slicing, then reduce to 5 RPM to prevent fat loss (>1.5% yield reduction if miscalibrated). Integrate a pH meter directly into the vat’s recirculation loop–target 5.2–5.4 before draining to ensure proper whey expulsion and prevent post-press defects likeopen texture. Use food-grade, high-density polyethylene (HDPE) for vat construction to resist lactic acid corrosion, which occurs 2.3× faster in stainless steel below grade 316.

A vibrating screen whey separator (e.g., GEA Westfalia SAMR 1503) must process whey within 10 minutes of cutting to limit lactose retention, which causes excessive acidity in aged cheeses. Configure the separator with a 120-mesh screen for curds >1.5 mm; finer screens increase protein loss by 8%. Position a secondary clarifier downstream to recover fines–typically 0.3–0.7% of total yield–which are reintroduced to the curd mass via a screw conveyor; ignoring this step reduces yield by £0.02/kg in large-scale operations. Install a sanitary rotary lobe pump (e.g., Waukesha UHD) with variable-frequency drive (VFD) to handle viscous whey streams (up to 5,000 cP) without shear damage to curd particles.

For molding, use a multi-column vacuum press (e.g., Koss Industrial KS-400) with programmable pressure profiles: 0.2 bar for initial compaction, ramp to 2.5 bar over 30 minutes for cheddar, and hold for 2 hours. Apply filter pads of FDA-approved nylon monofilament (pore size 0.2 mm) between curd and press plates to prevent surface defects like off-flavors from trapped air. Monitor core temperature of pressed blocks–target 28–32°C–using wireless sensors (e.g., Ellab TrackSense Pro); deviations >2°C cause inconsistent texture or gas holes. Pre-chill press plates to 10°C for washed curd varieties (e.g., Havarti) to slow fermentation and preserve desired moisture levels.

Brine systems demand turbine-agitated tanks with concentration maintained at 18–22% NaCl ±0.2% via refractometer (e.g., Anton Paar Abbemat) readings taken hourly. Control temperature at 10–12°C to balance salt uptake and microbial growth; brine warmer than 14°C accelerates Listeria risk by 40%. Include a UV sterilizer (e.g., Aquafine UV-C) in the recirculation loop to reduce psychrotrophic bacteria loads below 100 CFU/mL, and replace filter cartridges (0.45 µm) every 200 hours of operation. For bloomy-rind cheeses (e.g., Brie), reduce immersion time to 30–45 minutes and spray-rinse blocks post-brining to prevent excessive surface NaCl accumulation, which inhibits Penicillium candidum colonization.

Ripening rooms require precision humidity controls (±2% RH) with evaporative cooling coils coated in antimicrobial epoxy to prevent biofilm formation–Pseudomonas colonies double every 48 hours in untreated systems. Use high-efficiency particulate air (HEPA) filters (H13 grade) in air handlers to limit spore counts below 10/m³, and install ethylene scrubbers (e.g., Bluezone Model 2400) to inhibit mold overgrowth in surface-ripened varieties. For hard cheeses (e.g., Parmesan), rotate blocks automatically (e.g., Gasser Robotics) every 7–10 days using vacuum grippers to prevent uneven moisture migration; manual handling causes a 1.1% higher defect rate due to inconsistent pressure. Integrate blockchain-enabled RFID tags at this stage to track ripening parameters (CO₂, NH₃, VFA levels) and predict optimal release points within ±48 hours.

Integrating Yogurt Fermentation Vessels Into Processing Layouts

Position cylindrical fermentation tanks mid-line between pasteurizers and cooling units to minimize thermal shock. Equip each tank with dual temperature probes–one submerged near the outlet valve and another at the geometric center–configured to trigger automated glycol jackets if deviations exceed ±0.5°C from the set point (typically 42–45°C). Install inline pH meters calibrated to ±0.01 units; set them to log readings every 10 minutes and feed data directly to the SCADA system. Override protocols must halt agitation and pump product to the fail-safe neutralization silo if pH drops below 4.1 within the first four hours.

Key Integration Metrics

Parameter	Target Value	Tolerance Range	Corrective Action
Inoculation Rate	2.5 % v/v	2.2–2.8 %	Adjust peristaltic pump speed ±3 rpm
Incubation Time	6 h	5.7–6.3 h	Extend chill cycle to match
Fill Level	85 %	80–90 %	Recalibrate capacitance sensor
Glycol Flow Rate	12 L/min	11–13 L/min	Clean heat exchanger if ΔT > 3°C

Valve sequencing must follow a strict 3-second overlap between tank outlet and filling station inlet valves to prevent vacuum formation. Use sanitary clamp connections rated for 150 psi on all fermentation vessel outlets; tri-clamp gaskets should be replaced every 20 batches or when visual wear exceeds 0.2 mm. Align the tank farm’s PLC ladder logic with upstream homogenizer cycles–trigger inoculation pumps only after homogenization pressure stabilizes at 25 MPa for >3 minutes.
