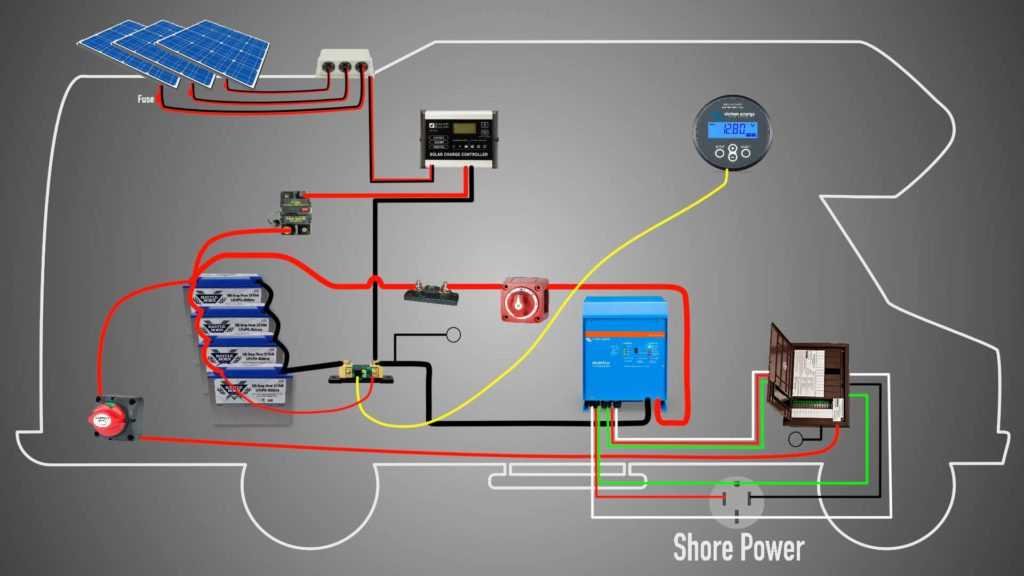

Complete Guide to Wiring 12V RV Solar Panels with Diagrams and Steps

Begin with a 30-amp charge controller rated for 12-cell systems–the maximum input current should not exceed 80% of its capacity to prevent premature failure. Directly connect dual 100-watt modules in parallel to maintain consistent voltage output; this setup minimizes voltage drop over extended cable runs, which should never exceed 1% loss. Use 10 AWG copper conductors for distances under 15 feet and upgrade to 8 AWG for longer spans to avoid resistive heating.

Install a 100Ah lithium battery with a built-in battery management system to ensure stable power delivery. Avoid mixing battery chemistries; lithium-phosphate variants handle deep discharges better than lead-acid, extending cycle life by up to 300%. Fuse all connections between the controller and battery bank at 20% above the maximum system current–standard 30-amp fuses are inadequate for surge protection during cloud transients or shading.

Route all cables through a dedicated 2-inch diameter conduit if exposed to UV or physical stress–standard insulation degrades quickly under direct sunlight. Secure connections with tin-plated lugs and apply dielectric grease to terminal points to prevent corrosion, which causes intermittent failures within 12-18 months. Test the entire circuit with a multimeter under load; discrepancies over 0.2 volts between components indicate poor contact or undersized wiring.

Place the controller within 3 feet of the battery bank to reduce voltage losses and shield it from ambient temperatures above 95°F–thermal derating begins at this threshold, reducing efficiency by 1% per degree. Ground the system with an 8-foot copper rod driven at least 4 feet into stable soil, ensuring resistance below 25 ohms; without proper grounding, lightning strikes or static discharge can destroy sensitive electronics.

Add a 200-amp DC breaker between the battery and inverter to isolate faults instantly–delayed circuit interruption leads to catastrophic overheating in under 60 seconds. For inverters exceeding 1000 watts, use a separate 4 AWG cable set and a 150-amp breaker to handle peak demands during motor startups or high-load appliances. Verify the entire setup with an infrared thermometer under load; hotspots above 120°F signal impending failure points.

Connecting Your Recreational Vehicle 12V Photovoltaic Setup

Begin by linking the charge controller directly to the battery bank using 6 AWG copper cables–this minimizes power loss over typical RV distances. Ensure the negative lead from the controller connects to the battery’s negative terminal first to prevent accidental shorts during installation. For a 100W monocrystalline module, a 10A PWM controller is sufficient, but upgrade to a 20A MPPT unit if expanding to 200W or using partial shading conditions.

Fuse placement is non-negotiable: install an inline fuse within 7 inches of the battery’s positive terminal, sized at 125% of the controller’s rated current (e.g., 15A fuse for a 10A controller). Skip this step only if the controller has built-in internal fusing, which is rare in budget models. Verify polarity at every connection–reverse polarity can destroy controllers instantly, voiding warranties.

Mount the regulator near the batteries but away from enclosed spaces–these devices dissipate heat, and ventilation gaps of at least 4 inches improve lifespan. For parallel connections between multiple modules, use Y-connectors with built-in blocking diodes to prevent backflow at night. Avoid daisy-chaining terminals from a single module; each should have dedicated leads to the regulator.

Grounding requires a 4 AWG bare copper wire attached to the RV’s chassis and routed directly to a grounding rod driven 8 feet into damp soil. Do not rely on the vehicle’s frame alone for grounding–corrosion or poor paint adhesion creates resistance. Label every circuit with heat-shrink tubing printed with voltage and function to simplify future troubleshooting.

Test the system with a multimeter before finalizing connections: expected open-circuit readings at the module should be 18-22V, dropping to 13.6-14.4V at the battery under load. If readings deviate, check for loose terminals or damaged cables–even a single frayed strand can halve efficiency. Use crimp connectors with adhesive-lined heat shrink for all permanent joints; soldering introduces failure points from vibration.

Selecting the Proper Conductor Thickness for Mobile Power Systems

For a 12-unit energy storage setup, 10 AWG copper strands handle up to 30 amperes safely over 3-meter runs with minimal drop–verified at 2% loss or less under standard operating temperatures. Smaller setups under 20 amperes permit 12 AWG, but only if total conductor length stays below 4.5 meters; exceeding this risks inefficiency and potential overheating, particularly when charging lithium packs during peak daylight hours. Always measure current draw under real conditions–manufacturers’ ratings often assume idealized scenarios.

Corrosion-resistant insulation matters more than thickness alone: Tinned copper resists oxidation far longer than bare strands in humid or salty environments, extending service life by 30-40% in coastal RV sites. The difference between stranded and solid conductors isn’t trivial–stranded flexes better during vibrations, reducing fatigue failure common in mobile applications, yet solid variants sag less over long spans. Pre-crimped ring terminals prevent loosening at connection points; never rely on twist-and-tape methods.

Current ratings drop 7% per 10 °C rise above 20 °C ambient; if mounted near engine compartments or black-painted roofs, increase gauge by one size for every 5 meters of conductor length or 15 °C above baseline. Aluminum conductors–cheaper but prone to cold flow–require one size larger than copper equivalents for equivalent performance and must be terminated with antioxidant paste to prevent eventual arcing. Field-test voltage drops under load before finalizing connections; a multimeter is non-negotiable.

Step-by-Step Fuse and Breaker Placement in a 12V System

Install a 10A fuse within 7 inches of the battery terminal on the positive line for any circuit drawing under 8A continuously. This prevents cable overheating and fire risks if a short occurs. Use AGU or ANL fuses for main feeds–they handle vibration better than blade fuses in mobile setups.

Place a resettable circuit breaker rated at 150% of the maximum anticipated load where physical access is needed, like near the distribution block. For example, a 10A breaker protects a 6A fridge circuit while allowing quick reset without replacing a fuse. Avoid thermal breakers if ambient temps exceed 120°F–they trip prematurely.

Size wire gauges first, then fuses. A 4AWG cable carrying 30A requires a 50A fuse; undersized fuses blow repeatedly. Use mid-link fuses between charge controllers and batteries–50A for 30A controllers–to isolate faults before they reach storage cells.

Group circuits by function and fuse them separately: lighting (5A), pumps (10A), outlets (20A). This prevents a single fault from blacking out everything. Label each fuse holder with a permanent marker noting amperage and device served to simplify troubleshooting.

Add a class T fuse (110A or 200A) directly on the battery post if total system draw exceeds 80A. These can interrupt high fault currents safely–unlike standard fuses, which may arc. Test continuity with a multimeter before energizing; corrosion mimics blown fuses.

For multi-battery banks, fuse each battery’s positive lead independently–100A for 100Ah batteries–to contain internal shorts. Space fuses 12 inches apart so heat from one doesn’t affect another. Use tinned copper lugs to prevent oxidation, which increases resistance and trips fuses unnecessarily.

Locate breakers at least 18 inches from combustible materials like wood or foam. For 12-gauge wires, a 15A fuse is the minimum–any larger risks melting the insulation before the fuse blows. In damp areas, use waterproof fuse holders with rubber gaskets; salt air corrodes metal contacts quickly.

Verify all connections with a torque wrench: 60 in-lbs for 8AWG, 80 in-lbs for 4AWG. Loose terminals cause voltage drops, making fuses ineffective. Recheck torque annually–vibration loosens fasteners, especially in trailers or boats.

Series vs. Parallel Energy Module Connections for 12V RV Systems

For 12V recreational vehicles, link identical current-generating units in parallel to maintain nominal system pressure while increasing available flow. This preserves compatibility with standard charge controllers and reduces risk of mismatched outputs degrading performance. Use this approach when individual unit pressures exceed battery bank requirements and you need redundancy. Wire gauge must handle cumulative flow: 10A modules in parallel demand 10A × N strands (where N = number of modules).

• Series advantages:
  1. Elevates total system pressure for high-input controllers (e.g., MPPT)
  2. Minimizes transmission losses over long cable runs
• Series drawbacks:
  1. Single weak module limits entire array
  2. Shading disproportionately reduces output
  3. Not suitable for controllers with max input below total chain pressure
• Parallel advantages:
  1. Fault tolerance preserved
  2. Consistent output under partial shading
  3. Scalable without pressure mismatches
• Parallel drawbacks:
  1. Requires thicker conductors for cumulative flow
  2. More connection points increase resistive losses if not properly crimped

For mixed configurations, use separate chains of like modules combined at the controller–never mix dissimilar units in series.
