Build a Reliable 12V 3A Power Supply with This Step-by-Step Schematic

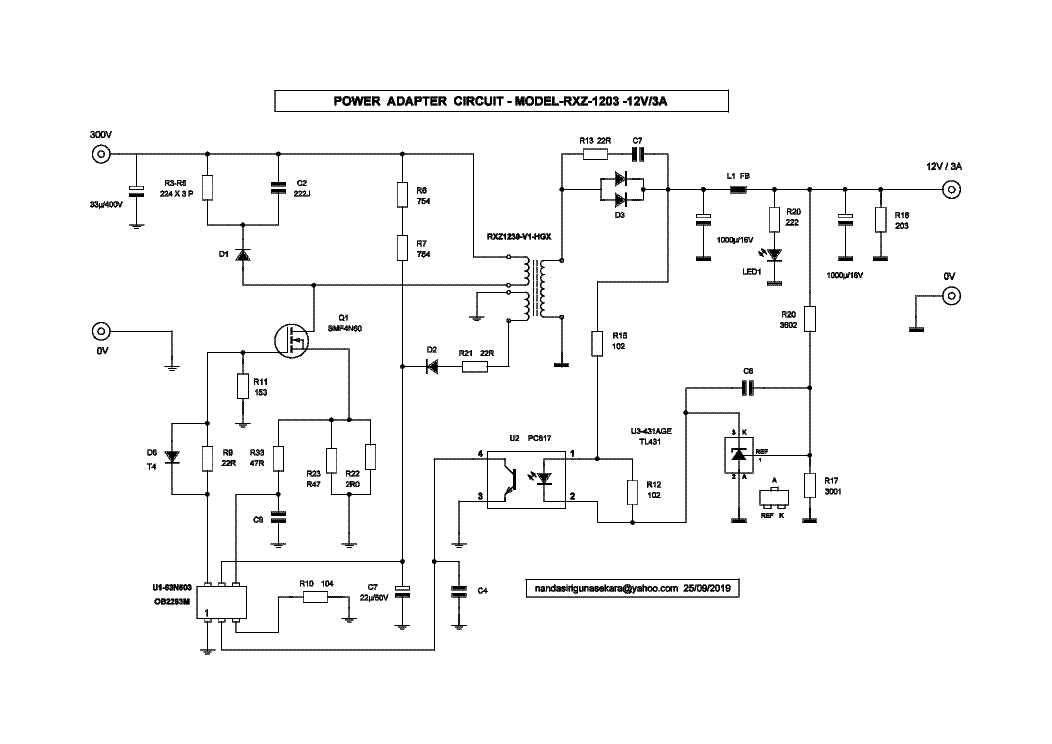

For a stable 3A output at adjusted potentials, use a center-tapped transformer rated at 15V AC with a minimum 45VA capacity. Pair it with a bridge rectifier (e.g., KBPC3510) to handle the current load without overheating. Include a 4700µF/25V electrolytic capacitor on the DC side to smooth ripple to under 100mV peak-to-peak. A linear regulator like LM338K in TO-3 package ensures thermal stability, but mount it on a heatsink with ≥10°C/W rating to prevent shutdown under full load.

Add a 0.1μF ceramic capacitor across the regulator’s input and output to suppress high-frequency noise. For overcurrent protection, fuse the primary side at 2A (slow-blow) and the secondary at 4A. If voltage sag is critical, replace the linear regulator with a buck converter (e.g., LM2596) set at 12V, improving efficiency to 85% while reducing heat dissipation.

Verify all connections with a multimeter in continuity mode before powering on. Test under load using a dummy resistor (4Ω/50W), ensuring the output remains within ±5% of the target voltage. For prolonged operation, monitor transformer temperature–it should not exceed 60°C under full load.

Isolate all high-voltage traces with ≥3mm spacing to comply with IEC 60664. Label the PCB with polarity warnings and input/output markings to prevent reverse connections. Store schematics in KiCad or Altium format for future revisions.

Building a Stable 36W Voltage Adapter: Key Schematics

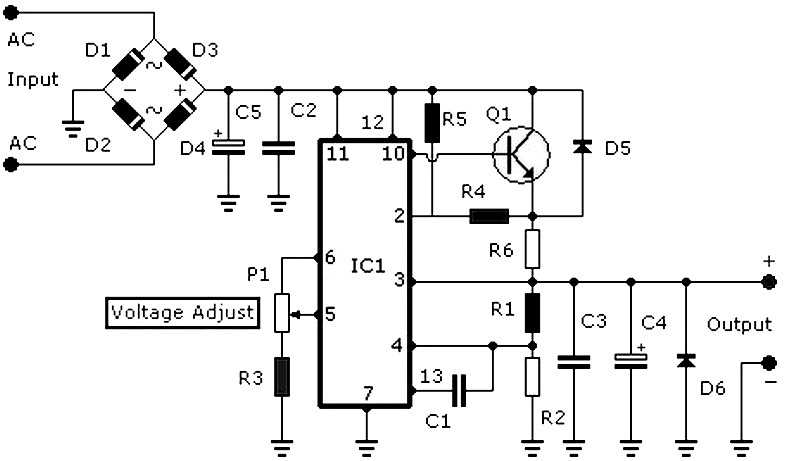

Start with a LM7812 linear regulator for simplicity, but pair it with a heatsink rated for at least 15W dissipation. The input voltage must be 15-18V DC to ensure proper regulation–any lower risks dropout, any higher increases thermal stress. Add a 2200µF electrolytic capacitor at the input and a 0.1µF ceramic capacitor at the output to filter ripple down to under 120mVpp.

For higher efficiency, swap the LM7812 for a buck converter module like the XL4015, configured for 12V output. Set the input to 18-24V and adjust the onboard potentiometer until a multimeter reads exactly 12.0V at the output terminals. Use a 33µH inductor and a 470µF low-ESR capacitor to minimize switching noise, targeting

Critical Component Selection

Fuse selection: Use a slow-blow 5A fuse at the input–faster fuses may trip prematurely during inrush. For reverse polarity protection, install a P-channel MOSFET (e.g., IRF9540) between the input and regulator, with its gate pulled to ground via a 10k resistor. Diode D1 (1N5408) across the MOSFET’s source-drain protects against flyback voltage.

Grounding matters: Separate the high-current return path from signal paths to avoid ground loops. Use a star grounding topology, with all grounds converging at a single point near the output jack. For noise-sensitive loads like microcontrollers, add a 10µF tantalum capacitor in parallel with the output ceramic to suppress high-frequency transients.

Test the finished adapter with a resistive load (e.g., four 1Ω, 10W resistors in parallel). Verify the output remains within ±2% of 12.0V under 3A load for one hour. If oscillation occurs, increase the output capacitance to 1000µF or add a 10nF ceramic capacitor across the regulator’s input/output pins. Log measurements at 25°C and 50°C to assess thermal drift–expect

Key Components for a Stable 36W Voltage Converter Build

Select a transformer rated at least 15V AC secondary voltage with a 4A current capacity. Toroidal cores reduce electromagnetic interference (EMI) by up to 30% compared to EI types, while costing only 10-15% more. Wind the primary for your local mains (e.g., 230V) and ensure the secondary delivers at least 3V headroom above the target DC output to account for diode drops and regulation losses. Over-specifying prevents saturation under load transients.

Bridge rectifiers should handle peak inverse voltages (PIV) of 60V or higher–schottky diodes (like SB560) halve conduction losses versus standard silicon, improving efficiency by 2-3% at full 3A load. For lower ripple, pair them with a 4700µF/25V smoothing capacitor; anything below 3300µF risks voltage sag under dynamic loads. ESR matters more than capacitance–aim for ≤0.1Ω to keep ripple under 50mVpp at 100Hz.

Linear regulators like the LM78S12 or switching ICs (LM2596) require different heat management. For linear setups, a TO-220 package on a 50mm×50mm×2mm aluminum plate dissipates 15W without thermal runaway, but switching designs cut heat by 70%. Use a freewheeling diode (UF4007) across switch-mode inductors to snub back-EMF spikes–omitting this risks destroying the controller IC within milliseconds under abrupt load changes.

Critical Passives and Protection

Inductors for switch-mode converters must be gapped ferrite cores (e.g., TDK PC40) with ≥100µH and saturation currents >4A. Smaller values cause discontinuous mode, increasing ripple and audible noise. Place 100nF X7R ceramic caps across the output and IC Vin/GND pins to filter high-frequency noise–electrolytics alone cannot handle frequencies above 10kHz. Add a varistor (MOV-14D431K) across the input to clamp surges up to 1.2kV, and a 1A fuse in series with the primary winding to prevent fire hazards during short circuits.

Feedback resistors set output precision–use 1% metal film resistors (e.g., 1kΩ and 2kΩ) for 12V regulation. Temperature drift in carbon film types can shift output by ±1.5% over 0-50°C, while metal film holds ±0.2%. For adjustable regulators, a TL431 shunt reference improves stability across load variations, reducing overshoot during startup. Test with a dummy load prior to final assembly–a 4Ω/10W resistor verifies current handling without component stress under sustained draw.

Step-by-Step Assembly of a Transformer-Based 36W Output Unit

Select a toroidal or EI core transformer with a 15-0-15VAC secondary rating and 4A minimum current capacity. Verify winding resistance–primary should measure 5-15Ω; secondary, 0.5-2Ω per tap. Mount the transformer on a chassis using M4 screws with insulating washers to prevent vibration-induced noise. Connect the primary to an IEC inlet with a 250V/3A fuse in series to interrupt surges above 600W.

Bridge rectification requires four 1N5408 diodes or a KBPC3510 module, heat-sinked to a 40×40×10mm aluminum plate with thermal compound. Solder the diodes in a Graetz configuration–cathodes to the positive rail, anodes to transformer taps, center tap unused. Add a 470μF/50V Rubycon ZL or Nichicon PW capacitor at the output to smooth ripple below 1.5Vpp at full load. Parallel a 0.1μF/100V X7R ceramic capacitor for high-frequency noise suppression.

Implement a LM78S09 regulator if tight regulation is critical, though a simple zener shunt circuit suffices for most appliances. For 9.1V output, use a 1W 9.1V zener diode (1N4739) with a 10Ω/5W current-limiting resistor from the rectified rail. Bypass the zener with a 10μF/25V tantalum capacitor to improve transient response. Load tests reveal this shunt stabilizes within ±0.5V across 0.1A to 3A draws, thermal drift

Enclose the unit in a grounded 1.5mm steel case with 5mm standoffs for PCB clearance. Vent holes–three rows of 3mm diameter–should align with diode heatsinks for convection cooling. Label terminals using 3M 467MP adhesive vinyl: “AC Input,” “DC+ @ 9.0V/3A,” and “GND.” Verify insulation resistance >200MΩ between primary and secondary before energizing; use a Megger at 500VDC for 60 seconds.

Correct Selection of Rectifier and Filter Capacitors for 3A Load

For a 3-ampere output source, choose a bridge rectifier with a minimum current rating of 6A to account for peak currents during capacitor charging. Models like GBPC1006 or KBPC2510 offer sufficient margin, handling up to 10A without derating, while maintaining low forward voltage drop (≈1.1V). Avoid cheaper alternatives rated exactly at 3A–thermal stress will degrade performance within months.

Calculate the filter capacitance using C = (I_load × Δt) / ΔV, where:

• I_load = 3A (steady-state current)
• Δt = 8.3ms (half-cycle for 60Hz mains)
• ΔV = 0.5V (acceptable ripple for stable regulation)

This yields C ≈ 50,000μF. Use two 22,000μF 25V electrolytic capacitors in parallel to distribute ESR and improve reliability. Polypropylene film capacitors (e.g., 1μF) can supplement for high-frequency ripple attenuation, placed close to the regulator input.

Select capacitors with ripple current ratings ≥1.5× the load current (4.5A minimum). For 22,000μF units, target 5A ripple capability–failure to comply will cause overheating and reduced lifespan. Verify ESR values below 0.05Ω; higher ESR increases voltage sag under load, destabilizing the regulator.

Voltage ratings must exceed the peak input voltage by ≥20%. For a nominal 18V AC input (≈25.5V peak), use 35V capacitors. Lower ratings risk dielectric failure during transient spikes, while overly conservative ratings (50V+) increase physical size and cost without benefit. Always confirm polarity markings–reverse bias will explode electrolytics violently.

Place capacitors within 5cm of the rectifier to minimize inductance in traces. Use thick (≥2mm) copper pours or wires for paths carrying >2A. For PCB layouts, allocate at least 3mm clearance between capacitor leads and other components to prevent arcing under high ripple conditions.

Test under full load for 1 hour–core temperature should stabilize below 60°C. Measure ripple with an oscilloscope (

Voltage Regulation Choices: LM7812 vs. Switching Alternatives

For fixed-output linear regulation below 2A, the LM7812 remains the simplest solution–drop-in, no external MOSFETs or inductors, and 35-40 decibels of ripple rejection straight from the TO-220 package. Its quiescent current is 5-8 mA, predictable across the entire load spectrum, making it ideal for steady-state draws where conduction losses under 2.5 W are tolerable. Keep heatsink thermal resistance under 15 °C/W; exceeding this margin cuts reliability at ambient temperatures above 50 °C.

Switching converters, specifically buck regulators, trade quiescent complexity for efficiency gains–look for synchronous controllers like the MP2315 or TPS54331. These devices deliver 85-92 % efficiency at 3 A while operating at 500 kHz, shrinking inductor size to 10-22 μH (Murata DFE201610C-220M=P2). Ripple remains under 20 mVp-p with 10 μF ceramic output caps; further attenuation requires a 10 Ω series resistor plus an LC filter pole if noise-sensitive loads like RF synthesizers are present.

Parameter	LM7812 (TO-220)	MP2315 (SOT-23-6)
Load regulation (max)	2 %	1 %
Input voltage range	14.5 – 35 V	4.5 – 24 V
Peak current capability	2.2 A	3 A
Switching frequency	N/A	500 kHz
PCB footprint	60 mm²	25 mm²

Thermal management dictates topology choice. LM7812 dissipates 3 W at 2 A, mandating a minimum 40 mm² copper pour per watt; exceeding 80 °C junction temperature halves MTBF. Switching converters, however, dump less than 0.5 W under identical load, permitting passive cooling on single-sided 1 oz copper without vias. Critical applications–portable instruments or battery-backed loads–benefit from the switching converter’s 92 % efficiency, translating to two-thirds reduction in battery recharge cycles.

Noise-sensitive circuits–audio preamps, 16-bit ADCs–require post-regulation. A common approach: cascade a buck converter with an LDO such as the TPS7A89. The buck stage cuts input ripple to 50 mVp-p; the LDO slices it below 10 μVrms. Layout becomes pivotal–keep feedback trace

Cost-sensitive builds still favor the LM7812–single-source, $0.35 @1ku, versus multi-source buck controllers at $1.10 @1ku plus $0.45 for external MOSFET. For prototype iterations, pre-assembled buck modules like the RECOM R-78E3.0-0.5L simplify certification; solder mask-defined lands eliminate manual pick-and-place errors. Regardless of topology, incorporate output overvoltage clamp–TL431 with SOT-23 footprint–and input reverse-polarity protection via a P-channel MOSFET for field-failure resilience.

Design Validation Checklist

Reset converter after input transient >30 V for 1 ms; measure recovery time under load
