How to Wire Two Switches Step-by-Step Guide with Diagram

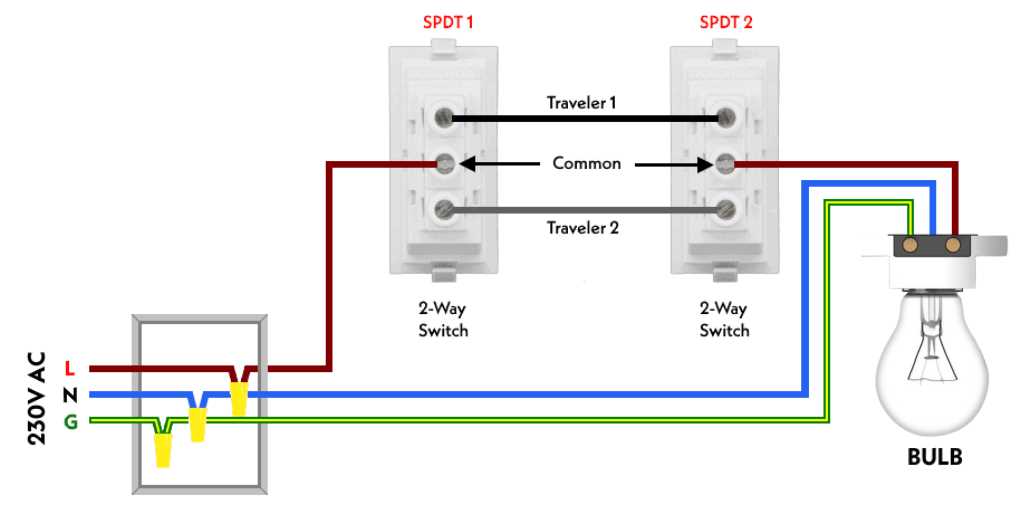

Use a 3-way terminal configuration for flexible control at multiple entry points. Begin by connecting the common terminal of the first controller to the power source–typically a live wire from the mains. Route the traveler wires (usually black and red) between both devices, ensuring proper insulation with wire nuts or terminal blocks rated for 15A or higher. The second controller’s common terminal should link directly to the load, such as a light fixture or appliance, completing the loop without splices unless absolutely necessary.
Select 14-12 AWG copper conductors for most residential installations, but upgrade to 12 AWG if the circuit exceeds 10A. Avoid aluminum wiring in new setups–it requires specialized connectors and is prone to oxidation. Label each wire during installation (e.g., “Common 1,” “Traveler A”) to prevent misconnections. For safety, install a grounding conductor (bare or green) connected to the metal box and both devices’ ground terminals, even if local codes permit grounding through the box itself.
Test the setup with a multimeter before finalizing. Verify voltage (120V AC typical) between the common terminal and ground on the first device with the circuit active. Toggle both controllers–each should independently power the load without flickering or humming, indicating correct traveler continuity. If dimming occurs, check for loose connections or mismatched wire gauge. For outdoor or damp locations, use weatherproof devices rated IP65 and seal cable entries with silicone-filled junction boxes.
Extend functionality by adding a third access point using a 4-way device between the two 3-way controllers. This requires two additional traveler pairs from the intermediate unit to each existing device, maintaining the same wiring principle. Keep runs under 100 feet to minimize voltage drop; for longer distances, use thicker conductors (10 AWG) or a relay system. Always de-energize the circuit at the breaker before modifications and cap unused wires with insulated terminals.
Dual Control Circuit Layout Guide
Install a three-wire cable between the pair of controls to enable simultaneous operation from both locations. Use 14-3 NM-B cable (black, red, white, bare) for 15-amp circuits and 12-3 for 20-amp setups–this ensures proper current capacity without overheating. Connect the white conductor to the neutral terminal at the supply and all endpoints, securing it with a wire nut if branching.

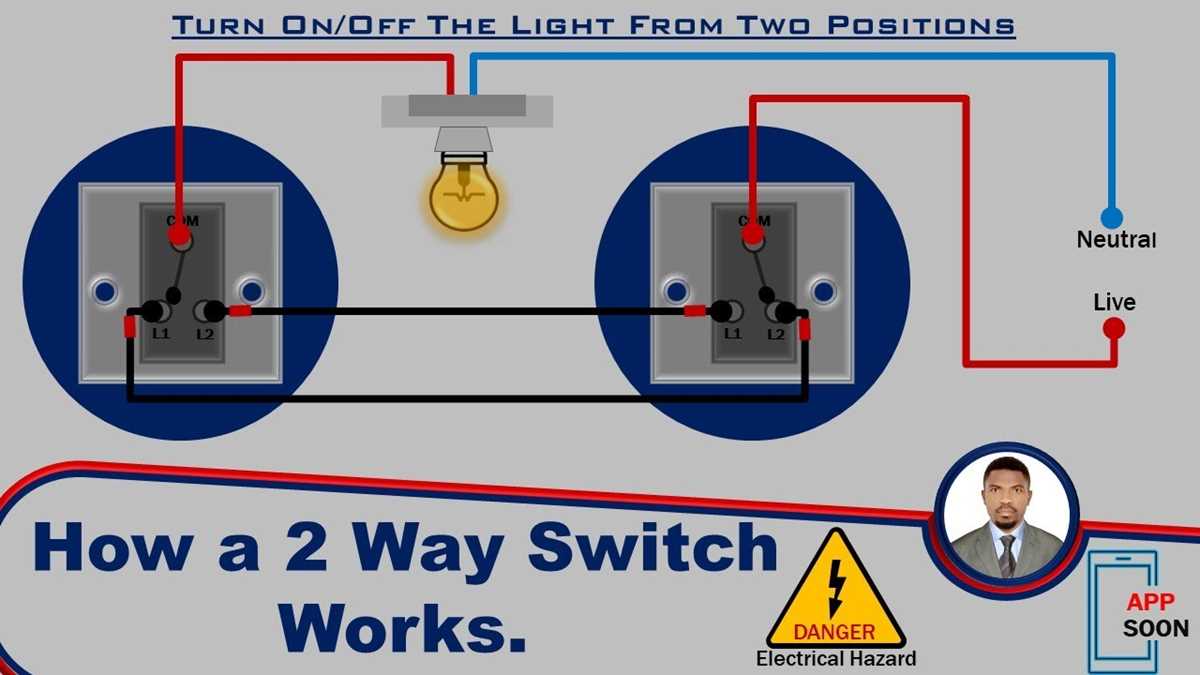

Attach the black (common) wire from the power source to the darker terminal on the first control; this terminal is often marked “COM” or “common.” The red (traveler) wire carries the switching signal between both devices, so link it to brass screws labeled “L1” on both units. Repeat for the second traveler (remaining brass screw) using another color-matched wire, ensuring symmetry across both locations.
Grounding and Safety Measures
Bond all bare grounding wires to the metal box with a pigtail if using non-metallic housings, and attach a 6-inch green grounding wire to the green terminal on each control. For metal enclosures, connect the grounding wire directly to the box before attaching the device. Verify no exposed copper remains–use electrical tape or heat-shrink tubing on splices to prevent shorts.
Test the circuit with a non-contact voltage detector before energizing. Flip both controls independently; each should toggle the load without flickering or arcing sounds. If inconsistencies arise, recheck traveler connections–miswired travelers cause intermittent operation or failure to activate the fixture. Label wires with masking tape during installation to avoid confusion during final connections.
Load Capacity and Fixture Selection
Match the control rating to the connected load. Standard toggle types handle up to 15 amps (1800W for resistive loads), while dimmer variants typically support 600W incandescent or 150W LED spec. For fluorescent or LED fixtures, use controls explicitly marked for electronic ballasts–generic models may hum or overheat. Replace existing incandescent fixtures with LEDs labeled “dim-to-warm” if pairing with variable-intensity controls to maintain smooth operation.
Avoid daisy-chaining neutral wires in multi-location circuits; instead, run a single neutral directly from the source to the load. For circuits exceeding 100W, consider arc-fault circuit interrupters (AFCIs) to mitigate fire risks from loose connections. Keep a minimum 6-inch loop of wire inside boxes for future servicing, and strip 5/8″ of insulation for solid wire nut connections–pre-twist strands for stranded wire to ensure secure bonds.
Complete Installation Walkthrough for Dual-Control Configuration
Turn off the power at the breaker panel and verify the circuit with a non-contact voltage tester before touching any conductors. Label each wire: common (black or red, often marked), travelers (brass screws, usually yellow or orange), and ground (bare copper or green). Use 14-AWG conductors for 15-amp circuits or 12-AWG for 20-amp; confirm the breaker rating before proceeding.
Key Assembly Sequence
- Strip 5/8″ of insulation from each conductor end. Loop the bare copper tail clockwise around the green grounding screw, tighten to 12 in-lbs torque.
- Attach the common conductor to the dark-colored terminal (usually black) on each control device–this carries the load. Secure to 15 in-lbs.
- Connect the two traveler conductors to the brass-colored terminals on both units–order does not matter but must match at each unit. Torque to 14 in-lbs.
- Join neutrals (white or gray) with a twist-on connector, minimum 4 wraps, or use a push-in splice rated for 90°C.
Enclose all splices in a code-approved junction box, minimum 18 cubic inches for three 14-AWG conductors. Reinstall the faceplate, restore power, and toggle both controls to confirm bidirectional load operation–test with a lamp verifying instant response at either location. If flickering occurs, recheck traveler continuity with a multimeter; resistance should read
Essential Gear for Dual-Button Setup
Begin with voltage-rated screwdrivers–isolated handles (1000V) prevent accidental shorts when adjusting terminals. Choose magnetic tips (Phillips #2, flat 3/16″) for securing loose screws in deep junction boxes. For circuit testing, prioritize a non-contact voltage detector (50-1000V range) with audible alerts; avoid pen-style models lacking frequency filtering. Strip 14-12 AWG wires cleanly using precision wire strippers with marked gauge notches (0.032–0.080″)–blade-style strippers risk nicks that weaken conductors over time.
Secure connections using UL-listed lever nuts (red for 2-4 wires, orange for 3-4) or insulated crimp connectors (ring/butt types rated 600V). Avoid twist-on nuts without spring tension; they loosen under thermal cycling. Ground pigtails require 12-14 AWG bare or green THHN wire, crimped or soldered for corrosion resistance. For box fill calculations, use plastic or metal clamps with built-in bushings–knockout plugs (½” or ¾”) prevent sharp edges from damaging sheathing.
Component Checklist
| Item | Specification | Quantity |
|---|---|---|
| Toggle controls (pair) | 20A, 120V, single-pole or 3-way | 2 |
| Junction container | 4″ square (4-11/16″ deep), metal or PVC | 1 |
| Cable | NM-B 14/3 or 12/3 (with ground) | As required (min. 6 ft) |
| Breaker | 15A or 20A AFCI/GFCI combo | 1 |
Label all conductors with wrap-around tags (0.187″ width) to identify hot (red/black), neutral (white), and ground (green) at both ends. Use a torque screwdriver (1.0–5.0 in-lb) to tighten terminal screws to manufacturer specs–typical values: 12-15 in-lb for side-wired devices, 18-20 in-lb for back-wired. Verify surface boxes are secured firmly to studs; drywall anchors suffice for retrofit installations only if gripping >50 lbs. For plaster walls, employ shallow pancake boxes (3.5″ diameter) with long screws to bypass lath strips.
How to Pinpoint Supply and Output Conductors in a Dual-Control Configuration
Start by isolating the circuit at the breaker panel–kill power to avoid false readings. Use a non-contact voltage tester to confirm all wires are dead before handling. The power source conductor will register voltage when the circuit is live; in a standard setup, it connects to the common terminal of the first control unit, often labeled with a darker screw or marked “COM.” If both units lack power, trace the cable from the panel–it typically enters the first junction box.
Examine wire colors, but don’t rely on them exclusively. In NEC-compliant installations, the incoming hot (supply) wire is usually black, the neutral (white) returns to the panel, and grounded conductors (bare or green) bond to the box. However, older or custom setups may deviate–red or blue wires might carry supply current. Verify with a multimeter: set to AC voltage, probe the suspected supply against ground. A reading near 120V (or 240V for split-phase) confirms the power source.
Distinguishing Load Conductors
Load wires energize fixtures–lights, outlets, or appliances–and connect to the remaining terminals on the control units. In a serial configuration, the first unit’s load feeds the second’s common terminal, while the second’s load wires extend to the device. Identify them by exclusion: if a conductor isn’t hot when the circuit is powered, and it’s not neutral or ground, it’s likely a load. For switched outlets, the load wire is the one that becomes live only when the control is activated.
Test with a clamp meter or multimeter in continuity mode. Disconnect the suspected load wires at both ends, then measure resistance between the control unit’s output terminal and the fixture’s contact. A low resistance (near zero ohms) indicates a direct path–confirming the load wire. If resistance is high or infinite, the connection is broken, suggesting an open circuit or incorrect identification. Repeat for each conductor to map the entire path.
For three-way or four-way setups, load wires split into travelers–conductors that alternate hot paths between controls. These typically connect to brass or lighter-colored screws, not the common terminal. Probe each traveler pair with the circuit live: only one will show voltage at a time, depending on the control position. The true load wire exits the final unit in the chain and terminates at the fixture. Label conductors immediately with masking tape–one misstep here risks reversing functionality or creating dead shorts.
When wires share a junction box with multiple circuits, use a toner or wire tracer. Attach the probe to a suspected load conductor and follow the tone to its termination point. This method clarifies tangled setups where wires loop through walls or conduit. If conflicts arise (e.g., a wire serving dual roles), isolate the circuit completely and retest. Document every connection with photos or sketches–future troubleshooting depends on precise records.
