Step-by-Step 12V Automotive Relay Connection Guide with Wiring Schematic
For immediate results, use a four-pin configuration if you need a simple on/off control with separate power and load circuits. Connect pin 30 to the positive terminal of your power source–typically the vehicle’s battery or an auxiliary fuse panel rated for at least 20 amps. Pin 85 should attach to the ground side of your control switch, while pin 86 links to the positive side of that same switch or a low-current trigger source, such as an ignition-switched accessory wire. Pin 87 carries the switched output to your load–ensure the wire gauge matches the device’s current draw, using 14 AWG for loads up to 15 amps and 12 AWG for higher demands.

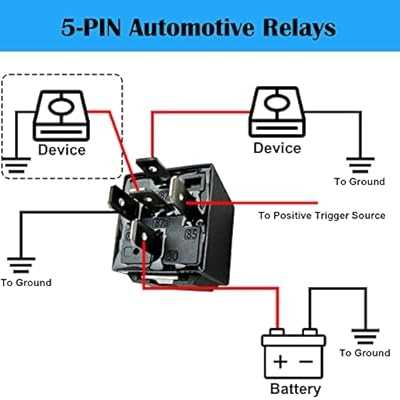

If your setup requires momentary activation, bypass pin 85 and connect it directly to a chassis ground. Use a five-pin variant for applications needing both normally open and normally closed outputs–pin 87a supplies the closed-circuit path when the coil is inactive. Always verify the coil resistance matches your trigger source: most vehicle-grade units tolerate 70-120 ohms, but sensitive electronics like ECUs may need higher resistance to avoid voltage spikes. Add a flyback diode (1N4007) across the coil terminals if the trigger comes from an inductive load, such as a solenoid or motor, to prevent back EMF damage.
For high-current loads–above 25 amps–replace the standard unit with a heavy-duty model featuring silver alloy contacts. Route the load-side wiring away from sensitive signal lines to avoid electromagnetic interference. Use heat-shrink tubing over all exposed terminal connections, and apply dielectric grease to prevent corrosion in harsh environments. Test continuity with a multimeter before final installation: check for 12-14 volts at pin 30 and proper voltage drop across the coil when activated. If the device clicks but fails to switch, inspect for loose connections or a faulty coil–common failures stem from improper crimping or soldered joints exposed to vibration.
Never exceed the contact rating listed on the device housing. A 30-amp unit, for example, will fail if subjected to 40 amps of continuous current. For PWM-controlled applications, select a model designed for variable voltage inputs, or use a solid-state alternative with a compatible voltage range (typically 6-16 volts). In 24-volt systems, combine two standard units in series or opt for a single unit with dual-coil specifications to maintain proper switching thresholds.
How to Connect a Vehicle Control Module
Start with the power source: connect the positive terminal of the battery directly to pin 30 on the switch mechanism using 16-gauge wire. Ensure the circuit includes a 20-amp fuse within 7 inches of the battery to prevent overloads. Ground pin 85 to the chassis–clean the contact point with a wire brush for reliable conduction. Verify the voltage drop across the ground path doesn’t exceed 0.2 volts under load.
Load and Trigger Setup
Attach the accessory (e.g., LED bar, horn) to pin 87 using 14-gauge wire for currents up to 30 amps; scale up to 12-gauge for high-draw devices. For the trigger side, wire pin 86 to a dashboard switch or ECU output–use a 10k-ohm pull-down resistor if interfacing with a microcontroller to avoid floating voltages. Test the switch’s resistance: it should read under 1 ohm when active and drop below 0.5 volts when energized.
For polarity-sensitive triggers, reverse pins 85 and 86 to invert the coil’s response. Measure the coil’s resistance with a multimeter–expect 50–120 ohms for standard units. If resistance exceeds 200 ohms, the coil may fail under prolonged activation. Prefer silicon-insulated wire in high-temperature zones (e.g., near exhaust manifolds) to avoid insulation breakdown.
Label all connections with heat-shrink tubing and color-coded sleeves for troubleshooting. Use a diode across the coil (cathode to positive) to suppress voltage spikes when de-energizing–critical for ECU-controlled setups. Validate the setup with a load test: apply 13.5 volts to the trigger and confirm the accessory activates within 50 milliseconds. For dual-output configurations, add a second module or a double-pole variant, wiring pin 87a to the secondary load.
Key Elements of a 12-Volt Switching Mechanism
Start by identifying the coil, the core component that generates a magnetic field when current flows. Standard variants for low-voltage systems typically require 70–150 ohms of resistance to activate reliably. Ensure the coil’s voltage rating matches the power source to prevent overheating or failure; mismatches can reduce lifespan by up to 40%.
Examine the contact set, which includes normally open (NO) and normally closed (NC) terminals. High-quality units use silver-alloy contacts rated for 10–30 amps, but sustained loads above 80% of capacity will accelerate wear. Check the manufacturer’s specifications–some models support inductive loads (motors, solenoids), while others are optimized only for resistive loads (lamps, heaters).
The spring mechanism plays a critical role in reset speed. A weaker spring increases contact bounce, leading to arcing and premature pitting. Test the response time: a well-calibrated unit should switch within 5–15 milliseconds. If delays exceed 20 ms, inspect for corrosion or fatigue in the moving parts.
Look for a diode across the coil if controlling inductive devices. Without it, voltage spikes at deactivation can reach 200–300 volts, damaging both the switching unit and connected electronics. For applications with frequent toggling (e.g., fuel pumps), a snubber circuit (RC network) further suppresses transients.
Terminal Layout and Common Configurations

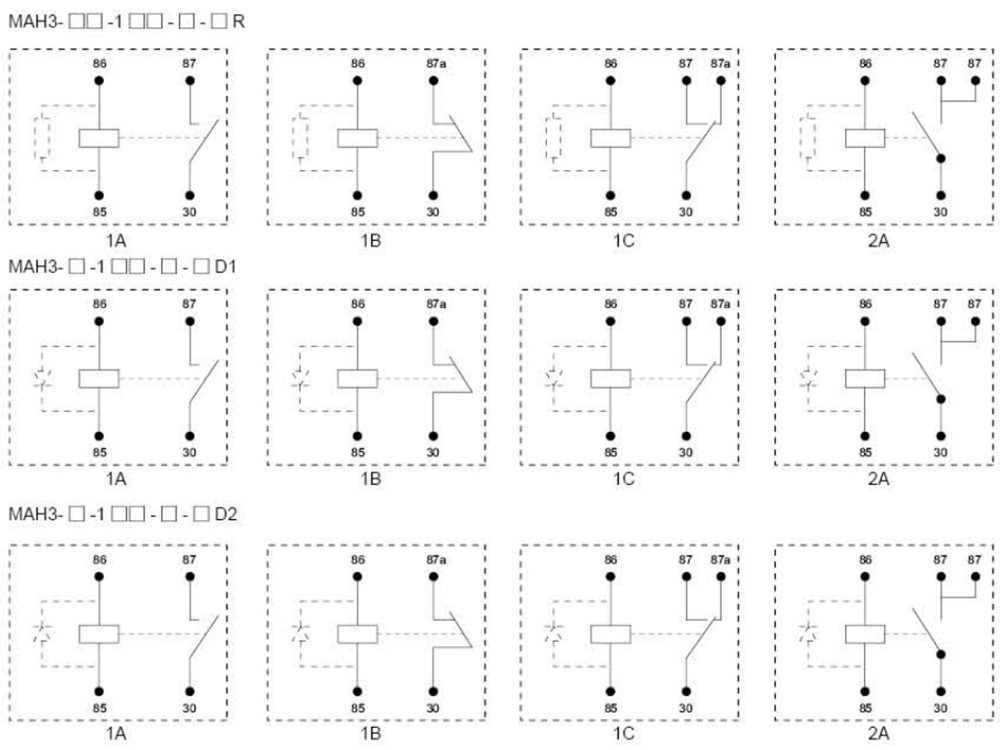

Pinouts usually follow a 4- or 5-pin layout. The common formats are:
- 85/86: Coil terminals (polarity often matters for diode protection).
- 30: Common input, connected to the power source.
- 87: Output to the load (NO).
- 87a: Secondary output (NC), if present.
Verify the configuration before wiring–reversing coil polarity in polarized types can destroy internal components.
For high-current applications, use a unit with a built-in resistor or transistor for coil drive. Directly driving the coil from an ECU or microcontroller risk overloading the output; a 2N2222 transistor or ULN2003 array can handle the load more effectively. Calculate the current: at 14 volts, a 100-ohm coil draws 140 mA, which exceeds many GPIO pins’ limits.
Mounting orientation affects performance. Vertical installation prevents debris accumulation on contacts, while horizontal mounting may trap dust. Avoid locations near strong magnetic fields (alternators, speakers), as they can induce false triggering. For vibration-prone environments, sealed or epoxy-encapsulated variants last 3–5 times longer.
Thermal management is often overlooked. Ambient temperatures above 85°C degrade plastic housings and coil insulation. If the application involves prolonged activation (e.g., cooling fans), add a thermal fuse or use a unit with Class F insulation. Test under real conditions–some datasheets overstate temperature ratings by 10–15%.
Installing a Vehicle Electrical Switch: Practical Walkthrough
Begin by locating a suitable mounting spot for the control module near the primary circuit. Ensure the area is dry, away from excessive heat, and allows easy access for future maintenance. A high-quality 40-amp component is recommended for most standard applications, though verify the load requirements of your specific device–common uses include headlights, fans, or auxiliary power outlets.
Gather the necessary tools: crimping pliers, a multimeter, wire strippers, a 10-amp fuse holder, and appropriate gauge cables (typically 14-16 AWG for signal wires, 10-12 AWG for power). Disconnect the battery’s negative terminal before proceeding to prevent accidental shorts. Route the cables carefully, avoiding sharp edges or moving parts that could chafe the insulation over time.
Connecting Terminals Correctly
| Terminal | Function | Wire Gauge | Recommended Connection |
|---|---|---|---|
| 85 | Trigger input | 14-18 AWG | Switch, sensor, or ECU output |
| 86 | Ground reference | 14-18 AWG | Vehicle chassis or dedicated ground point |
| 30 | Power input | 10-12 AWG | Fused battery positive |
| 87 | Load output | Varies by device | Device being controlled (e.g., lights, pump) |
| 87a | Normally closed output | Varies by device | Alternative load path (if required) |
For diodes in trigger circuits, install a 1N4007 between terminals 85 and 86 to suppress voltage spikes from inductive loads like solenoids or motors. When connecting the control circuit, use a separate 5-amp inline fuse for the trigger wire to protect the switching mechanism. Double-check all crimps and solder joints with a multimeter in continuity mode to confirm secure connections before restoring power.
Testing and Troubleshooting
Reconnect the battery and test the setup using a temporary power source or the intended trigger device. Listen for an audible click when energizing the control path–absence of this sound typically indicates a faulty ground or open trigger circuit. Use the multimeter to measure voltage at terminal 87; it should match the battery’s voltage when activated and drop to near zero when deactivated.
If erratic operation occurs, inspect for loose connections, inadequate grounding, or improper fuse ratings. For high-current devices, consider upgrading to an 80-amp silicon switch if frequent failures are observed. Label all cables with heat-shrink tubing or permanent markers to simplify future diagnostics. Secure any excess cable length with zip ties at 6-inch intervals to prevent vibration-induced wear.
