Step-by-Step Guide to Wiring a Solar Panel System with Diagrams
For off-grid applications under 1,500W, deploy a parallel wiring configuration with 10A charge controllers per two 300W modules. This prevents overcurrent while maintaining system scalability–calculate wire gauge using the 1.25x factor for continuous loads: 6mm² (10AWG) copper wiring suffices for 5-meter runs at 12V, while 16mm² (6AWG) handles 24V systems up to 10 meters without exceeding 3% voltage drop.
Series string arrangements become critical for grid-tied inverters above 3kW. Pair modules to match the inverter’s MPPT voltage window–for a 60-cell module delivering 38V Vmpp, a string of 8-10 units targets 300-480V DC input. Verify inverter datasheets: Fronius Symo 8.2kW specifies 320-800V MPPT range, requiring precise string sizing to avoid clipping during low-light conditions or high temperatures.
Implement rapid-shutdown compliant wiring for rooftop installations: NEC 690.12 mandates module-level disconnect within 30cm of the array. Use UL-listed microinverters like Enphase IQ8+ with integrated compliance, or add Tigo TS4-A-O optimizers with PLC signaling to series strings. Keep combiner boxes within 1.5m of the array edge, using PV-rated MC4 connectors secured with torque drivers to 1.7Nm.
Grounding requires #6 AWG bare copper for equipment grounds, bonded to a 5/8″ x 8’ copper-clad ground rod. Lightning protection integrates Class II surge arrestors (e.g., DEHN PVT 25/25) at the inverter input: Position arrestors within 1m of the DC disconnect. For corrosion-prone regions, upgrade to tinned copper lugs and apply dielectric grease to all compression terminals.
Low-voltage systems (12V/24V) benefit from split-core CT sensors for real-time current monitoring. Place sensors on the positive conductor exiting the charge controller, ensuring a minimum 10% headroom above the rated load–e.g., a 30A controller demands a 40A-rated CT like the Magnelab SCT-023R. Data logging via RS-485 to a Raspberry Pi enables performance optimization without proprietary protocols.
Dynamic shade mitigation demands partial-cell bypass diodes. Standard 3-diode configurations lose 33% output under edge shading; retrofit with Tigo CC or Solaredge P370 power optimizers to recover up to 23% of lost yield. Validate module compatibility: Bifacial PERC panels often require software-adjusted threshold settings to prevent false bypass triggering.
Wiring Photovoltaic Modules: Key Schemes and Configurations
Begin by identifying the system voltage requirements–12V, 24V, or 48V–to determine the number of modules needed in series. For a 12V setup, two standard 6V units in series will suffice, while 24V systems require four. Match the charge controller’s input voltage range to avoid inefficiency or damage; MPPT models tolerate higher input voltages but demand precise alignment with battery banks.
Wire modules in parallel to maintain voltage while increasing current output. Use 10AWG cables for distances under 5 meters and 8AWG for longer runs to minimize resistive losses. Calculate voltage drop with the formula: Vdrop = (2 × distance × current × resistance) / 1000. For a 10-meter run at 8A with 8AWG copper wire (0.00208 Ω/m), losses reach 0.33V–acceptable for most setups.
| Cable Gauge (AWG) | Max Current (A) | Safe Distance (m) |
|---|---|---|
| 14 | 15 | 3 |
| 12 | 20 | 5 |
| 10 | 30 | 8 |
| 8 | 45 | 12 |
| 6 | 65 | 20 |
Install blocking diodes on each string to prevent reverse current at night or under shading. Schottky diodes (50V, 10A) work best due to their low forward voltage drop (~0.3V). For systems over 100W, add bypass diodes across individual cells to mitigate hot-spot risks–especially critical in partial shade conditions.
Ground the array frame and mounting structure using 6AWG bare copper wire, connecting to a grounding rod driven at least 2.4 meters deep. Ensure the inverter’s grounding matches the system neutral if tied to a grid-interactive setup. Use Class T fuses rated at 1.25× the maximum string current for overcurrent protection; place them within 0.3 meters of the battery terminals.
Combine series-parallel configurations to balance voltage and current for larger installations. A 48V system with 24 modules (each 20V open-circuit) arranges them in 6 series × 4 parallel strings. Confirm the charge controller’s maximum input (e.g., 150V for Victron MPPT 150/70) isn’t exceeded–multiply the module’s open-circuit voltage by the number in series and factor in a 20% temperature coefficient for cold climates.
Label every component: strings, fuses, disconnects, and terminals. Use UV-resistant, waterproof markers (e.g., Brady BMP71) to denote polarities and voltage levels. Store digital schematics in both vector format (SVG) and backup PDFs with revision dates–include cable lengths, gauge, and connector types (MC4, Anderson Powerpole).
Test each string with a multimeter before finalizing connections. Verify open-circuit voltage (Voc) at 1.1× the rated value under full sun. Measure short-circuit current (Isc) across terminals briefly; expect 90–95% of the datasheet value. If readings deviate by >10%, recheck crimps, solder joints, or module integrity.
Isolate the system during maintenance using DC disconnects rated for 1.2× the maximum array current. Include a separate AC disconnect if grid-tied. For off-grid setups, size batteries at 1.5× daily consumption (e.g., 200Ah for 100Wh/day usage) to account for inefficiencies and depth-of-discharge limits (50% for lead-acid, 80% for lithium).
Step-by-Step Wiring for Sequential vs. Simultaneous Photovoltaic Arrangements

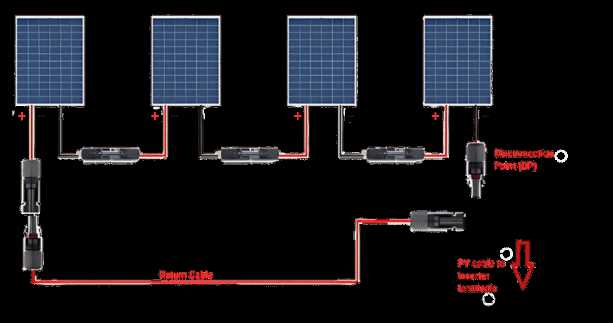

To increase voltage while maintaining current, link the positive terminal of one module to the negative terminal of the next in a daisy-chain sequence. This method–ideal for systems requiring higher voltage outputs–demands identical wattage across all units to prevent mismatch losses, typically ranging from 2-5%. For example, connecting four 12V units sequentially yields a 48V output, suitable for off-grid inverters or charge controllers rated for that voltage. Verify open-circuit voltage (Voc) under cold conditions (e.g., -10°C) to ensure it doesn’t exceed the controller’s maximum input, often 150V for residential models. Use 10AWG or thicker wiring for runs under 5 meters to limit voltage drop to less than 3%.
For simultaneous arrangements–preserving voltage while summing current–join all positive terminals together and all negatives likewise. This suits low-voltage applications like 12V battery charging, where high current is prioritized. Ensure each unit shares the same Voc and short-circuit current (Isc) within a 5% tolerance; discrepancies force stronger units to compensate, risking overheating. Parallel setups require branch breakers or blocking diodes to prevent reverse current, especially in partial shade scenarios where mismatched output can drain weaker cells. Calculate total amperage by summing individual Isc values; for instance, three 5A units combine to 15A, requiring at least 20A-rated connectors and wiring.
Balance the trade-offs: sequential wiring reduces wire gauge needs but risks string failure if one unit underperforms (total output drops to zero). Simultaneous layouts tolerate partial failure but demand heavier wiring and overcurrent protection–fuses or breakers sized at 125% of maximum module current. Test configurations with a multimeter post-installation, confirming Voc matches theoretical values within 1V (sequential) or current aligns within 0.5A (simultaneous). For mixed environments, hybrid setups (e.g., two sequential strings in parallel) optimize both voltage and redundancy but necessitate equal string lengths to avoid circulating currents.
Selecting the Optimal Charge Regulator for Your Photovoltaic Installation
Match the regulator’s voltage and current ratings precisely to your battery bank and array output. For a 12V system, choose a 15A controller if your modules supply 10A under standard test conditions; derate by 25% for temperature variations above 25°C. MPPT regulators yield 10–30% more harvest in cold climates, while PWM units suffice for small setups under 200W where cost is critical. Verify the controller’s efficiency curve–top-tier MPPT models maintain 95%+ conversion at 50–100% load, whereas PWM drops below 70% at partial loads.
Compatibility with Battery Chemistry and Environmental Factors
Lithium batteries require controllers with programmable charge profiles–set bulk voltage to 3.5V/cell and float to 3.35V/cell to prevent degradation. AGM and flooded lead-acid need absorption voltages of 14.4–14.8V and float voltages of 13.5–13.8V; use temperature compensation (–3mV/°C per cell) if ambient swings exceed ±10°C. For humid or dusty environments, select regulators with IP65 or higher seals and corrosion-resistant terminals. Overcurrent protection must match array short-circuit current multiplied by 1.25–oversizing fuses or breakers by this factor prevents nuisance trips without sacrificing safety.

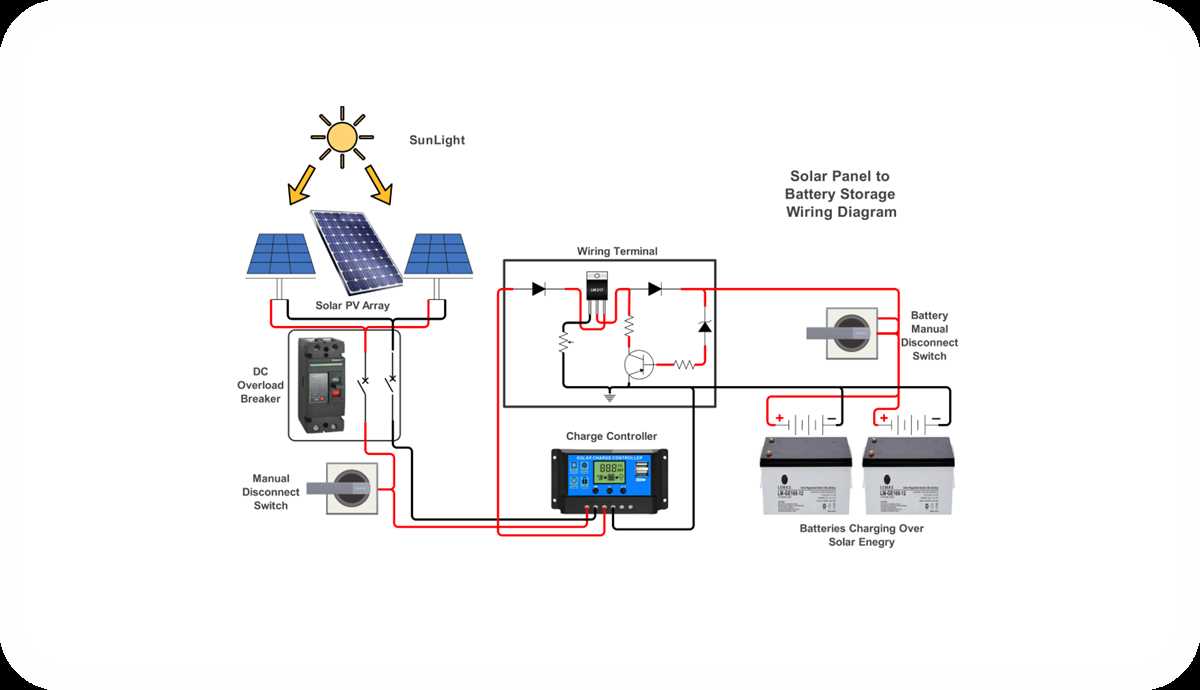

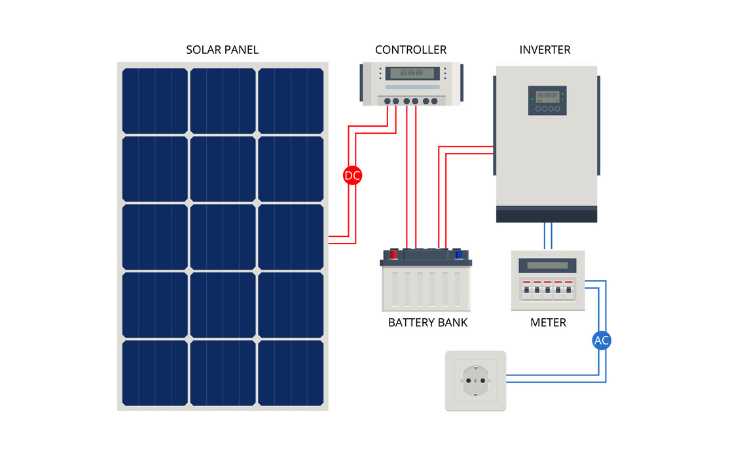

How to Safely Integrate Photovoltaic Modules with Power Storage or Conversion Devices
Select appropriately rated cables–at least 6 AWG for systems up to 40A–to prevent voltage drop and overheating. Match wire gauge to the maximum short-circuit current (Isc) of the modules multiplied by 1.25 for safety margins. Use MC4 connectors or equivalent locking mechanisms to avoid accidental disconnection under load; compression crimps outperform soldering for long-term reliability. Verify polarity before interfacing–most modules mark positive terminals with a raised ridge or red indicator–and cross-check with a multimeter if markings are unclear.
- Mount a DC disconnect switch between the array and charge controller or inverter; NEC 690.15 mandates accessible disconnects rated for 125% of system voltage.
- Choose a charge controller with MPPT (maximum power point tracking) for systems over 100W to recover 15-30% more energy than PWM types.
- Bypass diodes in module junction boxes prevent reverse current damage–inspect datasheets to confirm inclusion if retrofitting older units.
- Ground metal frames and mounting racks to a 6 AWG or larger conductor tied to the main service panel ground bus; local codes may require separate ground rods spaced 6 ft from building electrodes.
- Install overcurrent protection within 7 inches of the battery bank: fuses sized at 110-125% of the controller’s maximum input current prevent catastrophic failures.
Before energizing, simulate full-load conditions with a resistive load bank to validate cable sizing and controller calibration. Document string configurations–series, parallel, or hybrid–and keep records of voltage (Voc), current (Isc), and power ratings for troubleshooting. Store spare fuses, connectors, and terminal blocks on-site for rapid repairs; corrosion-inhibiting grease extends terminal life in humid or coastal environments. For lithium-ion storage, integrate a battery management system (BMS) with temperature sensors–thermal runaway risks escalate above 45°C (113°F) and require immediate disconnect protocols.
