Complete Wiring Guide for 12V Bilge Pump with Installation Steps
Start by selecting a 2.5 mm² (14 AWG) cable for the power line–this ensures adequate current handling for most 60-liter-per-minute units. Route the cable away from sharp edges and moving parts, securing it every 30 cm with nylon ties or adhesive-lined clamps. Avoid looping near fuel lines or exhaust manifolds, where heat can degrade insulation over time.
Connect the positive lead to the fuse holder first–use a 10 A blade fuse for protection. The fuse should sit within 10 cm of the battery terminal. From there, run the wire directly to the motor’s input terminal, avoiding splices. If a splice is unavoidable, use a crimped butt connector with heat shrink tubing, not electrical tape.
The negative return path should follow a separate route, ideally attached to the engine block or a designated grounding bus. Use a 3 mm tinned copper ring terminal and a M6 stainless steel bolt for corrosion resistance. Never daisy-chain grounds or attach them to painted surfaces–this leads to voltage drop and erratic operation.

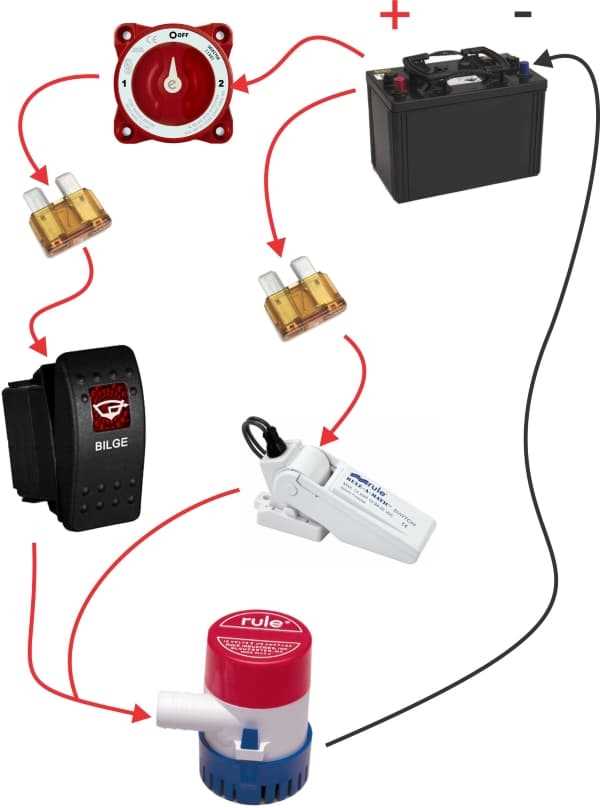

For float switch integration, wire it in series with the motor. Use a normally open switch with a 5 A rating, mounted at least 5 cm above the shaft to prevent false triggers from sloshing water. Add a manual override switch rated for 15 A in parallel, placed within arm’s reach of the helm.
Before finalizing, test the circuit with a multimeter–measure for 12.6 V at the motor terminals with no load. Verify the float switch triggers at the correct water level by pouring a measured amount of water into the sump. Label all connections with heat-shrink sleeves marked in permanent ink.
Marine Automatic Water Removal System Connection Guide
Connect the float switch directly to the device’s positive terminal using 14-gauge marine-grade stranded copper wire. Strip 5mm of insulation, twist strands tightly, and secure with a crimp-on ring terminal rated for 25A. Route the wire away from sharp edges and moving parts, using split-loom tubing or spiral wrap for protection. Ensure the negative return path follows a separate, parallel route to minimize voltage drop and interference.
Install an in-line fuse holder 15cm from the power source, selecting a blade-type fuse matching the system’s draw–typically 5A for 350GPH units, 10A for 800GPH models. Verify the fuse rating aligns with the manufacturer’s specifications; excess amperage risks overheating while insufficient rating causes nuisance trips. Position the holder above the waterline in a dry, accessible location, using a waterproof cover to prevent corrosion.
Test continuity before finalizing connections. Use a multimeter to confirm resistance across the trigger mechanism (≤1Ω) and verify the circuit opens at the correct fluid level (adjustable models: ±2mm tolerance). Secure all terminals with dielectric grease and nylon locking nuts to prevent loosening from vibration. Label each cable with heat-shrink tubing markers–use “PWR,” “RTN,” and “SW” for clarity during maintenance.
For dual-point installations, wire a second switch in series, not parallel, to ensure both must trigger for activation. Connect the remote panel switch via a relay if control separation exceeds 3 meters; coil current should not exceed 0.5A. Ground all metallic components to a common busbar bonded to the vessel’s negative bus, using star washers to penetrate paint and corrosion-resistant coating.
Selecting the Optimal Conductor Size for a Low-Voltage Marine Discharge System
For a 1.5 A motor drawing 20 W, use 18 AWG copper wire up to 10 feet; at 15 feet, switch to 16 AWG to keep voltage drop under 3%. A 5 A unit handling 60 W requires 14 AWG at 10 feet and 12 AWG at 20 feet for identical drop limits. Larger 10 A models with 120 W outputs demand 10 AWG conductors extending 15 feet or less; beyond this span, increase to 8 AWG to avoid exceeding the 5% loss threshold.
Temperature ratings matter: PVC-insulated wire rated for 60 °C handles up to 16 A in free air, while 90 °C Teflon-insulated types manage 25 A under identical ambient conditions. Multiply continuous current by 1.25 for intermittent duty cycles; ambient temperatures above 30 °C demand de-rating factors from IEC 60228 tables–10 AWG steady-state 30 A capacity drops to 24 A at 50 °C.
Conductor Size vs. Distance and Current Load
| Continuous Current (A) | 5 ft | 10 ft | 15 ft | 20 ft |
|---|---|---|---|---|
| 3 | 20 AWG | 18 AWG | 18 AWG | 16 AWG |
| 7 | 16 AWG | 14 AWG | 12 AWG | 12 AWG |
| 12 | 12 AWG | 10 AWG | 10 AWG | 8 AWG |
| 20 | 10 AWG | 8 AWG | 6 AWG | 6 AWG |
Tinned copper resists corrosion in humid environments; bare strands oxidize 12× faster. Twist pairs reduce inductive interference; shielded twisted cables cut radiated noise by 22 dB vs. parallel runs. Secure connections with crimped ring terminals and heat-shrink insulation; soldered joints risk fatigue failure under vibration–ABYC E-11 prohibits solder-only terminations for currents above 0.5 A.
Step-by-Step Guide to Connecting a Marine Sump Device to an Automotive Power Source
First, select a power cable with a cross-section of at least 2.5 mm² for distances under 3 meters to prevent voltage drop. For longer runs, increase to 4 mm² or thicker. Strip 6 mm of insulation from both the positive and negative wires, ensuring no stray strands remain. Use crimp connectors (ring or spade type) rated for the current draw–typically 5-25 amps for most submersible models–secured with a proper crimping tool, not pliers.
Mount a 15-30 amp inline fuse within 15 cm of the battery’s positive terminal. This protects the circuit from short circuits, which can occur if the cable chafes against metal edges in the bilge area. Skip this step only if the device includes an internal fuse, though external protection is still recommended. Verify the fuse rating matches the motor’s startup surge, often higher than its continuous draw.
Attach the negative lead directly to the battery’s negative terminal or a dedicated grounding point on the vessel’s chassis. Avoid relying on painted surfaces–sand the contact area to bare metal for a low-resistance connection. For installations near water, apply dielectric grease to the terminals after tightening to prevent corrosion. Use stainless steel hardware (bolts, washers) to resist saltwater exposure.
Connect the positive lead to a float switch or manual on/off control if automatic operation is desired. Position the switch at a height where it activates before water reaches critical levels–typically 2 cm below the lowest point of the hull’s sump. For fixed-speed units, a simple SPST switch suffices. For variable control, incorporate a PWM controller, ensuring it’s rated for inductive loads to handle back EMF from the motor.
Test the setup by simulating activation: pour water into the sump area to trigger the switch or toggle the manual control. Observe the current draw with a multimeter–it should stabilize within 10-20 seconds. If the unit cycles rapidly, adjust the switch’s sensitivity or check for obstructions in the impeller. Secure all cables with nylon clamps every 30 cm to prevent movement from vibrations or water flow, which can chafe insulation over time.
Label both the control switch and battery connections with marine-grade vinyl labels to simplify future maintenance. Include the wire gauge, fuse rating, and circuit purpose. Store the documentation (installation manual, wiring notes) in a waterproof container near the power source. Recheck connections after 24 hours of operation–corrosion or loose terminals often reveal themselves within this window.

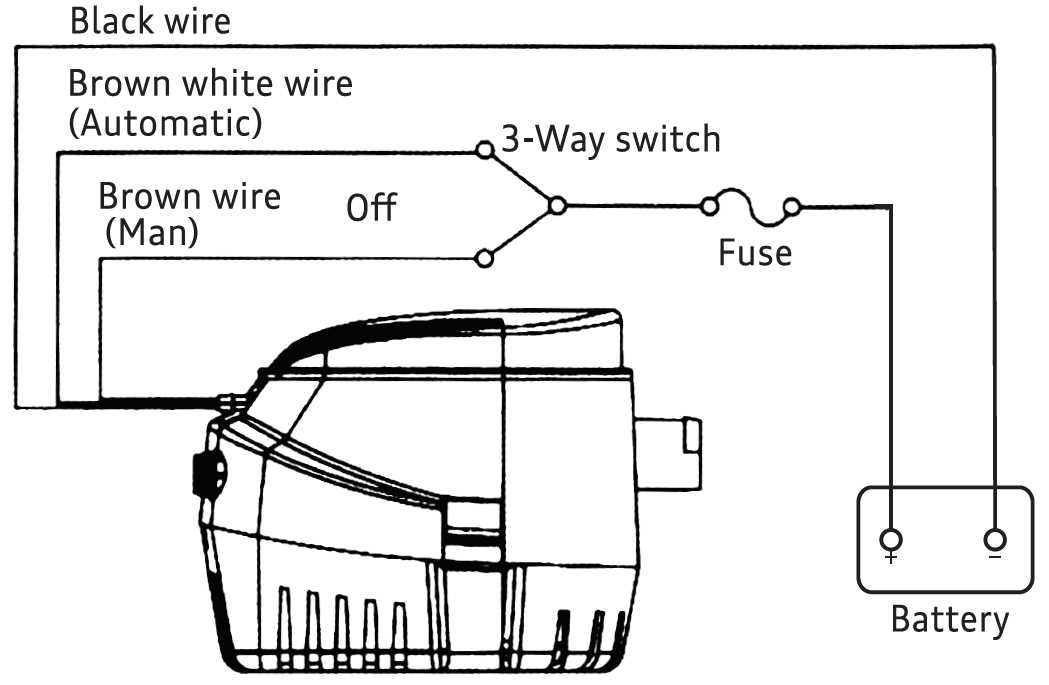

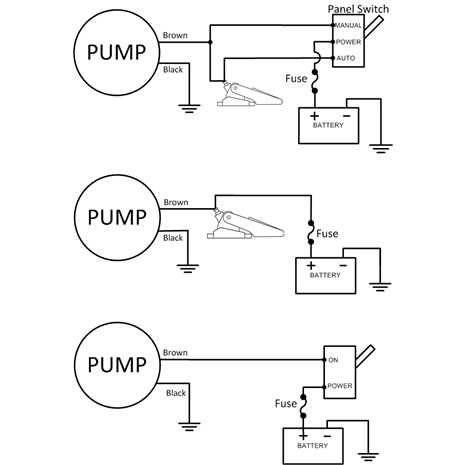

Installing a Manual Switch vs. Automatic Float Switch for Marine Drainage Systems
For vessels under 24 feet, a manual toggle within arm’s reach of the helm delivers the fastest response during sudden flooding. Mount the switch on a waterproof panel with a 30-amp circuit breaker no farther than 18 inches from the operator’s seat; marine-grade tinned copper wire (minimum 12 AWG) must run directly from the breaker to the motor to prevent voltage drop under load. Label the switch with phosphorescent tape for nighttime visibility, and test monthly by submerging the intake in a bucket of water to confirm immediate activation without hesitation.
Automatic Float Mechanism Trade-offs
Factory-sealed float units cost 40–60% more than manual setups but eliminate human delay, activating at a 1.5-inch water rise. Select a sealed, epoxy-encapsulated model rated for fuel-resistant environments; stainless steel floats corrode within nine months near gasoline or diesel vapors. Position the sensor 3–4 inches above the keel to avoid false triggers from sloshing fuel or condensation, and wire it in series with a 180-second delay timer to prevent short cycling during rough seas. Include a secondary manual override switch rated for continuous duty to bypass fouled sensors.
Routine maintenance differs sharply: floats require quarterly debris flushing and resistance checks (50–150 ohms when dry), while manual switches demand only annual corrosion inspection on terminals. Both configurations need a dedicated 40-amp fuse at the battery bus bar, separated from lighting circuits to prevent catastrophic failure during simultaneous high loads. For bilge areas prone to accumulated oil, specify a model with a self-cleaning impeller–these expel small contaminants automatically but consume 2.4 watts more during operation and must be sized 25% above calculated flow requirements to compensate for inefficiency.
Common Installation Errors and Solutions for Marine Automatic Devices
Selecting undersized conductors is the most frequent cause of inefficiency. For a 500 GPH unit, use at least 14 AWG copper cable; for 1500 GPH models, never go below 10 AWG. Resistance increases exponentially with distance–every extra meter beyond 3 meters requires upgrading the wire gauge by two sizes. Verify voltage drop with a multimeter after installation; anything above 0.5V loss indicates insufficient thickness.
- Excessive heat at connections points to loose terminals–tighten to 5-7 in-lbs torque using a precision screwdriver.
- Corrosion from saltwater exposure reduces conductivity by up to 40%–clean terminals with baking soda solution every 30 days.
- Mixing aluminum and copper without dielectric grease guarantees oxidation within weeks; always apply anti-corrode compound.
Incorrect fuse placement creates fire hazards. Position the fuse holder within 7 inches of the battery’s positive terminal, never along the cable run. Use slow-blow fuses rated 5-10% above the device’s maximum amp draw–consult the nameplate for exact figures. A 10A fuse for a 8A unit risks nuisance tripping; 12A provides safe margin.
Ignoring polarity causes immediate failure. Mark cables with red/black heat-shrink tubing before connecting. Test continuity with a multimeter; reverse polarity damages motor windings permanently. Reversing direction requires disassembling the housing and swapping brush leads–manufacturers void warranties for this error.
Overlooking float switch calibration leads to premature activation. Mount the switch vertically, ensuring at least 2 inches clearance around the arm. Test by manually lifting the float; the device should engage at 0.5 inches of fluid rise. Secure wiring with zip ties every 12 inches to prevent chafing against stainless steel hull fittings.
- Check grounding paths–attach the negative lead directly to the battery’s negative terminal, never to engine blocks or through-hull fittings.
- Route cables away from high-vibration areas; use split loom tubing for runs near exhaust manifolds.
- Label both ends of every cable with permanent marker–solving faults becomes 70% faster during troubleshooting.
