Step-by-Step Guide to Wiring Your Precision Bass Electronics

Choose braided shielded cables for signal paths to minimize noise interference–standard coaxial cables introduce capacitance issues, degrading high-frequency response by up to 30%. Ground the pickup casing directly to the bridge or control cavity ground plate, not the shielding paint; this prevents ground loops that manifest as persistent 60Hz hum. For active electronics, bypass capacitors (typically 0.1µF ceramic) must be soldered as close as possible to the power input terminals of preamps to filter voltage spikes.

Split-wire configurations demand a 3-way switch with a dpdt-on-on-on layout, not the common dpdt-on-off-on, to maintain phase coherence between pickups. Use 250kΩ pots for passive setups; lower resistance values attenuate treble frequencies excessively, while higher resistance (500kΩ+) risks susceptibility to radio interference. Positioned volume and tone controls should follow a master-first routing sequence: potentiometers wired in parallel (not series) preserve signal integrity when one control is dialed down.

For humbucker-equipped instruments, employ a series-parallel wiring scheme with a push-pull pot to toggle between modes–this retains output level consistency across switch positions. Install a treble bleed circuit (220pF capacitor + 150kΩ resistor in parallel) on volume pots to prevent tone loss when rolling back. Always tin the ground wire ends before soldering to potentiometer lugs; untinned stranded wire increases oxidation risk, leading to intermittent connections.

Test continuity with a multimeter before final assembly–resistance between any two ground points should not exceed 0.5Ω. Humidity levels above 60% accelerate oxidation of solder joints; store partially wired components in a moisture-controlled environment. For instruments with piezoelectric elements, isolate the preamp’s floating ground from the main circuit ground to eliminate feedback at high gain settings.

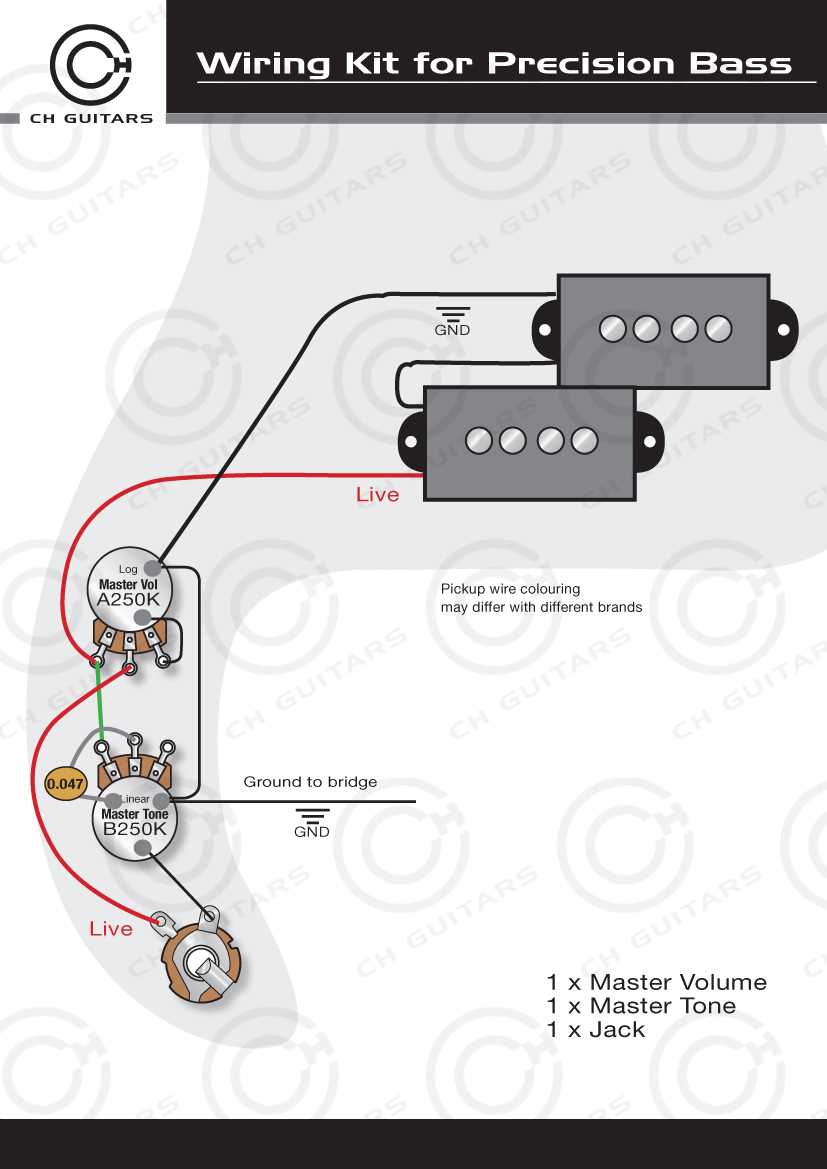

Precision Bass Electrical Schematic Essentials

Begin with a 250k audio taper potentiometer for volume control–this ensures smoother signal attenuation compared to linear taper alternatives, preserving high-end clarity during roll-off. Pair it with a 500k tone pot to maintain stable impedance when blending the passive EQ circuit. For grounding, use a star configuration with a central lug connecting the bridge, pickguard, and output jack ground wires; this eliminates hum without requiring shielded cable unless playing in high-RFI environments like near stage lighting or power amps.

Critical Component Selection

• Capacitor values: 0.047µF for vintage bass response, 0.022µF for modern clarity–test both with fresh 9V alkaline batteries to avoid nonlinear filtering from weak power.
• Pickup phasing: Reverse the neck pickup’s hot and ground wires if installing aftermarket coils to prevent phase cancellation; verify with a tuner app while plucking open E strings.
• Jack installation: Solder the sleeve connection last after confirming continuity with a multimeter–cold joints here cause intermittent signal loss.

Route tone circuit wiring above the pickguard assembly, not beneath, to minimize microphonics from cable movement. Use cloth-covered wire for vintage aesthetics or Teflon-insulated for durability; avoid PVC variants as they degrade under solder heat. When testing, strum harmonic nodes at the 12th fret–weak or distorted harmonics indicate incorrect pot taper or grounding issues.

Choosing Components for Precision-Style Electronics: Key Specifications

Opt for a linear-taper potentiometer rated at 250KΩ for volume control to maintain a balanced frequency response with single-coil pickups. Logarithmic (audio) taper works better for tone circuits, especially in active setups where impedance matching matters–25KΩ or 50KΩ variants prevent signal loss in low-noise scenarios. Select pots with a minimum 16mm shaft diameter for stability under frequent adjustments.

Capacitors with a value between 0.022μF and 0.047μF suit standard passive tone shaping; polyester film types (e.g., orange drop) reduce microphonics compared to ceramic. For extended high-end roll-off, experiment with values up to 0.1μF, but expect a noticeable midrange attenuation. Ensure the voltage rating exceeds 63V to avoid dielectric breakdown under aggressive playing conditions.

Solder lugs should handle at least 22AWG wire–stranded copper with PVC insulation resists vibration-related failures. Ground connections benefit from silver-plated terminals to minimize oxidation buildup over time. For shielding, adhesive copper foil adhesive at 99.9% purity offers the lowest resistance, critical for reducing 60Hz hum in high-impedance configurations.

Switchcraft 3-way toggle switches endure 50,000+ cycles, outperforming cheaper alternatives with loose blade contacts. If incorporating a push/pull pot for series/parallel pickup switching, confirm the detent mechanism is spring-loaded to prevent accidental engagement during aggressive playing. Avoid subminiature switches rated below 5A–they risk overheating under sustained signal loads.

Step-by-Step Guide to Soldering a Precision Bass Electronics Assembly

Begin by stripping the insulation from the pickup leads and control wires, exposing 3–4 mm of bare copper. Use a temperature-controlled soldering station set to 350°C for stranded connections and 400°C for grounding tabs–exceeding this risks damaging the enamel-coated magnet wire or melting potentiometer internals. Tin the exposed strands with a minimal layer of 60/40 rosin-core solder; apply the iron for no longer than two seconds to prevent heat creep into the pickup housing. Secure the tinned wires in place with a third-hand tool, aligning them flush against the solder lugs–misalignment causes brittle joints that fail under vibrational stress.

• Attach the volume potentiometer first: connect the pickup’s hot lead to the center lug, then solder the outer lug to the output jack’s tip terminal using 20-gauge shielded cable.
• Ground the wiring harness by linking the pickup’s ground wire to the potentiometer’s casing lug, then run a separate 22-gauge solid wire from the casing to the bridge ground–avoid daisy-chaining grounds to prevent hum loops.
• Test continuity after each joint with a multimeter set to 200Ω range; resistance should not exceed 1.2Ω between the pickup’s ground and bridge. If readings fluctuate, reheat the joint with flux and reflow the solder, ensuring complete wetting of the surfaces.
• Insulate connections with 3mm heat-shrink tubing, applying heat evenly with a hot air gun set to 150°C–avoid direct flame contact to prevent shrinking unevenly or damaging adjacent components.

Verify the final assembly by plucking each string while rotating the volume knob; sudden volume drops indicate cold solder joints–rework immediately before proceeding. Seal the control cavity with conductive shielding paint, ensuring 99% coverage including screw holes, to eliminate electrostatic interference from fluorescent lighting or power cables.

Frequent Errors in Precision Bass Electronics and Corrective Measures

Reverse the hot and ground connections on the output jack to prevent silent failures. The tip should carry the signal (usually white or yellow wire), while the sleeve grounds the shield (bare or black). Label wires during disassembly or photograph the layout before modifications–even minor misplacement introduces hum or cuts tone entirely.

Use solder with a rosin core designed for audio applications; acidic or plumbing solder corrodes contacts over time, creating crackling noises. Apply heat to the joint, not the solder–excess solder bridges terminals on potentiometers, shorting circuits and muting pickups unpredictably.

Ground wires inconsistently by linking all components–volume pot casing, tone capacitor shell, control cavity shield–to a single point. Floating grounds amplify interference, producing 60-cycle hum. Verify continuity with a multimeter; resistance should read below 1 ohm between any grounded component and the bridge plate.

Install potentiometers with incorrect resistance values–250K linear for single-coil clarity, 500K logarithmic for warmer humbucker tones. Using the wrong taper alters volume ramp or tone roll-off drastically. Confirm values with a tester before soldering; markings on the casing often fade or mislabel.

Mismatch capacitor types: polypropylene for transparent high-end retention, ceramic for cost-sensitive builds. Film caps veil attack at high frequencies; bypassing with a 0.01µF ceramic across pickup poles reduces RF noise without coloring tone. Stock 0.05µF values cut bass excessively when dialed below 5.

Route wires too tightly near moving controls; stretching causes internal breaks that fail intermittently under vibration. Secure with cloth tape or spiral wrap, keeping leads 5mm from potentiometer cases and toggle switches. Test connections by gently wiggling each joint during a signal sweep–intermittent drops reveal weak solder or pinched conductors.

Omit a star-ground system when modifying active electronics. Daisy-chaining battery-negative, preamp, and jack grounds creates feedback loops under heavy picking. Isolate components with individual leads converging at the bridge; star configurations eliminate digital whine in blend circuits.

Assume stock wiring suits all pickups. Split-coil configurations demand a series-parallel switch to preserve output; omitting it halves signal strength. Verify phase alignment by engaging both pickups simultaneously–out-of-phase combinations cancel midrange, producing nasal quack unless corrected with a phase-reversal switch or staggered pole magnets.
