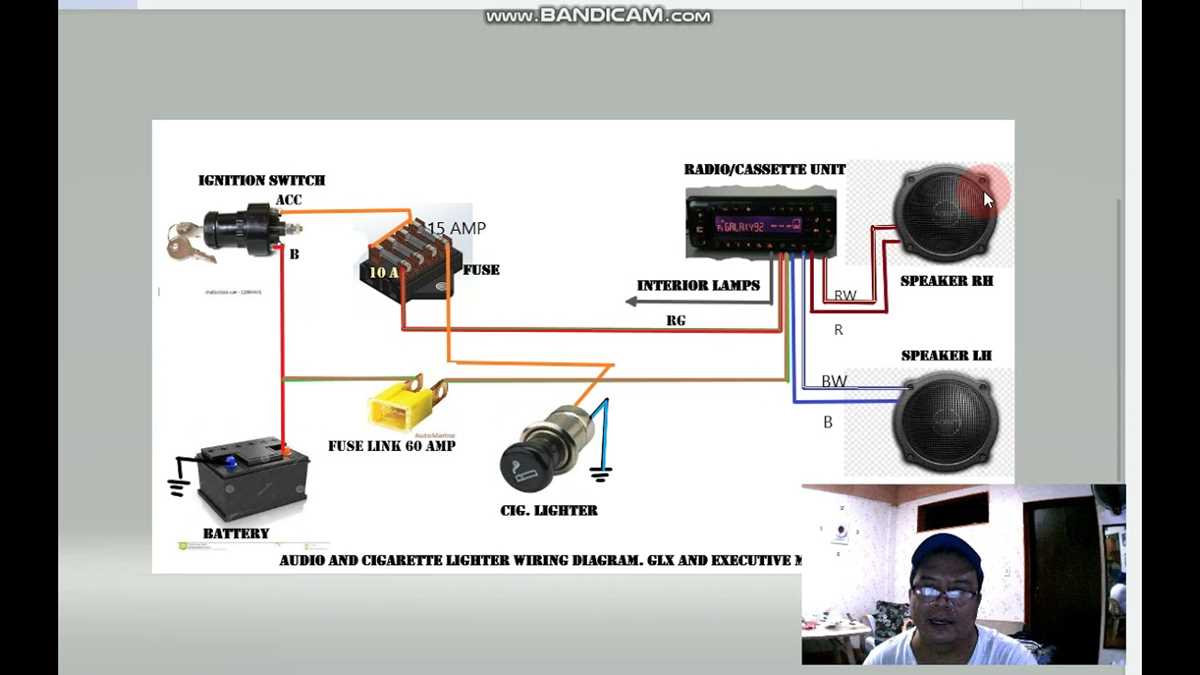

Complete 12V Car Cigarette Lighter Socket Wiring Guide with Diagram
Start by identifying the positive and negative terminals in your vehicle’s power outlet. Most cars use a standardized center-positive configuration, where the pin in the middle of the receptacle delivers the live current, while the outer metal shell serves as ground. Verify this with a multimeter set to DC voltage–probe the pin and shell; readings should confirm 13.5–14.5 volts when the ignition is on.

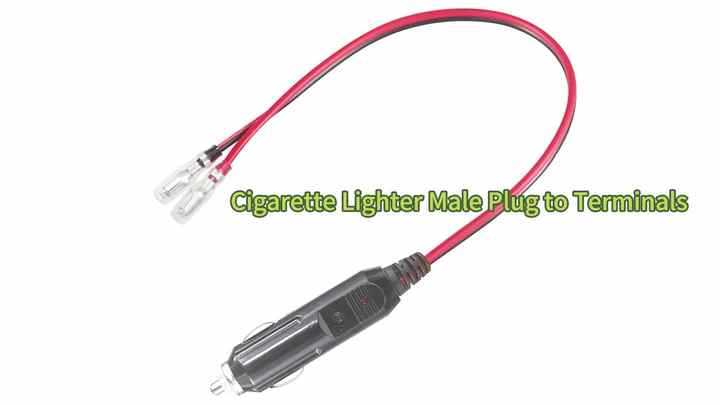

Strip the insulation from the accessory cable ends, exposing 8–10 mm of stranded copper wire. Crimp a ring terminal onto the ground lead, ensuring it matches the diameter of a screw or bolt on the vehicle chassis–typically M5 or 1/4″. For the positive lead, attach a female spade connector sized to fit the power outlet’s pin snugly. Use heat-shrink tubing to seal crimps, preventing short circuits from road vibration.
Route the cable harness along the factory wiring loom, securing it with plastic loom ties every 15–20 cm. Avoid sharp edges or moving parts like steering columns or pedal linkages. Ground the negative lead to a bare metal point, sanding away paint or corrosion first; a common mistake is bolting to a painted surface, causing intermittent power loss.
Test the connection before final assembly: activate the ignition, plug a load (e.g., LED work light), and check for stable voltage. If the light flickers, revisit the ground path–oxides can increase resistance, dropping voltage under load. For high-current devices (over 10A), replace the factory fuse inline with a higher-rated one, but never exceed the wiring gauge’s capacity: 18AWG maxes at 10A, 16AWG at 15A.
For auxiliary circuits, splice into the accessory wire feeding the outlet–usually a red or yellow wire in the vehicle harness–using a Scotchlok connector. Avoid tapping into the fuse box unless the circuit is switched; constant-power leads drain the battery when left connected. Label all splices with colored electrical tape for future troubleshooting.
Dissimilar metals (e.g., copper wire to steel chassis) can corrode. Apply dielectric grease to terminals to prevent oxidation. If extending a circuit behind the dashboard, bundle wires with existing harnesses to prevent pinching during trim reassembly.
Automotive Auxiliary Power Port Connection Guide

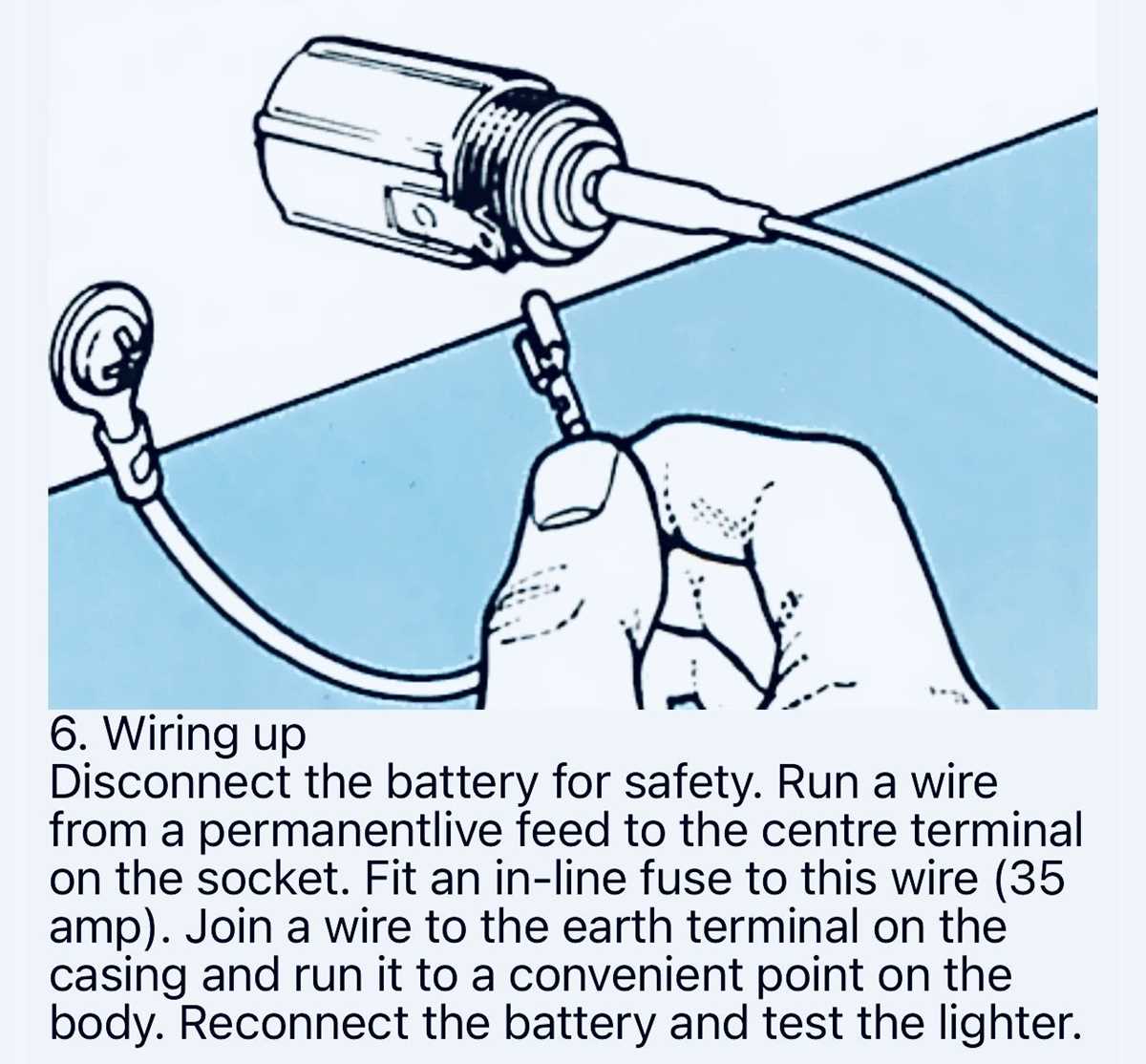

Connect the positive wire (typically red) to the central contact of the port’s interior terminal–this is the live feed directly linked to the vehicle’s battery via a fuse. Use a minimum of 18 AWG copper wire for currents up to 10A, and 14 AWG for loads exceeding 15A. Verify the fuse rating matches the wire gauge: 10A for 18 AWG, 15A for 16 AWG, 20A for 14 AWG. Overloading causes heat buildup, risking insulation failure.
Ground the outer shell of the port by attaching the negative wire (black) to a clean, unpainted metal surface on the chassis. Avoid using bolt heads shared with other components, as corrosion or loose connections can introduce voltage drops. For optimal conductivity, scrape off surface oxidation with sandpaper or a wire brush before securing the terminal with a star washer. A poor ground leads to inconsistent power delivery and potential interference with connected devices.
For dual-port installations, wire the accessory ports in parallel, not series. Each port must retain its own independent fuse–never daisy-chain unswitched power between ports. Calculate total current draw: if two devices pull 8A each, upgrade the main fuse to 20A and use 14 AWG wire to handle the combined 16A load safely.
| Wire Gauge (AWG) | Max Current (Amps) | Fuse Rating (Amps) | Voltage Drop per 3m (Volts) |
|---|---|---|---|
| 18 | 10 | 10 | 0.24 |
| 16 | 13 | 15 | 0.15 |
| 14 | 18 | 20 | 0.09 |
| 12 | 25 | 25 | 0.06 |
Install a relay for high-draw accessories like compressors or coolers. Trigger the relay coil from the ignition-switched wire to prevent battery drain when the engine is off. The relay’s 85 and 86 terminals connect to switch-controlled power, while 30 and 87 handle the accessory load. Use a 30A relay for loads up to 20A, and a 40A relay for heavier demands.
Test the circuit with a multimeter before finalizing connections. Set the meter to DC voltage and probe the central contact (positive) against the chassis (negative). Expect 13.8–14.5V with the engine running; anything below 12.5V indicates a weak ground or corroded connection. If voltage fluctuates, recheck the fuse, wire integrity, and ground point.
For reversible polarity ports (e.g., in some European vehicles), identify the correct orientation using the vehicle’s service manual. Incorrect polarity blows fuses or damages connected devices. Mark the ports with colored tape–red for standard polarity, blue for reversed–to prevent future errors.
Seal all connections with heat-shrink tubing or dielectric grease to prevent moisture ingress. Exposed terminals corrode rapidly, especially in humid climates or underbody installations. For marine applications, use tinned copper wire and sealed connectors to resist saltwater corrosion.
Troubleshooting Common Issues
If the port delivers power only when the key is in the accessory position, the wiring taps into an ignition-switched feed rather than the continuous battery line. Trace the circuit back to the fuse box and reroute it to a constant power source if always-on access is required. For intermittent failures, inspect the fuse clip for heat damage–replace it if the metal appears discolored or brittle.
Essential Gear for Auto Power Port Installation
Begin with a 18-22 AWG stranded copper wire–thicker gauges handle higher loads but increase bulk. Solid-core wire risks fatigue under vibration; stranded minimizes failure risk over time. Pre-tinned wire resists corrosion in humid environments, critical for connections exposed to moisture or road salt.
Insulated crimp connectors (butt, spade, and ring types) rated for at least 20A ensure secure joints. Avoid vinyl insulation–it melts under heat; nylon or heat-shrink versions provide better protection. For solder joints, use rosin-core flux; acid-core flux corrodes terminals within months.
A digital multimeter with auto-ranging is non-negotiable for verifying voltage before and after installation. Probe the accessory port’s center pin (positive) and the outer sleeve (ground) to confirm polarity–reverse polarity damages most 14.5V devices instantly. An infrared thermometer detects hotspots in underperforming connections early.
Heat-shrink tubing with adhesive lining seals connections against water and dirt. Polyolefin shrinks at 90°C; dual-wall variants melt inner adhesive for a watertight bond. Cut tubing 2 cm longer than the joint–shorter lengths fail under mechanical stress. A heat gun with adjustable airflow prevents scorching; torches risk uneven shrinking.
Crimping tools must match the connector size. Ratcheting models ensure full compression; pliers-type crimpers create weak joints prone to oxidation. Strip wire with dedicated strippers–blade tools notch strands, reducing current capacity. A wire brush cleans oxidized terminals; dielectric grease applied post-installation slows future corrosion.
For panel-mounted ports, a step-bit or Greenlee punch cuts clean holes without burrs. Mismatched cutters leave sharp edges that abrade wire insulation under vibration. Secure the port with threaded lock nuts; flanged nuts back onto sheet metal thinner than 1.2mm to prevent pull-out under load. Always check clearance–crowded dash spaces pinch wires between panels, causing shorts.
How to Install a Vehicle Auxiliary Power Port Correctly
Start by disconnecting the ground terminal from your car battery to prevent short circuits. Measure and cut three cables: a red (positive), black (negative), and yellow (accessory) wire–each must be at least 18 AWG for currents up to 10A, or 14 AWG for 15A loads. Strip 6mm of insulation from each end and crimp a ring terminal onto the red and black wires.
Attach the red wire’s ring terminal to the battery’s positive post, ensuring it’s secured with a bolt or designated power stud. Connect the black wire to the vehicle’s chassis ground–clean the contact point thoroughly for corrosion, then fasten it with a self-tapping screw or factory grounding bolt. For the yellow wire, locate an ignition-switched fuse slot in the fuse box (check your manual for FUSE_ID_12), insert a blade fuse tap, and run the wire to the power outlet’s center terminal. Secure all connections with solder or heat-shrink tubing, then reconnect the battery. Test with a multimeter: voltage should read 13.2–14.4V when the engine is running, dropping to 0V when switched off.
- Always use a fuse (10A for standard ports) within 15cm of the battery connection.
- Avoid routing wires near moving parts, hot surfaces, or sharp edges.
- Twist wires gently to reduce electromagnetic interference in audio systems.
- For rear outlets, bundle wires in split-loom tubing for protection.
Common Mistakes When Installing a Vehicle Auxiliary Port
Reversing polarity during installation triggers immediate fuse failure or damages connected devices. Always verify the correct matching of positive and negative terminals before securing connections–red to the central pin, black to the chassis ground. Test with a multimeter set to DC voltage; incorrect readings indicate improper contact, risking short circuits in high-current applications like heated seats or portable fridges.
Overloading circuits by tying multiple accessories into a single port strains the fuse rating. A standard 10A fuse handles devices drawing up to 120 watts; exceeding this causes overheating. Calculate total wattage–compressors, inverters, or LED arrays–and distribute loads across dedicated circuits if necessary. Ignoring this leads to melted insulation at crimp points or intermittent power loss during startup surges.
Using undersized gauge wire creates resistance hotspots. For 10A currents, 16 AWG wire suffices; 20A demands 12 AWG. Skimping on thickness results in voltage drops, causing dim lights or slow charging speeds. Secure terminal blocks with solder or automotive-grade crimp connectors instead of twisting wires–vibration loosens loose joints over time, creating arcing hazards beneath dash panels.
Neglecting strain relief causes wire fatigue near mounting points. Route cables away from sharp edges, moving components, or heat sources like exhaust manifolds. Use grommets when passing through firewall holes and secure excess length with adhesive-lined clips. A single pinched wire during installation can corrode internally, failing silently months later when least expected.
