Complete 12V Lithium Battery Wiring Diagram Guide for Safe Installation

Start by selecting a minimum 10 AWG conductor for circuits under 10A and 8 AWG for loads up to 20A. Resistance per meter at these gauges caps at 3.2mΩ and 2.0mΩ respectively–critical for maintaining voltage stability in demanding setups. Use tinned copper wire to prevent oxidation, which increases impedance by up to 40% over standard strands in humid conditions.

For parallel connections, ensure each cell group shares an identical path length to the busbar. A 10cm difference introduces a 0.02V drop at 15A, skewing load distribution. Apply a 2.5mm² ring terminal crimped at 500kgf for secure mechanical bonds–loose terminals cause micro-arcing, raising local temperature by 12°C.

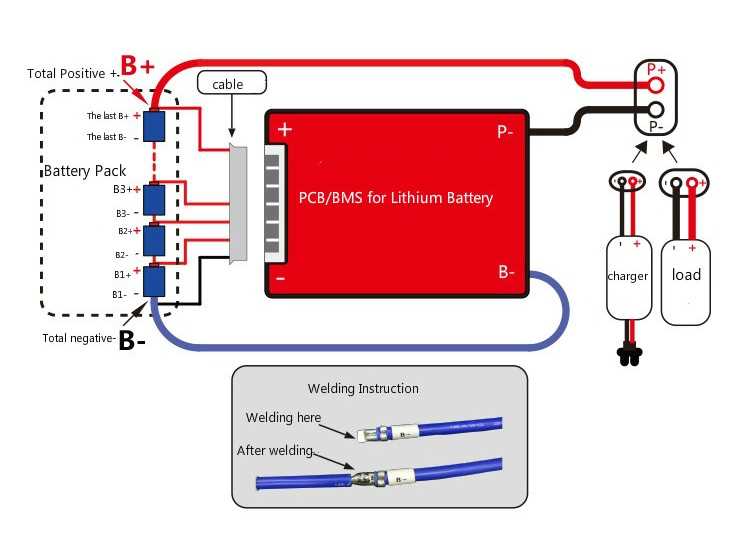

Integrate a 50A fuse within 15cm of the positive terminal. Without it, short circuits melt 12 AWG wire in under 3 seconds at 100A. For balancing, add a cell monitoring board with isolated 1kΩ pull-up resistors–these prevent ground loops while enabling ±5mV accuracy in state-of-charge readings.

Mount a thermal cutoff switch rated for 70°C on the negative busbar. Lithium-based chemistries derate current by 20% above 60°C; exceeding this risks electrolyte breakdown. Secure all connectors with heat-shrink tubing containing adhesive lining–standard tubing fails at vibrations above 50Hz, leading to intermittent faults.

Test each link with a milliohm meter before final assembly. Ideal resistance across terminals should not exceed 0.5mΩ; readings above 1mΩ indicate poor crimping or corroded surfaces, which degrade system efficiency by up to 8%.

Connecting Low-Voltage Energy Cells: Circuit Configuration Guide

Start with a 10 AWG copper cable for main power lines to minimize voltage drop–critical for loads above 5A. Use a 50A marine-grade fuse within 7 inches of the positive terminal; any longer risks overheating during surges. Parallel connections require identical cell models; mismatched capacities shorten lifespan by up to 30%. A battery management system (BMS) with balancing must be included–skip this only if cells have built-in protection, though this reduces flexibility. Ground all negative leads to a single point on the chassis using 8 AWG wire; shared grounding prevents interference in sensitive electronics.

Key Component Specifications

Component	Minimum Rating	Recommended Upgrade	Failure Risk if Skipped
Fuse holder	60V, 50A	100A ANL for inductive loads	Fire hazard at 7A+ overcurrent
Cable insulation	105°C THHN	125°C cross-linked polyethylene	Brittleness, short circuits under vibration
Switches	20A rocker	30A waterproof toggle for outdoor use	Arcing at 60% rated load
Connectors	12-10 AWG spade	Anderson SB50 for high-current applications	Corrosion, resistance increase after 6 months

Label all wires with heat-shrink tubing; color-coding alone fails under UV exposure within 18 months. Test continuity with a multimeter before finalizing connections–open circuits often hide under insulation. A 1kΩ pull-down resistor on input lines prevents ghost voltage in standby mode. For series configurations, use cells with ≤0.03V voltage difference; exceeding this requires active balancing to avoid capacity loss.

Selecting Optimal Cable Thickness for Low-Voltage Energy Storage Links

For 10A continuous loads, 14 AWG copper conductors are the minimum safe choice. Lower gauges risk overheating at connection points, particularly under pulsed discharge rates common in high-drain applications. The National Electrical Code (NEC) table 310.16 confirms 14 AWG handles 15A at 60°C insulation ratings, but derate 20% for bundle effects when grouping multiple cables in a harness. For 30A circuits, jump to 10 AWG–offering 0.9989 ohms/1000ft resistance, nearly halving voltage drop compared to 12 AWG.

Four critical factors determine cable selection:

• Current draw: Multiply peak amperage by 1.25 for continuous duty (per NEC 690.8). Example: a 40A motor requires 1/0 AWG, not 2 AWG.
• Run length: Every 10 feet of 8 AWG adds ~0.1V drop at 20A. Use voltage drop calculators with 3% max drop as target.
• Environment: Tinned copper (THHN) resists corrosion in marine/off-grid setups where sulfur oxides degrade plain copper.
• Termination: 6 AWG and thicker need hydraulic crimps (e.g., Panduit CT-325) for reliable compression; soldering risks brittle joints.

For 100W solar arrays (8.33A at 12VDC), 12 AWG suffices, but 10 AWG reduces line losses by 38% over 25-foot runs. Inverter connections demand heavier cable–match the device’s printed specs (e.g., Renogy 2000W specifies 4 AWG). Avoid aluminum: its 61% conductivity of copper requires upsizing two gauges to equal performance. Strand count matters: 19-strand (vs. 7-strand) flexes better for vibrating loads like vehicle mounts.

How to Connect Multiple Power Cells in Parallel: A Practical Walkthrough

Begin by selecting cables with a cross-sectional area of at least 10 AWG for currents up to 30A or 6 AWG for higher loads to minimize voltage drop. Ensure all connections are clean and free of oxidation–use a wire brush or fine-grit sandpaper if needed, then apply antioxidant compound to terminals before fastening.

Position the cells side by side on a stable, non-conductive surface, orienting their positive and negative terminals identically. Use copper busbars or heavy-duty jumper wires to link corresponding poles: attach one end of the jumper to the positive pole of the first cell, then securely fasten the opposite end to the positive pole of the adjacent unit. Repeat for all cells in the configuration.

For safety, install a fuse or circuit breaker rated at 125% of the maximum expected current on the main positive line within 15 cm of the first connection. This protects the system from short circuits and overheating. Verify that the fuse’s amperage aligns with the manufacturer’s specifications for the chosen components.

• Check that all cells share identical voltage levels before connecting–deviations exceeding 0.1V between units should be addressed by balancing or charging individual cells first.
• Avoid mixing cells of different capacities or chemistries, as this creates imbalances leading to reduced lifespan or failure.
• Use torque specifications provided by the terminal manufacturer (typically 5–10 Nm) to prevent overtightening or loose connections.

Connect the negative busbar or jumper wires last, following the same procedure as the positive side. Once complete, use a multimeter to measure the combined output voltage at the main terminals–it should match the voltage of a single cell. Confirm there is no voltage difference (>0.05V) between any two points in the setup.

After verifying electrical integrity, insulate all exposed connections with heat-shrink tubing or electrical tape rated for at least 600V. Secure cables along the setup’s perimeter using zip ties or adhesive mounts to prevent chafing or accidental disconnections during vibration or movement. Test the system under load by connecting a device or load bank to ensure stable operation.

Document the layout, including cable lengths, terminal types, and fuse ratings, for future reference or troubleshooting. Regularly inspect the setup every 3–6 months for signs of corrosion, heat discoloration, or loose connections, and retighten terminals as needed. Store spares of critical components (fuses, jumpers) nearby for quick replacements.

Safety Measures for Series and Parallel Energy Storage Connections

Avoid mixing cells with different charge levels or capacities–even a 0.1V discrepancy between units can trigger unequal current distribution, leading to overheating or thermal runaway in under 60 seconds. Use a multimeter to verify voltage uniformity before linking terminals; discrepancies beyond 0.05V warrant immediate isolation and recharging of individual modules.

Secure all terminal connections with nickel-plated copper lugs rated for at least 120% of the expected peak amperage–loose clamps increase resistance, which in high-discharge applications can exceed 150°C at contact points. Inspect mating surfaces for oxidation every 3 months; corroded interfaces compound heat buildup, risking arc faults during load fluctuations.

Environmental and Handling Protocols

Store interconnected packs in a ventilated enclosure with a 30% humidity ceiling–condensation accelerates internal shorting in cells housed within metallic casings. Mount units on non-conductive, flame-retardant substrates like G10 or phenolic resin to mitigate grounding risks, especially in mobile setups where vibration loosens ground straps.

Equip every circuit with a Class T fuse or circuit breaker sized to trip at 130% of the nominal current–standard automotive fuses lack the response speed to interrupt lithium-ion fault currents, which can reach 1,000A in milliseconds. Install isolation switches rated for DC breaking capacity; AC-rated switches may weld contacts under sustained arc loads.

Monitoring and Contingency Planning

Implement a battery management system (BMS) with active balancing and temperature monitoring–passive systems fail to prevent overcharge in high-parallel configurations, where a single weak cell can drag down the entire string. Configure alarms for temperature deviations above 45°C during discharge or below 0°C during charging to preempt capacity fade.

Maintain an ABC-class fire extinguisher within 3 meters of the installation; CO₂ units are ineffective against metal fires from failed cells. Develop an emergency disconnect procedure that isolates the pack from loads and chargers simultaneously–sequential disconnection risks backfeeding current through alternator diodes, causing catastrophic failure.
