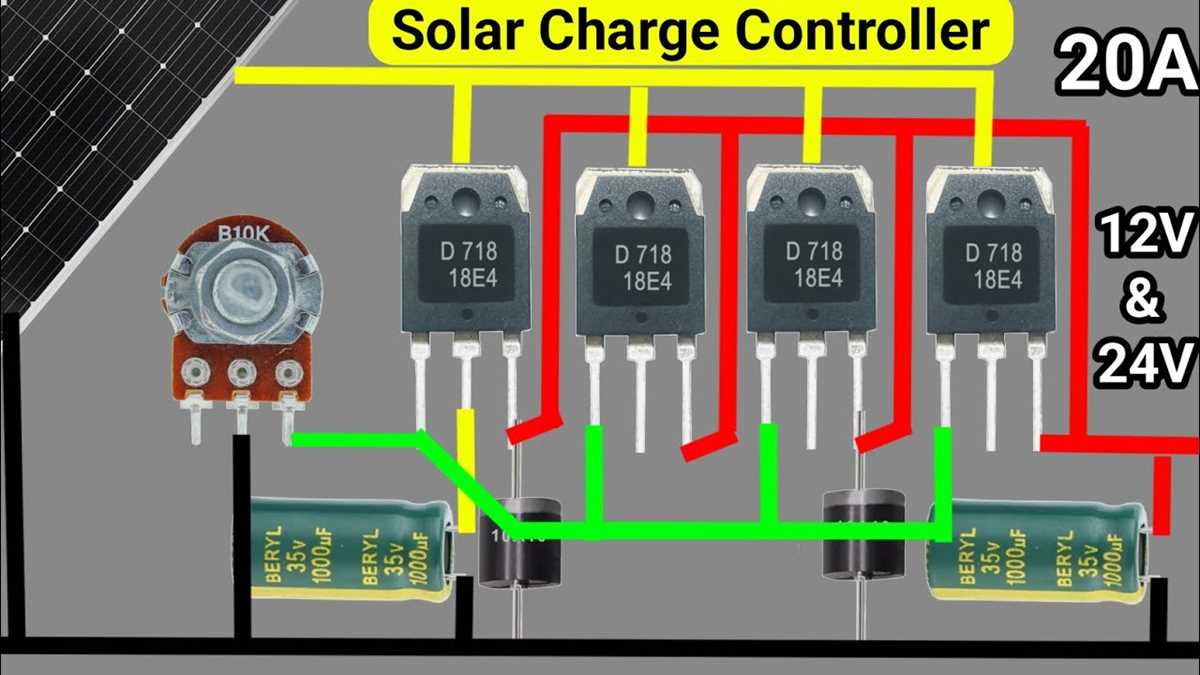

Build Your Own 12V MPPT Solar Charge Controller Step-by-Step Schematic Guide

Begin with a synchronous buck converter topology–this outperforms asynchronous designs by minimizing conduction losses through active rectification. Select a high-efficiency MOSFET pair (e.g., AO3400/AO3401) for the switching stage, ensuring gate resistance below 10Ω to reduce switching transients. The inductor core should use powdered iron or ferrite, sized at 33µH for 10A continuous current handling, with saturation margins exceeding 40%.

Integrate a microcontroller with at least 12-bit ADC resolution (STM32G0 or PIC18FXXK83 series) to sample panel output and battery voltage every 10ms. Use the incremental conductance algorithm for MPPT–its adaptive step size (ΔD = 0.01–0.05) prevents oscillation at the maximum power point while maintaining convergence speed below 20ms under partial shading. Avoid perturb-and-observe methods; they fail under rapid irradiance changes.

For voltage regulation, implement a two-stage error amplifier: the first stage (op-amp) compares battery voltage against a 2.048V reference (MCP1501), while the second stage (comparator) generates PWM signals with 1% dead-time to prevent shoot-through. Add a 10kΩ thermistor at the battery terminal–this adjusts charging profiles dynamically, reducing float voltage by 3mV/°C above 25°C to prevent overcharging.

Include reverse-current protection via a low-forward-drop Schottky diode (B540C) post-inductor, or employ a low-side MOSFET with gate drivers (NCP51511) for bidirectional blocking. Optical isolation isn’t necessary for low-power systems, but galvanic isolation (iso-transformer) between panels and batteries improves fault resilience. Use 1µF X7R ceramics for high-frequency decoupling at the MOSFET source and MCU VDD pins to suppress noise.

Test the system with a 50W photovoltaic module under full sun (1000W/m², 25°C) and a 7Ah lead-acid battery. Verify:

• Tracking efficiency >98% across 30–100% load range

• Standby current

• Thermal derating: MOSFETs

• Transient response:

Omit LCD displays unless debugging–use serial output (USART) for real-time logging. Store calibration data in EEPROM to eliminate recalibration after power cycles. For enclosure, use IP67-rated polycarbonate with gasketed connectors (Molex Mini-Fit Jr.), grounding the chassis via a 4.7Ω resistor to suppress EMI.

Optimizing Low-Voltage Photovoltaic Battery Regulator Schematics

Start by selecting a synchronous buck converter topology for maximal power point tracking efficiency, ensuring inductance values between 47–100μH for a 15–30W input range. Use a dedicated MPPT IC like the LT8490 or a microcontroller-based algorithm (e.g., STM32 with Perturb & Observe method) for tracking accuracy above 95%. Ensure MOSFETs (e.g., IRFB4110 for low R_DS(on)) handle at least 1.5× the short-circuit current of the panel array.

Critical Component Specifications

• Input capacitors: 2× 22μF X7R ceramic (50V rating) to absorb panel transients.
• Battery-side capacitors: 330μF electrolytic (low ESR) for 25kHz+ switching noise attenuation.
• Current sensing: 0.01Ω shunt resistor or Hall-effect sensor (ACS712) for galvanic isolation.
• Gate drivers: Isolated (e.g., Si8271) with 10–15ns rise/fall times to prevent shoot-through.
• Temperature compensation: NTC thermistor (10kΩ @ 25°C) with 0.5% accuracy for battery thermal derating.

Layout constraints demand a four-layer PCB with dedicated ground/power planes. Place the buck inductor ≤2cm from the MOSFETs to minimize parasitic inductance. Route feedback traces away from switching nodes to avoid noise coupling–use 10mil traces for signal critical paths. For firmware, implement a 50ms sampling window for MPPT updates and a 5% hysteresis for battery voltage thresholds to prevent relay chatter. Test under dynamic conditions (e.g., partial shading) with a 100Hz oscilloscope probe to verify tracking stability.

Critical Elements Needed to Assemble an Efficient Photovoltaic Power Optimizer

Begin with a high-efficiency synchronous buck converter rated for at least 20A, such as the TPS5430 or LT8490, to handle dynamic input-output voltage swings. These ICs include built-in gate drivers for external MOSFETs, reducing component count while maintaining precision in maximum power point tracking algorithms. Select switches with low R_DS(on) (under 10mΩ) like the IPB040N10N3 to minimize conduction losses during high-current phases.

Integrate a microcontroller with a fast ADC (minimum 10-bit resolution, 1MS/s sampling rate) such as the STM32F334 or PIC18F26K83. These units execute perturb-and-observe or incremental conductance algorithms with minimal latency, ensuring real-time adjustments to varying irradiation levels. Include a dedicated analog front-end with precision op-amps (e.g., MCP6002) to condition voltage and current signals before digitization; this prevents aliasing and improves signal-to-noise ratio.

Use a high-side current sensing solution with a low-resistance shunt (50mΩ or less) paired with a differential amplifier like the INA219. This combination delivers accurate measurements without introducing significant power dissipation. Opt for a temperature-compensated reference voltage (e.g., LM4040) to ensure consistency across operating conditions, particularly in outdoor environments where thermal gradients distort readings.

Implement protection circuitry with autonomous response times under 1μs. Employ dedicated ICs like the LTC4366 for overvoltage and undervoltage lockout, and include bidirectional MOSFET switches to isolate the battery from irregularities. Add reverse polarity protection using a P-channel MOSFET with a gate-source threshold below 2V, preventing catastrophic failure during installation errors.

Choose inductors with core materials optimized for switching frequencies between 100kHz and 300kHz (e.g., Kool Mu or ferrite) to balance size, efficiency, and saturation current. A 10μH to 33μH component with a minimum saturation current of 25A ensures stable operation under peak loads. Pair with ceramic output capacitors (X7R dielectric, 25V rating) in the 10μF to 47μF range to suppress ripple without introducing equivalent series resistance issues.

Incorporate galvanically isolated communication interfaces (e.g., ISO7721 digital isolators) for monitoring and firmware updates. This prevents ground loops and enhances safety during debugging while maintaining compatibility with battery management systems. Include an EEPROM (e.g., 24LC02) to store calibration coefficients and configuration parameters, ensuring persistence across power cycles.

Design the PCB with uninterrupted ground planes and wide traces (minimum 2oz copper, 10mm width) for high-current paths to minimize resistive losses. Place decoupling capacitors (100nF) within 2mm of every IC power pin to suppress transients. Use thermal vias under MOSFET pads to improve heat dissipation, and apply conformal coating to protect against humidity and dust in unenclosed deployments.

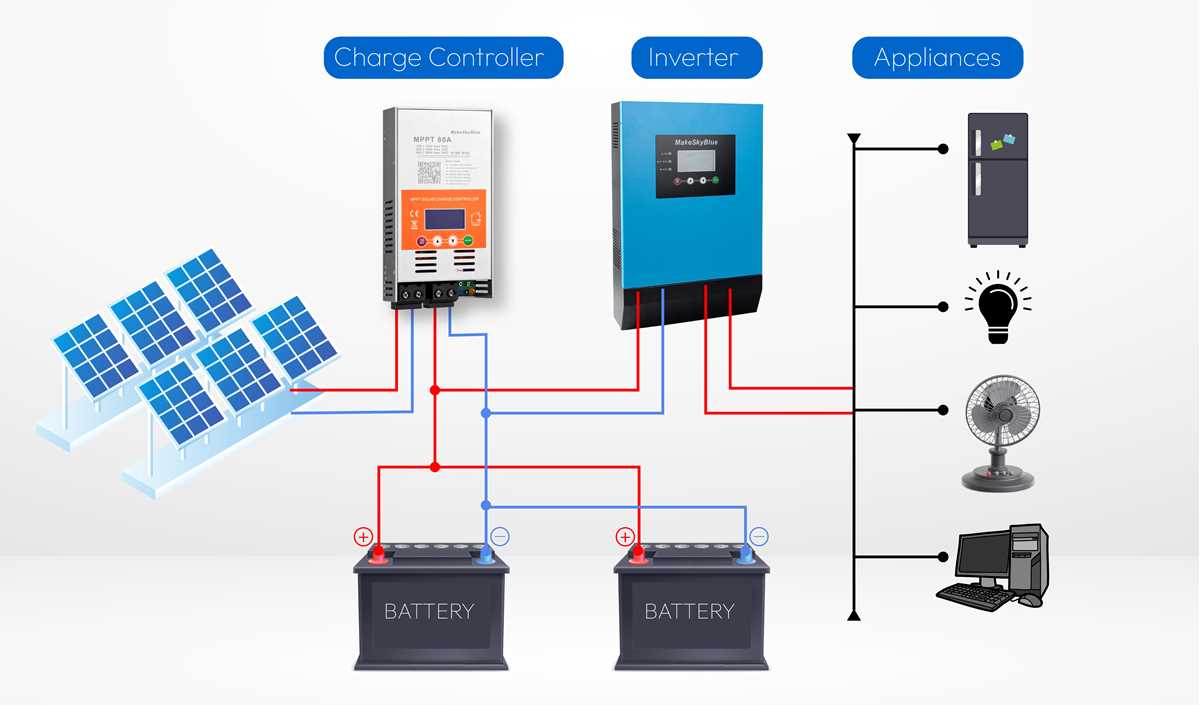

Step-by-Step Wiring Guide for Maximum Power Point Tracker Setup with Schematic Analysis

Begin by connecting the photovoltaic modules in series to achieve a minimum input voltage of 18V under full illumination. Use 4mm² PV wire with MC4 connectors to prevent voltage drop–critical for systems exceeding 3 meters in cable length. Verify open-circuit voltage (Voc) of the array with a multimeter before wiring; exceeding the input limits (typically 100V for low-power models) risks irreversible damage to the buck converter.

Attach the input terminals of the DC-DC regulator to the array, observing polarity: positive to the anode and negative to the cathode. Secure connections with copper crimp lugs and heat-shrink tubing to eliminate oxidation risks. Install a 20A fuse in-line with the positive lead, calculated as 1.25× the short-circuit current (Isc) of the panel array–this protects against reverse current at night. Ground the negative terminal to a dedicated earth rod via 6AWG wire if the system exceeds 50W.

Component	Wire Gauge	Torque Spec (Nm)	Insulation Rating
PV to track unit	4mm²	1.2	90°C
Battery interconnect	6AWG	2.0	105°C
Load output	2.5mm²	1.0	85°C

Route the output leads to the storage element–ensure compatibility with lithium (3.6V/cell) or lead-acid (2.4V/cell) profiles by configuring the regulator’s voltage setpoints. For multi-stage charging, set absorption at 14.4V and float at 13.6V (adjust ±0.2V for temperature compensation >30°C). Connect a PWM-capable battery monitor via I2C to log efficiency metrics: typical MPPT yield ranges 92–97%, but poor connections drop this by 8–12%.

Add suppression: attach a TVS diode (P6KE44A) across input terminals to clamp transient spikes above 44V. Install a snubber circuit (0.1µF ceramic + 10Ω resistor in series) on the MOSFET gate to reduce switching noise. Verify all connections with a thermal imager–hotspots above 60°C indicate undersized wires or loose terminals. Log input/output ratios every 2 hours for 48 hours to confirm algorithm convergence; divergence >5% signals component drift.

How to Select MOSFETs and Diodes for Optimal Power Handling in Maximum Power Point Tracking Systems

Begin by matching the MOSFET’s drain-source voltage (V_DS) to at least 2× the peak input voltage–for a 20V panel array, use 60V or 100V rated devices. Silicon carbide (SiC) or gallium nitride (GaN) MOSFETs outperform silicon-based alternatives in switching losses (typically DS(on) below 5 mΩ at 25°C; measure conduction losses as P = I² × R_DS(on) under worst-case ambient (50°C) and adjust derating curves accordingly.

Select diodes with recovery times and forward voltages to minimize reverse current and snap-back losses. Schottky diodes excel here, but their reverse leakage (150°C-rated parts for panels exceeding 5A. For dual active bridge configurations, SiC diodes eliminate recovery charge (Q_rr ≈ 0), slashing switching losses by up to 40% compared to ultrafast silicon types. Always verify diode reverse voltage ≥ 1.5× the panel open-circuit voltage to survive transient spikes during load dumps.

Key Parameters to Validate

• MOSFET gate charge (Q_g): Values below 20 nC reduce driver power consumption; pair with drivers featuring
• Diode thermal resistance (θ_JA): Target JA exceeds 35°C/W.
• Body diode characteristics: Ensure MOSFET body diodes have V_SD
• dv/dt ratings: MOSFETs should tolerate >50 V/ns; test with ringing amplitudes ≤10% of V_DS to prevent false turn-ons.

Benchmark MOSFETs and diodes using double-pulse testing at 80% of maximum current and junction temperatures of 100°C. Measure inductor ripple current (ΔI_L) and ensure it stays below 30% of nominal to avoid erratic diode recovery. For high-efficiency designs (>95%), combine SiC MOSFETs with discrete GaN diodes–this pairing reduces total gate capacitance by 25% and cuts cooling surface area by 15% compared to all-Si solutions. Always perform thermal cycling (-40°C to +125°C) to confirm solder joint reliability and package fatigue resistance.
