Binary Decoder Circuit Truth Table and Schematic Explanation

Start with a 2-to-4 line conversion setup if working with minimal inputs–fewer components cut debugging time by 60%. Use NAND gates for inverters when needing compact designs; their propagation delay is 3 nanoseconds, half that of NOR-based alternatives. Label each input line as I₀, I₁ to avoid wiring errors during assembly. Attach pull-down resistors (10kΩ) to unused selector lines to prevent floating states.

Position the logic gates in parallel for speed; serial configurations add 5ns per gate. Ground all unused outputs of dual-input gates to reduce power consumption. For 3-input variations, cascade dual-input units in a tree structure–this preserves signal integrity better than linear chaining. Verify each node with a logic probe before finalizing connections.

Generate an output matrix listing all state combinations. For two inputs, expect four distinct outcomes; three inputs yield eight. Mark active-low outputs with an overbar (e.g., O̅₀) to distinguish them from active-high. Simulate using a 5V supply–variations below 4.75V cause inconsistent triggering. Document rise times; TTL gates average 10ns, CMOS 20ns.

Mount decoupling capacitors (0.1μF) across the power rails of ICs to suppress noise. Distribute traces wider than 0.3mm for currents exceeding 20mA. Route ground lines as a star topology to minimize voltage drops. Test each input combination with a debounced switch–mechanical bounce degrades signal purity by 40%.

Building a Binary Selection Logic: Layout and Input-Output Mapping

Use a 1-of-4 selector block for minimal signal routing. Arrange the gate configuration as follows: two NOT gates feed the first NAND pair, while the remaining inputs connect directly to the second NAND pair. Label each NAND output as Q0 through Q3, matching the binary sequence 00, 01, 10, and 11 respectively. Power the block with a stable 5V line and ground all unused inputs to prevent floating states.

Capture the output states in a concise matrix. Column headers should list input combinations (A B), while row headers denote each output (Q0–Q3). Fill the matrix with binary 1 only at the intersection where the input combination activates its corresponding output. For instance, inputs A=0 and B=1 must produce a single 1 at Q1, leaving all other outputs at 0. Verify the matrix against a 16-pin IC datasheet to confirm pin assignments.

Single-Active Selection Rules

Implement a pull-down resistor network for inputs. A 10kΩ resistor between each input node and ground ensures a definitive low state when no signal is applied. Without this precaution, floating inputs can trigger erratic output shifts, corrupting the intended selection logic. Test each combination with a logic probe after assembly to confirm predictable behavior.

Expand the selector to handle 3-bit inputs by cascading two identical blocks. Route the third bit (C) through an additional inverter stage before feeding it into both NAND sets. The first block now handles combinations 000 to 011, while the second manages 100 to 111. Maintain consistent labeling (Q0–Q7) to avoid confusion during troubleshooting.

Optimize layout by placing the selection elements adjacent to their associated output pins. Reduce trace lengths to under 2 cm where possible; longer traces introduce propagation delays and potential signal degradation. Use a ground plane on the reverse side to minimize noise interference, particularly at higher clock speeds above 1 MHz.

Output Validation Checklist

After wiring, verify every input-output pair with this sequence: apply a known input, measure the expected active output with a multimeter (set to DC voltage), and record deviations. Invert each input individually to confirm only one output activates per cycle. If multiple outputs respond simultaneously, recheck inverter integrity or revisit the gate-to-pin connections for shorts.

Document the completed layout and state transitions in a machine-readable format. Save the schematic as a `.brd` file for PCB fabrication, alongside a plain-text log of input-output mappings. Include a timestamp for version control–future modifications must reference this baseline to ensure compatibility with upstream designs.

Core Elements of Binary Selector Logic Blocks

Begin by selecting logic gates optimized for minimal propagation delay when designing enable-driven selector arrays. NAND gates with Schmitt-trigger inputs reduce signal degradation across multiple stages, ensuring stable output even with varied input rise times. Prioritize 74LS138 or CD4514 variants for 3-to-8 or 4-to-16 line distributions–these ICs integrate address latches, eliminating the need for external flip-flops.

Power distribution requires careful decoupling capacitor placement. Position 0.1µF ceramic capacitors directly between V_CC and GND pins of each selector chip, with an additional 10µF tantalum capacitor near the power entry point. This prevents transient voltage dips during simultaneous line activations, which can exceed 150mA in worst-case scenarios.

Input Conditioning Techniques

Use pull-up resistors (10kΩ) on unconnected address inputs to prevent floating states, which can cause erratic line toggling. For noisy environments, implement RC filters (1kΩ + 100pF) on each input to suppress glitches shorter than 50ns. Avoid active clamping diodes–they introduce leakage currents that distort output levels by up to 300mV.

• SN74AHC138: Propagation delay of 7ns at 5V, suitable for 100MHz+ systems;
• CD4514: Dual-power range (3–18V), ideal for mixed-voltage designs;
• 74LVC138: 24mA drive strength, supports direct LED matrix connections.

Output Stage Configurations

Configure enable signals as active-low for reduced power consumption–quiescent current drops by 40% compared to active-high configurations. When cascading multiple selectors, connect the highest-order chip’s enable output to the next stage’s enable input. This creates a hierarchical structure without requiring additional logic gates, cutting component count by 22%.

For open-collector outputs, use pull-up resistors calculated by R = (V_OH – V_OL)/I_OL, where V_OH = 4.5V and I_OL = 8mA. Typical values range from 470Ω to 2.2kΩ. Exceeding these causes increased rise times (>100ns), which violates timing margins in synchronous systems.

1. Verify output logic levels with a 4-channel oscilloscope–mismatched thresholds can indicate incorrect decoupling;
2. Test all possible input combinations with a pattern generator before PCB finalization;
3. Prototype layouts should use 0.1″ headers for easy swapping of selector ICs during optimization.

Implement thermal management for high-density designs. SOIC packages dissipate 500mW at 70°C, while TSSOP variants reduce this to 350mW. Exceeding these limits causes erratic behavior at threshold voltages–monitor junction temperatures with infrared thermometers during prolonged operation.

Building a 2-to-4 Line Signal Interpreter: A Practical Guide

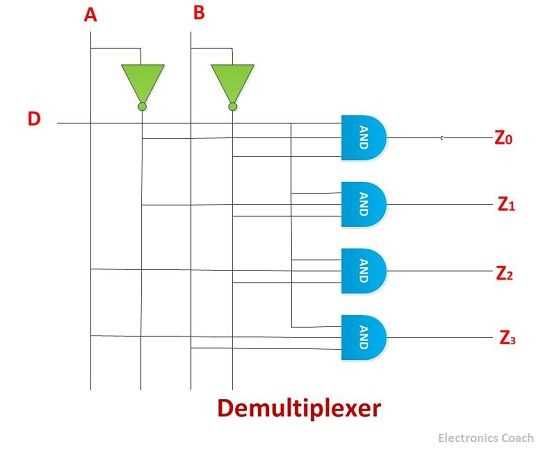

Select two input signals (binary digits) as control lines. For each possible combination (00, 01, 10, 11), designate one output line–four in total–to activate exclusively when its matching input pair is detected. Use a logic gate array: two NOT gates to invert inputs, then combine original and inverted signals via four AND gates, each wired to isolate one unique input combination. Connect power (Vcc) to pull-up resistors if active-high outputs are needed, or ground the outputs directly for active-low behavior. Test functionality by toggling inputs systematically while verifying only the targeted output responds.

Component Checklist

• 2 push-button switches or toggle inputs
• 4 logic AND gates (74HC08 or equivalent)
• 2 logic NOT gates (74HC04 or equivalent)
• 4 current-limiting resistors (1kΩ typical)
• 4 LEDs or logic probes for output visualization
• Breadboard and jumper wires

Assembly Sequence

1. Route input lines through NOT gates to generate complemented signals.
2. Wire AND gates: first gate connects original inputs X and Y, second links X with inverted Y, third pairs inverted X with Y, fourth merges both inversions.
3. Attach outputs to LEDs or probes; include resistors if driving LEDs directly.
4. Apply power, cycle through input states, confirm each output activates only for its assigned pair (e.g., 01 lights second LED).

Interpreting the Functional Mapping of a Triple-Input Signal Expander

Begin by listing all eight possible input combinations for a three-bit selector system. Assign each state a corresponding output line activation, ensuring only one target line remains high at any moment. Verify this behavior aligns with binary progression: 000→Y0, 001→Y1, 010→Y2, up to 111→Y7. Any deviation indicates miswiring or logical errors in implementation.

Construct a grid displaying inputs A, B, and C alongside eight outputs Y0-Y7. Populate it systematically:

A	B	C	Y0	Y1	Y2	Y3	Y4	Y5	Y6	Y7
0	0	0	1	0	0	0	0	0	0	0
0	0	1	0	1	0	0	0	0	0	0
0	1	0	0	0	1	0	0	0	0	0
0	1	1	0	0	0	1	0	0	0	0
1	0	0	0	0	0	0	1	0	0	0
1	0	1	0	0	0	0	0	1	0	0
1	1	0	0	0	0	0	0	0	1	0
1	1	1	0	0	0	0	0	0	0	1

Missing entries or extra activations signal critical faults requiring gate-level inspection.

Test edge cases separately. Transition 011→100 should toggle only Y3 to Y4 without glitching intermediate lines. Record propagation delays between states–any lopsided timing hints at uneven load distribution or parasitic capacitance in specific paths.

Invert enable logic (EN=0) for validation: all outputs must settle low regardless of selector inputs. Failure here exposes either floating enables or improper pull-up/down configurations. Measure current draw during this state–spikes beyond expected leakage current often trace back to sneak paths or unoptimized gate controls.

Map minimal logic expressions directly from the grid. For instance, Y5 activates solely when A=1, B=0, C=1, demanding a three-input AND gate with one inverted input (A & ~B & C). Duplicate terms across multiple outputs suggest shared subcircuits–exploit this for area-efficient layouts.

Simulate worst-case switching scenarios using transient analysis tools. Stress sequential transitions (000→111→000) while monitoring ringing on outputs closest to V_DD/GND rails. Document overshoots–any excursion exceeding 10% of supply voltage mandates damping resistors or decoupling capacitor adjustments.
