Complete 12V Toggle Switch Wiring Guide for DIY Projects
For any single-pole, double-throw (SPDT) or on-none-on rocker assembly rated at twelve watts or below, ground the common terminal (COM) to the negative bus or chassis first. This establishes a reliable return path and prevents floating voltage–critical when integrating resistive loads like LEDs or relays. Use 18-gauge stranded copper wire for connections under two amperes; switch to 16-gauge if the current exceeds this threshold to avoid voltage drop.
Power-in (V+) should connect to one of the switch terminals (often labeled NO or A), while the load attaches to the remaining terminal. If polarity reverses matter–say, for a reversible motor–wire the NC terminal to reverse direction. Always insert a blade fuse (matching the load’s current draw) within six inches of the power source, not after the switch, to protect the entire circuit from shorts.
For momentary contact setups (push-to-operate), verify the spring return mechanism before soldering. Apply heat-shrink tubing or liquid electrical tape over exposed joints to prevent corrosion or accidental shorts in high-vibration environments. Test continuity with a multimeter in resistance mode before energizing: readings below 0.5 ohms confirm a solid connection, while infinite resistance suggests an open circuit.
When mounting the actuator on panels thicker than 3 mm, use a threaded spacer to avoid mechanical binding. For water-exposed installations, opt for a sealed snap-action model with a nitrile rubber gasket (IP67 rated minimum); non-sealed types will corrode within weeks if condensation forms. Keep wires bundled at least 5 cm away from sharp edges or moving parts to prevent chafing.
How to Connect a Basic Control Mechanism in Low-Voltage Circuits
Attach the positive lead of your power source directly to the common terminal of the lever. This terminal is typically marked with labels like “C” or “COM” and ensures current flows through the actuator when engaged. Use a wire gauge of at least 18 AWG for most automotive or marine applications to prevent voltage drop under load.
Identify the normally open (NO) and normally closed (NC) contacts before proceeding. In momentary configurations, the NO contact closes only while the lever is held, making it ideal for starter motors or horn circuits. The NC contact remains connected until the lever is flipped, suitable for dashboard lights or safety interlocks. Label each wire at both ends with heat-shrink tubing for future diagnostics.
For illumination, splice a small LED or bulb into the auxiliary terminal if available. A 220-ohm resistor in series protects the LED from excess current. Ground the negative terminal of the bulb to the chassis or a dedicated earth point–never rely on screw terminals alone for grounding, as corrosion can disrupt the connection over time.
Test the circuit with a multimeter before finalizing connections. Set the meter to continuity mode and verify the lever toggles between contacts cleanly. Audible clicks indicate proper mechanical engagement, while erratic readings suggest misaligned internals requiring disassembly and adjustment. Failsafe designs, like spring-loaded levers, prevent partial engagement in high-vibration environments.
Use crimp connectors instead of solder for field repairs. Solder joints can fracture under thermal cycling, whereas crimped terminals maintain flexibility. Apply dielectric grease to terminals exposed to moisture, such as boat panel installations, to inhibit oxidation. For dual-throw levers, wire the secondary circuit with a separate fuse rated 10% above the primary circuit’s draw.
Install anti-vibration mounts if the control mechanism will operate near engines or machinery. Standard plastic housings crack under sustained stress; opt for metal-enclosed variants in industrial settings. Document the circuit layout with a hand-drawn schematic on waterproof paper, including fuse ratings, wire colors, and terminal labels for troubleshooting during power failures.
How to Identify Terminals on a Low-Voltage Lever Control
First, examine the base or casing for engraved markings. Most two-position levers include symbols such as “ON“, “OFF“, or “COM” (common). If absent, locate the input terminal–typically the lone lug separated from a pair–using a multimeter in continuity mode: probe each contact while flipping the mechanism to detect the single common post, which remains connected in both positions.
Common Terminal Configurations
SPST variants contain two terminals, with the common always connected to one pole. SPDT designs incorporate three–center common, plus two outputs–enabling selector functionality. DPST and DPDT expand this with twin or quadruple sets, respectively; their commons align vertically or horizontally depending on manufacturer (e.g., Carling or NKK). Check datasheets for pinouts if markings erode.
For unmarked levers, apply 5VDC across suspected poles and measure dropout voltage. The input terminal registers full source voltage, while outputs toggle between source and zero. Parallel rows in DPDT confirm twin commons, each sharing identical switching behavior. Always isolate the circuit before testing to prevent shorts.
Step-by-Step Connection Guide for Single-Pole Control Device
Identify the power source terminal and load terminal before making any connections. Use a multimeter to verify the positive lead from your battery or power supply–it should register at the expected voltage (e.g., 12.6V for a fully charged lead-acid unit). Connect this lead directly to one side of the actuator using 18AWG or thicker stranded copper wire, ensuring minimal resistance. Secure the connection with a crimped ring terminal or solder joint, then insulate with heat-shrink tubing to prevent short circuits.
| Component | Wire Gauge (AWG) | Max Current (A) |
|---|---|---|
| Actuator input | 18 | 10 |
| LED indicator | 22 | 0.5 |
| High-power load (e.g., 50W) | 14 | 20 |

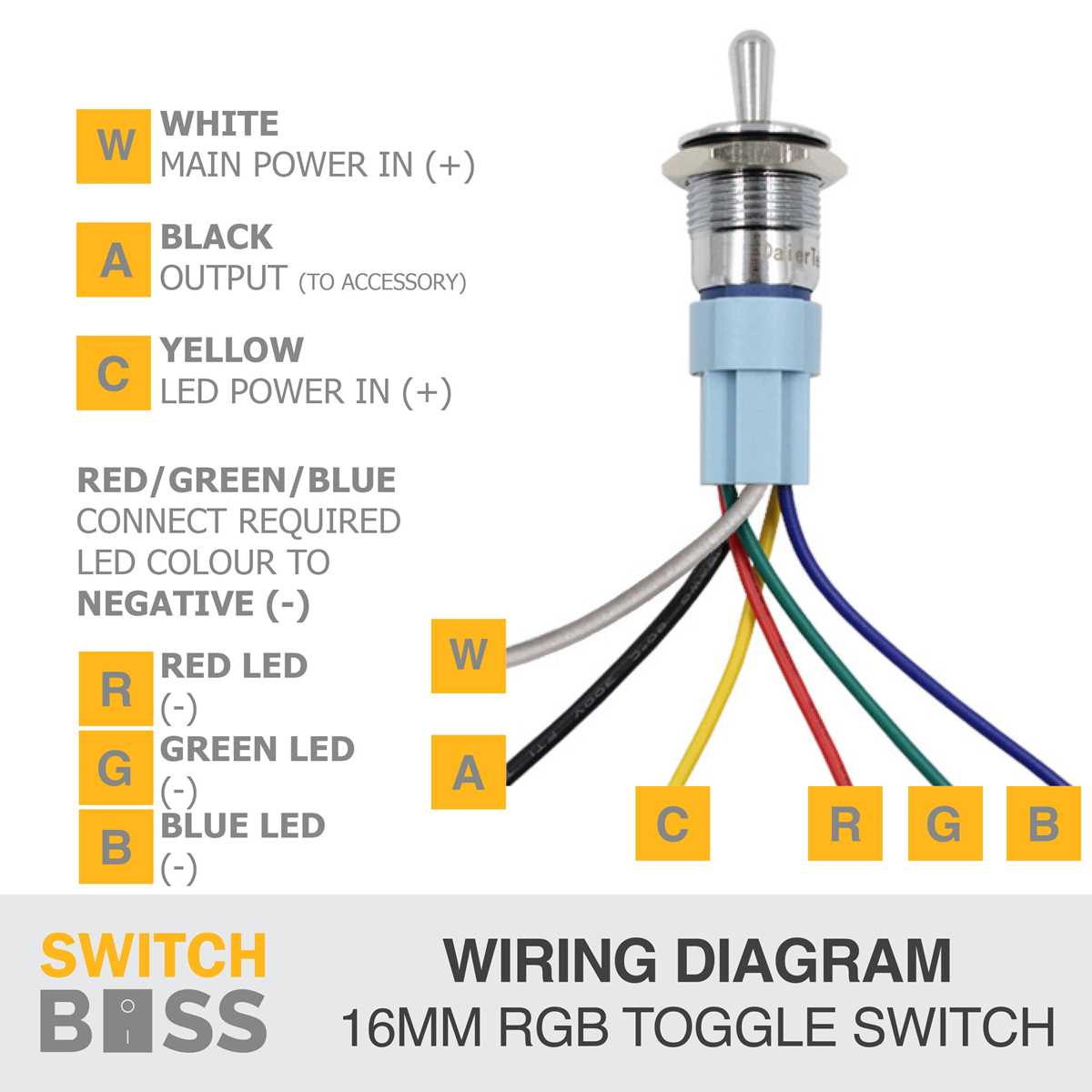

Route the second wire from the opposite side of the actuator to the load–this could be a lamp, solenoid, or any DC accessory. For inductive loads like motors or relays, add a flyback diode (1N4007) across the load terminals, cathode to positive, to suppress voltage spikes. If using an illuminated control device, connect the LED’s anode to the input terminal and cathode to ground; most built-in LEDs draw 20mA at full brightness. Double-check all connections with a continuity tester before applying power, and use a 5A fuse in-line with the positive lead for overcurrent protection.
Configuring a Dual-Pole Double-Throw Control for Parallel Electrical Pathways
Split the central terminal of a DPDT into two isolated lanes by connecting each middle pin to separate power rails or loads. This arrangement allows simultaneous control of two independent circuits with a single actuator–ideal for reversing polarity on a motor or toggling between two discrete signals without interference. Use the outer pins (1 and 6 on standard layouts) as switchable contacts: link them to either ground or live rails depending on the desired path activation. For safe operation, fuse each lane individually (5A per side for typical automotive uses) and label connections to prevent reversed hookups.
Key Precautions for Reliable Operation
- Verify terminal assignments with a multimeter before applying current–DPDT layouts vary by manufacturer.
- Seal unused terminals with heat-shrink to prevent shorting against chassis or adjacent components.
- For inductive loads (solenoids, relays), add flyback diodes across coils to suppress voltage spikes.
- Ground the actuator’s mounting bracket if the housing is conductive–this avoids stray paths through device enclosures.
- Test all pathways under load; some DPDT units exhibit contact bounce on low-amperage signals (
Integrating a Control Lever into Low-Voltage Circuits for Illumination or Auxiliary Activation

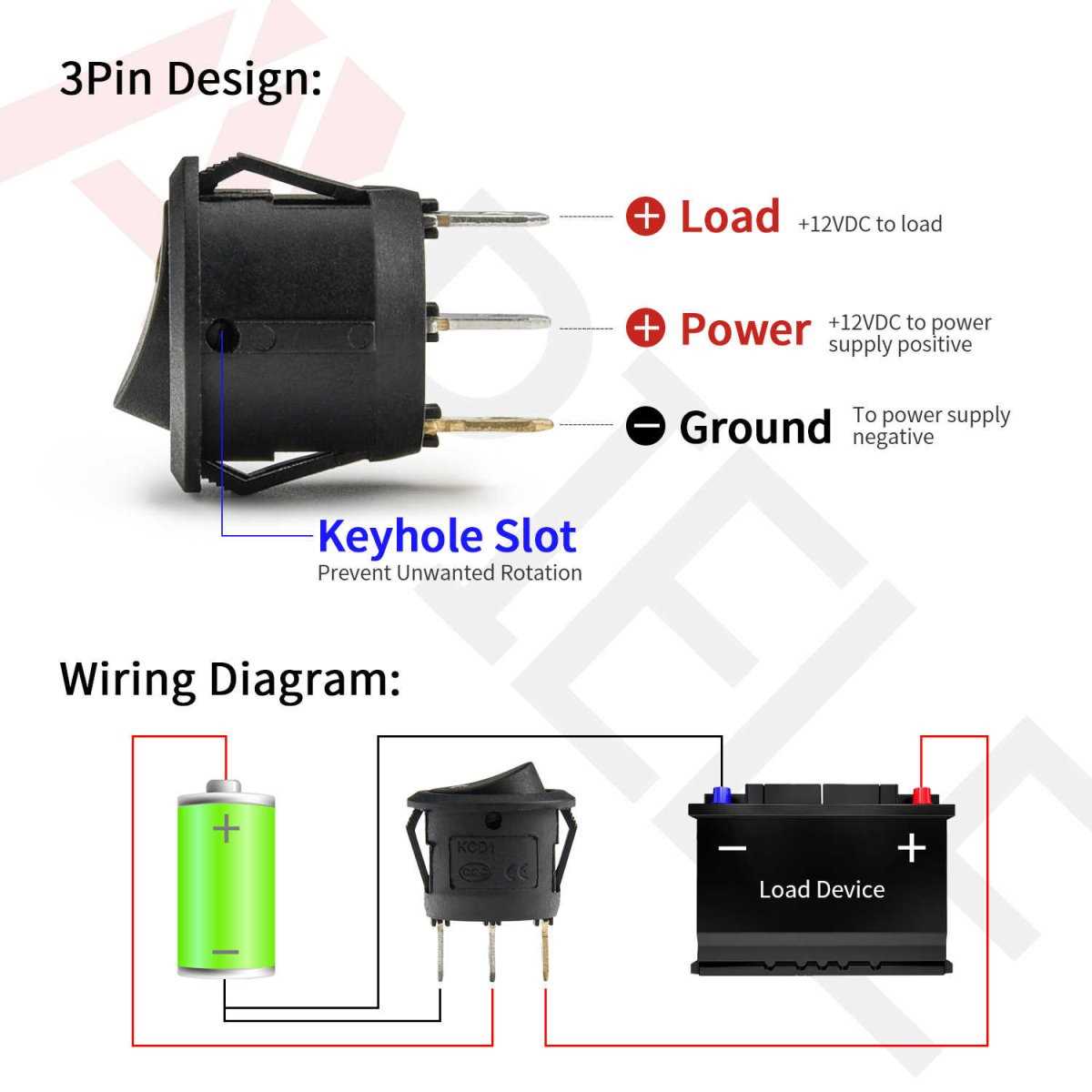

Begin by identifying the power source’s positive terminal–marked in conventional setups–and strip 5mm of insulation from the conductor. Attach one end of a 18-22 AWG lead to this terminal using a crimp connector or solder joint, ensuring minimal resistance. The opposite end of this lead must connect to the central lug of the lever mechanism; verify polarity if the device includes an internal LED indicator, as reversed connections risk damaging the diode.
For loads exceeding 5 amperes, bypass direct actuation by engaging a four-pin relay. Mount the relay within 30cm of the lever to reduce voltage drop. Route the lever’s output terminal to the relay’s coil input; the remaining coil terminal returns to ground. Configure the relay’s common and normally open contacts in series with the load–whether incandescent, LED, or solenoid–and the power source. Utilize 16 AWG wire for relay circuits to accommodate inrush currents.
Grounding demands attention: isolate the lever’s ground from high-current returns to prevent interference. A dedicated 12-gauge return path from the load to the battery’s negative terminal minimizes potential fluctuations. If integrating into a vehicle, bond all ground points to the chassis with M6 bolts and star washers, avoiding paint or corrosion at contact surfaces. Test continuity with a multimeter before energizing.
Resistance values dictate performance. Measure the lever’s internal resistance–typically under 0.1 ohms–using a four-wire method. If interfacing with a halogen bulb drawing 8A at 14.4 volts, anticipate a 1.2V drop across 1 meter of 16 AWG wire. Compensate by upsizing to 14 AWG or shortening the run. For pulse-width modulated loads, snub the relay coil with a flyback diode (1N4007) oriented cathode-to-positive to suppress inductive spikes.
Mechanical strain relief extends lifespan. Secure wires with nylon loom or spiral wrap, especially near pivot points. Route harnesses away from heat sources–exhaust manifolds, radiators–and sharp edges. Apply dielectric grease to connectors exposed to moisture. When mounting, avoid threading screws into plastic housings; use threaded inserts or adhesive-backed brackets for metal panels.
Final verification involves a load test. Power the circuit and actuate the lever, observing the load’s response. Listen for relay chatter–indicative of insufficient coil voltage or poor ground–or lever arcing, which suggests contacts rated below the load’s current. Adjust fuse ratings to 125% of continuous load: a 10A load requires a 15A fuse. Document all connections with labeled heat-shrink tubing for future diagnostics.
