Complete Guide to Wiring a 12V Wind Turbine with Diagrams

Begin with a charge controller rated for 30A or higher–this prevents overloading during peak output. Use 10 AWG copper wire for the main DC feed; thinner gauges risk voltage drop under load. Connect the generator’s positive terminal directly to the controller’s input, then route to a deep-cycle battery with at least 100Ah capacity. Avoid standard car batteries–they degrade quickly under cyclic charging.

Install a 40A fuse within 30 cm of the battery. Omit this step and risk fire hazards from short circuits. For grounding, use an 8-foot copper rod driven 2 meters into moist soil, attached with 6 AWG bare wire. Dry or rocky terrain demands two rods spaced 2 meters apart.

Mount blocking diodes on each generator phase to prevent reverse current flow at low RPM. Schottky diodes work best–their lower forward voltage drop preserves efficiency. Add a dump load (e.g., a 50W resistor bank) to dissipate excess energy when battery charge reaches 95%. Without this, controllers may overheat and fail.

For RPM monitoring, attach a Hall effect sensor to the rotor shaft. Calibrate it to trigger at 600 RPM–below this, power output drops sharply. Route sensor wires in shielded cable to avoid interference. Connect LED indicators to the controller’s output; a steady green confirms stable voltage, while flickering signals turbulence or misalignment.

Test each connection with a multimeter set to 20V DC range before applying full load. Inspect crimp splices with a pull test–20 kg force ensures longevity in high-vibration environments. Seal all outdoor junctions with heat-shrink tubing and dielectric grease. Exposed terminals corrode within months in coastal or humid climates.

Connecting Low-Voltage Alternator Systems: A Practical Guide

Begin by grounding the generator’s metal frame directly to a copper rod driven at least 2.4 meters into damp soil. Use 10 AWG bare copper wire clamped tightly with bronze hardware; oxidation at the joint will degrade performance within weeks. Verify soil resistivity with a meter–values above 50 ohm-meters require multiple rods spaced at 1.8 times their depth.

Route charge cables inside rigid EMT conduit if the alternator sits more than 15 meters from the battery bank. EMT’s threaded couplings prevent moisture ingress better than PVC, especially in coastal zones. Secure every 90° bend with a metal junction box and seal the conduit’s top opening with closed-cell foam. Inside the conduit, run three 8 AWG THHN wires: positive, negative, and a dedicated charge controller sense line.

Install a 30-amp MPPT regulator between the blade assembly and the storage cells. Mount it vertically, heatsink fins upward, at least 30 cm above any horizontal surface to ensure convective cooling. Connect the sense line to the regulator’s dedicated port before the main input terminals; this prevents over-voltage damage during gusts exceeding 45 km/h.

Add a blocking diode rated 40 A, 60 V reverse on the positive line immediately upstream of the charge controller. This prevents back-feed that drains the batteries overnight. Use a Schottky diode for lower forward drop–typically 0.5 V versus 1.1 V for standard silicon–saving roughly 3% energy per day in low-light conditions.

Battery Bank Configuration

Link four deep-cycle AGM units in parallel for a nominal 48 amp-hour capacity. Space each battery 15 mm apart on a slatted polypropylene tray elevated 50 mm off concrete floors to avoid sulfation. Crimp tinned copper lugs onto 6 AWG cables; never solder, which melts at 110 °C under sustained charge rates above 20 A.

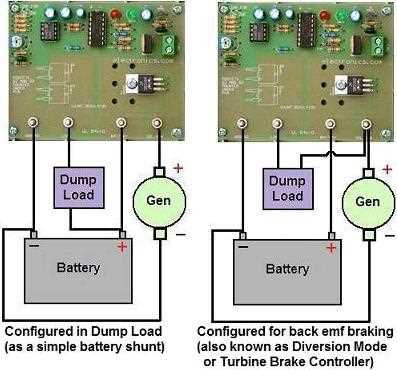

Include a 300-watt dump load resistor bank wired in parallel with the storage cells. Size the resistor bank to dissipate the full alternator output–15 Ω, 300 W minimum–when battery voltage hits 14.7 V. Mount the resistors on a finned aluminum plate outdoors, angled 45° to prevailing wind, ensuring passive airflow without fan dependency.

Key Elements for a Low-Voltage Rotor Energy Harvesting Setup

Select a three-blade rotor with a diameter between 1.2–1.6 meters for optimal balance between torque and rotational speed in gusts averaging 4–6 m/s. Fiberglass-reinforced polyester blades outperform aluminum in durability, requiring less maintenance over a 5-year lifespan. Verify the hub’s compatibility with a 20 mm shaft before purchase.

The charge regulator must handle peaks of 20A without overheating–models with PWM controllers are adequate for systems under 200W, while MPPT units improve efficiency by 15–25% in varying gust conditions. Mount the regulator within 1 meter of the storage unit to minimize voltage drop, securing it in a IP65-rated enclosure to prevent moisture ingress.

Opt for deep-cycle AGM batteries with a minimum 100Ah capacity to ensure 3–4 days of autonomy during calm periods. Lithium iron phosphate alternatives weigh 60% less but cost 3x more per watt-hour; prioritize cells with built-in BMS for overcharge protection. Connect batteries in parallel if exceeding 13.8V risks sulfation.

• Rectifier bridge rated for 40A continuous, 100A surge
• MC4 connectors with 6mm² copper cables for low-resistance joins
• Dedicated grounding rod driven 1.5m deep, bonded to the tower base
• Surge arrestor with 1,000V clamping voltage
• 25 mm² flexible copper cable for tower-to-base runs

For the nacelle, use a NEMA 4X-rated enclosure; polycarbonate variants resist UV degradation better than steel. Include a slip ring if yaw rotation exceeds 720°–brushless models last 8x longer than carbon-brush types. Secure all internal wiring with heat-resistant ties spaced ≤15 cm apart.

Tower height should exceed nearby obstructions by ≥30%; galvanized steel lattice towers require concrete footings sized according to local wind zone maps–typically 1.2m³ for zones below 1.5 kN/m². Guy wires must attach at ⅔ of tower height, tensioned to 15% of yield strength; polyester-coated variants reduce corrosion but require annual tension checks.

Add a 400Ω bleed resistor across battery terminals to prevent voltage buildup during prolonged idling. Include a digital multimeter permanently wired to monitor system voltage; set alarms at 10.5V (low) and 14.8V (high) via a relay circuit. Avoid PWM-controlled dump loads–they create RF interference near AM frequencies, opting instead for a diversionary load rated at 1.5x system capacity.

Connecting Low-Voltage Rotor Systems: A Practical Installation Manual

Securely mount the charge controller no further than 1 meter from the energy storage unit to minimize voltage drop–use 6 AWG copper cables for runs under 3 meters; switch to 4 AWG for distances up to 5 meters. Strip 12mm of insulation from each cable end, then crimp with ring terminals sized for M8 bolts, ensuring solder is applied to the crimped joint for corrosion resistance. Verify polarity before attaching: the controller’s positive terminal connects to the battery’s positive post, while the negative lead links to the system ground busbar near the storage unit.

Position the blocking diode inline between the rotor’s output and the controller at a 45-degree angle to prevent moisture accumulation–use a Schotky diode with a forward voltage drop below 0.3V for minimal energy loss. For overcharge protection, install a 15A fuse holder within 15cm of the battery’s positive terminal; select a fuse rating 25% above the generator’s maximum rated current (e.g., 20A for a 16A system). Test each connection with a multimeter set to continuity mode–readings below 0.1Ω indicate a solid connection; rework any joint exceeding 0.3Ω.

Component	Cable Gauge (AWG)	Max. Distance (m)	Voltage Drop (% at Full Load)
Generator to Controller	6	3	1.8
Controller to Battery	4	5	2.1
Battery to Inverter	2/0	2	0.9
Ground Bus to Frame	4	10	3.2

After securing all terminals, apply dielectric grease to each connection before tightening bolts to 12Nm torque–this prevents oxidation in high-humidity environments. For systems in coastal areas, wrap each joint with self-fusing silicone tape, overlapping each layer by 50% to create a waterproof seal. Finally, route all cables through conduit (minimum ID 25mm) where exposed to UV radiation or physical abrasion, using zip ties every 20cm to prevent chafing against sharp edges. Power up the system only after verifying all safety disconnects are in the open position.

Selecting an Optimal Charge Regulator for Low-Voltage Rotary Generators

The first priority when integrating a rotary generator into an off-grid system is matching its output to a regulator with at least 30% higher current capacity than the generator’s peak amperage. For example, a 200W model producing 16.6A at peak load requires a minimum 22A regulator. Anything less risks overheating under prolonged gusts, reducing lifespan by up to 40%.

Pulse-width modulation controllers offer cost efficiency but suffer from two key limitations: they maintain lower battery voltage thresholds and dissipate excess energy as heat, wasting 5-15% of generated power. For systems under 300W, this trade-off may be acceptable, but beyond that threshold, maximum power point tracking regulators recover this lost energy by dynamically adjusting input impedance, improving yield by 25-35% in variable conditions.

• Shunt regulators are simplest but least efficient; they short-circuit excess current, wasting energy as heat and requiring substantial heatsinks. Only viable for sub-100W systems where losses are negligible.
• Series regulators disconnect the load during overloads, preventing heat buildup but causing voltage fluctuations that can damage sensitive electronics like inverters.
• MPPT controllers adjust operating points in real-time using algorithms, extracting maximum power even during partial shading or inconsistent airflow. Their efficiency degrades below -5°C, however, requiring temperature-compensated models for cold climates.

Voltage regulation precision directly impacts battery health. Lead-acid batteries require termination voltages between 14.4V and 14.8V for absorption charging, while lithium iron phosphate packs need tighter control at 14.2V–14.6V. Deviations outside these ranges reduce battery capacity by 10-20% over 12 months. Look for regulators with adjustable thresholds and temperature sensors to compensate for ambient fluctuations.

Three terminal pinouts–battery positive, battery negative, and alternator output–are standard, but some MPPT models add a fourth for remote voltage sensing, eliminating line losses in setups where the regulator mounts more than 3 meters from the battery. Neglecting this can drop system voltage by 0.3–0.7V, triggering premature float charging and sulfation in lead-acid batteries. For lithium variants, this risks undervoltage cutoff, abruptly disconnecting loads.

Surge protection ratings matter more than average current handling. A 40A regulator with a 60A transient rating withstands 20ms wind gusts without tripping internal fuses, whereas a 50A model with no surge tolerance fails permanently under identical conditions. Check datasheets for ISO 7637-2 compliance, ensuring resilience against transients up to 80V.

1. Measure peak generator output during high-wind trials.
2. Select regulator with 1.3–1.5x current capacity.
3. Prioritize MPPT for systems above 300W.
4. Verify voltage thresholds match battery chemistry.
5. Confirm surge protection aligns with local gust patterns.
6. Add remote sensing if wiring exceeds 3m.
7. Test under load before permanent installation.
