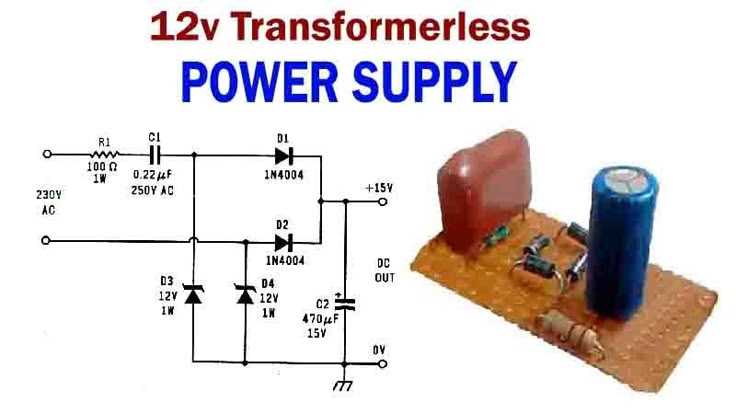

Simple 12V DC Power Supply Circuit Diagram for Beginners and Makers
For low-voltage electronics projects, a linear regulator with a 7812 IC remains one of the most straightforward solutions. Use a 24V AC input from a center-tapped transformer, rectify it with a full-wave bridge, and smooth the output with a 2200µF capacitor. The 7812 will drop excess voltage while maintaining a stable 12V output at currents up to 1A. Add a 1N4007 diode at the input to protect against reverse polarity and a 0.1µF capacitor at the output to prevent high-frequency oscillations.
Switching converters offer better efficiency for higher loads. A buck converter based on the LM2596 simplifies design–adjust the feedback resistors (10kΩ and 3.3kΩ) to set the output precisely. Input capacitors (220µF) and output capacitors (470µF) stabilize voltage, while a 33µH inductor handles current ripple. For noise-sensitive applications, include an LC filter (10µH + 100µF) at the output.
For minimalist designs, consider a flyback topology using the UC3843 controller. Wind the primary coil on an EE16 core with 40 turns of 0.5mm wire, and the secondary with 12 turns of 1mm wire for 12V output. A 1:1000V isolation rating between windings ensures safety. Snubber circuits (RC, 1kΩ + 1nF) across the MOSFET (IRF840) suppress voltage spikes during switching. Test load regulation with a 10Ω resistor–output should vary less than 1% from no load to full load.
Thermal management dictates component selection. TO-220 packages (7812, LM2596) require heatsinks if dissipating more than 2W. For 5W+ loads, switch to TO-247 (e.g., IRFP460) with a 5°C/W heatsink. Thermal pads (e.g., Sil-Pad 800) improve conductivity better than silicone grease. Avoid cheap electrolytic capacitors–Japanese brands (Nichicon, Rubycon) last 5,000+ hours at 105°C. Always derate voltage by 20% (e.g., use 35V caps for 24V circuits).

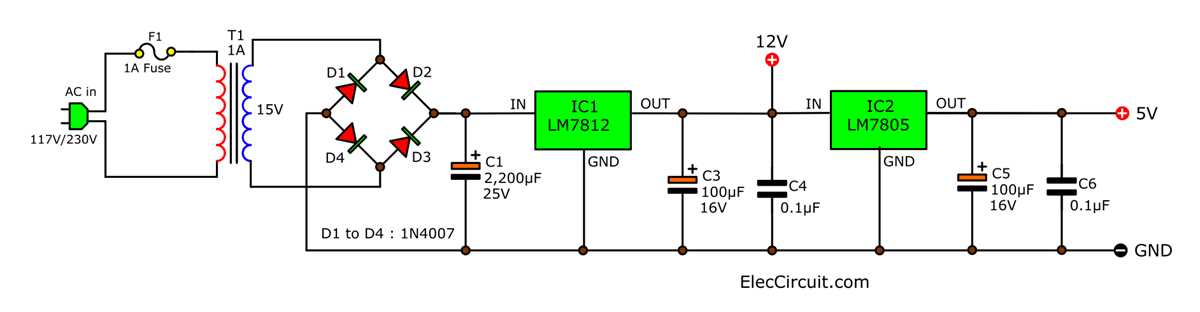

Building a Stable 12-Volt DC Conversion Setup
Start with a transformer rated for 15VAC output–this ensures sufficient overhead after rectification and smoothing. Choose a bridge rectifier (e.g., KBPC3510) with at least 2A current capacity to handle load spikes. Add a 2,200µF electrolytic capacitor post-rectification to reduce ripple voltage below 50mV peak-to-peak; smaller caps (1,000µF) may require parallel placement for higher current demands.
Critical components to prioritize:
- Voltage regulator: LM7812 provides fixed output; adjust heatsink size based on thermal resistance (2°C/W for TO-220 package at 10W dissipation).
- Input/output capacitors: Place 0.1µF ceramic caps close to the regulator’s pins to prevent high-frequency noise.
- Protection: Fuse the input at 1.5x the maximum expected current (e.g., 1A fuse for a 500mA load) and add a 1N4007 diode across the regulator for reverse polarity safeguards.
Fine-Tuning for Specific Loads
For LED arrays (e.g., 4x3W clusters), replace the LM7812 with a buck converter (e.g., LM2596) to improve efficiency–adjust the feedback resistor pair (R1/R2) to target 12.2V output, compensating for 0.2V diode drop in series LEDs. When driving inductive loads (motors), add a 10µF tantalum cap at the source terminal to absorb back EMF; omit for purely resistive loads to avoid unnecessary bulk. Verify stability by measuring output under no-load and full-load conditions with an oscilloscope–ripple should not exceed 2% of the nominal voltage.
Key Components for Assembling a 12-Volt Direct Current Source
Select a transformer with a secondary winding rated at 15–18 volts AC. Step-down units with a 220V/18V configuration offer sufficient headroom for bridge rectifier losses while preventing excessive heat buildup in the linear regulator. Verify core saturation limits–ferrite-based transformers typically handle 1.2–1.5 times the nominal load without waveform distortion. For compact designs, toroidal models reduce electromagnetic interference by 40% compared to E-I laminations.
| Component | Recommended Rating | Material/Type | Critical Parameter |
|---|---|---|---|
| Bridge rectifier | 35V/4A | Schottky (for | Peak inverse voltage ≥ 50V |
| Filter capacitor | 2200µF/25V | Low-ESR electrolytic | Ripple current ≥ 1A RMS |
| Voltage regulator | LM7812 (TO-220) | Heatsink mandatory >10W dissipation | Quiescent current ≤ 5mA |
Add a 100nF polyester capacitor across the regulator’s input-output pins to suppress high-frequency oscillations that degrade transient response. For loads exceeding 1A, install a bypass diode (1N4007) antiparallel to the regulator’s output to protect against backfeed from inductive loads during shutdown. Thermal calculations dictate heatsink sizing–assume a worst-case 60°C ambient with 5°C/W thermal resistance for the junction-to-air path, requiring a minimum 12°C/W heatsink for 3W dissipation.
Step-by-Step Wiring for Transformer-Based 12V DC Assembly
Select a transformer with a secondary winding rated for 12V AC at the required current–typically 1A for small loads or 3A for moderate applications. Verify the primary winding matches your local mains voltage (e.g., 230V or 110V). Place the transformer in a well-ventilated enclosure, ensuring clearance around its metal core to prevent overheating.
Connect the primary side to the AC source using stranded copper wire (18-16 AWG) with insulated spade connectors or soldered joints for reliability. Install a fuse inline with the primary circuit–calculation: fuse rating = (transformer VA / mains voltage) × 1.2. For example, a 36VA transformer on 230V needs a 190mA fuse, rounded up to 200mA. Use a slow-blow fuse to avoid nuisance tripping during inrush currents.
On the secondary side, attach a bridge rectifier (e.g., KBPC3510) to convert AC to pulsating DC. Mount the rectifier on a heatsink if the expected load exceeds 50% of its 35A rating. Fasten it securely with thermal paste between the base and heatsink to ensure proper heat dissipation–target a maximum case temperature of 80°C under full load.
Wire the rectifier’s AC inputs to the transformer’s secondary terminals. Connect the positive DC output to a bulk capacitor (minimum 2200µF/25V for stable output; increase to 4700µF for loads with high ripple sensitivity). Solder the capacitor’s negative terminal directly to a chassis ground or a dedicated negative rail, avoiding long ground loops that introduce noise.
Add a linear voltage regulator (e.g., LM7812) downstream to smooth the DC output to a precise 12V. Heat-sink the regulator if the load exceeds 500mA–calculate dissipation: P = (Vin – Vout) × Iload. For a 15V input and 1A load, P = 3W, requiring a small heatsink (thermal resistance ≤ 20°C/W). Use a 0.1µF ceramic capacitor across the regulator’s input and output to prevent oscillation.
Route the final output through a 10A automotive blade fuse for protection against short circuits. Terminate wires with crimped ring terminals or screw terminals rated for 15A minimum. Test under load with an oscilloscope: ripple should not exceed 100mVpp at full current draw. If ripple exceeds limits, increase the bulk capacitor or add a 10µF tantalum capacitor in parallel to filter high-frequency noise.
Enclose the assembly in a non-conductive case (e.g., ABS plastic) with strain relief for all cables. Label input and output terminals clearly–use color-coded wires: red for positive, black for negative, and green/yellow for earth. Perform a final insulation resistance test (500V megger): minimum 1MΩ between live parts and the enclosure to comply with safety standards like IEC 60950.
Voltage Regulation Options: Linear Regulator vs. Switching Step-Down Solution
For stable output at 12 volts from higher input ranges (15–35V), the LM7812 linear regulator delivers simplicity and minimal noise–ideal for low-current loads under 1A. Its fixed 12V output requires only two external capacitors (0.33µF input, 0.1µF output) per datasheet recommendations, with thermal dissipation handled via a TO-220 heatsink calculated at 1.5°C/W per watt lost. Drawbacks include efficiency plunging below 40% with input above 24V and heat buildup, limiting continuous current to 750mA without active cooling.
Switching buck converters (e.g., LM2596, MP2307) improve efficiency to 85–95% across wider input ranges (8–40V), suitable for loads up to 3A. Key advantages:
- Adjustable output via feedback resistor (1.23V reference) for precise voltage tuning.
- Reduced heat; losses scale with duty cycle rather than voltage drop.
- Compact inductors (33µH for 500kHz) enable PCB footprint under 2cm².
- Optional soft-start circuitry limits inrush currents to 1.5× nominal rating.
Trade-offs include added complexity–input/output capacitors must handle ripple currents (low-ESR types like 22µF ceramics), and layout demands short, wide traces to minimize EMI from switching edges (20ns rise/fall times). For noise-sensitive applications (audio, RF), post-regulation with an LDO or LC filter suppresses spikes below 5mVpp.
Selecting between the two hinges on load demands: LM7812 excels for compact, low-ripple designs under 0.75A; buck converters dominate for efficiency-critical or high-current scenarios where power density justifies their BOM uplift (inductor, schottky diode, feedback network). For hybrid approaches, cascade a buck converter (e.g., 15V output) with a linear post-regulator to combine efficiency and stability.
Calculating Required Capacitor Values for Smoothing Output
Start by determining the load current (Iload) in amperes–the maximum draw expected from your output. For a 0.5A load, ripple voltage (Vripple) should not exceed 1% of the nominal output (e.g., 120mV for 12V). Use the formula: C = (Iload * Δt) / Vripple, where Δt represents the diode conduction time–typically half the period of the rectified waveform (8.33ms for 60Hz). A 470µF capacitor suits most low-current applications, but scale proportionally: 1000µF for 1A, 2200µF for 2A.
Adjusting for Frequency and ESR
Higher switching frequencies reduce Δt, allowing smaller capacitors. For a 10kHz converter, Δt drops to 50µs, shrinking C to ~22µF for the same 0.5A load. Electrolytic capacitors require derating due to equivalent series resistance (ESR)–multiply the calculated value by 1.5–2x for aluminum types. Low-ESR polymer capacitors (e.g., 330µF/16V) halve smoothing capacitance needs but demand precise ripple current ratings (IRMS ≥ 1.2 * Iload). Check datasheets for thermal limits–exceeding IRMS degrades lifespan.
Pulse loads demand oversized capacitors. A 5A transient lasting 1ms requires C ≥ (5A * 1ms) / 50mV = 100mF to hold voltage sag within 50mV. Combine bulk storage (electrolytic) with high-frequency decoupling (ceramic, 0.1µF–1µF) to suppress HF noise. Place ceramics physically close to the load–trace inductance negates their benefit beyond 2–3cm. For critical applications, use thermal models: capacitor lifetime halves for every 10°C rise above 40°C.
Verify calculations with an oscilloscope–measure ripple across the load at full current. Expected ripple scales linearly with C-1; doubling capacitance halves Vripple. Temperature drift affects capacitance: +20%/-50% for electrolytics over -20°C to 85°C–compensate by selecting higher-voltage ratings (e.g., 25V for a 12V rail). Avoid paralleling mismatched capacitors; current distribution imbalance accelerates wear. For regulated outputs, ensure the capacitor’s voltage rating exceeds the regulator’s dropout by ≥2V.
