Complete 13 Pin Trailer Plug Wiring Guide with Color Codes and Diagram
For reliable trailer integration, prioritize validating each circuit path before installation. The standard 13-contact interface follows a precise sequence: contacts 1-3 handle left-turn, right-turn, and brake signals, while 4-6 manage ground, tail lamps, and auxiliary power. Contact 7 transmits reverse illumination, 8 delivers continuous +12V, and 9-12 handle electric brake control, battery charge line, and an additional permanent power source. Contact 13 remains reserved for future expansion–never repurpose it for temporary fixes.
Measure voltage across adjacent terminals to detect shorts–ideal readings should match vehicle battery levels (12-14V). For reverse polarity protection, insert a 30A fuse inline with the +12V supply. If integrating CAN bus-compatible systems, ensure resistance between CAN high/low lines measures 60 Ω (±10%). Deviations indicate faulty termination or wiring damage.
When splicing connections, use crimp sleeves rated for 20A minimum–avoid solder-only joints, as vibration induces fatigue fractures. For extended cable runs exceeding 5 meters, upsize conductors to 2.5 mm² to prevent voltage drop under load. Test brake controller responsiveness by applying 5A to the dedicated circuit while monitoring trailer actuator engagement.
For mixed 7/13-contact adapters, verify pin mapping compatibility–some configurations reverse brake/turn signal assignments. Use a load simulator to confirm trailer-side circuits withstand peak currents (e.g., 15A for marker lamps, 30A for electric brakes). Document all modifications; label conductors with heat-shrink identifiers for future diagnostics.
13-Pin Connector Setup: Step-by-Step Configuration
Start by verifying power distribution across the trailer interface–check fuse ratings against the vehicle’s manual before connecting. The ISO 11446 standard allocates contacts 1 through 3 for permanent 12V supply, rated at 25A total; exceeding this risks circuit damage. Contacts 4 (left marker) and 5 (right marker) deliver 10A for sidelights, while 6 and 7 handle brake lights at 15A. Use a multimeter to confirm voltage on each terminal prior to attaching cables, as reverse polarity will disable tractor or trailer systems.
Ground contact 3 should attach directly to the chassis with a 6mm² cable, avoiding painted surfaces for reliable conductivity. For auxiliary functions like reverse gear or refrigerator circuits, consult the trailer manufacturer for dedicated contact assignments–some use unused terminals (e.g., 8–12) for custom 12V or CAN bus signals. Always secure connections with heat-shrink tubing to prevent corrosion, especially in humid environments where oxidation accelerates failure rates.
How to Identify Each Contact in a 13-Way Socket
Start by obtaining a multimeter with continuity or voltage detection mode. Probe the connector’s terminal slots while the vehicle’s electrical systems are active–parking lamps, reverse gear, and brake lights will reveal live circuits by registering 12V. Terminals 1 and 4 typically supply power to the left and right parking lights, respectively, while terminal 6 carries the brake signal. Terminal 8 often handles reverse light activation, identifiable by the same voltage spike when the gear is engaged. For earth contacts (usually 3, 5, and 13), the multimeter should show zero ohms against the chassis ground.
Refer to the ISO 11446 standard for precise terminal assignments–terminal 9 is reserved for 12V permanent power, terminal 10 for accessory power (ignition-switched), and terminal 12 for the CAN bus or auxiliary functions. Use a test lead with alligator clips to verify signal paths without risking short circuits, and cross-check with the vehicle’s service manual for deviations, as some manufacturers repurpose terminal 7 for advanced trailer stability controls.
Step-by-Step Electrical Setup for Towing with a 13-Point Connector
Start by ensuring the tow vehicle’s electrical system is fully powered down. Disconnect the battery’s negative terminal to prevent short circuits while handling connections. Use a multimeter to verify zero voltage across all terminals before proceeding–this step eliminates risks of accidental damage or sparks.
Locate the vehicle’s pre-installed harness, typically found behind the rear bumper or inside a designated access panel. If no factory harness exists, procure a compatible 13-point adapter cable matching the tow vehicle’s make and model. Select cables rated for at least 18 AWG for lighting circuits and 12 AWG for power feeds to handle current loads safely.
Preparing and Matching Terminal Assignments
Refer to the following standardized layout for 13-point connectors in towing applications. Deviations may occur based on regional standards or manufacturer specifications–always cross-check with the owner’s manual or a certified wiring schematic.

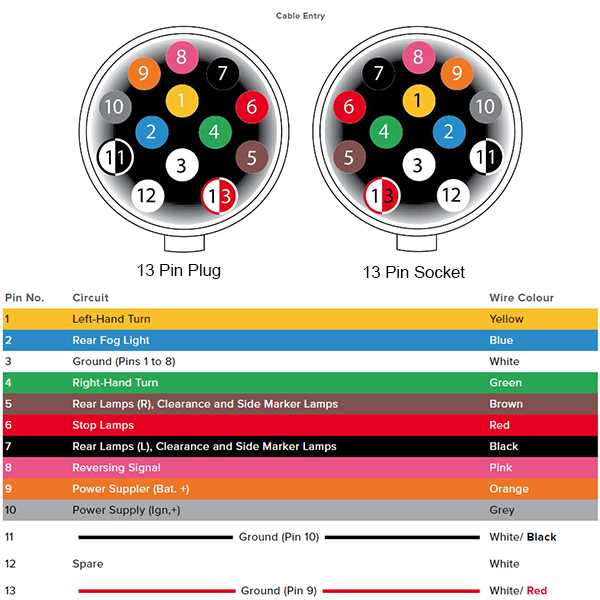

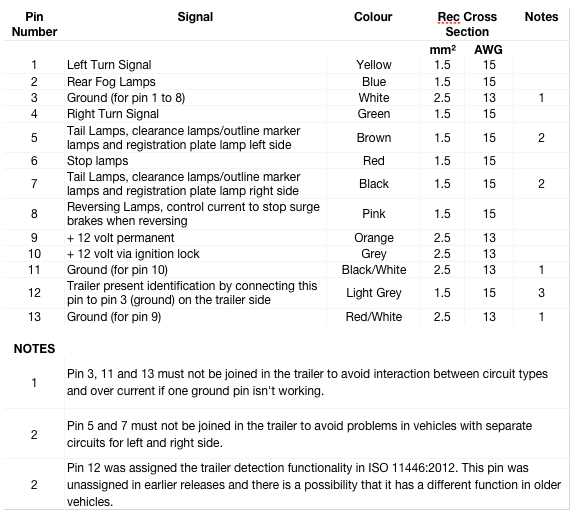

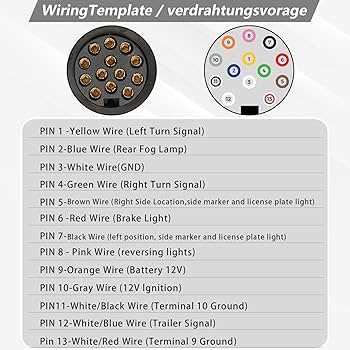

| Terminal Number | Designated Function | Wire Color (Typical) | Voltage/Current Notes |
|---|---|---|---|
| 1 | Left Turn Signal | Yellow | 12V, 5A max |
| 2 | Rear Fog Light | Blue | 12V, 10A (switched) |
| 3 | Earth (Ground Return) | White | Direct chassis connection |
| 4 | Right Turn Signal | Green | 12V, 5A max |
| 5 | Tail & Marker Lamps | Brown | 12V, 3A |
| 6 | Stop Lamps | Red | 12V, 5A (switched) |
| 7 | Reverse Lights | Black/Yellow | 12V, 5A (switched) |
| 8 | 12V Permanent Power | Black | 12V, 20A (fused) |
| 9 | 12V Switched Power | Orange | 12V, 10A (ignition-controlled) |
| 10 | Charging Line (Caravan) | Grey | 12V, 16A (fused, heavy gauge) |
| 11 | Earth (Auxiliary) | White/Black | Direct chassis connection |
| 12 | Auxiliary Power (CAN/Trailer Control) | Purple | Variable, requires load-specific fuse |
| 13 | Earth (Isolated Return) | White/Green | For dedicated lighting loops |
Strip insulation from each conductor to expose 6–8mm of bare wire. Twist strands tightly to prevent fraying, then crimp on the appropriate terminal lug–use gold-plated contacts for corrosion resistance if the setup will endure frequent exposure to moisture.
Insert each prepared conductor into the corresponding socket cavity. Push firmly until a positive click confirms full engagement. For sockets requiring soldered joints, apply heat-shrink tubing immediately after soldering to seal connections from moisture and vibration. Avoid excess solder which can create brittle joints prone to cracking under stress.
Testing and Finalizing Connections
Reconnect the vehicle battery and activate each circuit sequentially. Use a test lamp or diagnostic scanner to verify signal integrity–blinkers should pulse uniformly, brake lights illuminate at full brightness, and fog lights trigger only when engaged. If any circuit fails, recheck crimps, solder joints, and ground connections; poor grounding often causes intermittent faults.
Apply dielectric grease sparingly to the mating surfaces of the connector halves before final assembly. This prevents oxidation and maintains conductivity over time. Secure the connector housing with the provided latch or screw-lock mechanism to avoid disconnection during towing. Route excess cable away from moving parts or sharp edges, using zip-ties or conduit for protection.
Conduct a road test under varying conditions–daylight, nighttime, and under load–to confirm all lighting and auxiliary functions operate as intended. Monitor current draw with an inline ammeter for at least 30 minutes to detect any hidden shorts or excessive resistance that could lead to premature failure.
Common Mistakes When Connecting 13-Point Trailer Connections
Mixing up the earth contacts for lighting circuits causes voltage fluctuations, leading to bulb flickering or premature failure. The 13-point standard assigns specific earth slots–numbered 1, 2, and 3–for brown (tail), yellow (indicators), and white (reverse) lights. Cross-wire these, and the return path becomes unstable. Use a multimeter to verify continuity between the earth terminal and the vehicle chassis before finalizing connections.
Overlooking the surge protector on the 12V auxiliary feed triggers fuse blows under load. Slot 9 delivers power for fridges, winches, or brakes, but lacks built-in current control. A sudden draw above 15A–like a compressor kicking on–will trip the system. Install an inline 20A fuse or a surge suppressor rated for inductive loads to prevent damage.
Incorrect Cable Gauge Selection
- Slots 4, 5, and 7 (indicator and brake circuits) require at least 1.5 mm² copper core to handle pulsed currents.
- Auxiliary power (slot 9) demands 2.5 mm² for sustained 10+A usage.
- Smaller wires overheat, melting insulation and causing short circuits.
- Measure wire temperature with an infrared thermometer after 10 minutes of operation–anything above 60°C signals undersized cabling.
Bolting connectors without strain relief shears contacts under vibration. The 13-point socket secures cables via a threaded collar, but loose installation lets wires twist and fatigue at entry points. Crimp a rubber grommet inside the collar’s groove, then tighten evenly with a torque wrench set to 1.5 Nm. Check every 1,000 miles–retighten if any play is detected.
Ignoring Water Ingress Prevention
- Apply dielectric grease to every metal contact before assembly–oxidation starts within 48 hours of exposure.
- Avoid generic silicone sprays; they evaporate and leave conductive residue.
- Seal unused slots with weatherproof plugs, not tape–tape degrades in UV light within months.
- After installation, spray the socket interior with contact cleaner to remove flux or dirt that bridges adjacent terminals.
