Complete Guide to 15 Amp Circuit Wiring with Diagram for Beginners
For standard residential circuits, use 14-gauge copper conductors rated at 15 amperes–never substitute with thinner wire, as overheating risks increase exponentially. A dedicated 15-amp breaker must protect every branch, with no more than 12 outlets per run to comply with NEC 210.21(B). Split receptacles into dual circuits where high-load devices like microwaves or space heaters operate: connect top slots to one breaker, bottom to another to prevent tripping under sustained 1,800-watt demand.
Grounding is non-negotiable–10 AWG bare copper bonded to the main panel and each device box ensures fault current diversion. Use GFCI protection within 6 feet of sinks, garages, or outdoor locations: install it as the first outlet in the chain and daisy-chain downstream using LOAD terminals, not LINE. For garages, add ARC-fault circuit interrupters to detect loose connections that could spark 100mA-level faults before combustion.
Label every panel entry with exact load type (e.g., “Kitchen: 2 countertop outlets + fridge”). Run conductors through ½” EMT conduit if embedding in masonry; PVC Schedule 40 suffices for exposed indoor work but seal all outdoor penetrations with duct seal putty to block moisture. Where circuits terminate in unfinished basements, staple Romex every 4.5 feet and within 12 inches of boxes–NM-B cable must remain visible, never buried beneath insulation.
Test continuity with a multimeter before energizing: probe hot (black) to neutral (white) should read 120V ±5V; hot to ground should match. Verify torque settings on screw terminals–10–12 inch-lbs for 14 AWG–using a calibrated driver. If replacing a 3-prong outlet in an old system lacking EGC, install a GFCI receptacle labeled “NO EQUIPMENT GROUND”, not a cheater adapter.
Practical Steps for a 15-Amp Electrical Circuit Setup
Begin by selecting a 14-gauge copper cable–this thickness safely handles up to 1800 watts at 120 volts, the standard for household outlets in North America. Route the cable from the breaker panel to the target location, securing it every 4.5 feet with insulated staples and leaving a 6-inch slack at each junction box. If running through studs, use a 3/4-inch bore hole, positioned at least 1.25 inches from the edge to prevent drywall damage or screw interference. Avoid sharp bends; a radius of at least 5 times the cable diameter prevents insulation wear.
Install a dedicated 15-amp breaker in the panel, matching it to the neutral bus bar and connecting the hot wire to the breaker’s terminal. For copper-only systems, torque the breaker screw to 14 inch-pounds to prevent loosening–use a calibrated torque screwdriver. Ground the circuit by attaching a bare copper wire to the panel’s grounding bar; in subpanels, keep neutral and ground buses isolated. Label the breaker clearly with the circuit’s purpose (e.g., “Kitchen Lights”) for future maintenance.
At the outlet, strip 5/8 inch of insulation from each wire and loop them clockwise around the terminal screws. Tighten screws to 12 inch-pounds–over-torquing can strip threads, while under-torquing risks overheating. For receptacles in wet areas, use a ground-fault circuit interrupter (GFCI) outlet, wiring the line terminals first, then the load if protecting downstream outlets. Test the GFCI with a plug-in tester before closing the junction box; a failed test often indicates reversed polarity or a missing ground.
Before energizing, verify all connections with a multimeter: check for 120 volts between hot and neutral, 0 volts between neutral and ground, and continuity between the hot wire and ground through the breaker. If voltages fluctuate, inspect for loose connections or incorrect breaker size. For copper-clad aluminum circuits, use antioxidant paste on terminals and confirm compatibility with the breaker type–aluminum requires CO/ALR-rated devices to prevent oxidation-fueled fires.
Finalize by capping unused outlets with safety covers and affixing a warning label on any exposed wiring in unfinished spaces. For circuits feeding multiple devices, calculate the total wattage: 1440 watts (12A) maximum for continuous loads (e.g., space heaters) or 1800 watts (15A) for brief periods (e.g., power tools). Document the layout, including breaker location, cable path, and outlet types, in a home electrical log–this simplifies troubleshooting and future upgrades.
Tools and Materials Required for a 15-Ampere Circuit Setup
Begin with a 15-amp breaker rated for residential use–look for models marked CU/AL for copper or aluminum conductors to prevent corrosion. Pair it with 14-gauge NM-B cable (or 12-gauge if derating applies) to handle the 1800-watt load limit without overheating. Include a dual-function arc-fault circuit interrupter (AFCI/GFCI combo) if local codes require protection in kitchens, bathrooms, or bedrooms to reduce fire and shock risks.
Essential tools: a voltage tester with non-contact detection to verify de-energized circuits before work; lineman’s pliers with insulated handles for cutting and twisting conductors; a fish tape or glow rod for pulling cable through studs or conduit; and a torque screwdriver (set to manufacturer specs) to secure terminals per NEC 2023 tightening standards. Add wire strippers calibrated for 14- and 12-gauge sizes, plus a multitool with a reaming feature to deburr conduit edges.
For termination, use UL-listed copper-only wire nuts (red for three 14-gauge wires, yellow for four) and apply antioxidant compound on aluminum connections. Include a stud finder, drywall saw, and outlet boxes rated for 20 cubic inches if splicing–NM cable clamps and romex staples spaced within 12 inches of boxes prevent strain. Label each conductor with wrap-around markers to match the schematic during initial setup.
Step-by-Step Connection Process for 15-Unit Receptacles and Controls

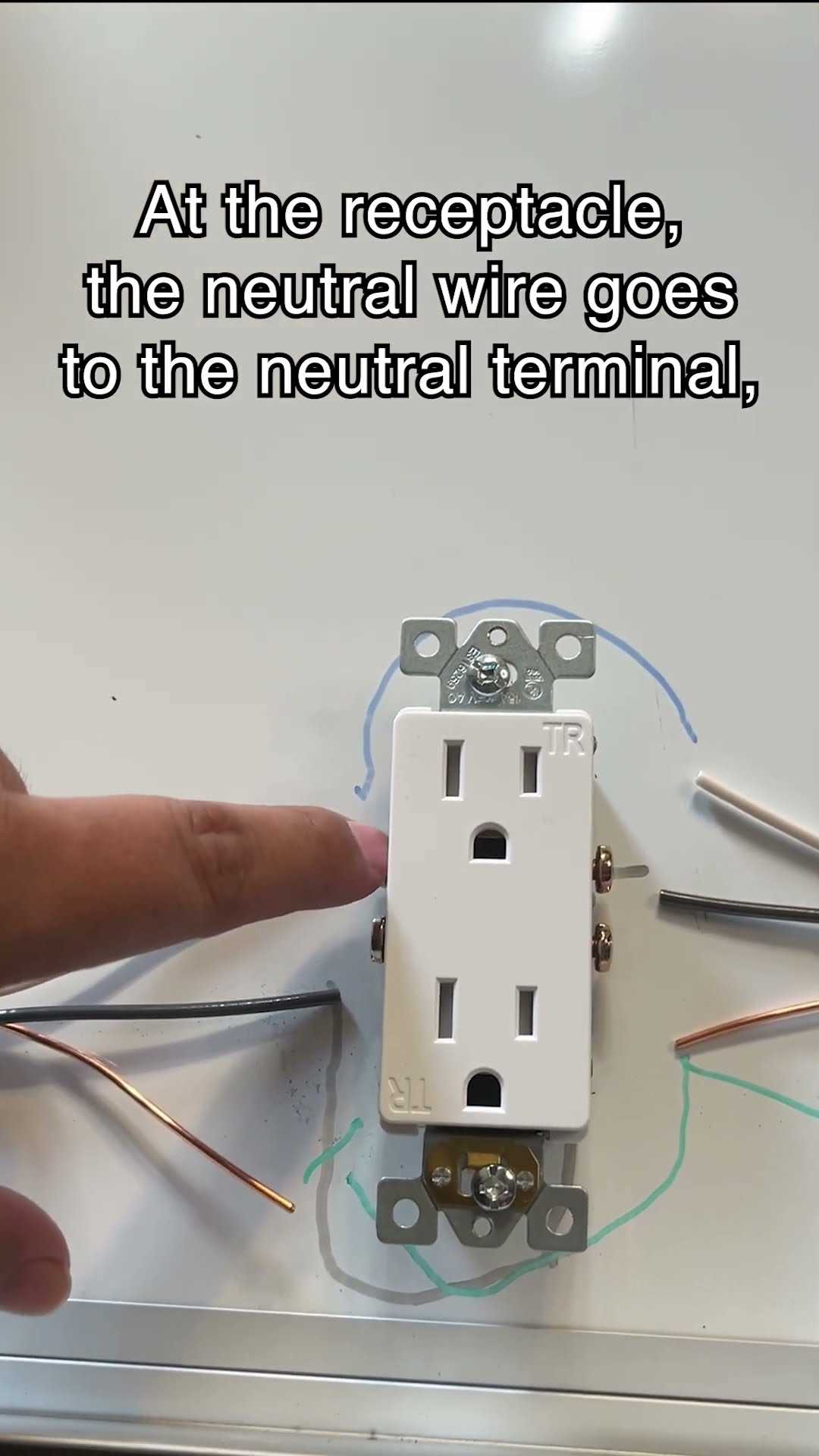

Shut off the main power at the circuit breaker panel and verify disconnection with a non-contact voltage tester–no exceptions. Strip 1/2 inch of insulation from the conductor ends using wire strippers, ensuring no nicks on the copper strands, which weaken conductivity. Connect the black (hot) lead to the brass terminal, white (neutral) to the silver, and bare/green (ground) to the green screw; torque screws to 12 inch-pounds to prevent loosening under load. For duplex receptacles, break the connecting tab between the brass terminals if splitting the circuit for separate controls.
Splicing and Box Fill Limits
| Conductor Gauge | Max Conductors in 18 cu. in. Box | Max Conductors in 22 cu. in. Box |
|---|---|---|
| 14 AWG | 9 | 12 |
| 12 AWG | 7 | 10 |
Use approved wire nuts (minimum size: yellow for 2-3 #14 conductors) and twist clockwise before capping; verify no exposed copper extends beyond the nut. For switches, wrap the black conductor clockwise around the screw terminal to match the natural tightening direction. Secure all devices with mounting screws, ensuring flush alignment with the wall plate–misalignment causes gaps that violate NEC 314.20. Restore power and test each receptacle and switch with a plug-in circuit analyzer; correct polarity errors immediately.
How to Accurately Decode a 15-A Current Circuit Schematic
Locate the power source first–typically a fuse box or breaker panel symbol. Trace the thickest black or red line from this point; it marks the live conductor carrying the full load. Verify the circuit’s rating by checking the legend: a “15” near the breaker icon confirms capacity. Never assume; cross-reference with wire gauge (14 AWG for 15 units) to avoid misidentification.
Key Symbols and Their Physical Counterparts
- Breaker: Square with a diagonal slash; represents the overcurrent device.
- Outlet: Circle with two parallel lines; indicates a standard receptacle.
- Switch: Straight line interrupted by a small gap; denotes control points for fixtures.
- Ground: Dashed or green line; connects to earth via metal enclosure or rod.
- Neutral: White or gray conductor; returns current to the source.
Color codes matter: red/black for live paths, white for return, green/bare for safety bonds. Deviations mean errors–recheck immediately.
Follow the path sequentially. After the breaker, the live line splits–one branch to switches, another to outlets. Each junction point must show a closed loop back to neutral. If a segment ends without completing the circuit, it’s either a fault or a switched leg (like a light controlled by a wall plate). Mark all intersections with a highlighter to track flow.
Common Pitfalls and Validation Checks
- Count conductors: 14 AWG wires bundled with 12 AWG wires violate code.
- Verify connections: All wire nuts or splices must have three or more conductors.
- Test polarity: Reversed live/neutral at outlets creates shock hazards.
- Inspect termination: Stranded wire under screw terminals requires a hook twist.
- Calculate load: Total device wattage must not exceed 1,800W (120V × 15).
Use a multimeter set to continuity to confirm paths. Probe live to neutral–120V indicates proper operation; probing live to ground should yield the same reading. Abnormalities demand immediate correction.
Common Mistakes to Avoid When Setting Up a 15-Signal Path
Overloading a single conductor with multiple high-draw appliances guarantees tripped breakers or melted insulation. A standard 14-gauge copper line handles 1,800 watts at full capacity; exceeding this by plugging in a space heater (1,500W) and a microwave (1,200W) simultaneously creates a 2,700W demand. Use separate paths or upgrade to 12-gauge wire for safe margins.
Incorrect Connector Termination
Stripping too little insulation leaves strands exposed outside the terminal, risking shorts, while stripping too much weakens the connection under screw compression. For 14-gauge copper, remove 5/8″ of sheathing–just enough for all strands to sit fully under the screw head without protruding. Always twist stranded cores before inserting to prevent stray filaments.
- Back-wiring outlets without proper tension clamps loosens over time, causing arcing. Side-wire screws provide the most secure hold; push-in connectors should only be used for temporary setups.
- Skipping torque specifications invites resistance buildup. Set screwdrivers to 12–14 lb-in for outlet screws and 18–20 lb-in for panel lugs to meet NEC 110.14(D) requirements.
- Tinning copper ends with solder weakens connections under heat cycles–rely on mechanical termination only.
Ignoring box fill calculations leads to overcrowding and overheating. Each 14-gauge wire counts as 2.0 cubic inches, devices like switches add 2.0 each, and grounding wires add another 0.5. A dual-gang box (3″ x 2″ x 3.5″) fits two switches and five wires max; exceeding this risks insulation damage from friction.
Failure to Label Branch Paths
Undocumented splices and junctions complicate troubleshooting. Tag every connection at the panel with:
- Room location (e.g., “Kitchen – northwest outlet”).
- Wire function (hot, neutral, ground).
- Gauge and conductor material (copper/aluminum).
Use colored tape for neutrals: white for 120V, gray for multi-wire branch circuits.
Running unprotected conductors through metal studs without insulated bushings pierces sheathing, creating ground faults. For steel framing, use listed grommets with 1/4″ wall thickness to prevent abrasion. Wood studs require plastic nail plates where cables pass within 1.25″ of the edge to guard against drywall screws.
Mixing aluminum and copper without rated connectors causes galvanic corrosion. If aluminum must be used, apply antioxidant paste (e.g., NOALOX) and secure with dual-rated (Al/Cu) wire nuts rated for the gauge–standard yellow nuts won’t suffice for 12-awg aluminum.
Leaving unused conductors live violates NEC 300.3(C)(1). Every terminated but unused hot must be capped with a UL-listed twist-on connector and marked “ABANDONED”–tape alone isn’t code-compliant. Neutrals can remain connected only if they serve an active device downstream; otherwise, disconnect at both ends.
