1734 OB8 Wiring Diagram Guide for Industrial Automation Setup

Begin by verifying power requirements. The module operates on 24V DC, with a maximum current draw of 120mA per channel. Check the datasheet for your specific revision–older units may have slight variations in I/O characteristics.

Use shielded twisted pair (AWG 18-22) for signal lines to minimize interference, especially in industrial environments with variable frequency drives or high-power motors. Ground the shield at one end only, preferably at the programmable logic controller (PLC) side, to avoid ground loops.

Connect the common terminal (labeled COM) to the negative side of your power source. Individual output channels (0 through 7) connect to the positive side of the load–relays, solenoids, or indicators. Ensure the load’s voltage and current ratings match the module’s specifications: 2A per channel, 8A total at 24V DC.

Test each channel with a multimeter in continuity mode before energizing the system. A common mistake is reversing polarity on the outputs, which can damage internal solid-state switches or cause erratic behavior.

For safety, wire a fuse (2A slow-blow) in series with the power input. If integrating with a sink-source configuration, confirm compatibility with your PLC’s logic type–this module is sourcing only.

Label all connections with heat-shrink tubing or adhesive sleeves. Use DIN rail-mounted terminal blocks for clean organization, especially in panels with multiple I/O modules. Avoid daisy-chaining power supplies; each module should have a dedicated feed from the 24V bus.

Practical Connection Instructions for Allen-Bradley Output Module

Begin by verifying the module’s power requirements match your system. The 8-channel discrete output device operates at 24VDC, consuming up to 200mA per channel under full load. Connect the positive terminal of your power supply to the V+ terminal (pin 1) on the module’s terminal block. The negative return (V-) must attach to pin 2 or the designated common for sinking configurations. Double-check polarity–reversed connections risk permanent damage to the unit.

For sinking outputs, wire each field device (e.g., relays, solenoid valves) between the module’s output terminal (pins 3–10) and an external 24VDC source. Ensure the external voltage does not exceed 30VDC to prevent exceeding the module’s isolation rating of 50V. Use 18–22 AWG solid or stranded copper wire with ferrules for secure contact. Avoid daisy-chaining multiple high-current devices on a single channel; total load per channel must stay under 1A to prevent overheating.

Critical safety steps:

• Label all wires at both ends to streamline troubleshooting.
• Fuse each channel with a 2A fast-acting fuse for short-circuit protection.
• Ground the module’s shield terminal (pin 11) to the chassis ground using minimum 14 AWG wire to minimize noise.
• Test each output with a multimeter before connecting field devices–verify 24VDC appears at the correct pin when the channel is activated via PLC logic.

Common Pitfalls

Loose terminal screws cause intermittent failures–torque to 0.5Nm using a calibrated screwdriver. Never exceed the module’s surge current rating of 2A for more than 5ms; sustained overcurrent trips internal protections. If outputs fail to energize, confirm the PLC’s output word is properly configured in the logic–misaddressed tags are a frequent culprit. For distributed systems, use shielded twisted-pair cabling for runs exceeding 10 meters to reduce EMI.

Document your setup with a simple schematic noting:

1. Wire gauge and color codes.
2. Fuse ratings and locations.
3. Load types (inductive/resistive) and current draw per channel.
4. Power supply model and voltage stability (measured with an oscilloscope if possible).

Keep this record adjacent to the panel for maintenance reference. For high-vibration environments, apply thread-locking compound to terminal screws and strain-relieve cables with zip ties.

Pinout Configuration for POINT I/O 8-Channel Discrete Output Module

Connect field devices to the module’s terminal block by matching each output channel to its designated pin. Pins 1 through 8 correspond to channels 0 through 7, delivering DC voltage from the module’s internal power supply. Verify polarity during assembly: the positive (+) terminal links to the load, while the negative (–) returns to the module’s common (pin 9). Avoid shortcuts–cross-wiring risks damaging outputs or connected equipment.

Terminal Block Layout and Signal Assignment

Terminals 1–8 handle individual outputs, each rated for 24V DC at 0.5A continuous current. Pin 9 serves as the common return for all eight channels–never exceed 4A total across the module. Use 18–22 AWG solid or stranded copper wire, twisted pairs for noise-sensitive loads. Terminate shields at the source end only, leaving the module side floating to prevent ground loops. For inductive loads, add flyback diodes or snubbers across the device coils.

Assign channels sequentially based on process requirements. Channel 0 (pin 1) often controls high-priority actuators, while channels 6–7 (pins 7–8) may drive less critical indicators. Confirm load specifications–relay coils, solenoids, or pilot lights–before energizing outputs. Offline testing with a multimeter ensures proper continuity; energize one channel at a time during commissioning to isolate errors.

External power integration requires attention to voltage drop. If sourcing from an auxiliary supply, wire the positive lead to the load, then route the negative return to the module’s common (pin 9). Keep wiring runs under 10 meters unless using heavier gauge conductors. For distributed systems, splitters or terminal blocks can extend leads, but avoid daisy-chaining more than three field devices per channel to maintain signal integrity.

Safety and Reliability Measures

Fuse each output channel with a fast-acting 0.5A fuse to protect against overloads. Label all connections–permanent markers or engravable tags adhere to industrial standards. Avoid routing signal cables parallel to high-voltage lines; cross at 90-degree angles if unavoidable. Before power-up, disconnect all loads and verify insulation resistance between terminals and ground exceeds 1 MΩ.

For redundant configurations, split loads across separate modules–never share a single return pin between multiple devices. If field wiring exceeds 100 meters, use isolated output modules to prevent stray current interference. Document all connections in a digital or printed log, including wire color codes, device IDs, and approximate wire lengths. Update schematics immediately after any modification to prevent maintenance oversights.

During operation, monitor output voltages with a scope: ripple should stay below 1V peak-to-peak. If flickering occurs, check for loose terminals or excessive load capacitance. Replace the module if any channel fails to toggle within 1ms of command–a reliable indicator of internal wear. Store spare units in electrostatic-safe bags, away from magnetic fields or extreme humidity.

Power Supply Connection Guide for Discrete Output Module

Connect the positive terminal of a 24V DC power source to the V+ terminal on the upper-left side of the module, ensuring the power rating matches the specified 50 mA per channel or 400 mA total for all eight outputs. Use 18 AWG stranded copper wire for reliability under industrial conditions, stripping 8 mm of insulation and twisting strands before insertion to prevent loose connections. The ground reference must link to the COM terminal adjacent to V+, forming a closed loop with the module’s internal circuits–verify polarity with a multimeter before energizing to avoid permanent damage to the semiconductor outputs.

Critical Safety Checks Before Energizing

After securing all connections, isolate the power source and inspect each terminal for debris or improper seating. Measure resistance across V+ and COM with the power off–readings below 10 kΩ indicate a potential short circuit. Once confirmed, activate the power source gradually using a bench supply with current limiting (set to 500 mA) to detect faults early. Observe the module’s status LED: steady green confirms correct power delivery, while flickering or absence signals wiring errors, reversed polarity, or a blown fuse in the external circuit.

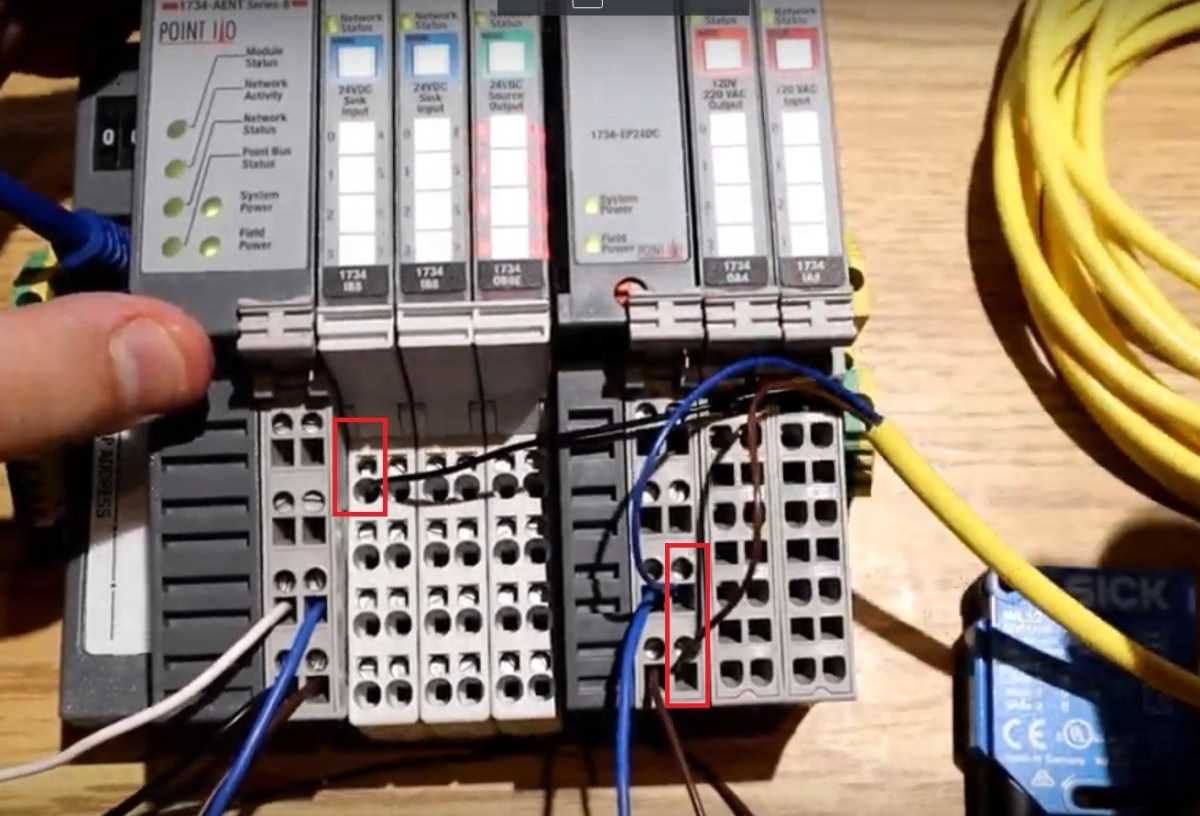

Connecting Field Devices to 1734 Point I/O Output Module Terminals

First, ensure the control system power is disconnected before attaching any load to the module’s terminals. The 1734 Point I/O output bank provides eight discrete channels, each rated for 24V DC at 1A continuous current. Verify the voltage and current ratings of connected devices–solenoids, relays, or indicators–match these specifications to prevent overload. Exceeding 1A per channel risks damaging the module or shortening its lifespan.

Attach the positive terminal of each field device to the corresponding output channel on the module’s screw terminals. Channel numbering runs from 0 (topmost) to 7 (bottom). Use 18–22 AWG solid or stranded copper wire, stripped to 6–7 mm, for secure connections. Twist and tin stranded wire ends to avoid fraying, which can cause intermittent failures or shorts. Avoid using aluminum wire–its higher resistance can lead to voltage drops under load.

Ground the negative return of each device to the system’s 24V DC common bus, not the module’s terminals. The module’s outputs are sourcing (PNP), meaning they switch the positive side of the circuit. Mixing return paths with control signals introduces noise and may trigger false operations in sensitive equipment like proximity sensors or motor starters.

For inductive loads such as contactors or lamps, install flyback diodes or snubber circuits across each device. A 1N4007 diode mounted in reverse polarity prevents voltage spikes exceeding 60V from damaging the module’s internal transistors. Without suppression, repeated switching of relay coils can degrade output channels within weeks.

Label every connection at both ends–module terminal and device–to streamline troubleshooting. Use heat-shrink tubing or pre-printed sleeves on field wiring. Ambiguous or missing labels lead to miswiring during maintenance, risking incorrect device activation or short circuits. Test each channel with a multimeter in continuity mode before applying system power.

Limit exposure of the module’s terminal block during installation. Dust, moisture, or metallic debris on exposed terminals can cause hidden shorts or corrosion. If the enclosure cannot be fully sealed, apply a thin layer of dielectric grease to the screw terminals after tightening to 0.5 Nm. Recheck torque after 24 hours; thermal cycling can loosen connections.

After wiring, enable the module’s built-in diagnostics–fault LEDs on the front panel indicate channel status. A steady amber light signals an overcurrent or short; flashing red denotes a hardware failure. Use the controller’s ladder logic or configuration software to monitor real-time current draw for each channel, setting alarms at 0.8A to preempt overloads before they trip the module’s internal fuse.
