Complete 1769-OA16 Wiring Schematic and Connection Guide for PLC Systems
Start with verifying the power source voltage matches the module’s requirements–24V DC for standard operations. Misalignment risks component damage or erratic readings. Check the datasheet for exact tolerances (±5% typical).
Terminal block TB1 handles output signals; connect channels 0–7 to the first bank and 8–15 to the second. Reverse polarity triggers immediate fault codes (F1–F4). Label all wires before securing them to avoid cross-connections during troubleshooting.
Use 18–22 AWG shielded twisted pair for signal integrity. Ground the shield at the control panel end only–looping it back introduces noise. Keep analog lines at least 10 cm from AC wiring to prevent interference.

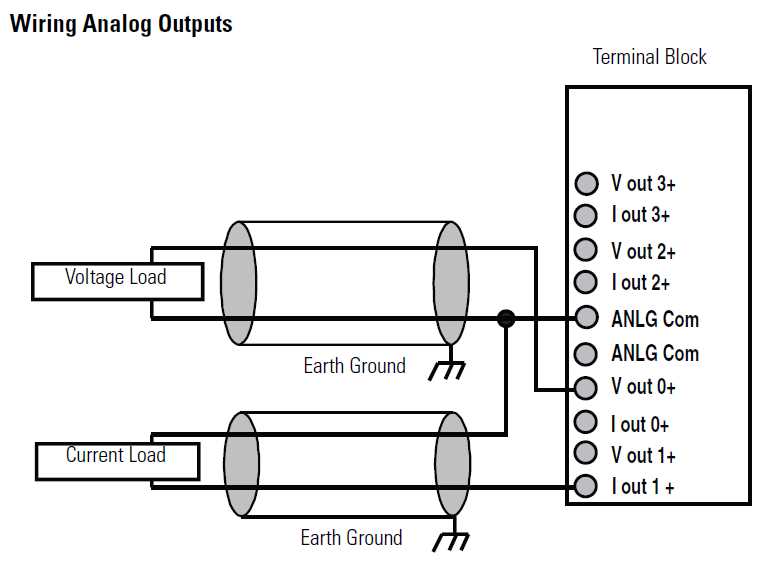

Set the module’s jumper (JP1) based on voltage/current mode. Default positions yield 0–10V or 4–20mA outputs. Incorrect settings register as out-of-range errors in the PLC logic.
Test each channel with a multimeter before integrating into the process control loop. For 4–20mA outputs, simulate a 500Ω load resistor to confirm linearity. Deviations beyond ±0.5% indicate calibration needs or wiring defects.
Connecting Allen-Bradley 16-Channel Output Module: Field Instructions
Begin by verifying the module’s power requirements match your control system’s voltage. The 24VDC unit tolerates ±10% variation; exceeding this trips over-voltage protection. Wire the supply directly to terminals V+ (pin 1) and COM (pin 2) of the left-side connector using 1.5mm² copper conductors. Avoid daisy-chaining power from adjacent modules–each requires independent feeds to prevent ground loops.
- Channel assignment follows sequential pin layout: outputs 0–7 occupy pins 3–10, outputs 8–15 use pins 11–18 on the right-side terminal block.
- Load each channel individually–maximum current per channel caps at 1A continuous, 2A surge for 5ms. Exceeding triggers thermal shutdown.
- Common ground (COM) shares return path for all outputs; never connect inductive loads (e.g., relays, solenoids) without flyback diodes–reverse polarity damages internal MOSFETs.
Load-Side Precautions
For motor starters or contactors, wire a snubber circuit across the load: 0.1µF capacitor in series with 100Ω resistor, rated for 1.5× the control voltage. Skip this step for resistive loads under 50W. Test each channel with a 1kΩ resistor before attaching actual devices–measure output voltage at the terminal block; deviations over 0.5V indicate wiring faults or insufficient backplane current.
Document the termination schematic onsite: label each conductor with channel number, load type, and breaker reference. Attach a label to the module’s faceplate listing device tags and corresponding terminal numbers. Update this record after every modification–miswired channels cause unintended actuation and void warranty if undocumented changes are detected during troubleshooting.
Identifying Pinout Configuration for Allen-Bradley 16-Channel Output Module
Start by locating the terminal block on the front panel–each of the 16 channels corresponds to numbered screw terminals from 0 to 15. The first eight channels (0-7) occupy the left row, while channels 8-15 fill the right row, arranged vertically. Verify the module’s label for voltage ratings: 24V DC for sourcing outputs or 120V/240V AC for alternate configurations, as mismatch risks permanent damage.

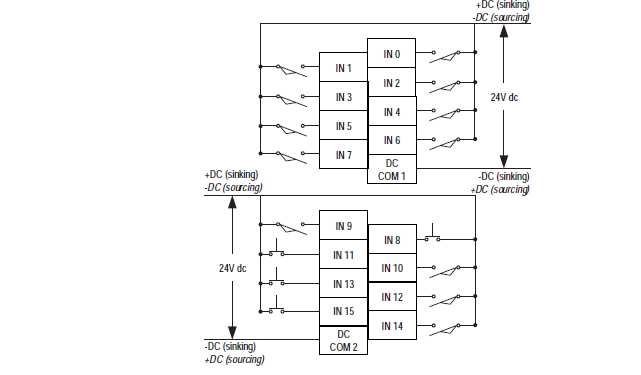

Use a multimeter in continuity mode to confirm common (COM) connections. For sinking setups, COM links to the positive supply; for sourcing, COM ties to ground. The terminal adjacent to each channel carries the return path–test resistance between the channel terminal and COM to exclude wiring faults before energizing. Manufacturer documentation specifies COM as either shared across all channels or split into dual banks for isolated circuits.
Interpreting Key Markings
The baseplate or module faceplate displays alignment notches and numeric indicators–channel 0 aligns with the top-left terminal, descending vertically. Polarity indicators (+/-) appear only on DC variants; AC modules omit these, relying on phase-neutral legibility. Double-check the module’s firmware revision via ControlFlash if outputs behave erratically–earlier versions lacked built-in diagnostics for shorted loads.
Isolated vs. non-isolated variants dictate grounding strategy: isolated modules tolerate individual COM floating; non-isolated require single-point grounding to avoid ground loops. The auxiliary 24V DC terminal (when present) serves as an internal power source for logic–never exceed 30mA draw or regulator failure occurs. Note: sinking configurations invert standard logic–ON states pull COM low, unlike sourcing where ON pushes voltage high.
For high-current applications (exceeding 1A per channel), consult derating curves in the specification sheet–ambient temperatures above 55°C mandate forced cooling or channel load reduction. Substitute solid-state outputs with electromechanical relays if inductive loads exceed 1,000 switching cycles; snubber circuits across coil terminals prevent back-EMF from frying contacts. Diagnostic LEDs adjacent to each channel blink patterns: steady on = active, two flashes = overcurrent, three flashes = open load.
Troubleshooting Obscure Failures
Swapped COM and channel terminals are the most frequent error–re-terminate strictly per row alignment. If diagnostics indicate overcurrent but no load is present, inspect for conductive debris between terminals or traces; clean with isopropyl alcohol and a non-metallic brush. For intermittent faults, swap the module with a known-good unit–ControlLogix chassis hot-swapping is permissible but risks corrupting tag data if performed outside scheduled downtime.
Factory defaults assume pull-down resistors for unused channels; omitting these invites false positives due to EMI. Shielded cable is non-negotiable for signals spanning >3 meters–connect shield only at the ground reference, never both ends. For AC configurations, use twisted pair with 12AWG minimum gauge to prevent voltage drop across long runs; DC variants tolerate 18AWG but mandate diode suppression on inductive loads.
Connecting AC and DC Outputs: Precise Circuit Assembly
Begin by isolating the power source–verify zero voltage on the supply lines before handling terminals. For 24V DC loads, link the module’s positive output to the device’s power input, ensuring a minimal gauge of 18 AWG for currents under 5A; use 14 AWG or thicker for higher amperage. Ground the negative return directly to the module’s designated terminal, avoiding daisy-chaining grounds between outputs to prevent voltage drops. For 120V/230V AC loads, confirm the module’s voltage rating matches the local grid; wire the hot leg to the load’s input via a disconnect switch (minimum 20A for inductive loads like relays or motors), and connect the neutral to the load’s return. Use crimp connectors or soldered joints with heat-shrink tubing for stranded wires to eliminate oxidation risks.
- Safety checks: Test each connection with a multimeter–DC outputs should read ±0.5V of rated voltage; AC outputs must show full line voltage (e.g., 120V ±5%).
- Load-specific adjustments:
- Resistive loads (heaters, lamps): Add a snubber (0.1µF capacitor + 100Ω resistor) across AC terminals to suppress arcs.
- Inductive loads (solenoids, contactors): Install flyback diodes (1N4007) for DC, or MOVs (130VAC-rated) for AC to clamp transients.
- Capacitive loads: Insert a 1A fast-blow fuse upstream to prevent inrush currents from tripping internal protection.
- Termination: Secure all lugs with torque wrenches–12–15 lb-in for 18–14 AWG, 20–25 lb-in for 12 AWG and thicker; untightened connections cause thermal runaway.
- Validation: With the system powered, monitor the module’s diagnostic LEDs–solid green indicates healthy operation, while blinking red requires immediate disconnection and re-inspection of the circuit.
Common Mistakes in Connecting Discrete Output Modules
Reverse polarity on sourcing outputs causes immediate channel failure–verify terminal polarity against the device datasheet before energizing any load. Mixing AC and DC supplies on adjacent channels leads to erratic behavior; group voltage types strictly and label terminals to prevent cross-connection. Skipping load rating checks risks overheating; calculate inrush currents for inductive loads and match fuses accordingly.
| Mistake | Symptom | Prevention |
|---|---|---|
| Floating common on sinking outputs | No output activation | Connect common to ground or negative rail |
| Shared power source for high-current loads | Voltage sag, false trips | Dedicate separate supply for currents > 0.5 A |
| Missing snubber circuits on relay coils | Contact arcing, premature wear | Install RC snubbers across coil terminals |
Field-Wiring Errors
Tighten terminal screws to 0.5 Nm–loose connections create hotspots; use torque screwdriver to avoid striping. Avoid daisy-chaining signal wires; run individual conductors from each output to its load to minimize voltage drop. Route high-voltage wires separately from low-level signals using shielded cable or physical separation to prevent induced noise.
Calculating Conductor Size and Potential Loss in Extended Circuits
To minimize voltage reduction in lengthy installations, use the formula: Vdrop = (2 × L × I × R) / 1000, where:
- L = one-way length in meters (e.g., 150m for a 300m total run),
- I = current in amperes (e.g., 10A for a 2.4kW load at 240V),
- R = resistance per kilometer (Ω/km) from standard tables (e.g., 0.321Ω/km for 6mm² copper).
For 10A through 6mm² copper over 150m, expect ~0.96V drop (≈0.4% of 240V). Adjust conductor thickness if exceeding 3% total drop.
Copper remains the optimal choice for most industrial applications due to its superior conductivity–approximately 58 S/m (Siemens per meter). For aluminum (35 S/m), increase cross-sectional area by 56% to match copper performance in equivalent conditions. Example: Replace 6mm² copper with 9.3mm² aluminum. Verify mechanical constraints–aluminum’s lower tensile strength may limit use in rigid conduit systems over 50mm².
Reference NEC Table 9 and IEC 60228 for conductor resistance values. Key excerpts:
| Size (mm²) | Copper (Ω/km) | Aluminum (Ω/km) |
|---|---|---|
| 2.5 | 7.41 | 12.2 |
| 4 | 4.61 | 7.57 |
| 6 | 3.08 | 5.05 |
| 10 | 1.83 | 3.02 |
| 16 | 1.15 | 1.89 |
Ambient temperature impacts resistance: Apply correction factors (k = 1 + 0.00393 × (T – 20)), where T = temperature in °C. For 40°C, k = 1.078–resistance increases by 7.8%.
For DC systems, halve the calculated drop–only one conductor carries current. AC circuits require accounting for reactance (X) if cable length exceeds 50m and frequency surpasses 50Hz. Use Vdrop = I × (R × cosφ + X × sinφ) × L. Typical X for 6mm² copper in PVC conduit: 0.08Ω/km. Factor this into 400V 50Hz systems where cosφ ≈ 0.8, adding ~8% to the resistive drop.
Termination quality critically affects real-world performance. For conductors ≥10mm², use compression lugs with contact resistance ≤10µΩ (verified via micro-ohmmeter). Bolts must torque to manufacturer specifications: 12–15Nm for M8 terminals (e.g., 10mm² lugs). Loose connections multiply resistance exponentially–an M8 terminal at 5Nm exhibits 3× higher resistance than one at 12Nm, potentially doubling the effective circuit length.
