Complete Axxess Interface Wiring Guide with Schematic Connections
Start with the harness labeled for your specific car model–color codes vary between manufacturers, but the pinout structure remains consistent for most aftermarket setups. Use a multimeter to verify continuity between the adapter’s 12V constant lead (typically red) and ground (black) before attaching to the car’s fuse box. Incorrect voltage readings here will damage the module.
Identify the parking brake and reverse signal inputs on the integration module–mistakes here will trigger error codes or disable safety alerts. For Ford systems, splice the gray wire with a 1k-ohm resistor to simulate a grounded circuit; Toyota models often require a direct 12V input from the brake switch.
Connect the data bus line (yellow on GM, violet on Chrysler) only after ensuring the vehicle’s CAN network is inactive–failure to do so corrupts the factory control module. Use soldered joints with heat shrink tubing for long-term reliability; butt connectors degrade under vibration and temperature swings.
Test each function–window controls, steering wheel audio buttons, and backup camera activation–before finalizing connections. If the display flashes or inputs lag, recheck grounds and data line resistance; instability often traces back to poor grounding or a missing termination resistor.
For OEM-specific adapters, reference the pin assignment sheet included with the kit–do not rely on generic diagrams. Deviating from the exact pinout for your trim level risks permanent module failure or unsafe vehicle behavior.

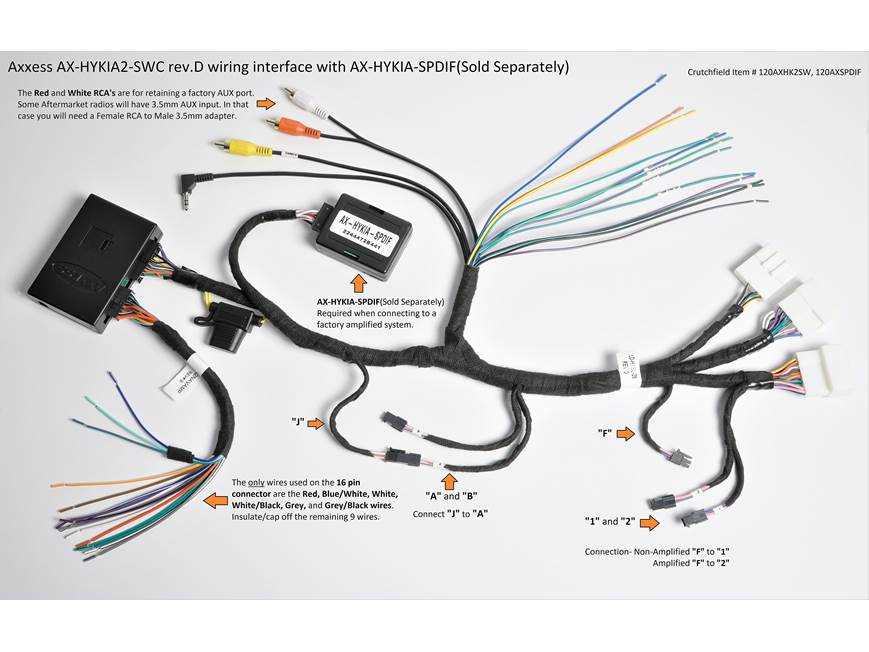

Connecting Aftermarket Audio Integration Adapters
Begin by matching the color-coded harness pins to the vehicle’s factory speaker outputs–typically purple for front right, gray for front left, dark blue for rear right, and tan for rear left. Verify voltage ranges for each channel: most adapters handle 1-4V RMS, but high-power OEM systems may require signal attenuation with inline resistors (220Ω–470Ω). Ground the adapter’s brown wire directly to the chassis near the stereo unit using a 10-gauge ring terminal; avoid shared grounds with relays or motors to prevent interference.
For trouble-free installation:
- Strip 8mm of insulation from adapter wires and crimp to vehicle leads using 18-20AWG butt connectors; heat-shrink tubing prevents corrosion.
- Route RCA cables away from ignition coils, alternators, and power cables by at least 15cm to minimize noise.
- Test continuity with a multimeter before securing connections–ohm readings should match factory specs (±5%).
- Secure excess wiring with nylon zip ties spaced no more than 10cm apart to avoid strain on connectors.
- Use a 3A fuse on the red power wire within 15cm of the vehicle battery.
Key Wire Color Codes and Pin Functions for Vehicle Integration Modules
Always verify the ground wire first–typically a solid black or black-striped conductor (pin 12 on most harness setups). This ensures stable signal transmission and prevents intermittent failures in bypass or data-link connections. For 12V constant power, look for a yellow wire (pin 4), which must be connected directly to the battery via a 10A fuse to avoid voltage drops during accessory operation.
Common Connector Pin Assignments
Pin 1 (red/white) carries ignition-switched power, critical for retaining memory in aftermarket components. Pin 2 (green) links to vehicle speed sensors, enabling features like speed-dependent volume adjustments. Pins 6 (blue) and 7 (pink) handle left/right speaker outputs, respectively; wire gauge here should match OEM specifications (usually 18-20 AWG) to maintain audio fidelity.
For CAN bus modules, pin 14 (purple) transmits serial data, requiring shielded twisted-pair wiring to prevent interference from high-current circuits like starter motors or alternators. Pin 8 (orange/white) often serves as a parking brake signal–route it through a relay if integrating with systems needing e-brake confirmation to meet safety compliance.

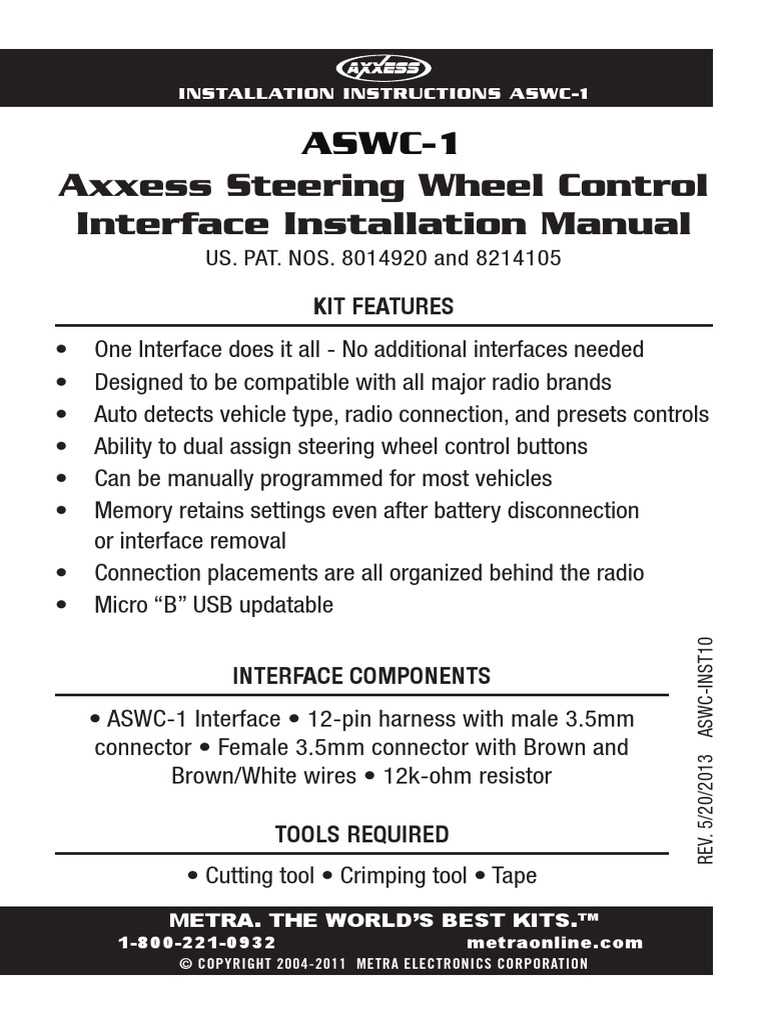

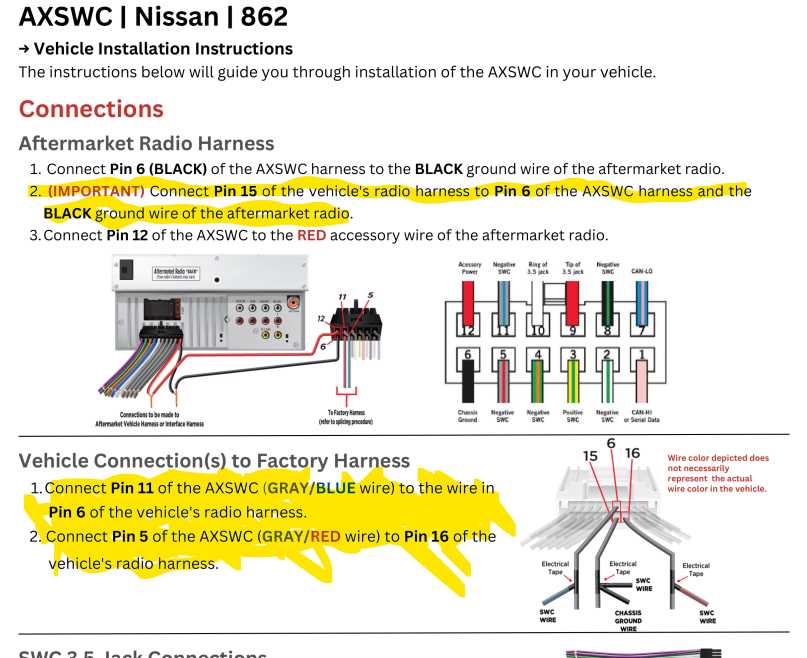

How to Install the ASWC-1 Steering Wheel Control Adapter
Disconnect the vehicle’s negative battery terminal before beginning installation to prevent electrical shorts. Locate the radio’s harness behind the dashboard–typically a 16-pin ISO connector or a manufacturer-specific plug. Identify the wires for power, ground, and audio inputs by referencing the vehicle’s service manual or using a multimeter to test continuity. The ASWC-1 adapter includes a labeled harness; match its wires to the corresponding vehicle circuits:
- Power (12V): Connect to a constant 12V source (e.g., ignition-switched or battery line).
- Ground: Attach to a clean, unpainted metal surface or the existing ground wire.
- Data Lines: Link the adapter’s SWC input to the steering wheel control wire–often a single signal wire or a resistive network. Use a voltmeter to confirm the correct wire by measuring resistance when pressing buttons.
- Output to Radio: Plug the adapter’s output into the radio’s SWC input port (check the radio’s pinout for the correct pin).
Reconnect the battery and turn the ignition to auxiliary mode. The ASWC-1 should power on (indicated by an LED). Press steering wheel buttons one at a time while observing the adapter’s response–some vehicles require initial calibration. If controls don’t register, recheck connections for loose wires or misaligned polarity. Secure all splices with solder and heat-shrink tubing, then reassemble the dashboard panels. Test all functions, including volume, track skip, and voice commands, before finalizing installation.

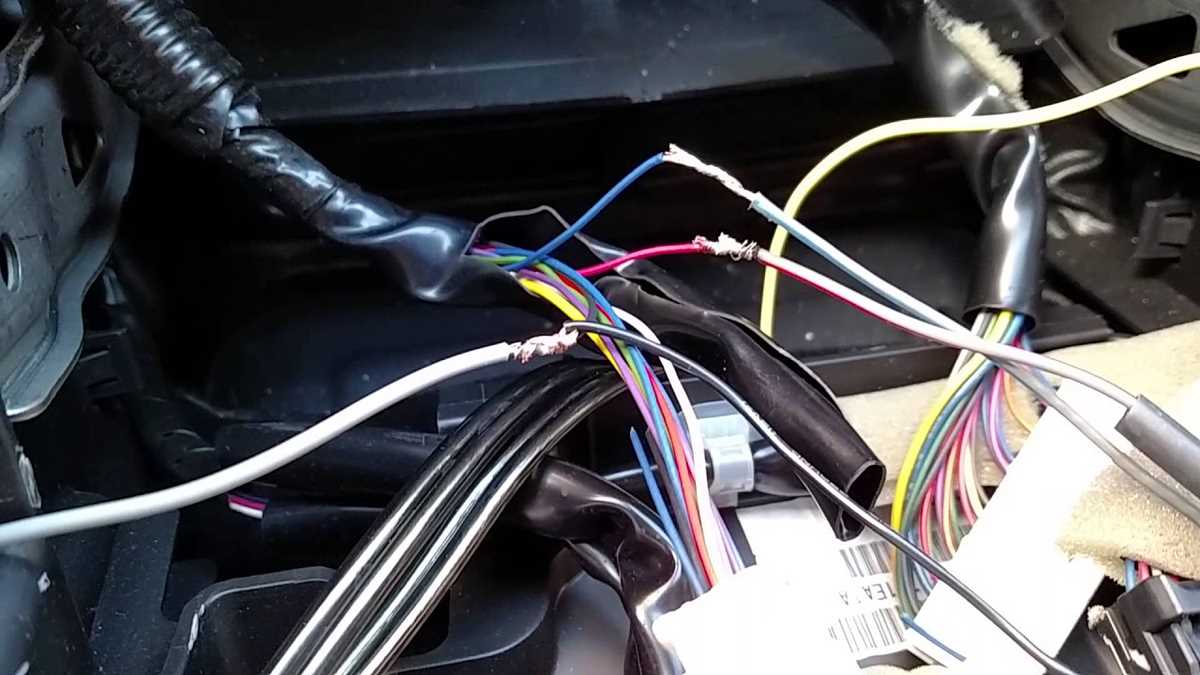

Diagnosing Frequent Connection Faults in Aftermarket Integration Kits
First, verify continuity on the 12V constant, ignition-switched, and accessory leads using a multimeter. Set the meter to DC voltage mode and probe the harness pins against chassis ground. A reading below 11.5V indicates a broken link, corroded terminal, or improper fuse rating–common on Ford CAN systems where the ignition wire draws
Signal Noise and Intermittent Failures
Isolate CAN bus interference by unplugging all peripheral modules before reattaching the integration kit. If the issue resolves, reconnect each device sequentially while monitoring for error codes via OBD-II scanner. Pay attention to the termination resistor values: a properly balanced network should measure approximately 60 ohms between CAN High and CAN Low. Values outside 55-65 ohms suggest missing resistors–required on GM platforms when splicing into factory harnesses.
| Symptom | Likely Cause | Verification Step |
|---|---|---|
| Radio powers off during crank | Ignition wire connected to incorrect circuit | Back-probe fuse box with ignition on; look for 12V drop at starter relay |
| Steering wheel controls erratic | High-resistance joint on LIN data line | Check voltage at module connector; expect 7-8V on Ford, 10-12V on Toyota |
| USB ports non-functional | Reversed polarity on power feed | Polarity-test ground and 5V lines; Samsung USB harnesses tolerate reverse for |
For loose connections, crimp new female terminals using a 0.5-1.0mm² butt splice after trimming back the insulation 5mm. Avoid soldering factory Japanese harnesses–heat weakens the stranded copper, causing micro-fractures within 18 months. Instead, use a ratcheting crimper with AMP SuperSeal connectors for sub-1.0mm² wires, ensuring 100% insertion depth before closing the latch.
Essential Gear and Protective Measures for Circuit Integration Tasks
Start with a multimeter rated for automotive voltage ranges (0–20V DC) to verify connectivity and detect faults. Choose models with audible continuity checks to streamline troubleshooting. Avoid cheap alternatives lacking overload protection–they risk damaging components or giving false readings.
Use crimping pliers with replaceable dies for insulated terminals (e.g., red, blue, yellow). Ensure jaws match wire gauge; mismatches create weak joints prone to corrosion. Heat-shrink tubing should be polyolefin (not PVC) for lasting adhesion and resistance to engine heat.
Strip wires with a precision cutter, leaving 2–3mm of exposed conductor. Twist strands clockwise before inserting into connectors to prevent fraying. Test pull strength (minimum 5 lbs) on every joint–loose connections cause intermittent failures.
Critical Safety Protocols
Disconnect the battery’s negative terminal first, then positive, to prevent short circuits. Verify circuit de-energization by probing with a multimeter (voltage >0.1V indicates residual current). Wear ANSI-rated gloves (Class 0) for static-sensitive components like ECM modules.
Work in well-ventilated areas when soldering–lead-free flux still emits irritants. A fume extractor with HEPA filter reduces exposure to particulate matter. Keep a fire blanket and Class C extinguisher nearby for soldering mishaps.
Label all cables with heat-resistant tags (polyimide or Kapton) to track circuits during reassembly. Store connectors in anti-static bags if pauses exceed 30 minutes. Avoid working on wet surfaces; use a rubber mat to prevent ground faults.
Double-check polarity before powering up. Miswired circuits can destroy sensors and control units–some failures aren’t reversible. Reconnect the battery’s positive terminal first, then negative, to minimize arcing.
For high-amperage circuits (e.g., starter relays), use fuse taps no smaller than the existing fuse size. Bypass cheap inline fuses (glass type)–they lack thermal overload protection. Document all changes in a schematic annotated with wire colors and pin locations for future diagnostics.
