Complete Wiring Schematic for 1946 Chevrolet Truck Restoration Guide

Start by locating the original harness routing under the dashboard and along the firewall. Key connection points include the headlight switch, ammeter, ignition coil, and starter solenoid. Mark each wire with masking tape before disconnecting anything–this vintage model uses cloth-insulated wiring with unique color-coding: light green (battery), dark green (accessories), yellow (ignition), and black/white stripe (ground). Replace only damaged sections, splicing with heat-shrink connectors rated for 30-amp circuits.

The fuse block mounts on the driver’s side inner fender, containing three 10-amp glass fuses. Verify continuity across each terminal–the instrument cluster power feed relies on the #2 fuse. If gauges flicker, inspect the voltage regulator connections at the generator (red wire to “ARM,” black to “F”). For charging issues, test the cutout relay (mounted near the generator) by bridging the “BATT” and “GEN” terminals with the engine running–voltage should stabilize at 7.2–7.8 volts.

Trace the tail light circuit from the main junction block beneath the bed. The left rear light uses a brown/dark blue stripe wire, while the right relies on solid brown. Brake lights share the same feed–confirm the stop light switch under the pedal activates both circuits simultaneously. For trailer wiring, install a separate 4-way flat connector, tapping into the brake/signal wires before they enter the rear light assemblies. Use dielectric grease on all connections to prevent corrosion.

For intermittent stalls, focus on the ignition resistor (mounted on the firewall). The 1.8-ohm ceramic unit often fails–test with a multimeter in ohms mode (proper reading: 1.6–2.0Ω). If outside this range, replace with a modern external ballast resistor (mounted away from heat sources). The distributor primary lead (black wire from coil “-“) must connect directly to the resistor’s output terminal–any additional splices cause voltage drop.

Final checks: Ensure all starter motor connections use 1/0 gauge cable between battery and solenoid. The horn circuit (powered through the headlight switch) requires a 12-volt relay for modern horns–wire it between the purple horn wire and ground. Label all wires before reassembly, photographing each step for reference.

Restoring Vintage Fleetline Electrical Systems: Key Schematics

Begin with the fusible link between the battery and starter solenoid–replace any corroded 10-gauge wire with modern THHN copper to prevent voltage drop. The original cloth-wrapped harness often hides brittle connections near the firewall bulkhead; use a heat gun at 250°F to soften insulation before stripping wires to avoid fracturing strands.

Trace the headlight circuit first–Series 3100 models route power through a double-contact dimmer switch mounted on the steering column. If beams flicker, bypass the switch temporarily with 16-gauge jumper leads to isolate whether the fault lies in the switch or the circuit’s ground at the left front fender. Original grounding points, marked on factory schematics with concentric circles, frequently corrode; scrape paint and attach a 3/8″ star washer for reliable contact.

For the ignition system, note the 6-volt coil’s polarity–positive grounding was standard, but later reconstructions sometimes flip this. A multimeter should read 4.8-5.2 volts at the coil’s “+” terminal with the key in the “ON” position. If voltage is low, inspect the resistance wire (0.5 ohms) between the ignition switch and coil, often overlooked as it resembles a regular lead.

Instrument Panel and Accessory Circuits

• Ammeter cluster bypasses the voltage regulator–verify with an ammeter shunted across “BAT” and “GEN” terminals at the regulator; readings should mirror battery drain during starting.
• Temperature and fuel senders share a common 6-volt feed; disconnect the sending units before testing with a 12-volt test lamp to avoid damaging original gauges calibrated for lower voltage.
• Brake light circuit integrates with the taillight harness–use a dedicated 8-gauge lead from the brake switch to the rear junction block to prevent combined-load failures.

Radio interference filters, if equipped, consist of a single 0.5 microfarad capacitor tied to the antenna lead and a choke coil inline with the power feed. Remove these components during initial restoration–they mask underlying harness issues. Replace with modern suppression kits rated for 10 ampere circuits if adding aftermarket audio.

Final continuity checks should include the horn relay–originals use a three-terminal configuration. Energize the relay coil with a 6-volt source; listen for a distinct click before probing relay contacts with a continuity tester. If contacts fail to close, disassemble the relay and polish contacts with a fiberglass pen, avoiding sandpaper which can embed conductive debris.

Finding Key Elements of the Factory Harness in Early Advance-Design Models

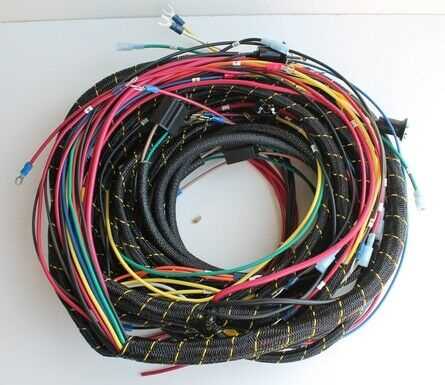

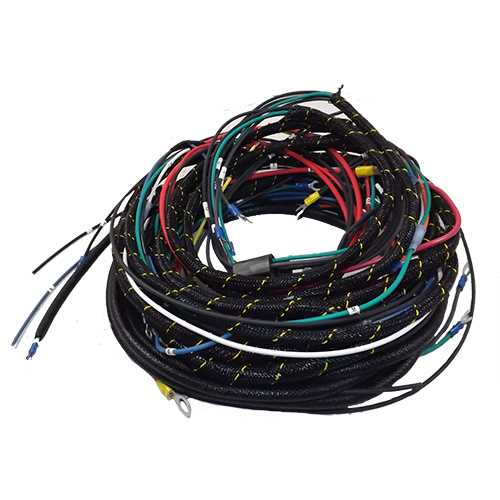

Begin by identifying the bulkhead connector near the firewall–commonly positioned left of the steering column where the main loom exits the cab. This junction splits into three primary branches: the engine bay run (thickest, sheathed in braided cloth), the instrument panel feed (thinner, terminating at the dash grommet), and the tail section (flat, ribbon-like, bundled with cloth ties). Remove the glovebox liner to expose the fusible links; the original harness will have either a soldered or spade-terminal connection here, unlike modern replacements that use crimped connectors. Check for factory-molded sleeves where wires pass through metal panels–authentic looms use wax-impregnated cloth tubes, while reproductions often substitute vinyl or heat-shrink.

• Trace the ignition sub-harness from the voltage regulator to the coil; original units have a molded elbow at the firewall grommet, not a straight pass-through.
• Inspect the lighting circuits: genuine looms route headlight wires via a dedicated conduit under the battery tray, not loosely along the frame rail.
• Locate the ammeter shunt–originally mounted on the firewall with a copper strap, not bolted to the regulator base as in later reproductions.
• Examine ground points: factory grounds use a flat, tinned copper lug crimped to a single strand of wire, then soldered–not the twisted strands and crimp-style terminals found in modern kits.

Preservation often hides beneath surface dirt; use a soft brass-bristle brush on connectors to reveal manufacturer markings or date codes stamped into the metal eyelets. The taillight and brake switch wires will show natural-fiber insulation (cotton or silk) under the outer cloth wrap–a definitive sign of authenticity. Avoid common missteps: reproduction harnesses frequently swap the thick black “main battery” lead (6-gauge) with the thinner gauge used for accessories, leading to voltage drop over long runs.

Step-by-Step Wire Color Coding for the 3100 Series Pickup

Begin by identifying the main harness cluster behind the instrument panel–locate the red wire with black tracer feeding the ignition coil; this is the primary power lead for the 6V system. Trace its path to the ammeter terminal marked “BAT”, ensuring no splices or corrosion exist, as resistance here will cause dim lights or erratic gauge behavior. Next, isolate the yellow wire with blue stripe running from the voltage regulator to the generator field terminal; this controls charging output, and incorrect routing risks overcharging the battery or damaging the regulator contacts.

Ground Circuit Verification

Attach a multimeter set to continuity mode between the black wire at the headlight switch housing and the pickup’s frame rail–readings above 0.1 ohms indicate a compromised ground requiring wire brushing or replacement of the chassis-to-cab ground strap. For tail lights, confirm the brown wire branches to both rear lamp assemblies without sharing a circuit with the brake light green wire; fault isolation simplifies troubleshooting later. Cross-reference any aftermarket modifications against the original Advance Design schematics–aftermarket radios or heaters often introduce unmarked gray or purple wires that disrupt original circuit integrity.

Common Fuse Box and Circuit Breaker Issues in Classic Pickups

Start by inspecting the fuse block for corrosion around terminals–often disguised as white or green oxidation on brass contacts. Remove each fuse and test continuity with a multimeter; readings above 0.5 ohms indicate resistance buildup, requiring sandpaper (400-grit) or a dedicated electrical contact cleaner. Replace glass fuses with ceramic versions if recurring failures occur: ceramic handles thermal expansion better, preventing cracking during voltage spikes typical in vintage electrical systems.

Hidden Troublespots

Check for melted solder at the circuit breaker mounting points; excessive heat from undersized gauge wires can soften joints, leading to intermittent failures. Strip and resolder connections using 60/40 rosin-core solder, then heat-shrink for insulation. Bypass original push-button circuit breakers with modern blade-style fuses (ATC type) if resetting becomes frequent–adapters exist that fit original panel cutouts while providing better surge protection.

Upgrading a Classic Pickup’s Electrical System for Contemporary Add-Ons

Begin by replacing the voltage regulator with a solid-state unit rated for 12V operation. The original electromechanical regulator introduces voltage spikes that can damage modern electronics; a $25 aftermarket regulator eliminates this risk while maintaining proper charging. Mount it near the alternator using 10-gauge wire for the excitation circuit and 8-gauge for the output to handle up to 80 amps.

Route a dedicated fuse block beneath the dashboard, fed directly from the battery’s positive terminal via 6-gauge cable. Use ATO blade fuses sized according to each accessory’s draw: 5A for LED lighting strips, 10A for an aftermarket stereo, and 20A for heated seats. Include a 100A main fuse in-line at the battery to protect the entire upgraded circuit. Ground each accessory to a single, clean chassis point adjacent to the block to prevent voltage drop.

Component Suitable Wire Gauge and Fuse Ratings

Accessory	Minimum Wire Gauge	Recommended Fuse Rating	Max Current (Amps)
LED headlights (dual)	14	15	12
Bluetooth stereo	16	10	8
Electric fan (14 inch)	12	30	25
USB charging ports (dual)	18	5	3
Winch solenoid	6	100	85

Solder all connections and cover them with adhesive-lined heat-shrink tubing to prevent corrosion. Avoid twisting wires around terminals; crimp using tinned copper butt connectors before soldering for added mechanical strength. For circuits longer than 10 feet–such as trailer wiring–add a relay near the load to minimize voltage loss.

Install a 2.1 mm barrel jack next to the fuse block for a trickle charger. Run 12-gauge wire back to the battery’s positive post through a 15A fuse. This allows off-season maintenance without draining the primary system. Label every wire with alphanumeric tags at both ends to simplify future troubleshooting.

Test each circuit with a multimeter before closing the dashboard. Verify voltage at the accessory plug matches battery voltage within 0.5V under load. If voltage drop exceeds 0.3V on any run, upsize the wire one gauge or shorten the route. Recheck grounds by measuring between the accessory’s negative terminal and chassis; readings should never exceed 0.1V.

Diagnostic Checklist Before Final Assembly

Complete these steps in order:

• Alternator output at idle – minimum 13.5V
• Fuse continuity – zero ohms across blades
• Relay click test – audible confirmation
• Ground integrity – chassis paint removed beneath ring terminals
• Accessory operation – functional trial
