Complete Wiring Schematic Guide for the 1953 Chevrolet Bel Air Models
Locate the correct wiring map for a mid-century American coupe before disassembling any components. Factory-issued manuals from GM’s truck and passenger car division remain the most reliable source, but reproductions from Smithsonian Motor Works or Ross Tech Reproductions offer cleaner diagrams with updated terminal identifications. Prioritize sheets printed on mylar or archival-grade paper–standard bond copies fade and crack under engine bay heat.
Identify fuse block connections first. The 10-circuit block beneath the dash routes power through color-coded leads: solid red delivers 12V ignition, yellow with a tracer carries headlamp feed, while dark green handles brake lights. Trace each wire from its origin at the firewall grommet to its termination–resist the temptation to rely on memory, as aftermarket relay harnesses often reroute ground paths.

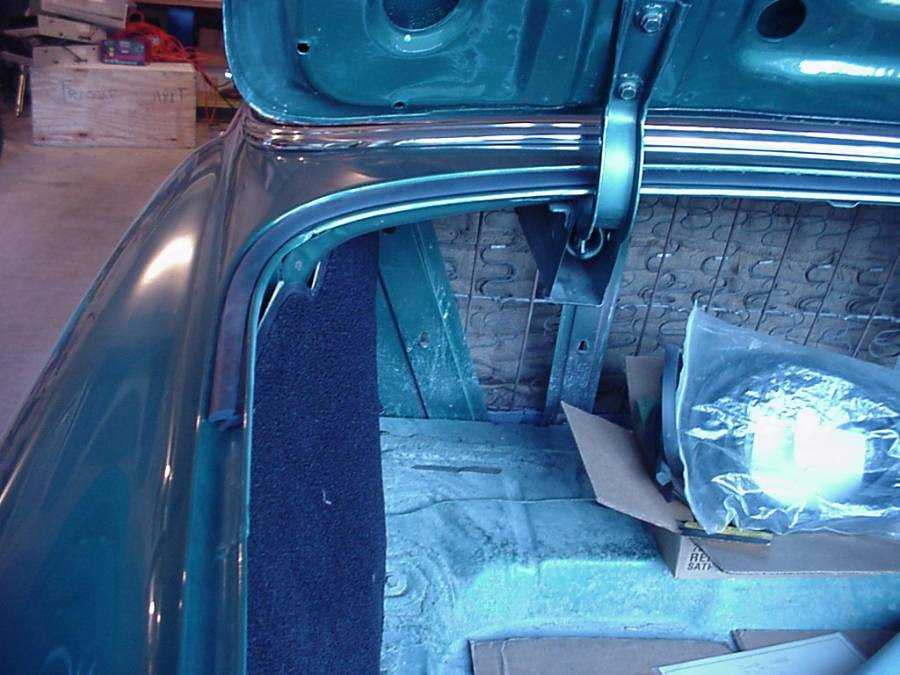

Focus on problematic runs. The trunk-mounted taillight harness commonly suffers from corroded terminals; replace push-in connectors with Weather-Pack sealed pins. Dashboard gauges use thin stranded wires prone to brittleness–test continuity with a Fluke 87V on the 200 ohm scale before reassembly. For turn signals, verify the flasher relay under the steering column operates at 60-80 flashes per minute; deviations indicate worn contacts or incorrect fuse amperage.
Ground points demand particular attention. Body ground straps beneath the driver’s seat and frame rails corrode invisibly–sand to bare metal and apply CRC Battery Terminal Protector. Ignition switch failures typically stem from worn wafer springs; replace the entire unit rather than attempting to service individual contacts.
Document every modification. Use a Brother P-touch label maker to tag newly crimped connections and photograph each assembly step with a macro lens under diffused light. Keep schematics near the workbench in a zip-lock bag with silica gel packets to prevent moisture damage.
Classic Tri-Five Electrical Layout: Hands-On Reference

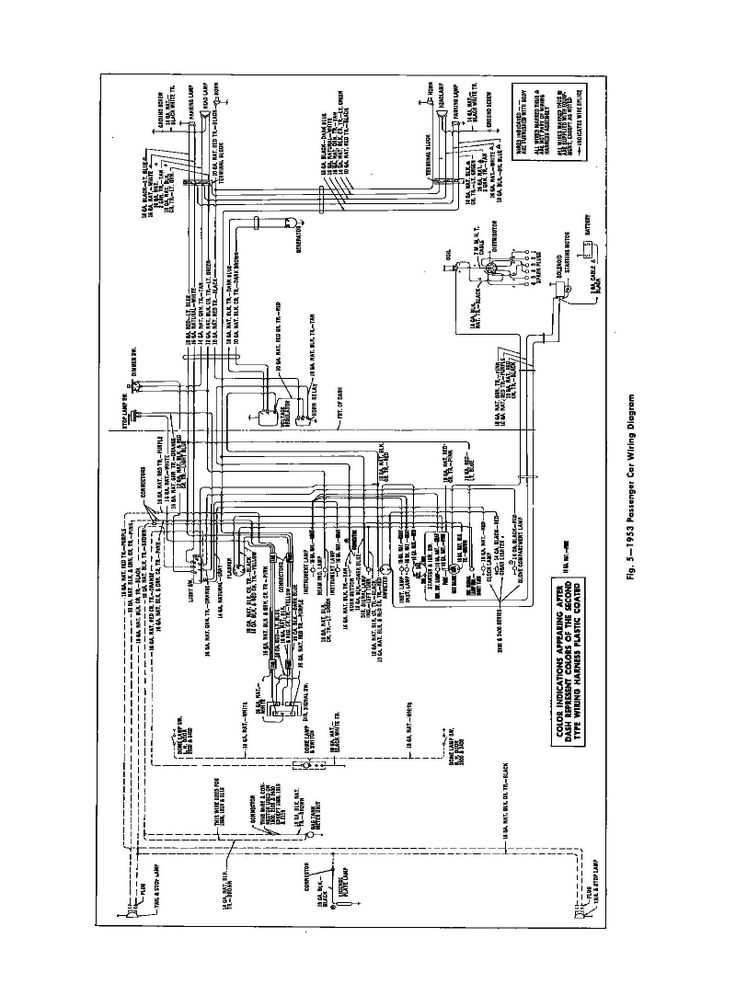

Start by acquiring a factory-approved schematic from the GM Heritage Center–document PN 9892249 covers ignition, lighting, and charging circuits on a single sheet. Trace the main harness loom along the driver-side inner fender; the 10-gauge red cable runs from the battery positive terminal to the starter solenoid, then splits into two 12-gauge branches–one delivers power to the ammeter, the other feeds the fuse block under the dash.
Replace the original cloth-covered wires with new 600V-rated cross-linked polyethylene conductors, sized as follows:
- Battery-to-starter: 10 AWG
- Headlamp circuits: 14 AWG
- Tail and marker lamps: 16 AWG
- Instrument cluster: 18 AWG
Crimp terminals with a Mil-Spec ratcheting tool; solder each joint and insulate with heat-shrink tubing rated to 125 °C minimum.
Troubleshooting Critical Circuits
Use a digital multimeter with a 1 kΩ load resistor to verify continuity on the generator regulator network–the voltage stabilizer should hold 7.2 V ±0.2 V at 1 500 rpm. If readings fluctuate, clean the adjustable resistor contact points with 600-grit emery cloth; re-adjust the cutout relay to open at 7.0 V and close at 6.3 V. For intermittent headlamp failures, inspect the two-position dimmer switch on the transmission tunnel; bypass corroded contacts with a modern 15 A relay triggered by the original switch.
Label every connection with heat-shrink sleeves printed in white block letters; include wire gauge, circuit designation, and destination–for example “14 RED-LT BATT TO FUSE #2.” Mount a weatherproof junction box at the firewall with numbered female spade terminals; run each circuit through individual 15 A MAXI fuses before distributing to accessories. Store the original harness schematic inside a Ziploc bag beneath the seat for future reference.
Reliable Sources for Electrical Schematics of the Classic ’53 Tri-Five Model
Factory service manuals remain the gold standard. The original Chevrolet Passenger Car Shop Manual released by GM for the 1950-1954 series includes exact circuit layouts for each trim package–turn signals, gauges, and starter circuits. Copies can be found through reputable automotive literature dealers like Helm Inc. or Motorbooks International, which reprint these guides with OEM accuracy.
Specialized restoration suppliers such as Eckler’s, Classic Industries, and RockAuto offer reproduction wiring harnesses with included schematics. Their catalogs detail wire colors, terminal types, and exact routing paths, matching original factory specifications. The diagrams often come printed on durable paper for garage reference.
Online forums like Tri-Five International and the Chevy Talk Forum host downloadable archives where members upload scanned OEM pages or hand-drawn wire maps. Experienced restorers frequently verify these against physical harness connections during tear-downs. Look for threads marked “verified” for confirmed accuracy.
Local car clubs often maintain physical libraries of vintage manuals. The National Tri-Five Club chapters, for instance, lend out original GM factory supplements covering fusebox layouts, horn relay placements, and dash wiring. Contact coordinators through their website to schedule visits or request scanned pages.
Discord servers dedicated to classic GM models regularly share clean schematic images via direct file uploads. Search for groups using keywords like “1950s Chevrolet restoration”–active channels include high-resolution photos of original diagrams with corrections annotated by electricians.
The Automotive Manuals database provides pay-per-download copies of official wiring diagrams extracted from microfiche archives. Their files show every connection point, including rare options like power seats or under-dash heater controls, often omitted in aftermarket guides.
Decoding Color Traces in a Classic Tri-Five Electrical Layout
Begin by identifying the main power feed at the firewall grommet–trace the black wire with a red stripe (BK/R) from the battery-positive terminal to the fuse block. This 10-gauge conductor carries unregulated voltage; confirm continuity before proceeding. Secondary circuits, like the ignition coil (yellow/BK), branch from the fuse block’s “BAT” terminal. Use a multimeter set to 20V DC to verify 12.6V at the coil’s positive terminal with the key in the “ON” position. Lower readings indicate corrosion at the terminal block or a compromised inline fuse holder beneath the dash.

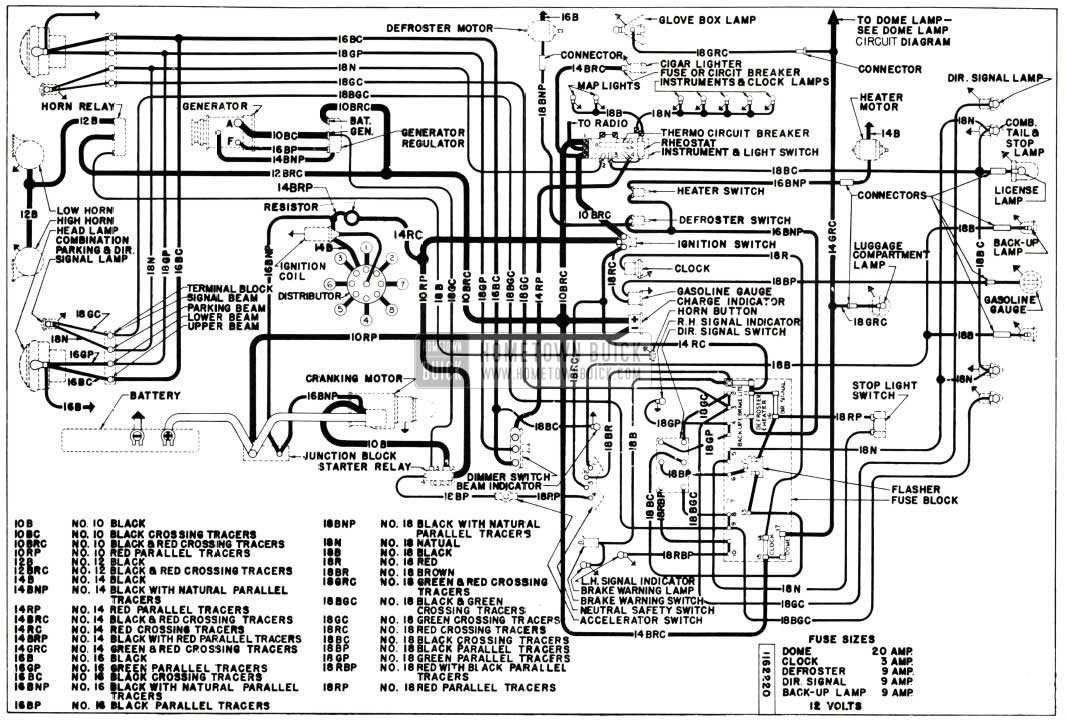

| Circuit | Primary Color | Stripe | Gauge | Critical Junction |
|---|---|---|---|---|
| Headlamp low beam | Light green | Black | 14 | Dimmer switch “L” terminal |
| Tail lamp | Brown | White | 16 | Body harness quick-connect near trunk |
| Turn signal (front) | Dark green | White | 16 | Steering column flasher relay |
For the instrument cluster, follow the pink/LT blue wire from ignition switch terminal “IGN” to the back of the ammeter. Split here: one path powers the fuel gauge sender unit (8-ohm resistance at full), the other routes to the voltage regulator via a 12-gauge pink wire. If gauges fluctuate, bypass the printed circuit board with a jumper wire from the sender input to the gauge terminal–factory boards often corrode at solder joints. Ground returns converge at a single braided strap bolted to the firewall; clean mating surfaces with 320-grit emery cloth and apply dielectric grease to prevent oxidation.
Key Electrical Components and Their Connection Points
Trace the ignition coil’s primary lead to the distributor’s terminal using gauge-12 wire–avoid splicing thinner strands, as resistance spikes under 9V tests will fry contacts. The coil’s secondary output attaches directly to the distributor cap’s central post via a silicone-insulated cable; verify tightness with a torque wrench (8 in-lbs) to prevent arcing. Five-prong relays under the dashboard control the headlight circuit–pins 85 and 86 activate the solenoid, while 30 and 87 route 12V to the sealed-beam units. Label each connector with heat-shrink tubing before disassembly to prevent cross-wiring when reinstalling.
- Battery terminal: Corrosion-resistant clamps (tin-plated) on the positive (+) post require weekly cleaning with a wire brush; apply dielectric grease after reconnecting to block sulfation. Negative (-) ground straps connect to the engine block–use star washers under bolts to ensure
- Generator: Field terminal (F) wires to the voltage regulator’s F post via AWG-10 wire; output (A) connects to the battery’s + post through a fusible link (60A max). Test regulator output at idle (13.8–14.5V); variances outside this range indicate worn brushes or loose rotor slip rings.
- Starter solenoid: S terminal receives 12V from the ignition switch via a red climate-resistant wire; I (ignition) terminal bridges to the coil’s primary input. Replace solenoid if clicking occurs without engaging–the Bendix drive’s teeth may be stripped.
- Lighting circuits: Tail lamps share a common ground (single black wire) to the chassis; frayed insulation near the rear valence causes intermittent shorts. Brake lights use a dual-filament bulb–test continuity with a multimeter to confirm separate circuits (30Ω for stop mode, 60Ω for running lights).
Fusible links (4-6 gauge) between the battery and fuse block handle surges–never substitute with standard fuses, as they lack thermal cutoff protection. The instrument cluster’s ammeter mirrors the generator’s output; if needle pegs left, check for reversed battery connections or shorted alternator diode plates. Voltage drops exceeding 0.5V across any switch or connection point signal loose terminals–reflow solder joints with rosin core, then encase in adhesive-lined heat shrink to repel moisture. For rear window defroster grids, solder broken traces with silver-bearing alloy (melting point: 179°C) and insulate with Kapton tape to prevent future oxidation.
